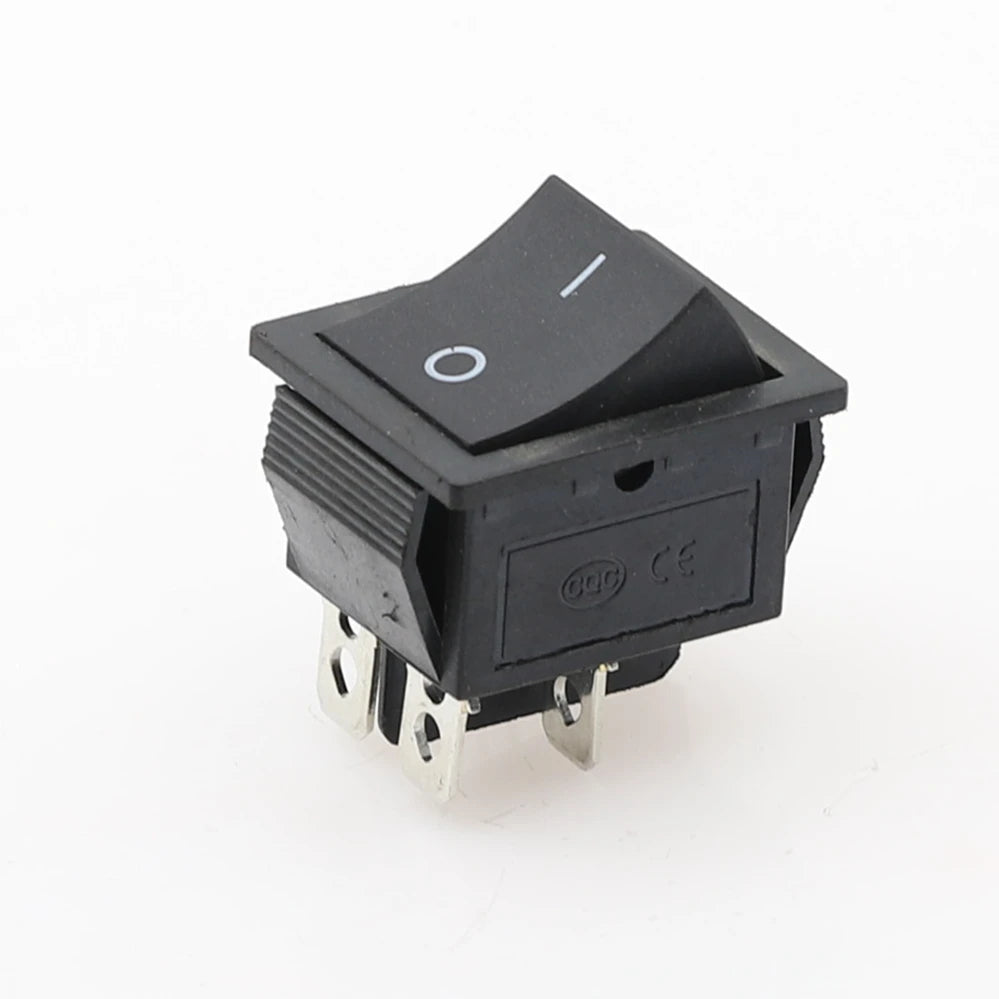

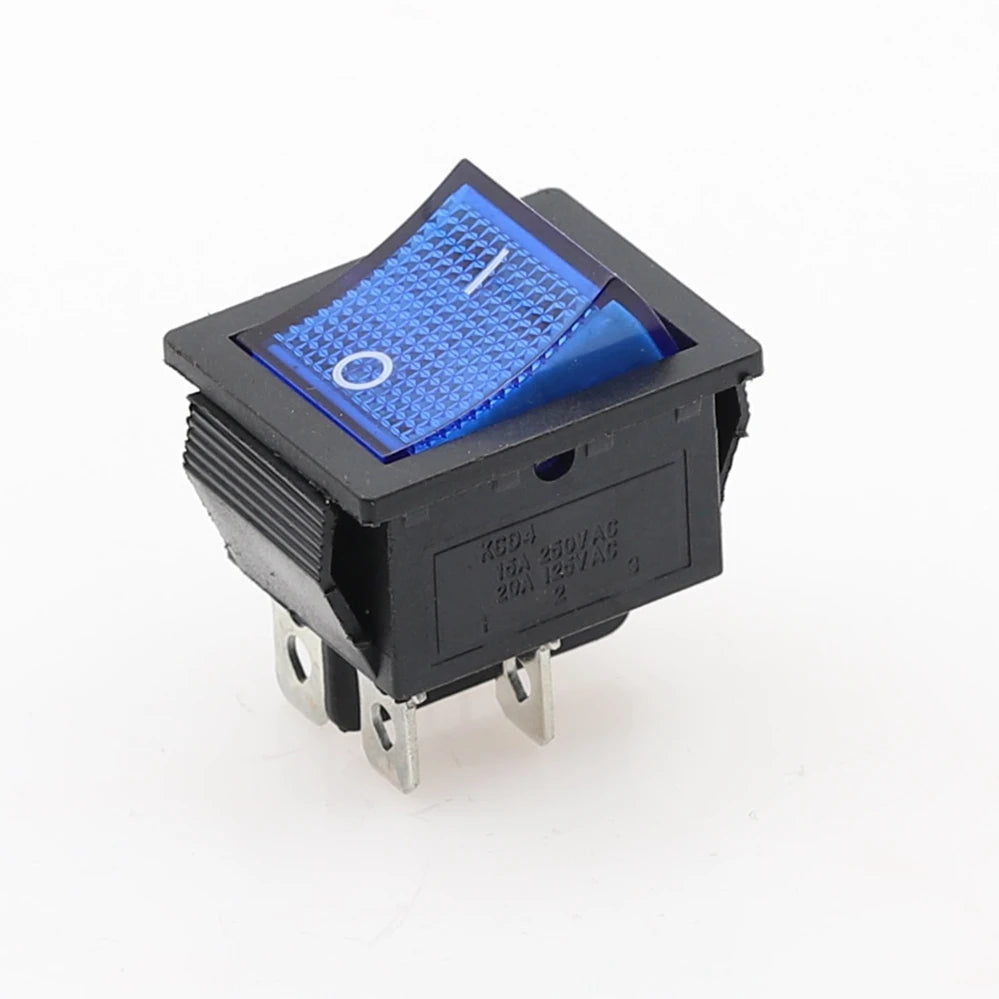

KCD4 Latching Rocker Switch 4/6 Pin with Light 16A 250V

KCD4 Latching Rocker Switch – I/O Power Switch with Built-In Indicator Light

Upgrade your electrical projects with this reliable KCD4 Latching Rocker Switch. Featuring a classic I/O (On/Off) two-position latching action, this switch stays in position once toggled — no need to hold it down. The built-in indicator light makes it easy to see the switch status at a glance, making it ideal for control panels, power tools, appliances, DIY electronics, and workshop equipment.

Available in 4-pin (4P) and 6-pin configurations with DPST (Double Pole Single Throw) wiring, this switch is engineered for versatility across a wide range of AC-powered applications. The durable plastic and metal construction ensures long-lasting performance, rated for up to 10,000 operations.

Made in Mainland China.

Key Features

• Action Type: Latching (stays in position after toggle)
• Pole Configuration: DPST (Double Pole Single Throw)
• Positions: I/O — 2-position On/Off
• Rated Voltage/Current: AC 250V / 15A | AC 125V / 20A

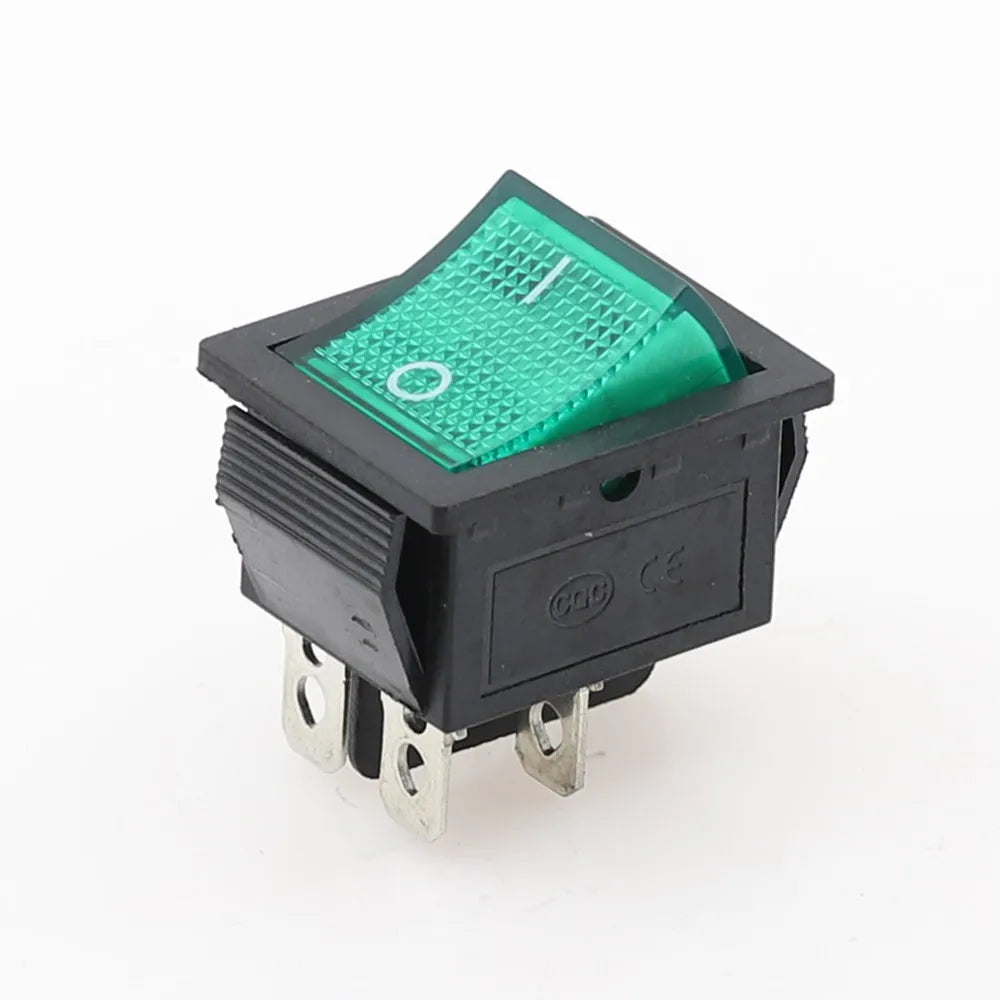

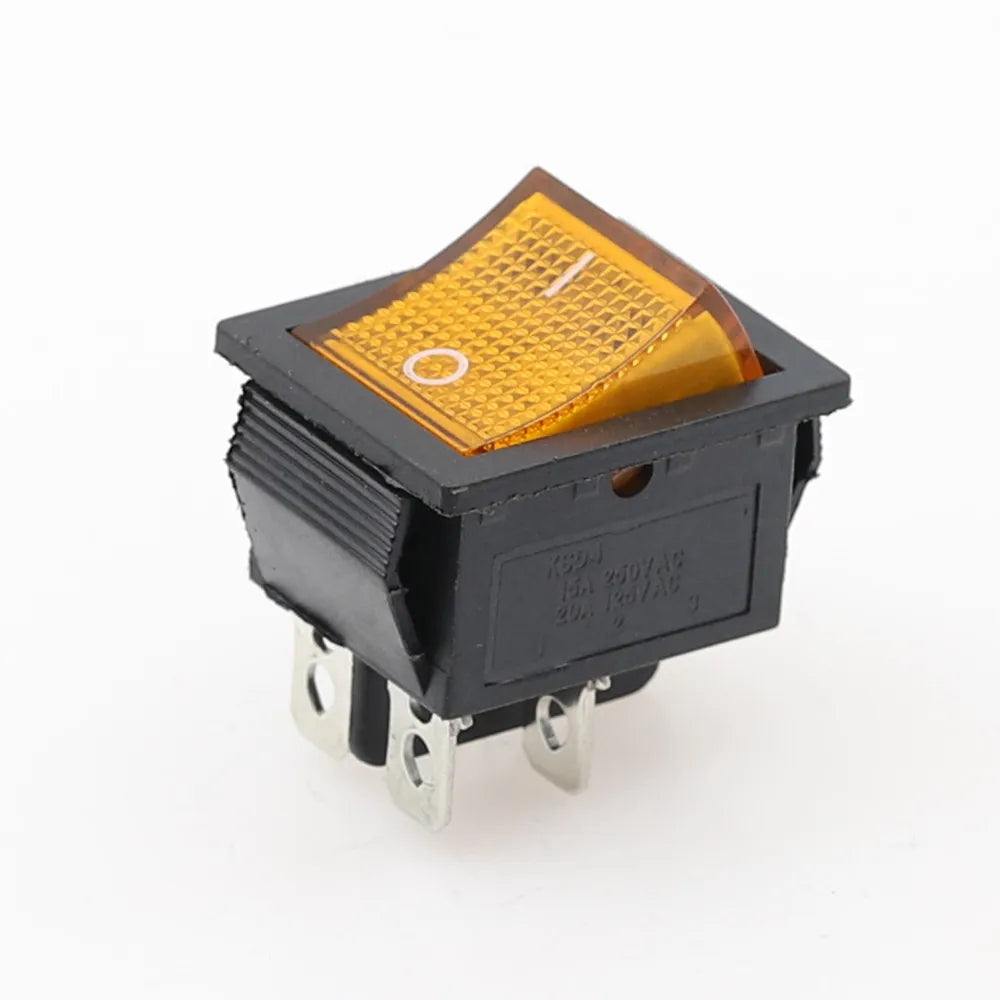

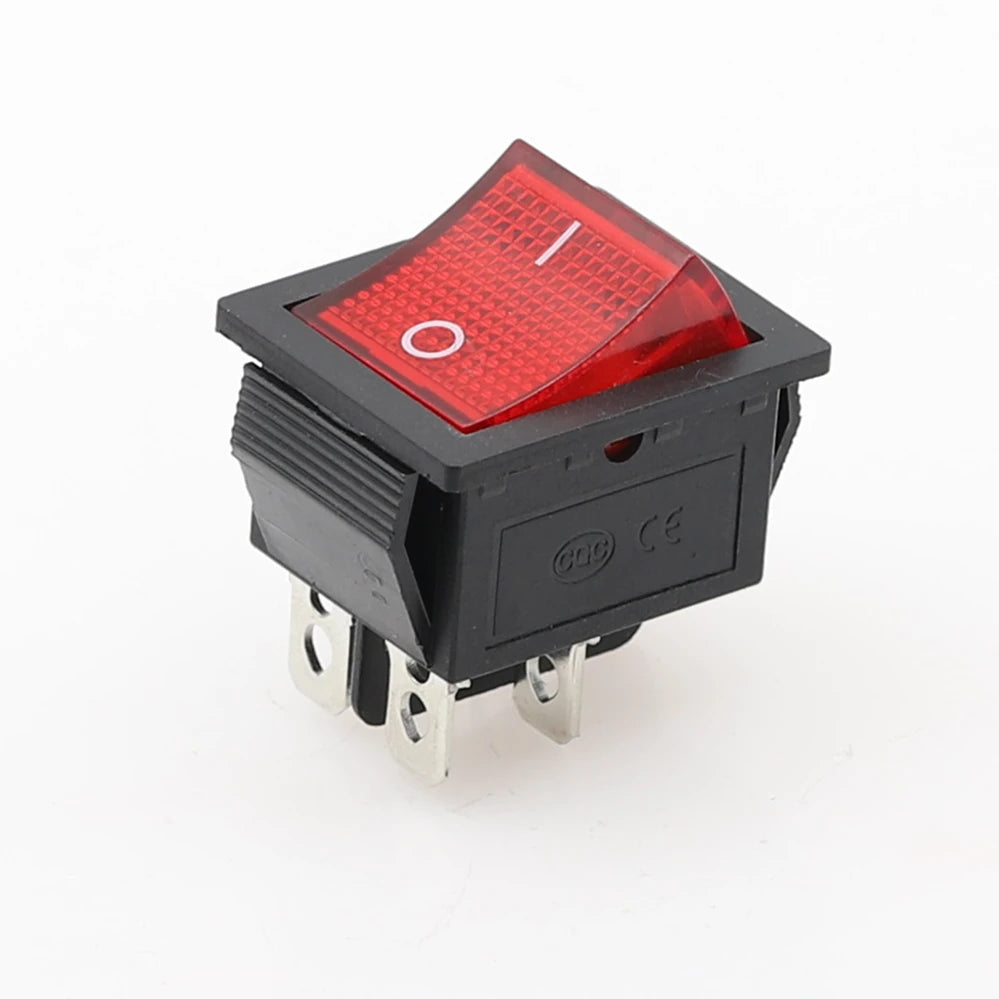

• Terminal Options: 4-pin or 6-pin
• Built-In Indicator Light: Yes
• Material: Durable Plastic & Metal
• Mounting Size: 27mm × 21mm (1.1" × 0.8")
• Overall Dimensions: 31mm × 25mm × 35mm (1.2" × 1" × 1.4")

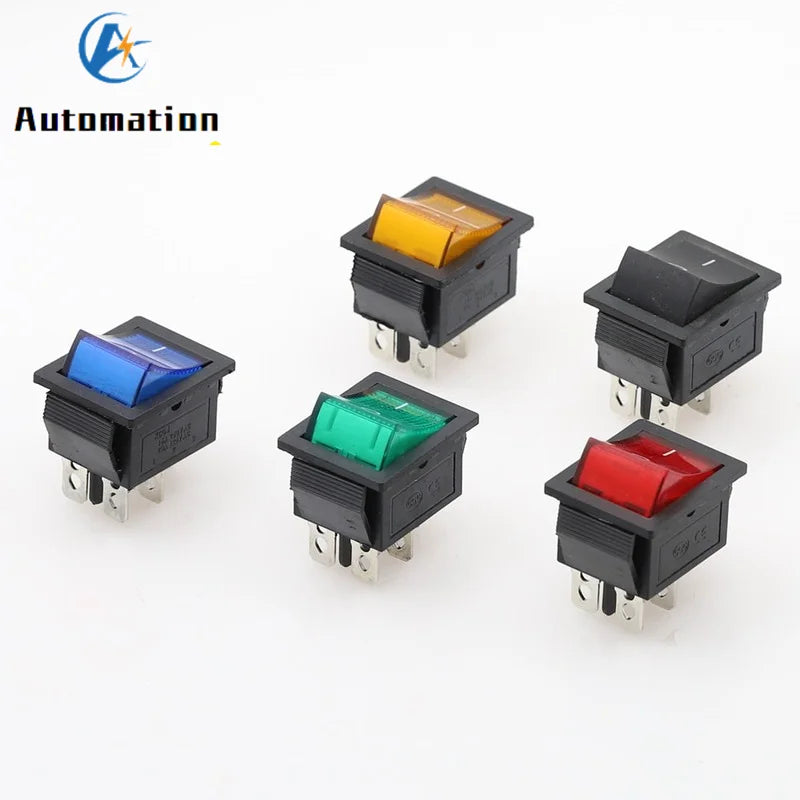

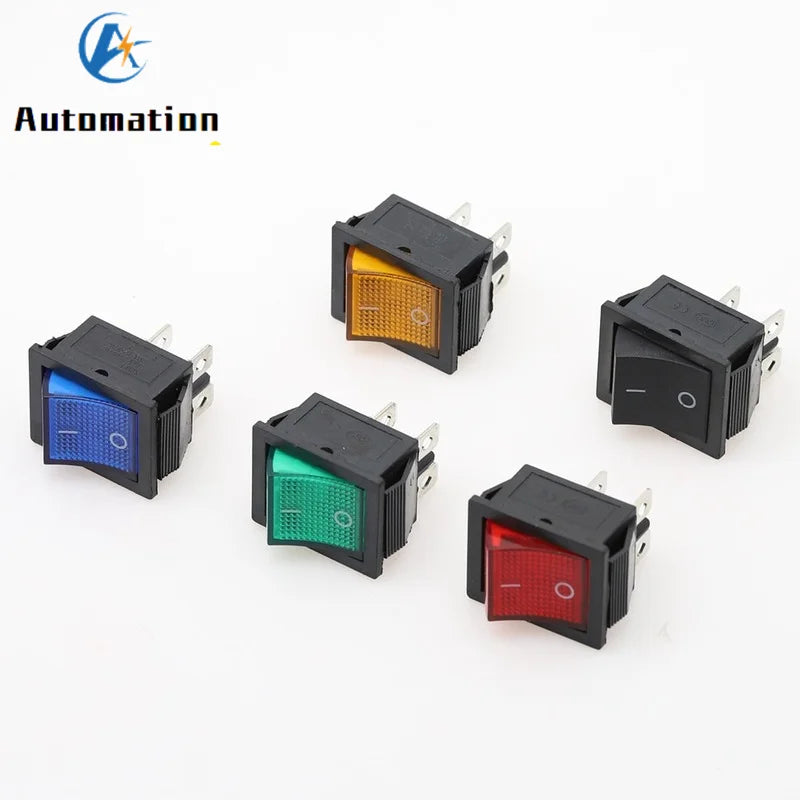

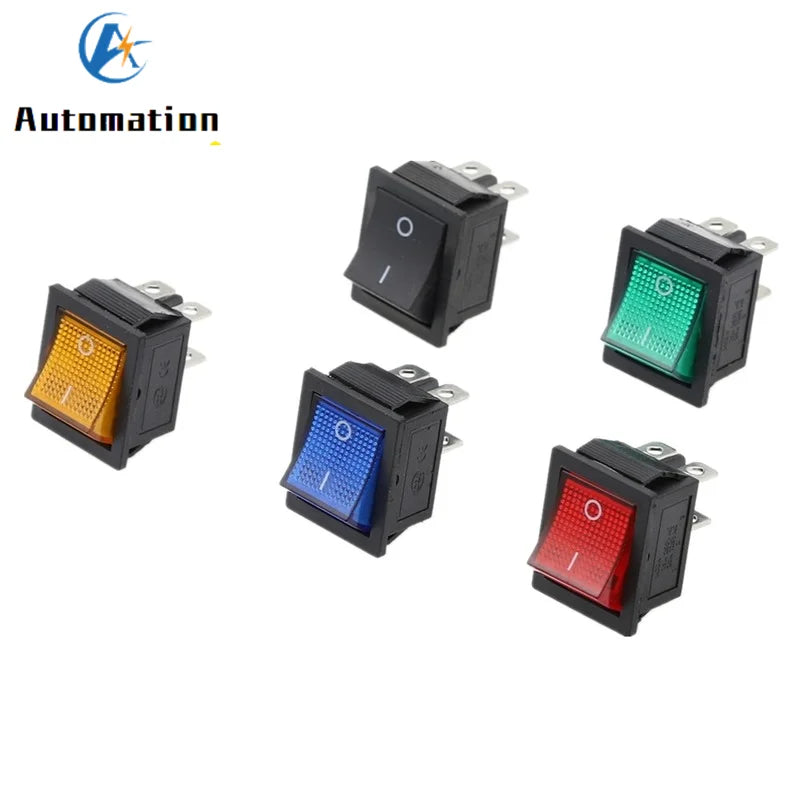

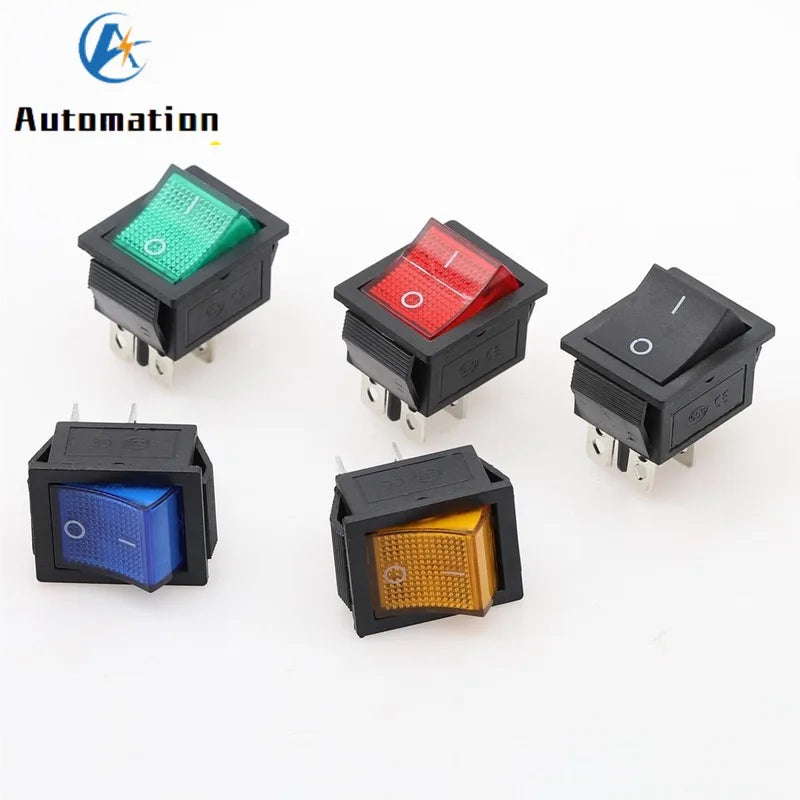

• Available Colors: Black, Blue, Green, Red, Yellow
• Quantity: 1 piece per package
• Model: KCD4
• Certification: CCC
• Rated Lifespan: 10,000 operations

Specifications Summary

Common Applications

• DIY electronics & hobbyist projects
• Power tools and workshop equipment
• Control panels and electrical enclosures
• Home appliances and machinery
• LED lighting systems and strip controllers

Related Products You May Like

• 12pcs 16mm Momentary Push Button Switch – 1NO Metal 2-Pin Self-Reset
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between a latching rocker switch and a momentary switch?

A: A latching rocker switch, like this KCD4 model, stays in the position you set it — either ON (I) or OFF (O) — until you manually toggle it again. A momentary switch only maintains its position while you hold it down and returns to its default state upon release. Latching switches are ideal for power on/off applications where the state needs to remain until deliberately changed.

Q: What does 4-pin vs. 6-pin mean on this rocker switch?

A: The 4-pin (4P) version has four terminals used for a standard DPST (Double Pole Single Throw) connection without an indicator light circuit. The 6-pin version includes two additional terminals to power the built-in indicator light, allowing you to visually confirm whether the switch is on or off. Choose 6-pin if you want the illuminated indicator feature.

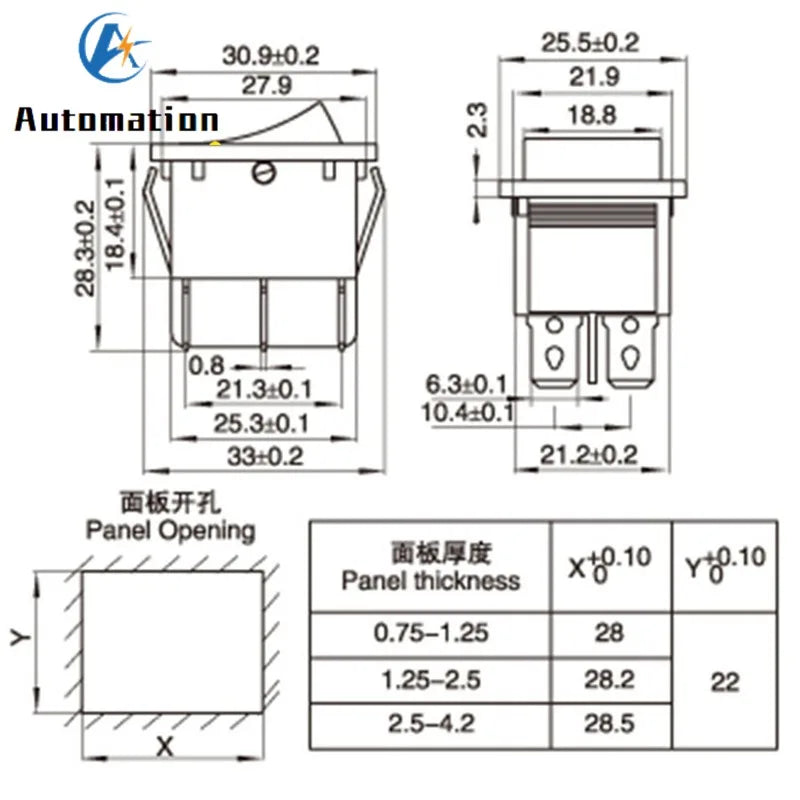

Q: What mounting cutout size is required for this KCD4 switch?

A: This switch requires a rectangular panel cutout of 27mm × 21mm (approximately 1.1" × 0.8") for flush mounting. The overall body dimensions are 31mm × 25mm × 35mm, so ensure your panel is thick enough to accommodate the depth of the switch body.

Q: Is this switch suitable for outdoor or waterproof applications?

A: This KCD4 rocker switch is designed for standard indoor panel-mount applications. It does not carry an IP waterproof rating, so it is not recommended for direct exposure to moisture or outdoor environments without additional protective housing.
