L-Type PCB Support Pin Fixture for Solder Paste Printer

L-Type Support Pin Fixture Holder for Semi-Automatic Solder Paste Printers

Keep your PCBs perfectly stable during solder paste printing with this precision-engineered L-Type Support Pin Fixture Holder. Designed for use with semi-automatic solder paste printers, this alloy steel fixture ensures your printed circuit boards remain firmly in place, enabling accurate, consistent solder paste deposition every time. Whether you're running small batch prototypes or high-volume production runs, reliable board support is essential — and this fixture delivers exactly that.

Key Features

• Sturdy Alloy Steel Construction — Built from durable metal alloy for long-lasting performance in demanding workshop environments.
• L-Type Design — The angled L-shaped profile provides reliable, multi-directional PCB support, preventing board flex or shifting during the printing process.
• Precision Support — Ensures accurate board positioning for consistent solder paste application, reducing misprint rates and rework.
• Compatible with Semi-Automatic Printers — Engineered to work seamlessly with standard semi-automatic solder paste printer platforms.
• Silver Finish — Clean, professional silver-tone metal finish that resists corrosion in typical electronics assembly environments.
• Easy to Set Up — Simple fixture installation means less downtime and more productivity on the line.

Specifications

• Material: Alloy Steel (Metal)
• Color: Silver

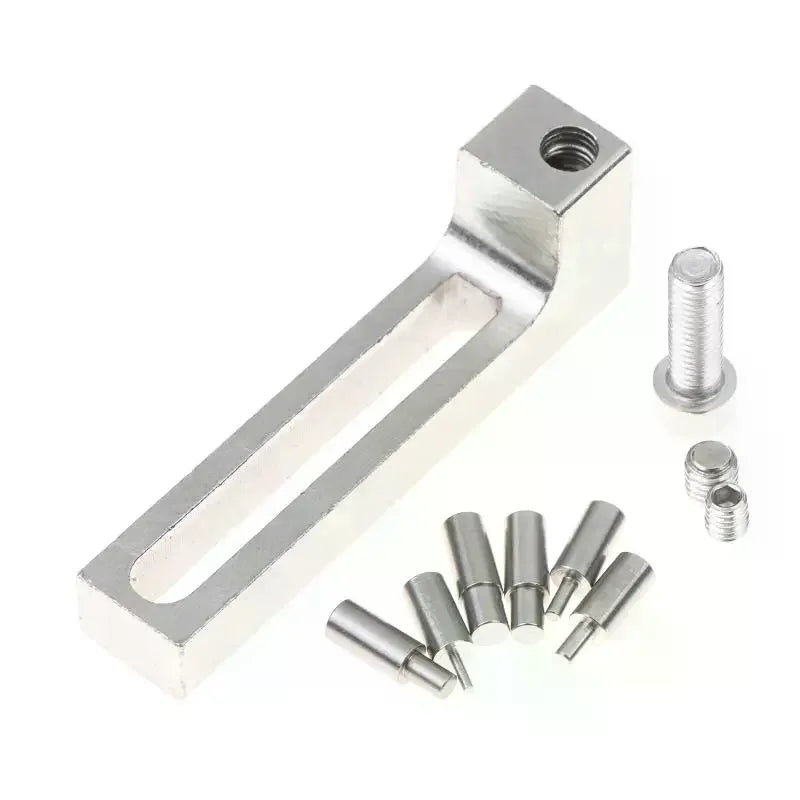

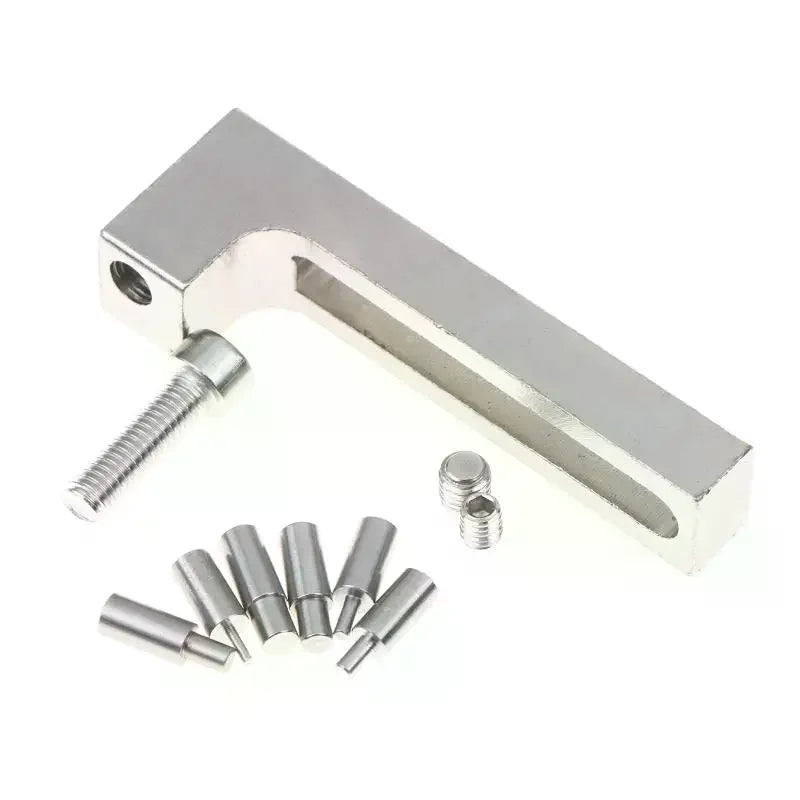

• Package Includes: 1 Set of L-Type Support Pin Fixture Holder
• Origin: Made in China

Important Notes

• Please refer to the product images for dimensional reference. Allow for ±5–10 mm variance due to manual measurement.
• Actual color may vary slightly from images due to monitor settings and lighting conditions.
