LC3-5 Push Button Switch 380V – Bench Drill & Grinder Control

LC3-5 Start/Stop Push Button Switch – 380V Industrial Machine Control

Take full control of your bench drill, grinding machine, or cutting machine with the LC3-5 On/Off Push Button Switch. Built for industrial and workshop environments, this rugged plastic-and-metal switch delivers reliable start/stop control at rated voltages up to AC 380V and currents up to AC 5A — making it a dependable upgrade or replacement for a wide range of stationary power tools.

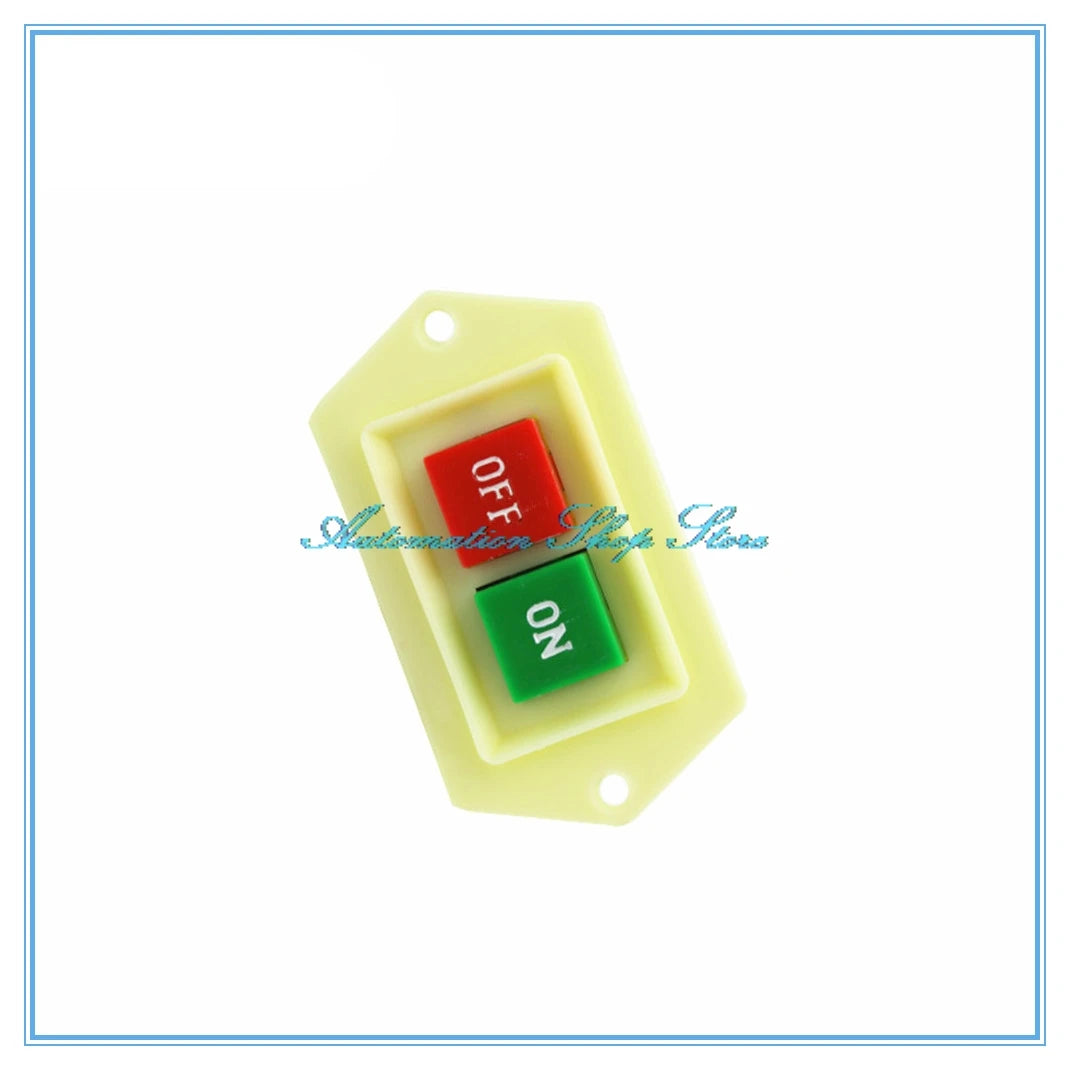

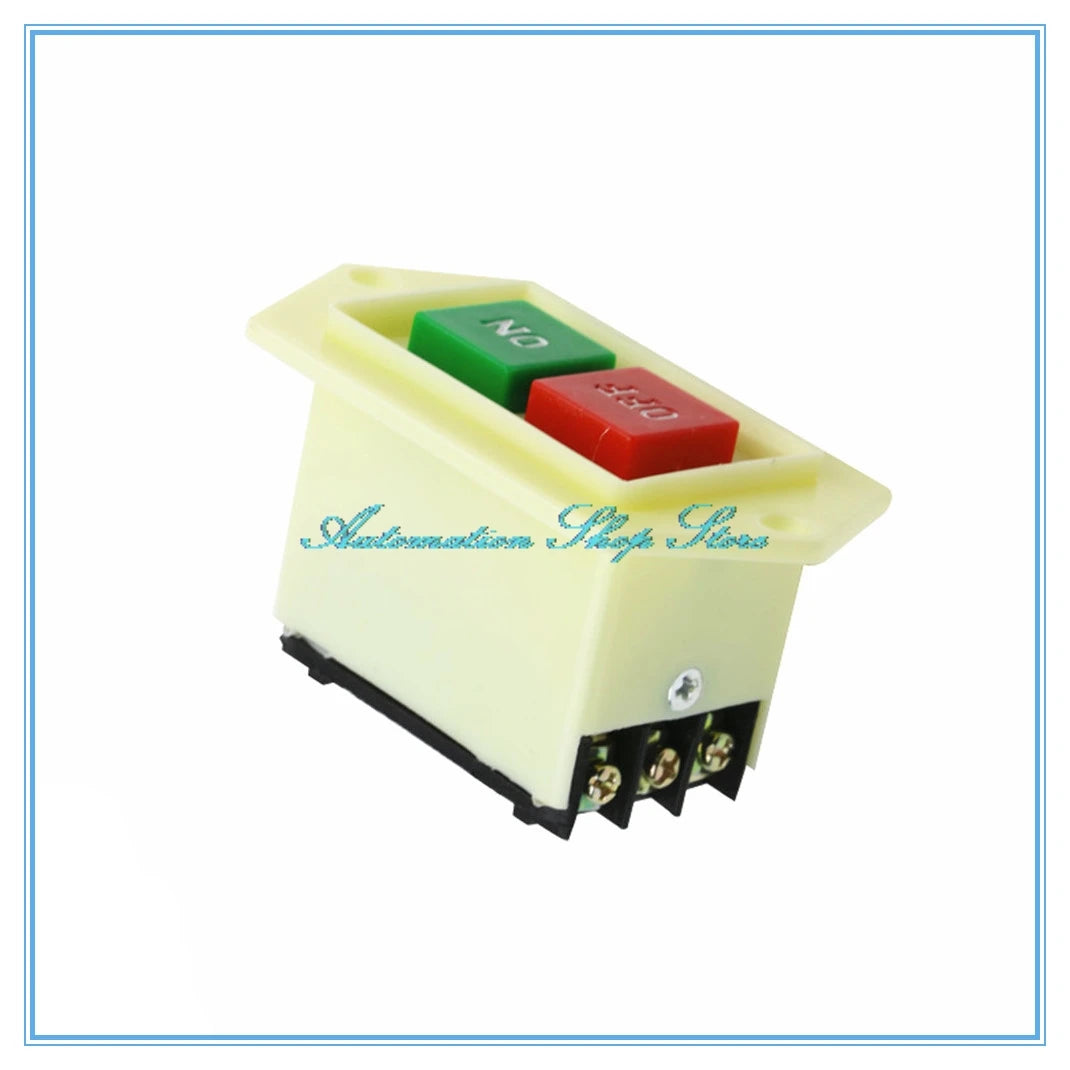

The classic green (Start) / red (Stop) button layout ensures intuitive, safe operation at a glance. The compact footprint makes installation straightforward on most standard machine panels.

Made in Mainland China.

Key Specifications

• Model: LC3-5
• Rated Voltage: AC 380V
• Rated Current: AC 5A
• Switch Type: Push Button (Start/Stop)
• Button Colors: Green (Start) & Red (Stop)
• Material: Plastic & Metal
• Mounting Hole Diameter: Approx. 4 mm / 0.16"

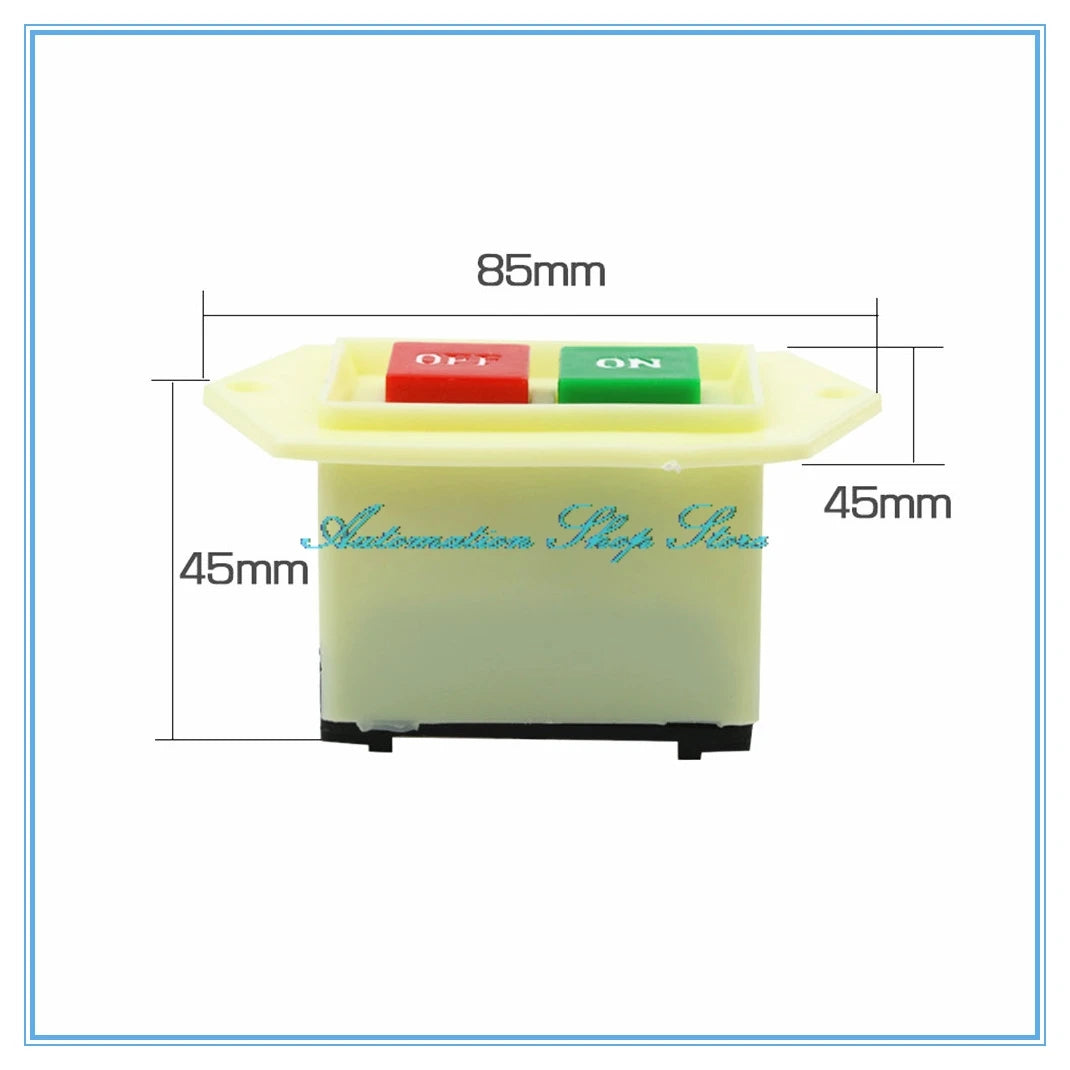

• Top Size: Approx. 85 × 45 mm / 3.5" × 1.9" (L × W)
• Bottom Size: Approx. 55 × 34 mm / 2.2" × 1.3" (L × W)
• Overall Height: Approx. 46 mm / 1.8"
• Certification: CCC
• Rated Cycle Life: 10,000 operations

What It's Compatible With

• Bench drill presses
• Grinding machines
• Cutting machines
• Other AC 380V stationary workshop machinery

Why Choose the LC3-5?

• ✅ Industrial-rated at 380V / 5A for reliable workshop performance
• ✅ Clear color-coded buttons — green to start, red to stop
• ✅ Compact design fits standard panel cutouts with ease
• ✅ Durable construction — plastic housing with metal components rated for 10,000 cycles
• ✅ Easy installation — minimal tools required

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What machines is the LC3-5 push button switch compatible with?

A: The LC3-5 push button switch is designed for AC 380V stationary machines such as bench drill presses, grinding machines, and cutting machines. It can be used with any machine that requires a standard start/stop push button control rated at 380V AC and up to 5A.

Q: How do I install the LC3-5 switch on my machine?

A: Installation is straightforward. The switch requires a mounting hole of approximately 4 mm in diameter. Simply wire the green (Start) and red (Stop) buttons to the machine's control circuit according to the original wiring diagram, secure the switch body to the panel, and your machine is ready to use. Always disconnect power before installing any electrical components.

Q: What is the rated lifespan of this push button switch?

A: The LC3-5 is rated for approximately 10,000 operating cycles, making it a long-lasting and cost-effective control solution for regular workshop use.

Q: Is the LC3-5 switch certified for safety?

A: Yes. The LC3-5 push button switch holds CCC (China Compulsory Certification), confirming it meets mandatory safety and quality standards for electrical components.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
