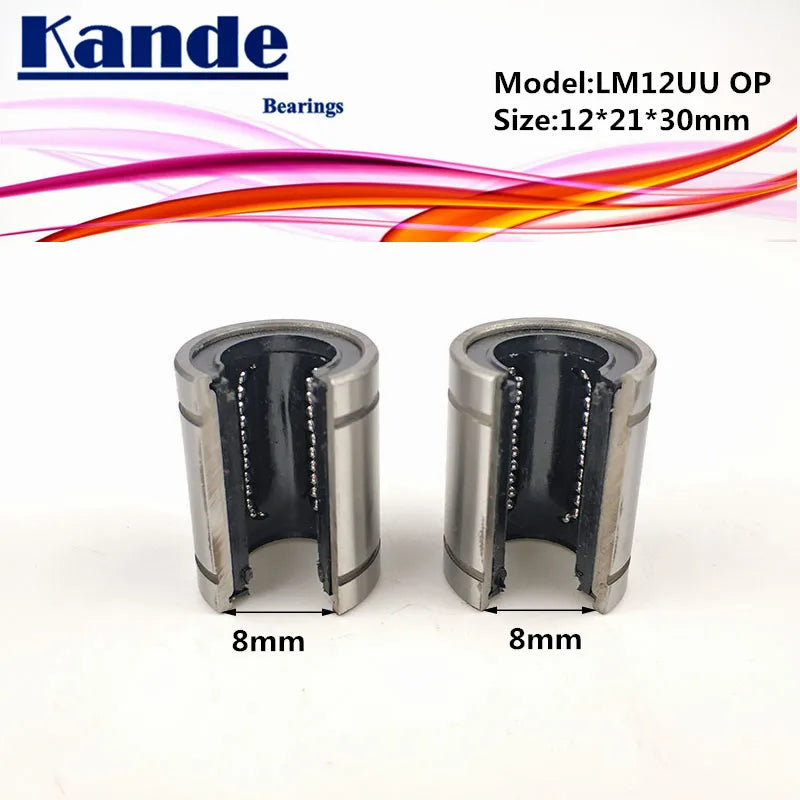

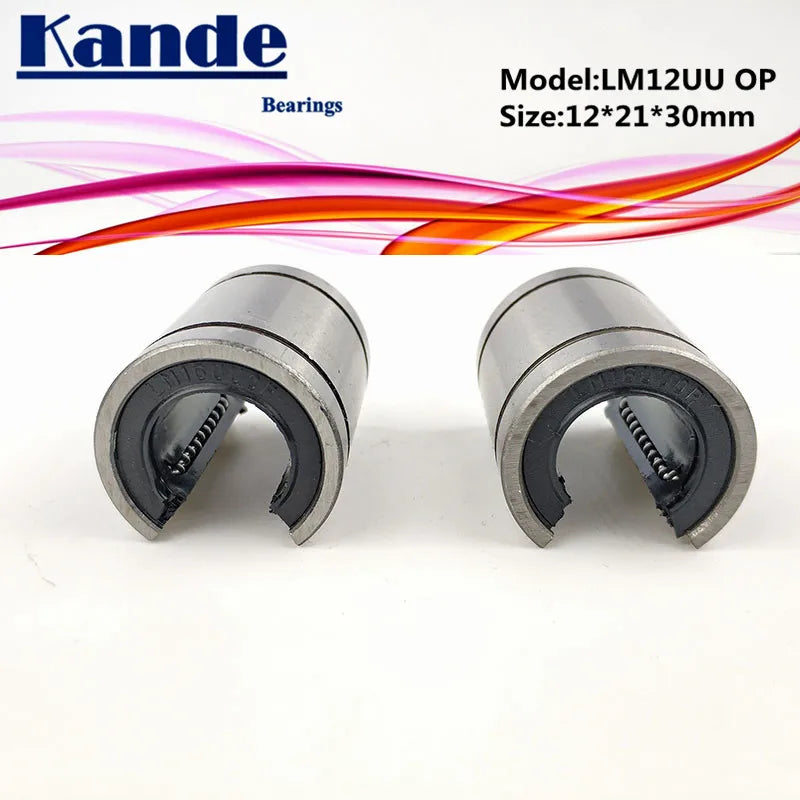

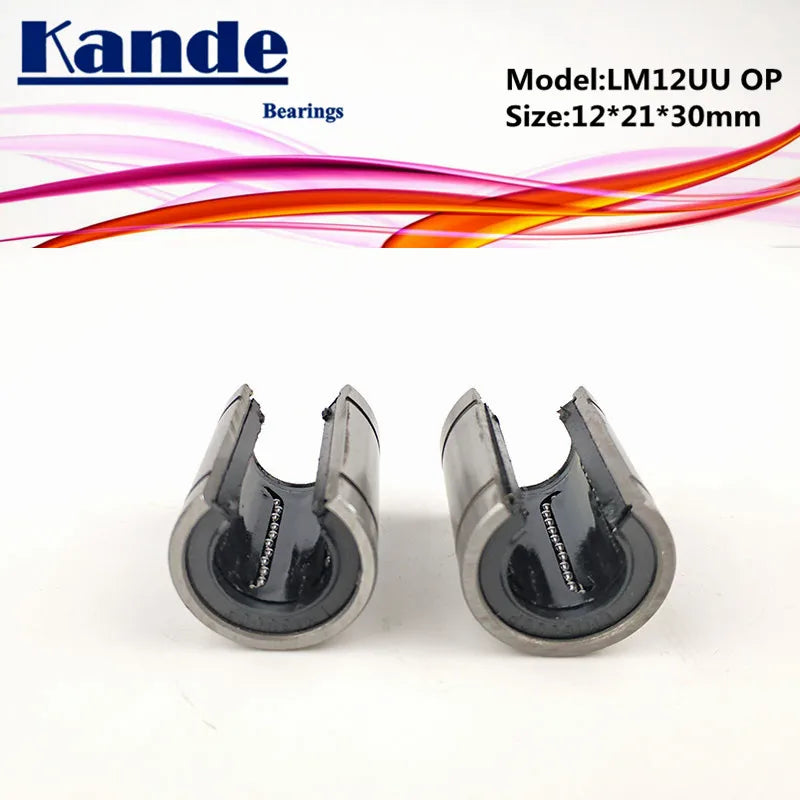

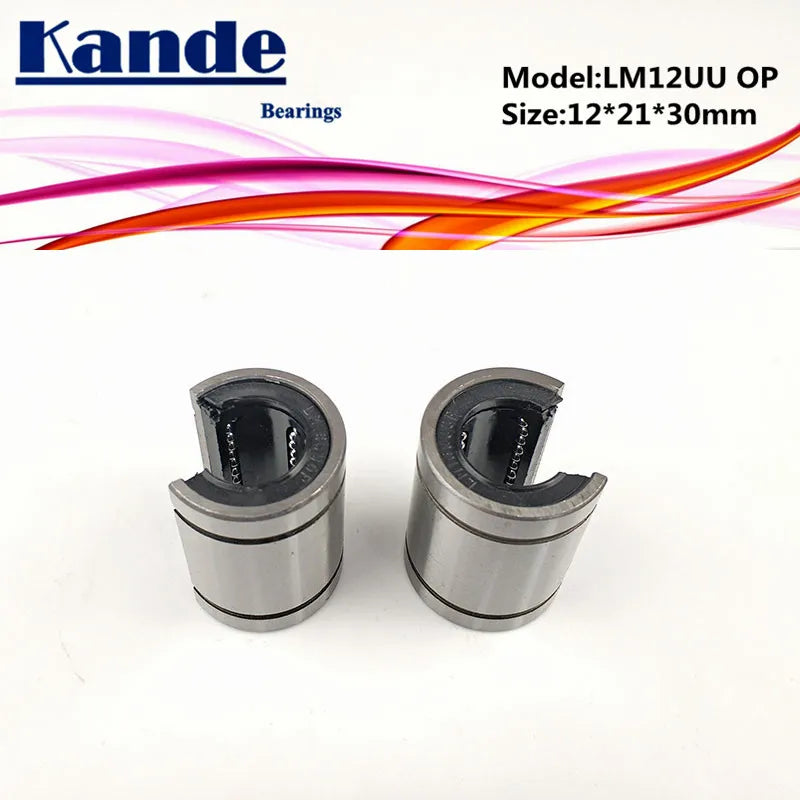

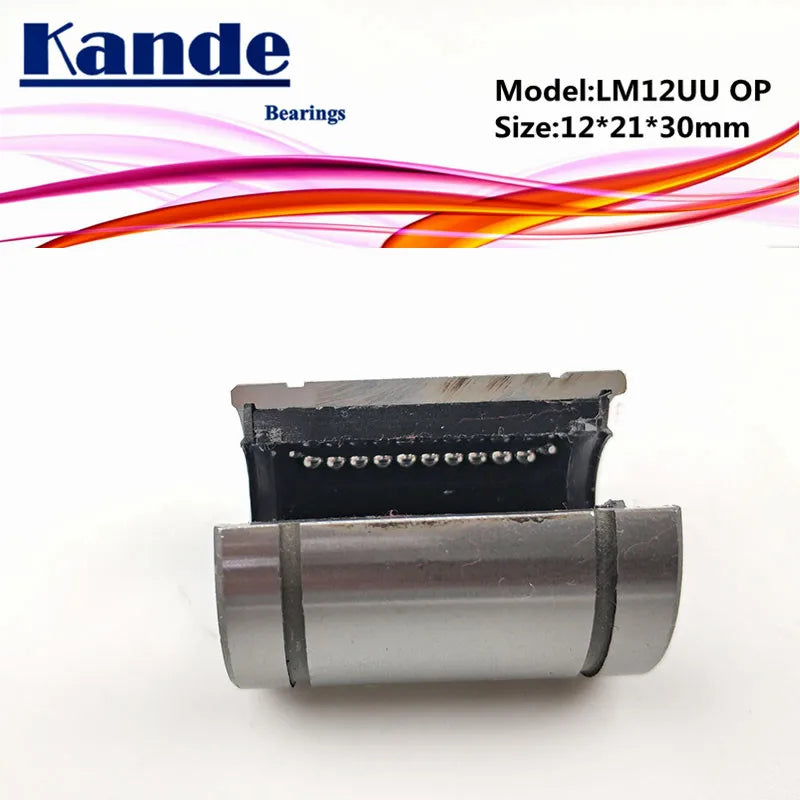

LM12OP Open Type CNC Linear Bearing 12×21×30mm – 2pcs Pack

Kande Bearings LM12OP Open Type CNC Linear Bushing – 2-Pack

Upgrade your CNC machine, 3D printer, or linear motion system with these precision-engineered LM12OP Open Type Linear Bearings from Kande Bearings. Sold as a set of 2, these open-slot linear bushings are manufactured from high-grade bearing steel for smooth, low-friction linear travel along 12mm shafts. The open-type design allows easy installation on existing rails without full disassembly — perfect for builders, engineers, and makers who demand accuracy and reliability.

Product Specifications

• Brand: Kande Bearings (KandeBearing)
• Model: LM12OP / LM12UUOP
• Type: Open Type CNC Linear Bushing
• Material: High-Grade Bearing Steel
• Dimensions: 12 × 21 × 30 mm
• Inner Diameter: 12 mm
• Outer Diameter: 21 mm
• Width (Length): 30 mm
• Quantity: 2 pieces per pack
• Country of Origin: Made in China

Key Features

• Open-Slot Design: The open-type slot enables straightforward mounting and removal — no need to thread the shaft through the bearing from the end.
• High-Grade Bearing Steel: Precision-hardened steel construction ensures durability, dimensional accuracy, and consistent performance in demanding environments.
• Smooth Linear Motion: Ball-retainer design minimises friction and play, delivering precise, repeatable movement along 12mm guide shafts.
• Versatile Compatibility: Compatible with standard 12mm linear rods used in CNC routers, 3D printers, laser cutters, pick-and-place machines, and other automation equipment.
• Drop-In Replacement: Dimensionally equivalent to LM12UU standard bearings, making them a reliable upgrade or direct swap.

Ideal Applications

• CNC Router and Milling Machines
• FDM / Resin 3D Printers (X, Y, Z axes)
• Laser Engravers and Cutters
• Automated Pick-and-Place Systems
• Custom Linear Actuators and Slide Tables
• Robotics and DIY Motion Projects

Related Products You May Like

Looking for more workshop and hardware essentials? Check out these items from our store:

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between LM12OP and LM12UU linear bearings?

A: The LM12OP (also written LM12UUOP) is the open-type variant of the standard LM12UU linear bearing. It features a slot cut along its length, allowing it to be mounted laterally onto a shaft without threading from the end. Both share the same 12 × 21 × 30 mm dimensions and are interchangeable in most mounting blocks that support the open design.

Q: What shaft size is compatible with the LM12OP bearing?

A: The LM12OP linear bushing is designed for use with a 12mm diameter linear guide rod or shaft. Ensure your rods are ground to a smooth h6 or h7 tolerance for optimal performance and longevity.

Q: Are these bearings suitable for use in 3D printers?

A: Yes. The LM12OP open-type CNC linear bushing is fully compatible with 3D printer frames that use 12mm linear rods — including many popular CoreXY and Cartesian printers. The open-slot design can simplify installation in certain carriage configurations.

Q: How many bearings are included in a single order?

A: Each order includes 2 pieces of the LM12OP open-type linear bearing, enough for a single axis or complementary pair in your build.
