LM3–LM40UU Linear Bearings – Precision Linear Bushings for CNC & 3D Printers

Upgrade your CNC machine, 3D printer, or engraving equipment with these high-quality LMxUU Linear Bearings. Available in a wide range of sizes from LM3UU all the way up to LM40UU (including LM8SUU), these linear bushings deliver smooth, low-friction motion along linear shafts — keeping your builds accurate and your machines running reliably.

Made in Mainland China.

Key Specifications

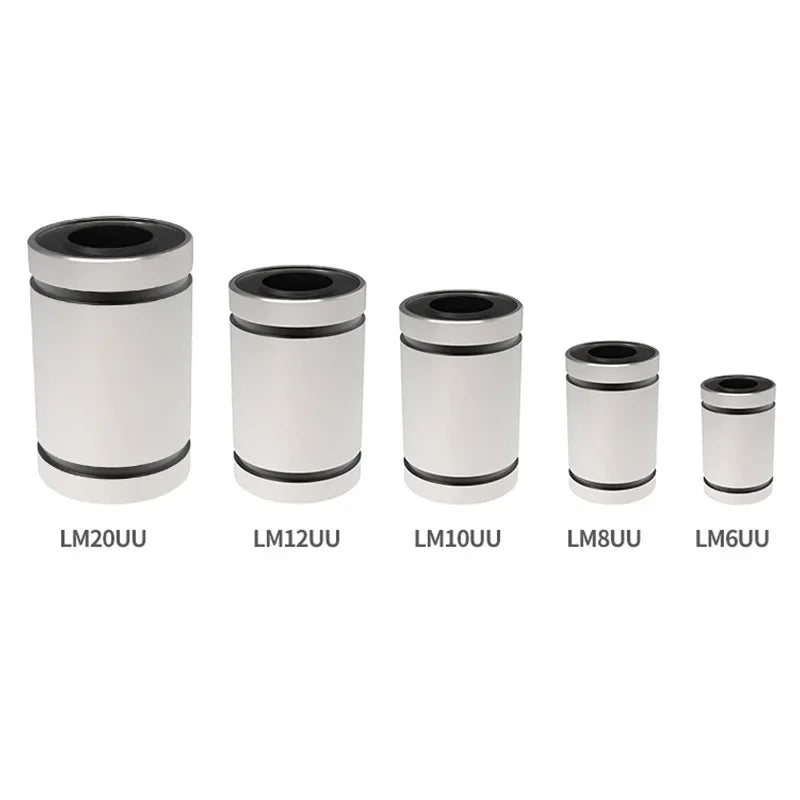

• Models Available: LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM8SUU, LM10UU, LM12UU, LM13UU, LM14UU, and up to LM40UU

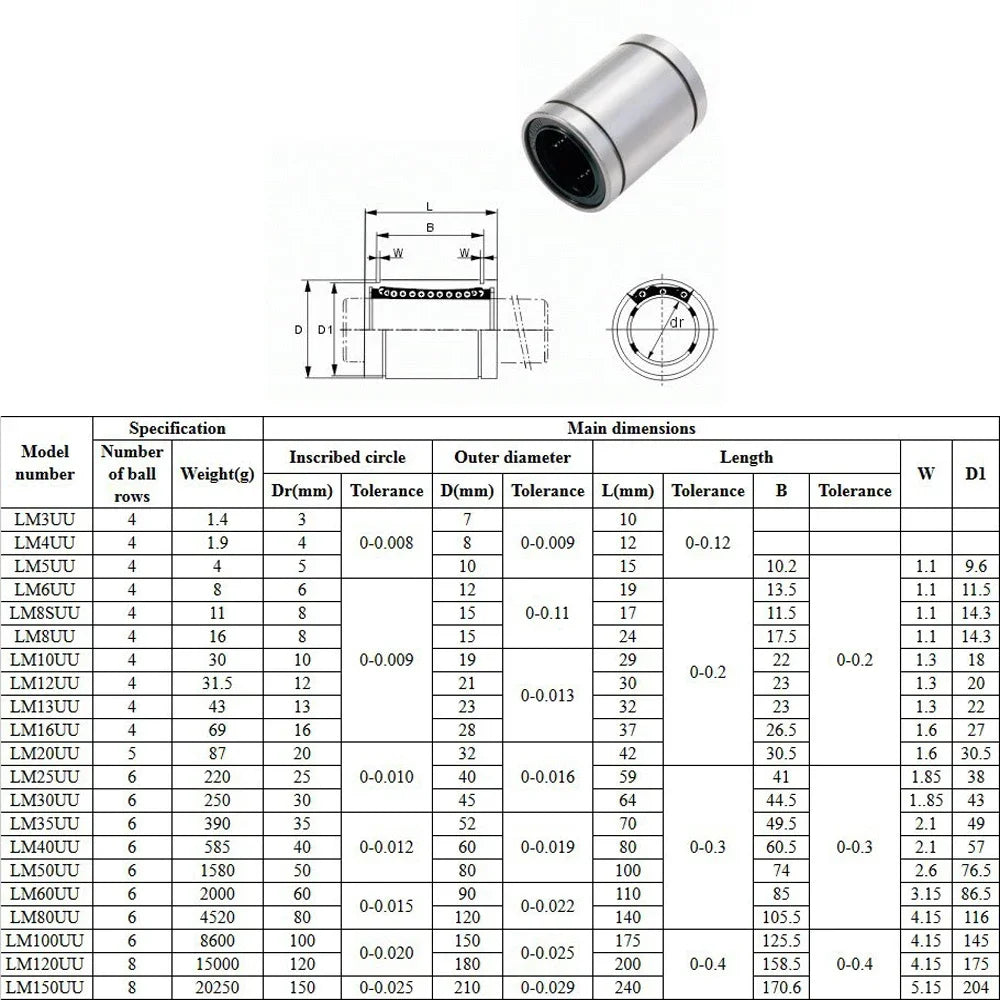

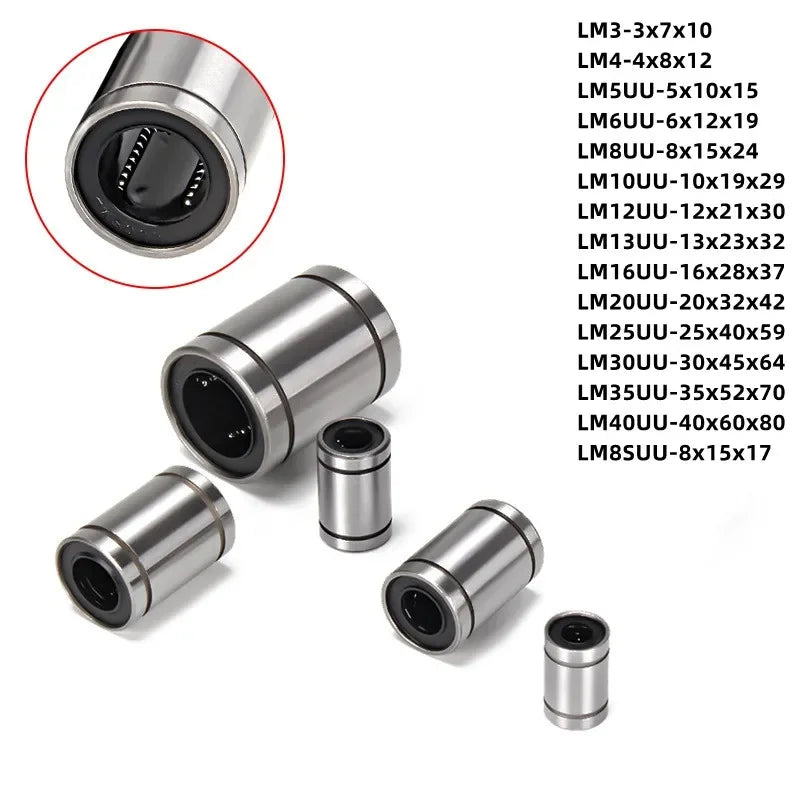

• Dimensions: Inner diameter × Outer diameter × Length (e.g., LM3 = 3mm × 7mm × 10mm)
• Housing Material: Bearing steel
• Cage Material: Nylon
• Pack Sizes: Available in 1pc, 2pcs, or 10pcs
• Customization: Custom sizes available — contact customer service with your requirements

Compatible Applications

• 3D printers (X, Y, and Z-axis linear motion)
• CNC routers and milling machines
• Engraving machines
• Stepper motor-driven guide rails
• Machine tool linear guide systems
• DIY automation and motion control projects

Why Choose These Linear Bearings?

• ✅ Wide Size Range — One stop for all common linear bearing sizes from LM3 to LM40
• ✅ Easy Installation — Drop-in fit for standard linear shafts, no special tools required
• ✅ Smooth Operation — Nylon cage reduces friction for fluid, consistent linear movement
• ✅ Durable Construction — Bearing steel housing withstands repeated use in demanding environments
• ✅ Flexible Quantities — Buy singles, pairs, or value 10-packs to suit your project needs

Related Products You May Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories Anti-Loosening Replacement Parts
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What does "LM8SUU" mean and how does it differ from LM8UU?

A: The "S" in LM8SUU indicates a short version of the standard LM8UU linear bearing. Both share the same 8mm inner diameter and outer diameter, but the LM8SUU has a shorter overall length. This makes it ideal for compact 3D printer builds or applications where axial space is limited.

Q: Are these linear bearings compatible with standard smooth rods?

A: Yes — each LMxUU bearing is designed to match the corresponding standard shaft diameter. For example, LM8UU fits an 8mm smooth rod, LM12UU fits a 12mm rod, and so on. Just match the bearing model number to your shaft diameter for a proper fit.

Q: Can I order a size that is not listed in the options?

A: Absolutely. These linear bearings support customization. If you need a size not shown in the available options, please contact customer service with your exact requirements (inner diameter, outer diameter, and length) and a custom order can be arranged.

Q: What materials are used in these linear bushings?

A: The housing is made from bearing-grade steel for durability and rigidity, while the ball cage is constructed from nylon to minimize friction and ensure quiet, smooth movement along the linear shaft.
