M181 LCR Meter DIY Kit – Precision Measurement for Engineers & Hobbyists
The M181 LCR Meter DIY Kit is a compact, high-precision instrument designed to measure Resistance (R), Capacitance (C), and Inductance (L) across both through-hole and surface-mount components. With approximately 1% measurement accuracy and fully automatic ranging, this kit is an outstanding choice for electronics enthusiasts, engineers, and makers alike.
Made in Mainland China.
Why Choose the M181 LCR Meter?
- Dual Test Frequencies: Switch between 100Hz and 1KHz to suit your measurement needs
- Wide Measurement Ranges: Resistance from 0.1Ω to 10MΩ, Capacitance from 1pF to 10,000μF, and Inductance from 1μH to 20H
- ~1% Accuracy: Reliable precision for the vast majority of engineering and hobbyist scenarios
- Fully Automatic Ranging: No manual range selection needed — the meter does the work for you
- USB Powered (5V): Convenient and portable, powered by any standard USB source
- Built-in Virtual USB COM Port: Enables serial data output and firmware upgrades with ease
- Self-Test Mode: Verify your assembly is correct before diving into measurements
- Display HOLD Function: Freeze readings on-screen for easy recording
- Compact Design: Measures just 66 × 32 × 19mm and weighs only 23g (76g with probes)
- Acrylic Panels Included: Protect your build and give it a professional finish
Full Specifications
| Parameter | Detail |
|---|---|
| Model | M181 (18101K) |
| Primary Display | R, C, L |
| Secondary Display | Q, D, ESR |
| Equivalent Circuit Mode | Parallel or Serial |
| Resistance Range | 0.1Ω – 10MΩ |
| Capacitance Range | 1pF – 10,000μF |
| Inductance Range | 1μH – 20H |
| Accuracy | ~1% |
| Test Frequencies | 100Hz, 1KHz (selectable) |
| Open Voltage | 0.6Vpp |
| Measurement Connections | 4 Kelvin wires on test terminals |
| Compensations | Open, Short |
| Serial Data Output | Yes (USB COM Port or direct LVTTL) |
| Power Supply | USB 5V, <100mA |
| Dimensions | 66 × 32 × 19mm (2.60" × 1.26" × 0.75") |
| Weight | 23g (76g with probes) |
What's in the Box?

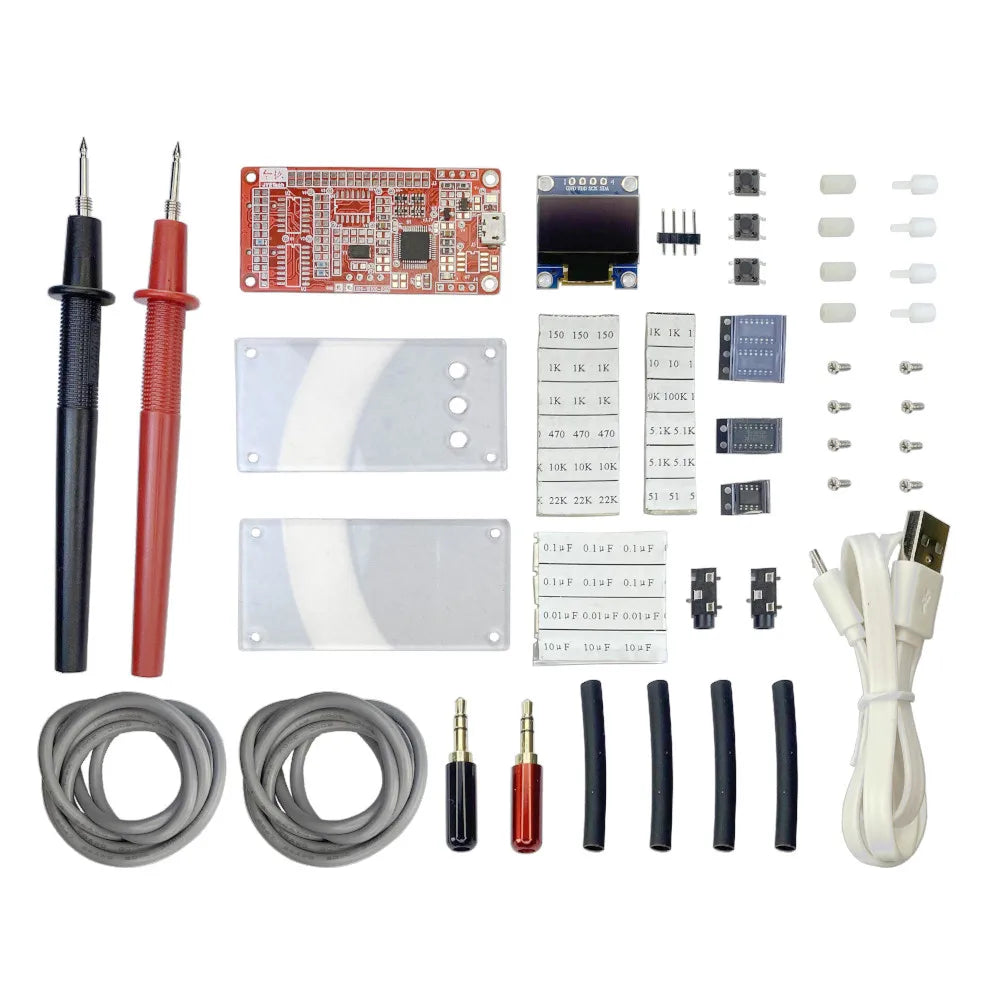

- 1× M181 LCR Meter DIY Kit (includes acrylic panels)
Related Products You May Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of components can the M181 LCR Meter measure?
A: The M181 LCR Meter DIY Kit can measure both through-hole and surface-mount components, covering resistors (0.1Ω–10MΩ), capacitors (1pF–10,000μF), and inductors (1μH–20H). It also displays secondary parameters including Q factor, dissipation factor (D), and Equivalent Series Resistance (ESR).
Q: Do I need special software to use the serial data output feature?
A: No special software is required. The M181 features a built-in virtual USB COM port that is recognized by most operating systems as a standard serial port. You can use any standard serial terminal application to read the measurement data output or perform firmware upgrades.
Q: Is this kit suitable for beginners in electronics?
A: Yes! The M181 LCR Meter DIY Kit is designed to be easy to build and easy to use. It includes a Self-Test mode so you can verify your assembly is correct before taking measurements, making it a great learning project for hobbyists while still offering the precision that experienced engineers need.
Q: What power source does the M181 LCR Meter require?
A: The M181 is USB-powered (5V) and consumes less than 100mA, making it compatible with any standard USB port, power bank, or USB wall adapter. No proprietary power supply is needed.
