Magnetic Stand Base & Dial Indicator Gauge Measurement Tool Set

Precision Measurement Made Easy — Magnetic Stand Base & Dial Indicator Set

Whether you're a machinist, engineer, or serious DIY enthusiast, this Magnetic Stand Base with Dial Indicator set gives you the accuracy and flexibility you need for professional-grade measurements. With a powerful magnetic base, fully adjustable arm joints, and high-resolution indicators, this kit is built to deliver consistent, reliable readings in workshop and production environments. Made in Mainland China.

What's Included — Choose Your Configuration

This listing includes two gauge options — select the one that fits your needs:

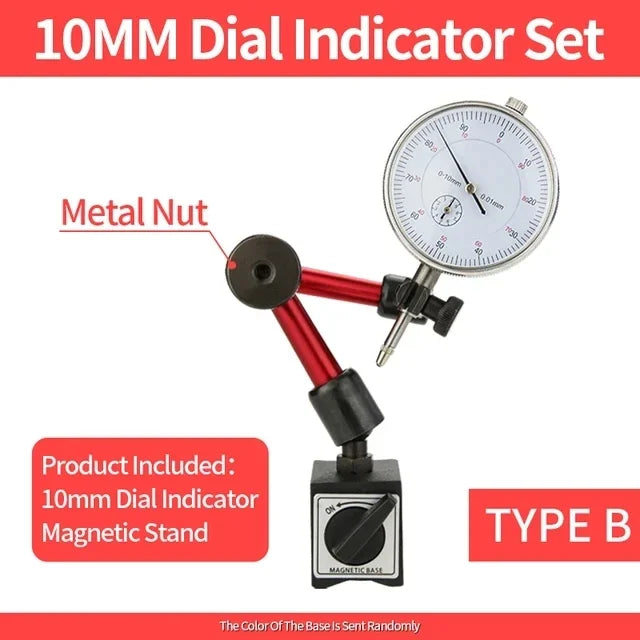

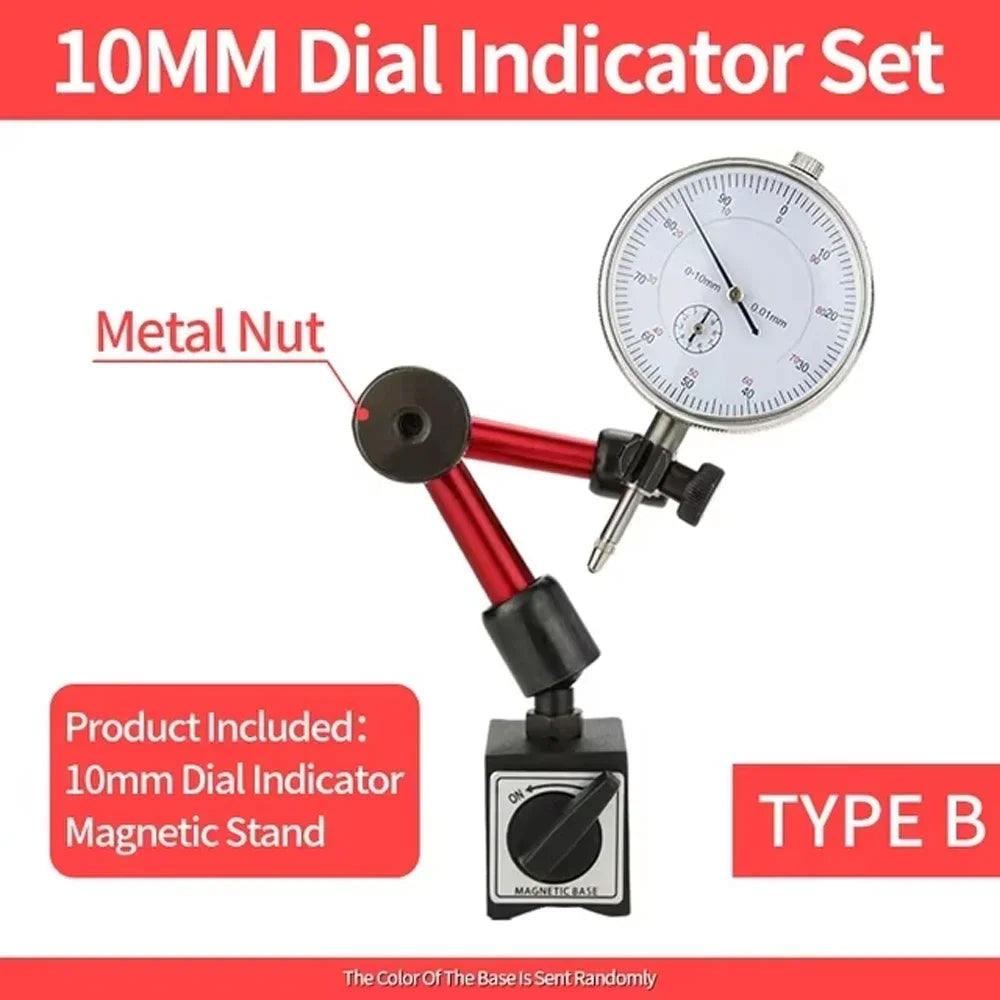

🔵 Dial Indicator

• Measuring Range: 0–10mm or 0–30mm
• Resolution: 0.01mm
• Probe Material: High-quality stainless steel — rust-proof and wear-resistant

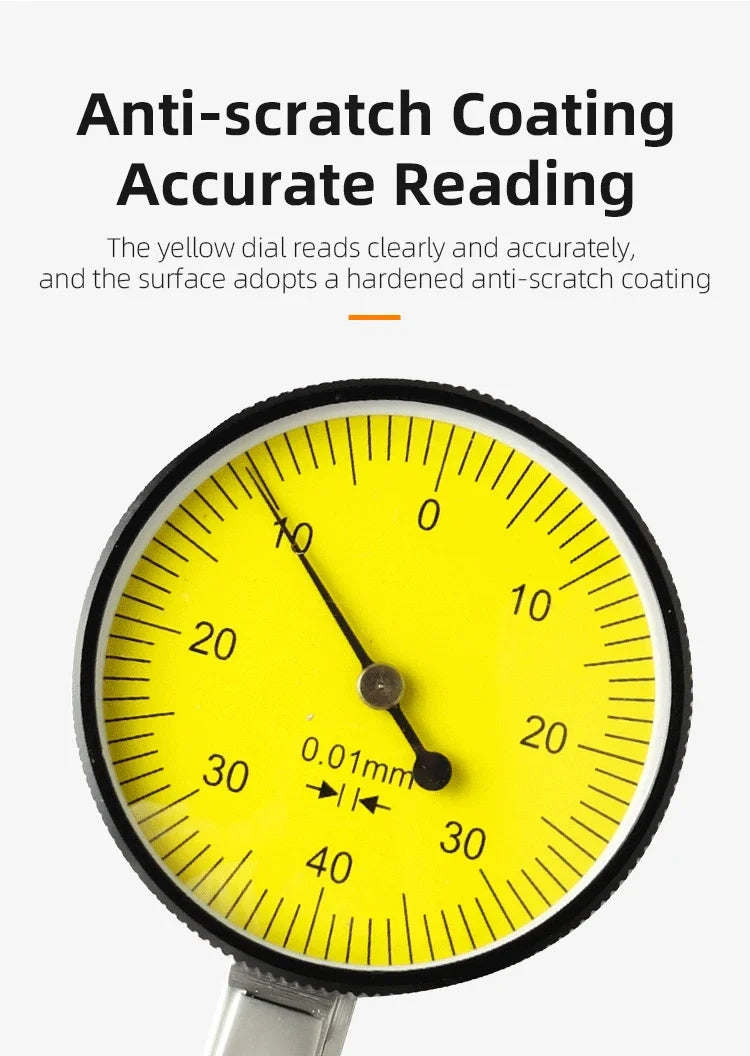

• Clear dial scale for intuitive, at-a-glance readings
• Ideal for measuring concentricity and runout with precision

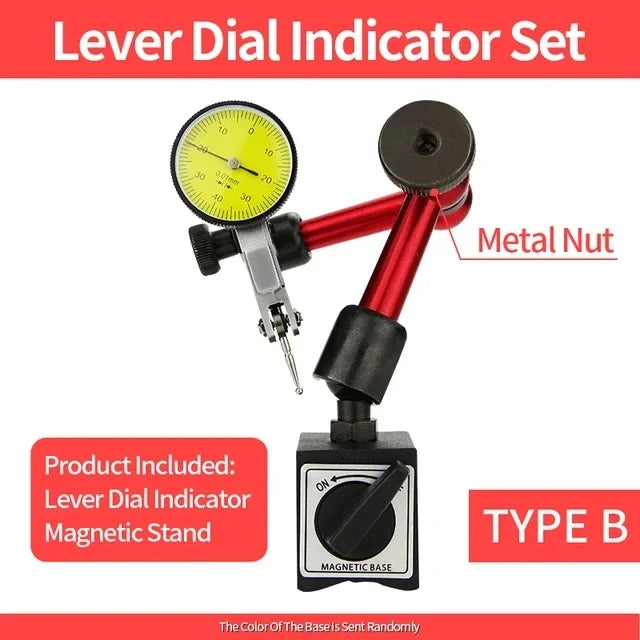

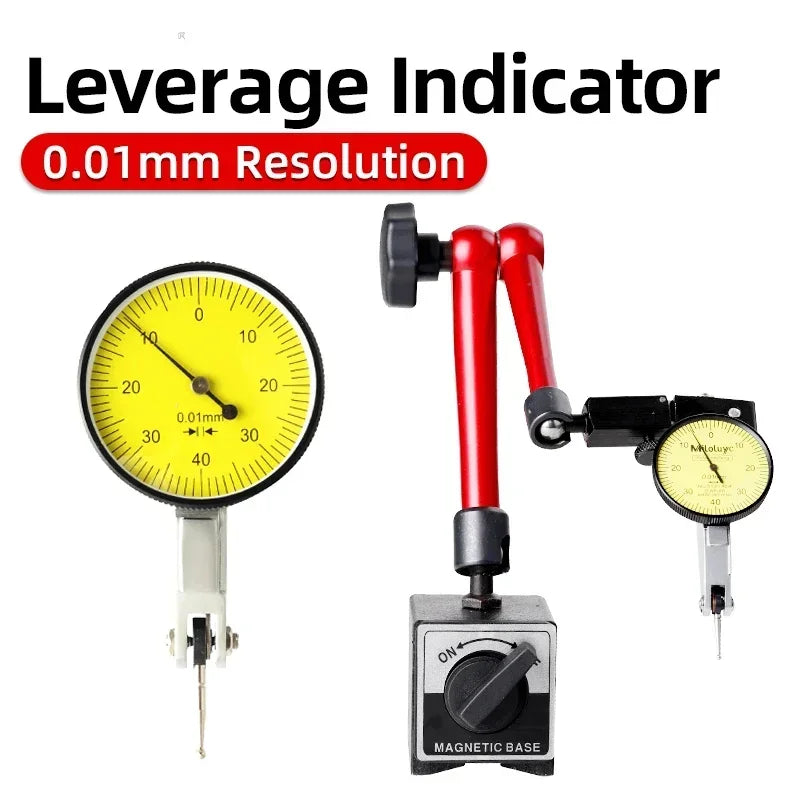

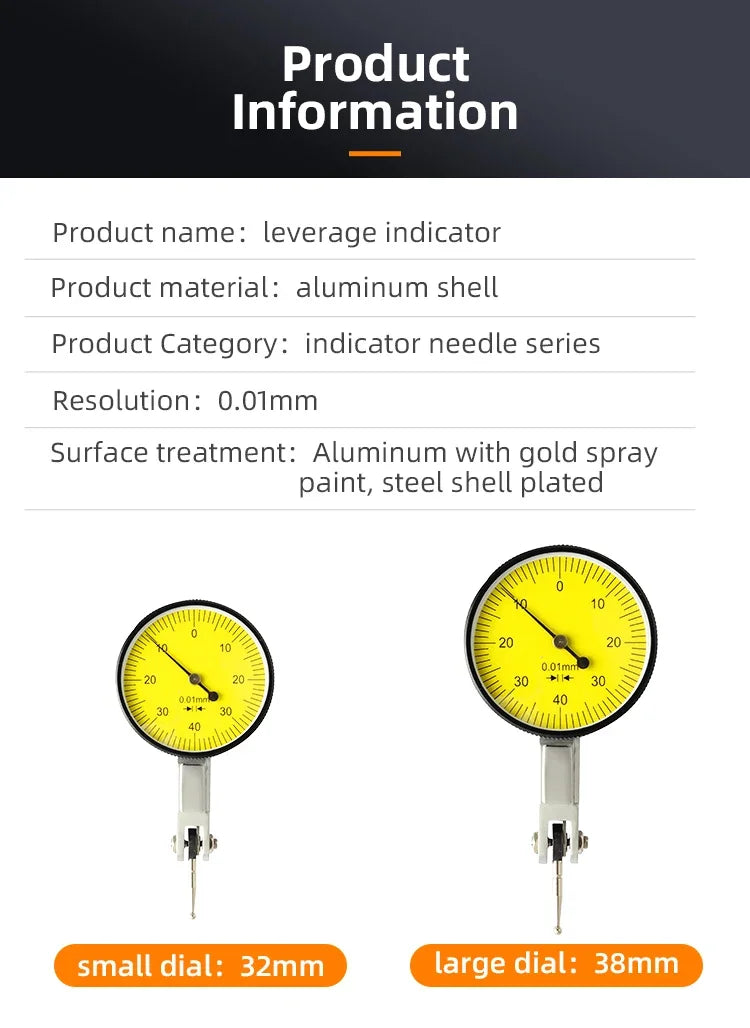

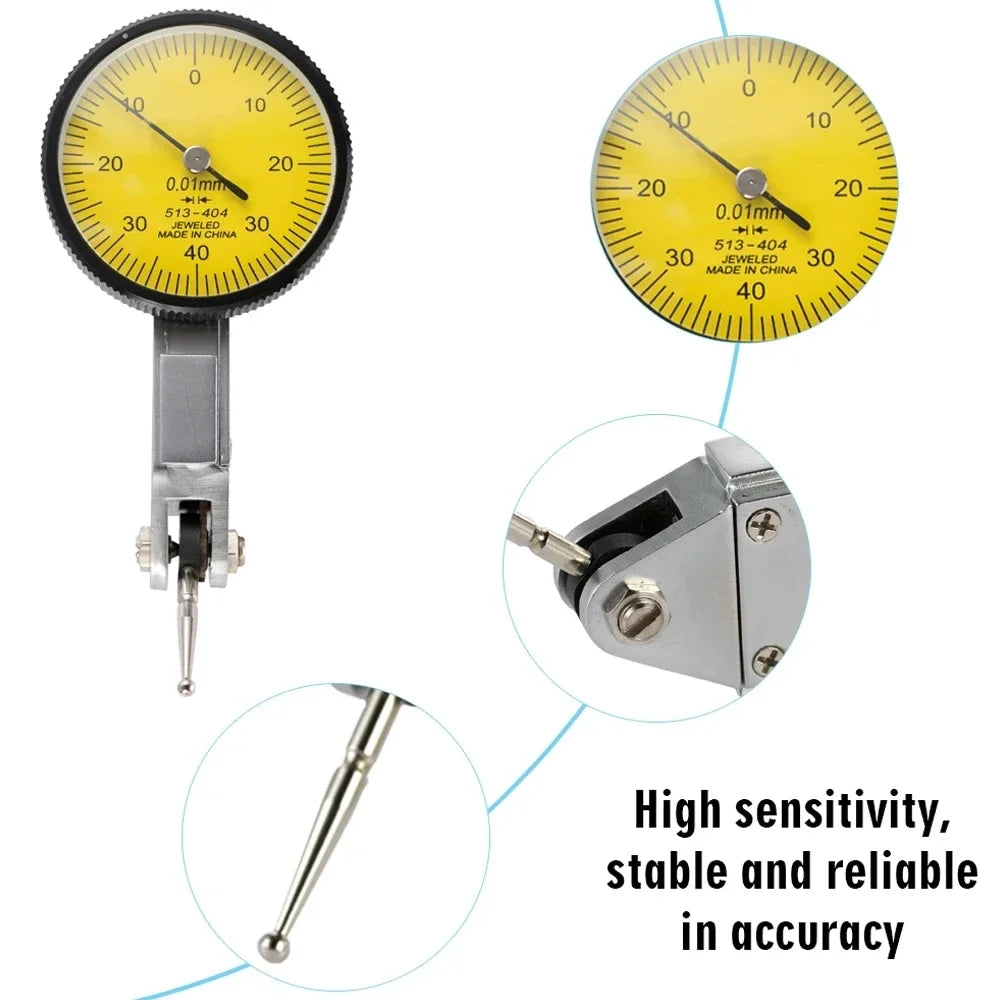

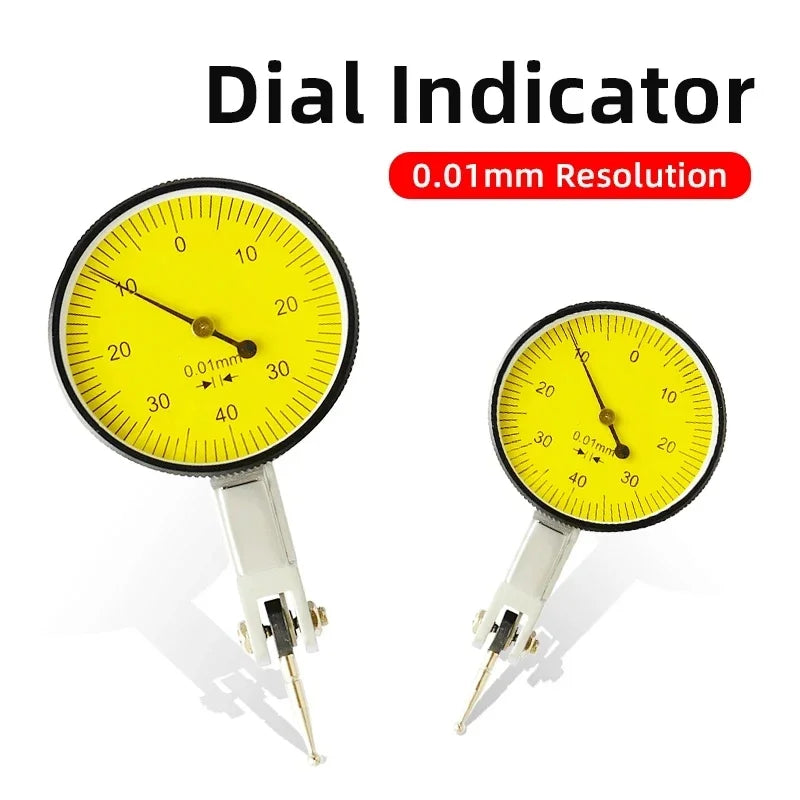

🔵 Leverage Dial Indicator

• Measuring Range: 0–0.8mm
• Resolution: 0.01mm
• Probe Material: Alloy tungsten steel for long-lasting durability
• Probe angle: Adjustable up to 240° for flexible positioning
• Includes shaft sleeves: φ6mm and φ8mm

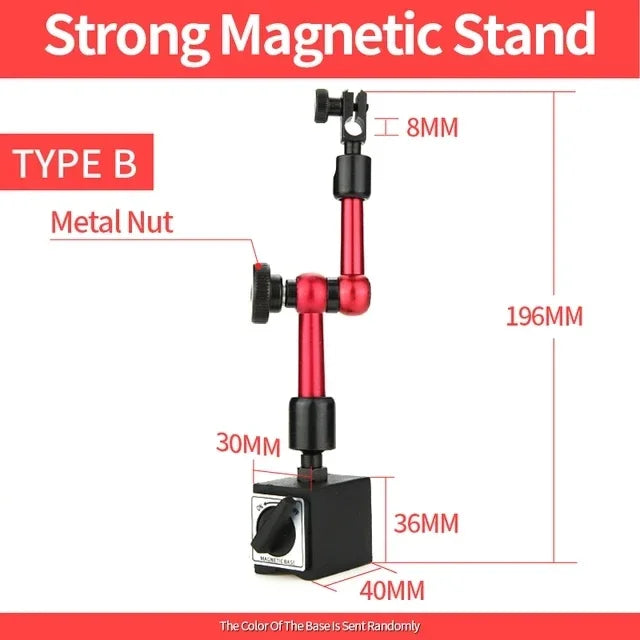

Magnetic Stand Base — Key Features

• Powerful Magnetic Base: Convenient ON/OFF magnet switch for fast, secure attachment to any ferromagnetic surface
• Flexible Rotary Joints: Fully articulating arm lets you adjust direction and height in any configuration
• V-Groove Base Design: Mounts securely onto cylindrical surfaces as well as flat surfaces
• Universal Clamping: Aperture 8mm + dovetail groove — compatible with dial indicators, lever dial indicators, and small calibration instruments
• Note: Base color is shipped randomly — color does not indicate any difference in product grade or function

Wide Range of Applications

This measurement set is widely used across many industries and tasks:

• CNC and manual machining
• Workpiece dimensional measurement
• Equipment and machine calibration
• Concentricity and runout testing
• Quality control and inspection workflows

Important Notes

• All dimensions are manually measured; a tolerance of 1–3mm is normal and expected.
• If your item arrives damaged due to transit, please contact the seller promptly for a satisfactory resolution.

Related Tools You May Like

• 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder Wheel
• 10pcs Durable Gold Blade Nut – Universal Trimmer Accessories
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between the Dial Indicator and the Leverage Dial Indicator included in this listing?

A: The Dial Indicator has a larger measuring range (0–10mm or 0–30mm) and uses a stainless steel probe, making it ideal for general dimensional measurement and concentricity checks. The Leverage Dial Indicator has a finer range (0–0.8mm) with a tungsten alloy probe and a 240° adjustable probe angle, making it better suited for precision tolerance checks in tight or angled spaces. Both have a resolution of 0.01mm.

Q: Will this magnetic base work on all surfaces?

A: The magnetic stand base is designed to attach to ferromagnetic (magnetic steel or iron) surfaces. It features an ON/OFF magnet switch for easy placement and removal. The V-groove base also allows mounting on cylindrical surfaces. It will not adhere to non-magnetic surfaces such as aluminum, wood, or plastic.

Q: What clamping sizes does the magnetic stand base support?

A: The magnetic stand base features an 8mm aperture clamp and a dovetail groove, making it compatible with standard dial indicators, lever dial indicators, and most small calibration instruments commonly used in machining and measurement applications.

Q: Is the color of the magnetic base significant?

A: No — the base color is shipped randomly and does not indicate any difference in quality, model, or function. All bases perform identically regardless of the color received.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
