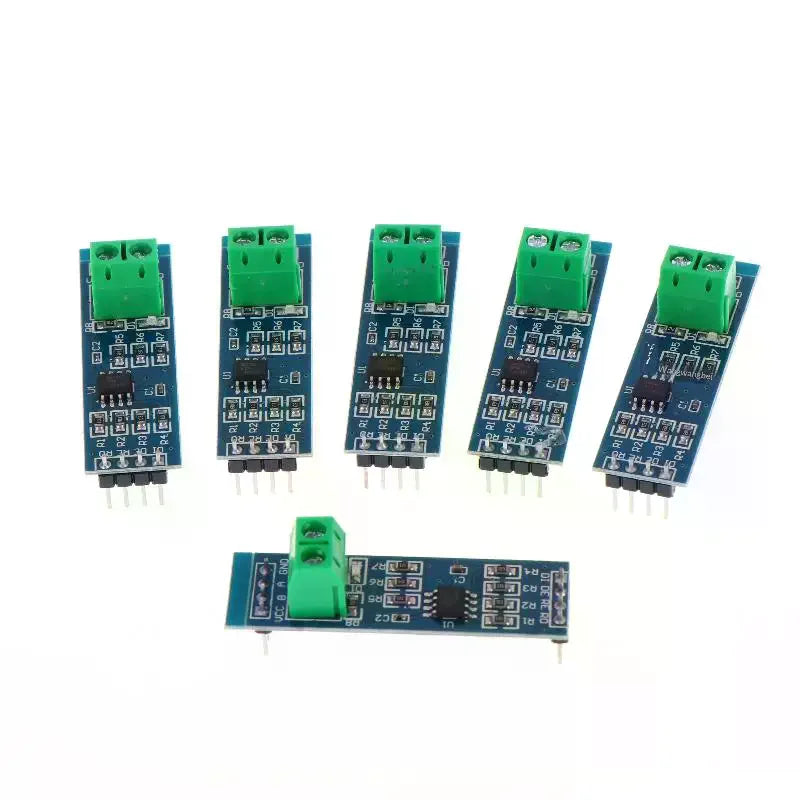

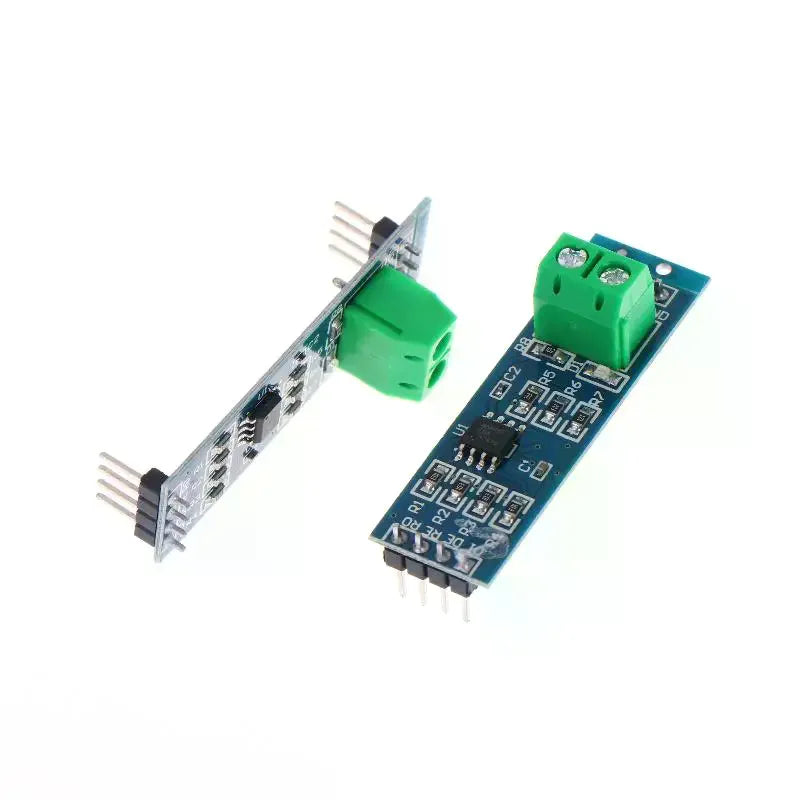

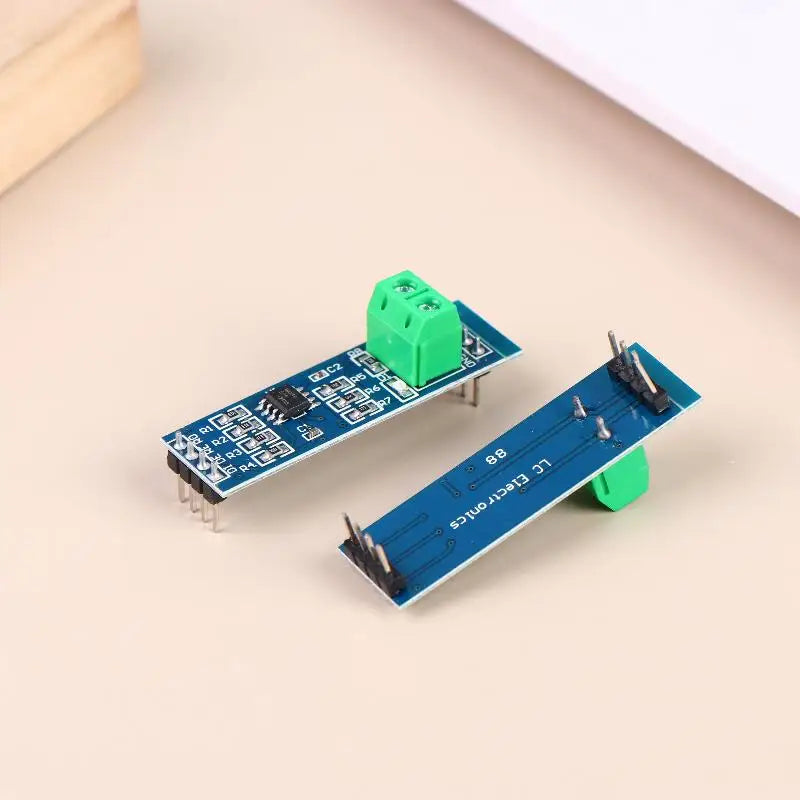

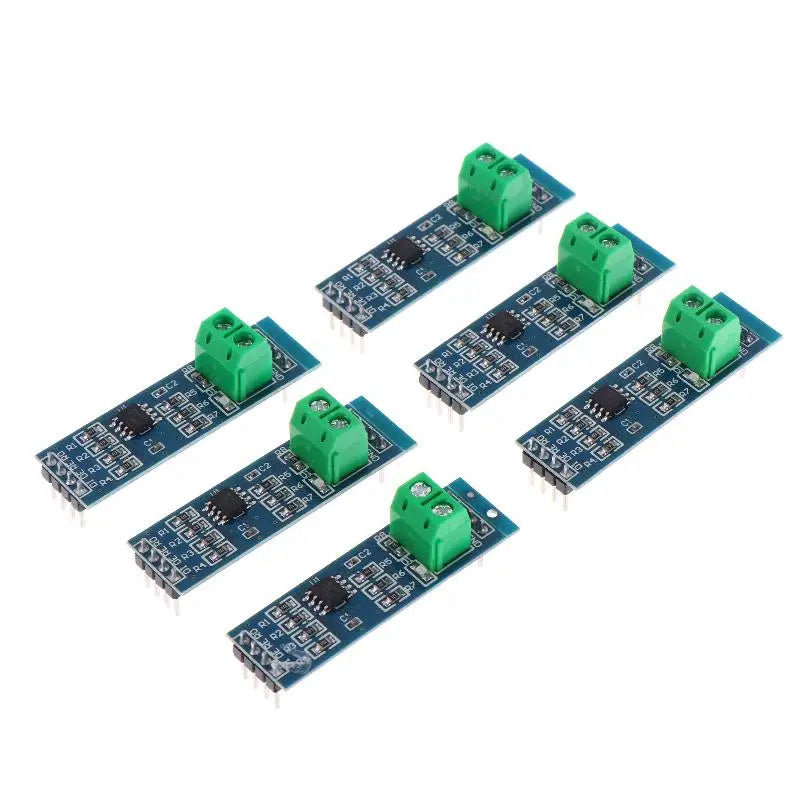

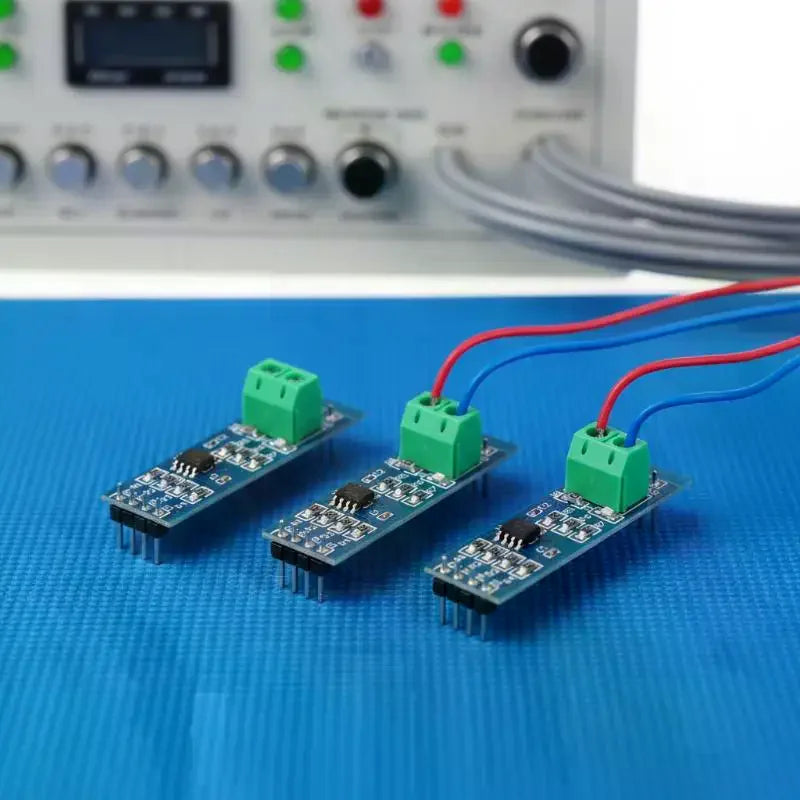

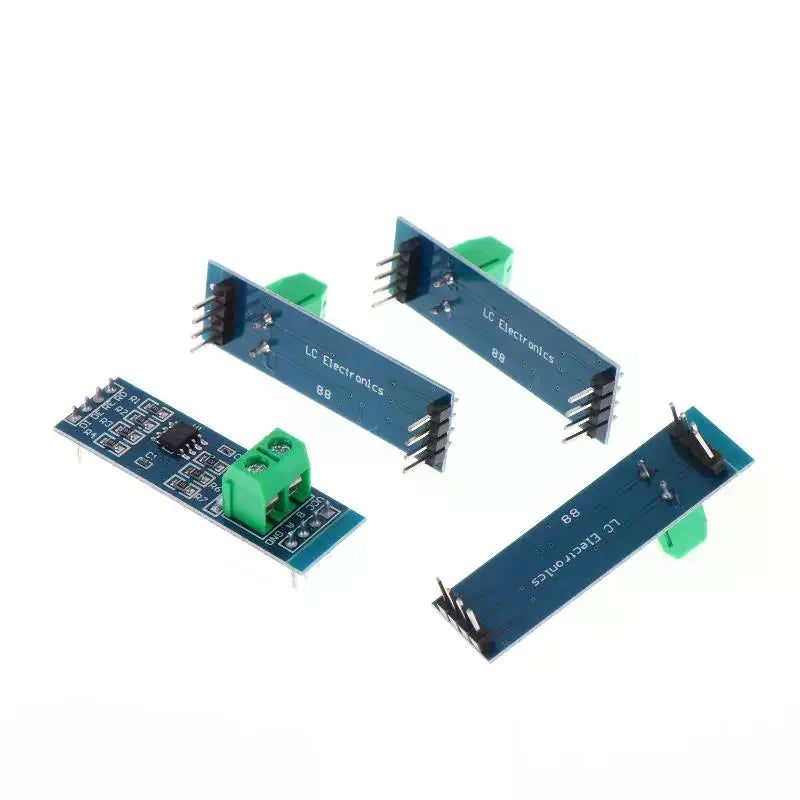

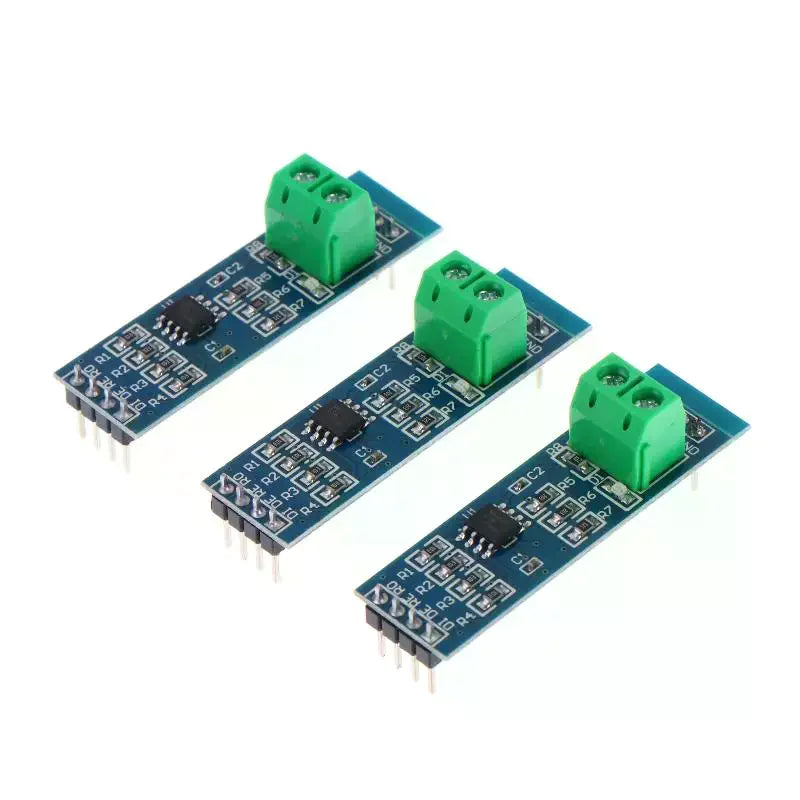

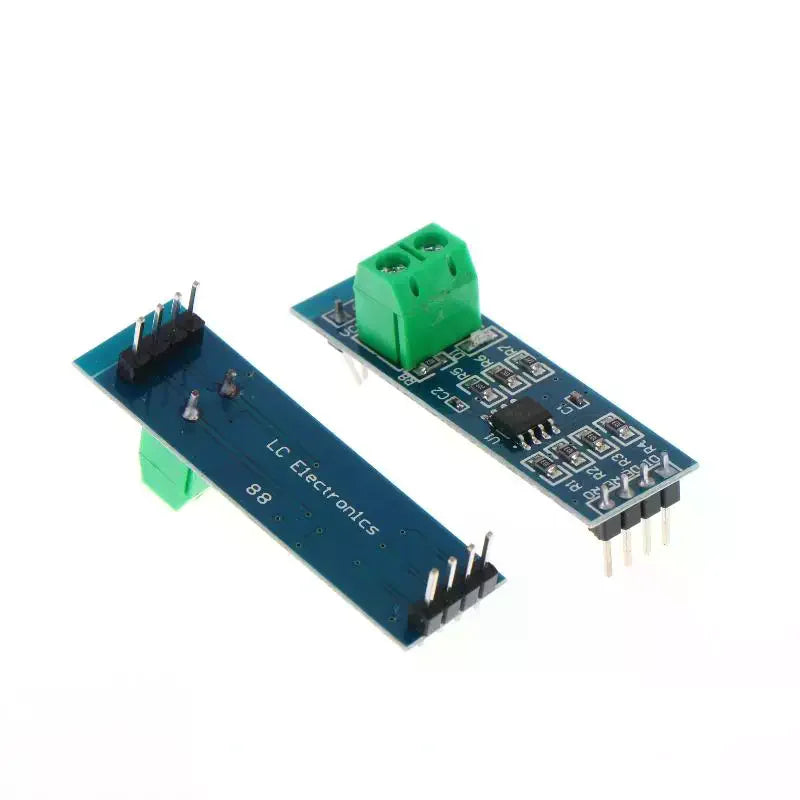

MAX485 TTL to RS485 Module Level Converter – 3 or 6 Pack

RS485 Module MAX485 TTL to RS485 Level Converter – 3-Pack & 6-Pack

Upgrade your electronics projects with this reliable MAX485 TTL to RS485 Level Converter Module. Designed for makers, engineers, and hobbyists, this compact PCB module enables seamless long-range wired communication between microcontrollers, sensors, and RS485-compatible devices. Available in a convenient 3-piece or 6-piece pack to suit your project scale.

Key Features

• Wide Compatibility: Converts TTL logic levels to RS485 differential signal standard — ideal for use with Arduino, Raspberry Pi, STM32, and similar microcontrollers.
• Long-Range Communication: RS485 protocol supports data transmission over long distances, making it suitable for industrial automation, home automation, and sensor networks.
• Compact PCB Design: Lightweight and space-saving form factor fits easily into breadboards and custom PCB assemblies.
• Low Voltage Operation: Operates at low voltage (below 50V AC or 75V DC), meeting EU LVD safety standards.
• Half-Duplex Operation: Built-in MAX485 chip enables reliable half-duplex data communication.
• Sturdy PCB Material: Constructed from high-quality PCB for durability and consistent performance.
• Value Pack: Choose 3 or 6 pieces — great for prototyping, backups, or multi-node network setups.

Technical Specifications

• Chip: MAX485
• Interface: TTL ↔ RS485
• Communication Mode: Half-Duplex
• Material: PCB
• Operating Voltage: Below 50V AC / 75V DC
• Package Contents: 3 or 6 × MAX485 RS485 Module

Made in Mainland China.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Note: Please allow ±5–10mm tolerance due to manual measurement. Colors may vary slightly due to monitor settings and lighting conditions.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the MAX485 RS485 module used for?

A: The MAX485 module is a TTL to RS485 level converter used to enable long-range, noise-resistant wired communication between microcontrollers (such as Arduino or Raspberry Pi) and RS485-compatible devices like sensors, PLCs, and automation equipment.

Q: Is this RS485 module compatible with Arduino and Raspberry Pi?

A: Yes! The MAX485 TTL to RS485 converter is fully compatible with Arduino, Raspberry Pi, STM32, and most other TTL-level microcontrollers, making it a versatile choice for DIY electronics and embedded projects.

Q: How many modules are included in each pack?

A: You can choose between a 3-piece pack or a 6-piece pack depending on your project needs. The 6-pack is ideal for multi-node RS485 networks or keeping spares on hand.

Q: What operating voltage does the MAX485 module support?

A: The module operates at low voltage — below 50V AC or 75V DC — and complies with EU LVD (Low Voltage Directive) standards, making it safe and suitable for a wide range of electronic applications.
