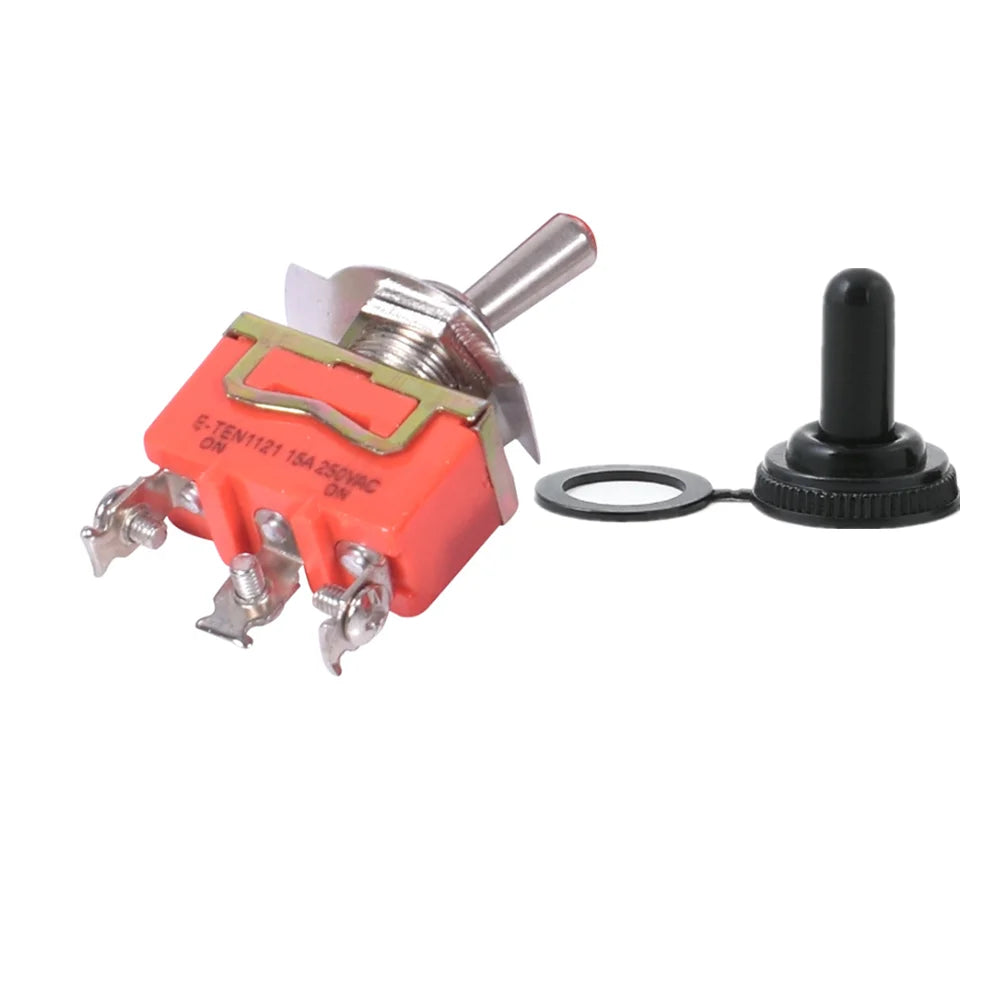

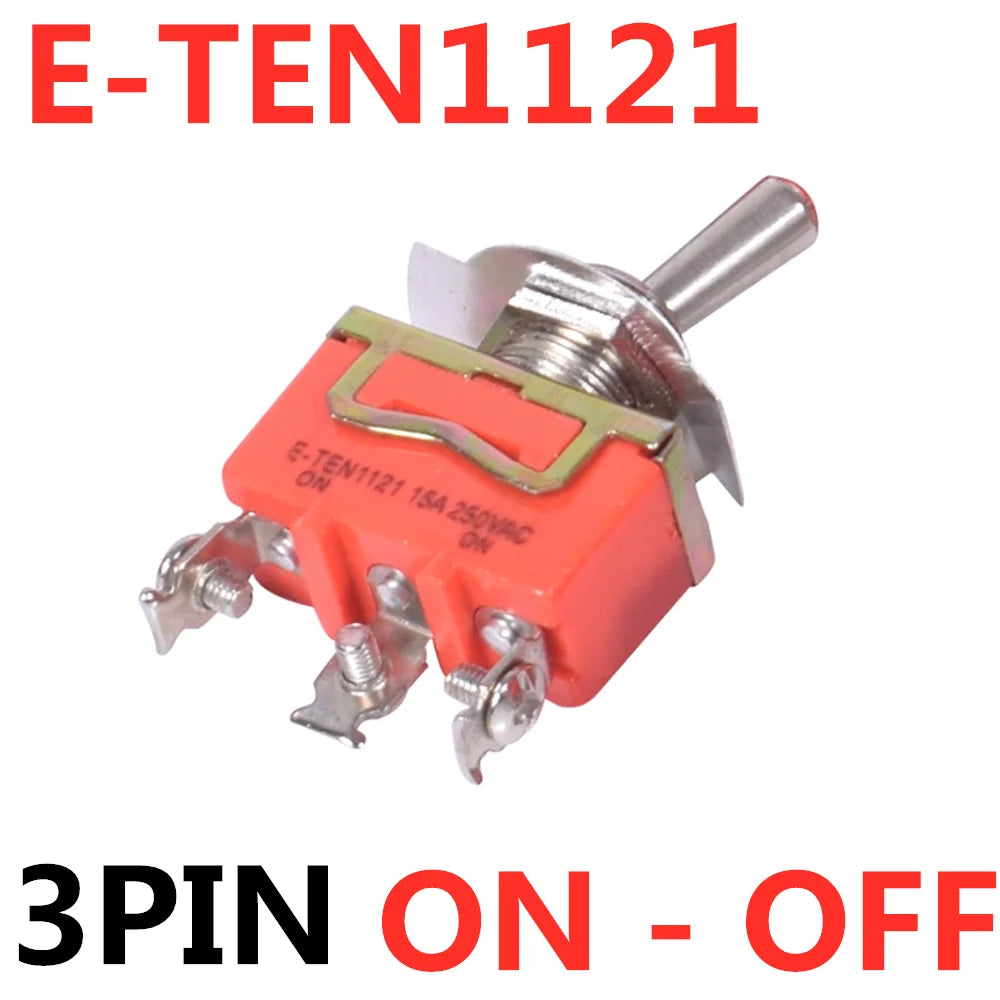

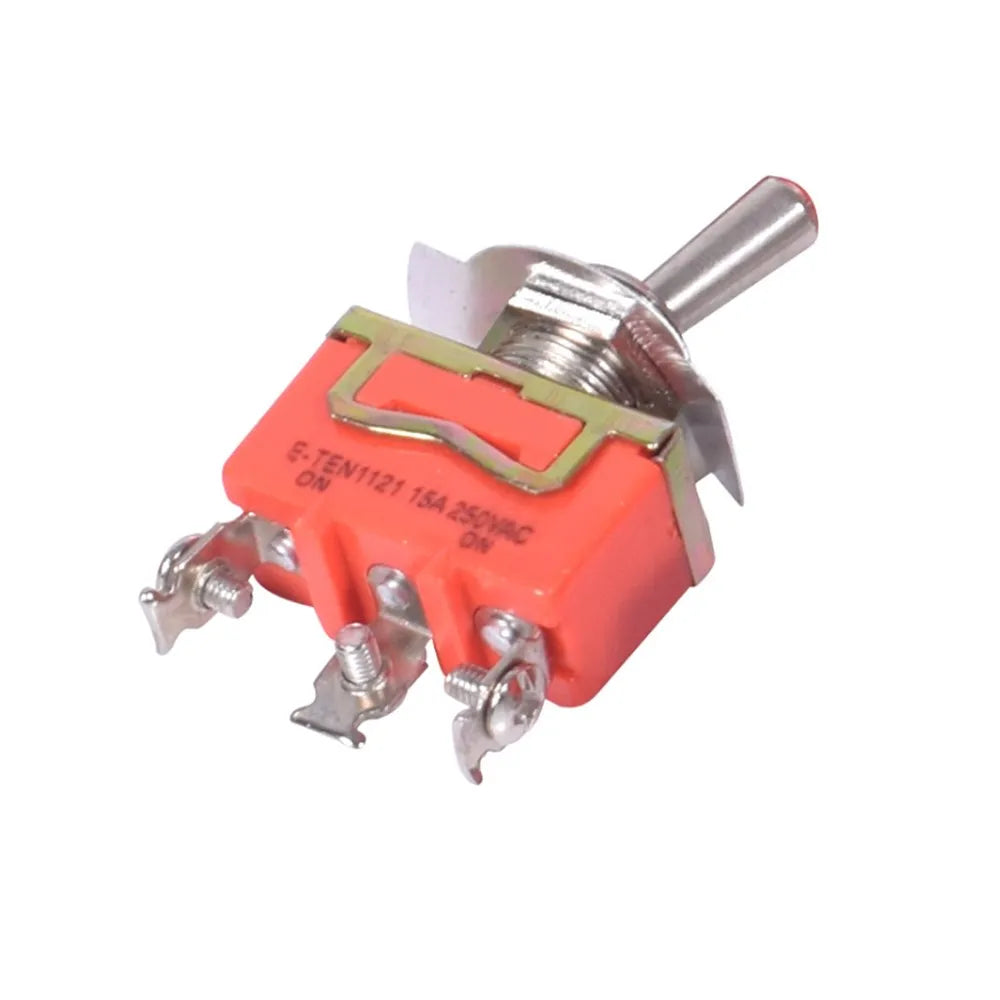

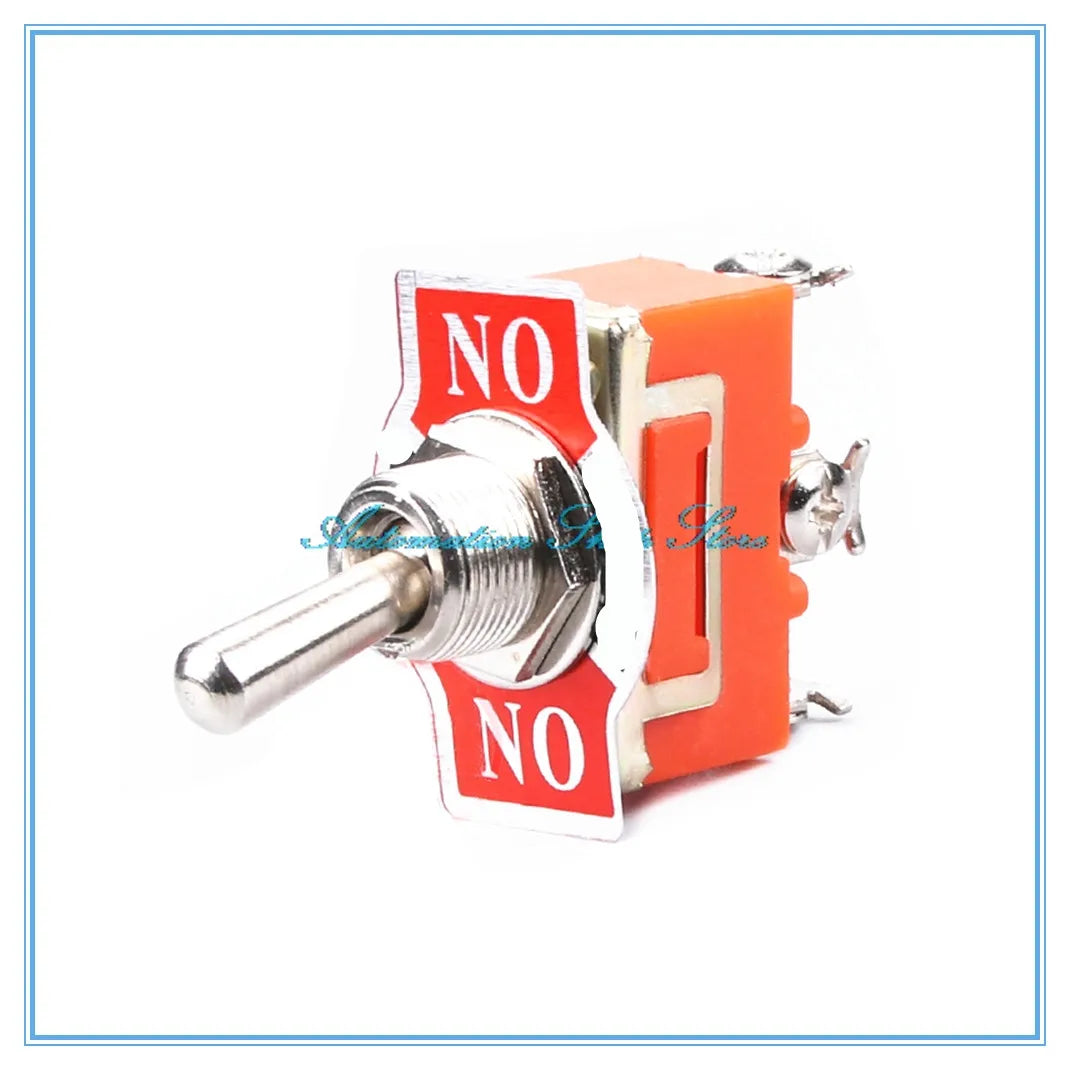

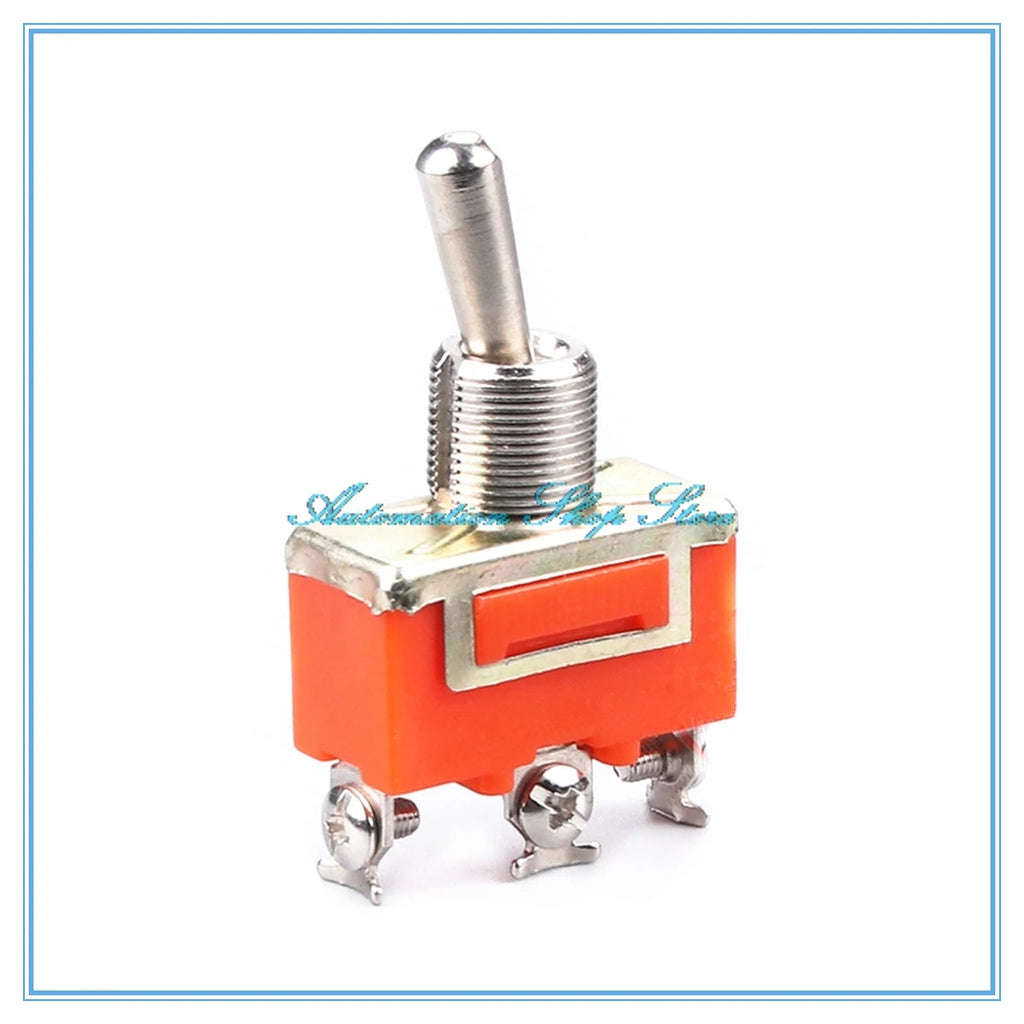

Mini 3-Pin ON-ON Toggle Switch 15A 250V AC – E-TEN1121
This compact and reliable SPDT latching toggle switch is an ideal choice for DIY electronics projects, panel controls, automotive wiring, and industrial applications. The E-TEN1121 features a sturdy metal construction with an eye-catching orange toggle, delivering dependable ON-ON switching at up to 15A / 250V AC. With a standard 12mm thread diameter, it fits neatly into most control panels, project enclosures, and instrument dashboards.
Made in Mainland China.
Key Features
- Switch Type: 3-Pin SPDT Latching Toggle Switch
- Position: ON-ON (two stable positions)
- Rated: 15A / 250V AC
- Thread Diameter: 12mm for easy panel mounting
- Terminals: 3 screw terminals for secure wiring
- Action Type: Latching (stays in selected position)
- Material: Durable metal body
- Model: E-TEN1121
- Certifications: CCC, RoHS compliant
- Dimensions: 29 × 17 × 54mm (L×W×H)
Specifications
| Model | E-TEN1121 |
| Positions | ON-ON |
| Contact Type | SPDT |
| Current Rating | 15A |
| Voltage Rating | AC 250V |
| Thread Diameter | 12mm |
| Terminals | 3 Screw Terminals |
| Action | Latching |
| Certifications | CCC, RoHS |
| Package | 1× Toggle Switch |
Common Applications
- DIY electronics and hobbyist projects
- Automotive and vehicle control panels
- Industrial and workshop equipment
- Marine and RV electrical systems
- Custom lighting and fan control boards
Related Products You May Like
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does ON-ON mean on this toggle switch?
A: An ON-ON toggle switch has two stable positions — both of which complete a circuit. This means the switch is always active in either position, simply routing the electrical current to one of two outputs. This is ideal for selecting between two circuits or functions, such as switching between two speed settings or two lighting modes.
Q: What is the maximum load this 3-pin toggle switch can handle?
A: The E-TEN1121 toggle switch is rated at 15A at 250V AC, making it suitable for a wide range of household, automotive, and light industrial applications. Always ensure your actual circuit load stays within these rated limits for safe and reliable operation.
Q: How do I install the E-TEN1121 toggle switch in a panel?
A: The switch features a 12mm thread diameter, so simply drill a 12mm hole in your panel, insert the switch body, and secure it with the provided nut. Connect your wiring to the three screw terminals — the center terminal is the common, and the two outer terminals correspond to each ON position of the SPDT configuration.
Q: Is this toggle switch RoHS compliant?
A: Yes, the E-TEN1121 toggle switch holds both CCC and RoHS certifications, confirming it meets international standards for safety and the restriction of hazardous substances in electrical and electronic equipment.
