MY3NJ 11-Pin Micro Electromagnetic Relay DC12V 24V AC220V
MY3NJ 11-Pin Micro Electromagnetic Relay DC12V 24V AC220V
Details
MY3NJ Mini Intermediate Electromagnetic Relay – 11-Pin, Multi-Voltage
The MY3NJ (HH53P) Micro Intermediate Electromagnetic Relay is a compact, general-purpose voltage relay engineered for reliable switching in control circuits, automation panels, and industrial equipment. Available in a range of coil voltages — DC 12V, DC 24V, DC 110V, and AC 220V — this sealed relay fits a wide variety of applications right out of the box.
Made in Mainland China.
Key Features
- Model: MY3NJ (HH53P / MY3)
- Pin Configuration: 11-Pin socket-type terminal for easy installation and removal
- Rated Current: 5A per contact
- Contact Type: Silver-plated gold contacts for low resistance and long service life
- Coil Voltages Available: DC 12V, DC 24V, DC 110V, AC 220V
- LED Indicator: Green LED status light (rated AC 220/240V)
- Sealed Construction: Protects internal components from dust and contaminants
- Theory: Voltage relay (electromagnetic)
- Contact Load: Low power general purpose
- Certification: CE certified

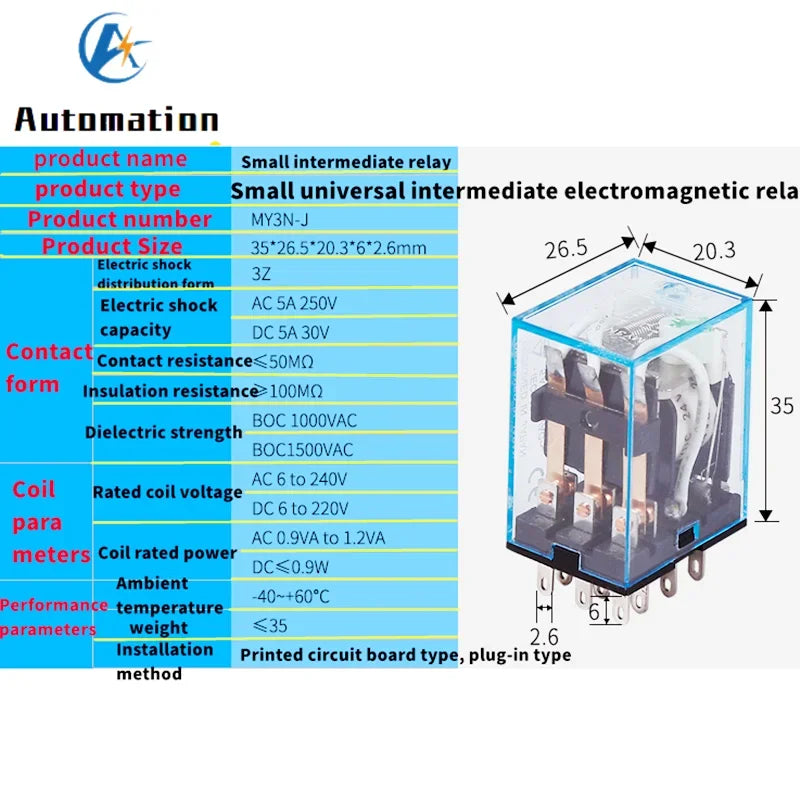

Specifications at a Glance
| Specification | Details |
|---|---|
| Model | MY3NJ / HH53P / MY3 |
| Pin Count | 11-Pin |
| Rated Current | 5A |
| Coil Voltages | DC 12V / DC 24V / DC 110V / AC 220V |
| Contacts | Silver-plated gold |
| Terminal Form | Socket type |
| LED Indicator | Green, AC 220/240V |
| Protection | Sealed |
| Certification | CE |
Common Applications
- Automation control panels and PLC circuits
- Industrial machinery switching
- HVAC and building control systems
- DIY electronics and prototyping projects
- Signal isolation and intermediate switching
Related Products You May Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What coil voltages are available for the MY3NJ 11-pin relay?
A: The MY3NJ intermediate electromagnetic relay is available in four coil voltage options: DC 12V, DC 24V, DC 110V, and AC 220V. Simply select the voltage that matches your control circuit requirement before purchasing.
Q: What is the contact current rating for the MY3NJ relay?
A: The MY3NJ relay features silver-plated gold contacts rated at 5A, making it suitable for low-power general-purpose switching tasks in control and automation circuits.
Q: Does the MY3NJ relay come with a built-in LED indicator?
A: Yes, the MY3NJ relay includes a green LED status indicator so you can quickly confirm whether the relay coil is energized during operation. The LED is rated for AC 220/240V operation.
Q: What type of socket is compatible with this 11-pin relay?
A: The MY3NJ uses an 11-pin socket-type terminal. It is compatible with standard MY3 relay sockets, allowing for easy plug-in installation and quick replacement without rewiring.
