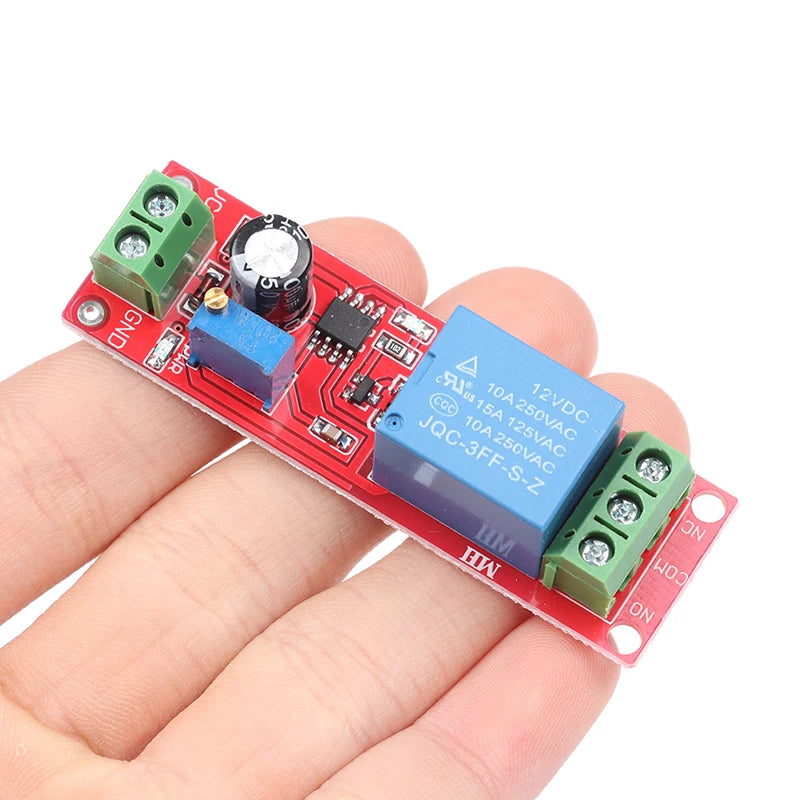

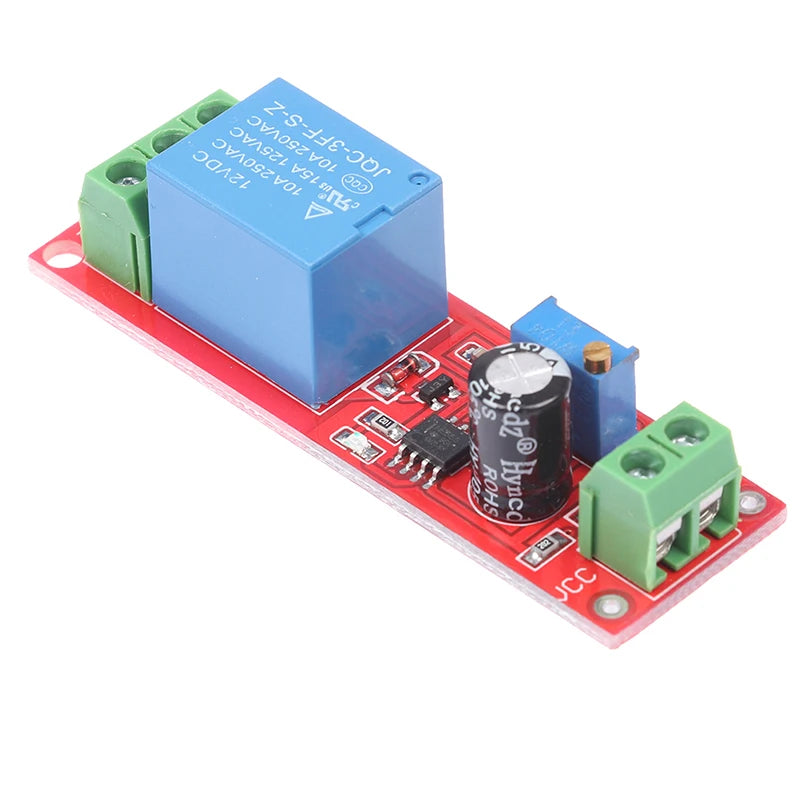

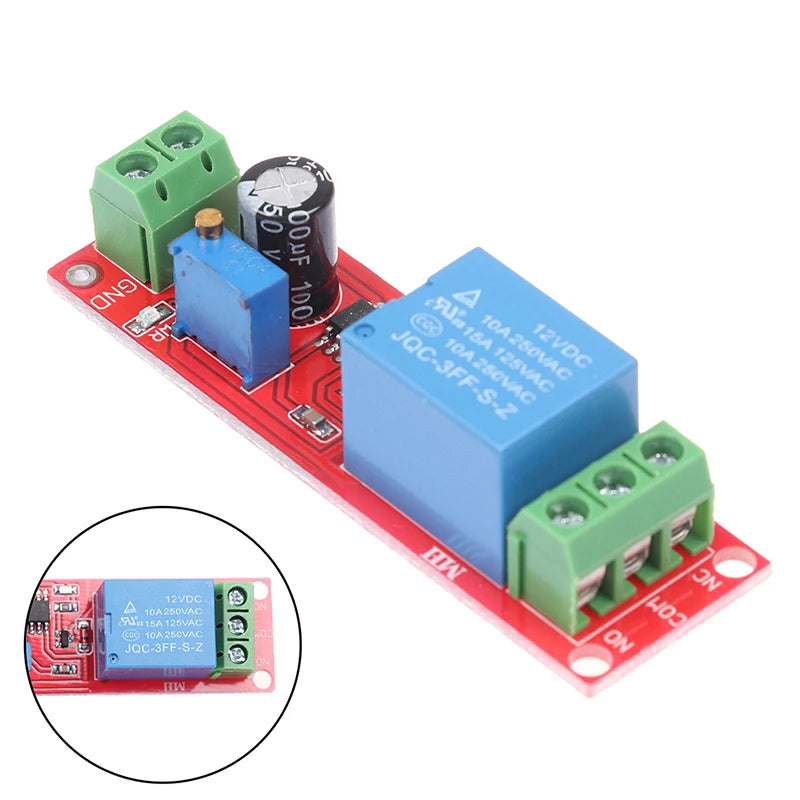

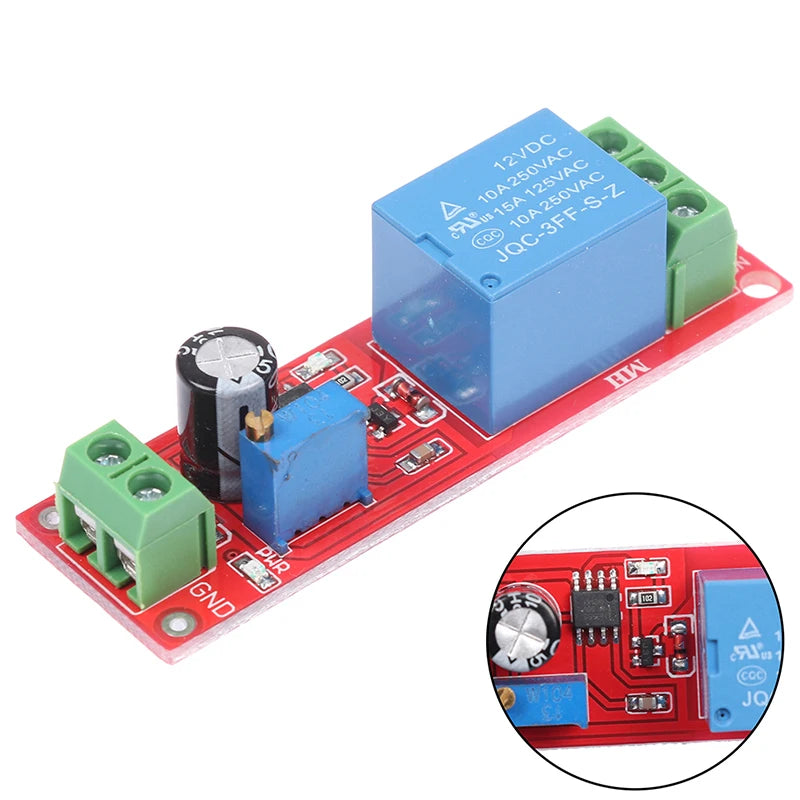

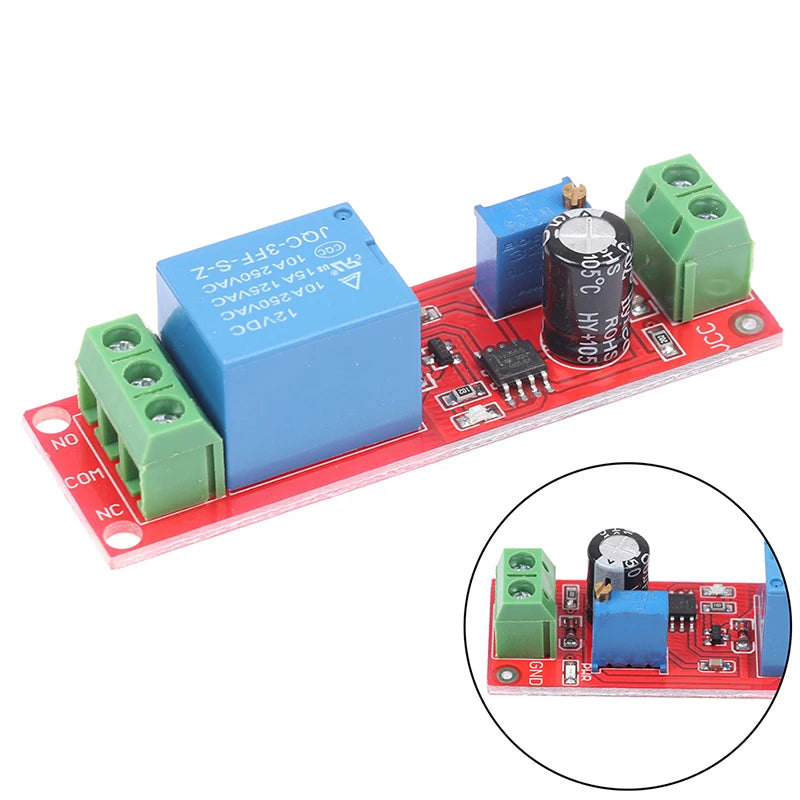

NE555 DC 12V Delay Relay Timer Switch Adjustable Module

NE555 DC 12V Delay Relay Timer Switch Adjustable Module

Take precise control of your electronic circuits with this high-quality NE555 DC 12V Delay Relay Timer Switch Module. Built around the legendary NE555 timer chip, this compact adjustable module lets you set a delay turn-on interval from 0 to 10 seconds (extendable by changing the capacitor), making it ideal for DIY electronics, automotive applications, and industrial automation projects.

Made in Mainland China.

Key Features

• NE555 Timer Chip: Industry-proven chip offering precision pulse generation and timing from microseconds to hours.
• Adjustable Delay Time: Default range of 0–10 seconds via onboard potentiometer; extend timing further by swapping the capacitor.
• Wide Load Compatibility: Supports AC 0–250V / 10A and DC 0–30V / 10A, handling loads up to 2200W.

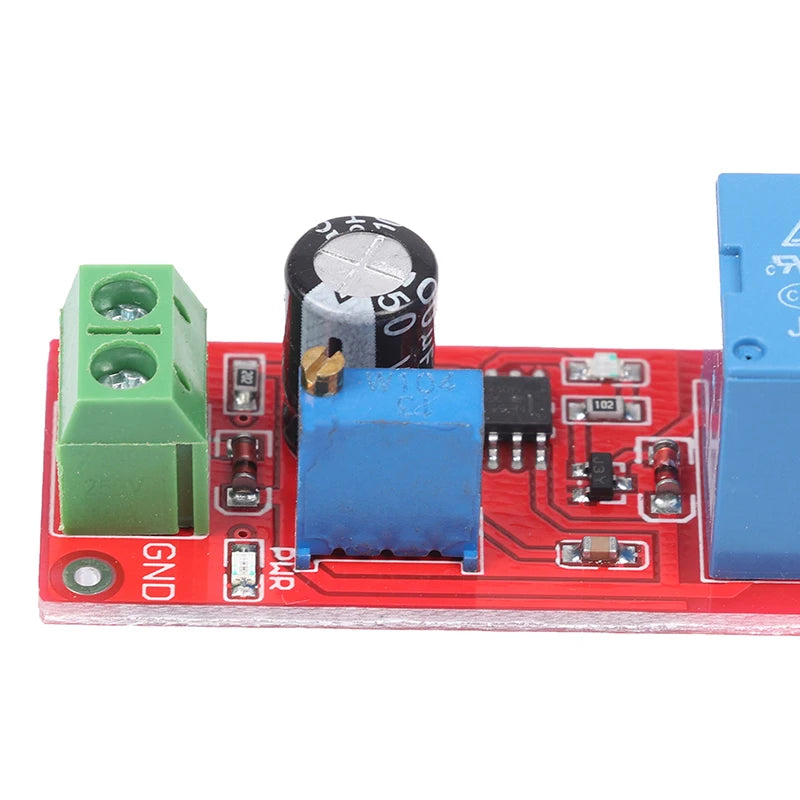

• LED Indicators: Onboard power indicator LED plus a switch trigger timing LED for easy status monitoring.
• Adjustable Duty Cycle: Flexible enough for countless timing and switching applications.
• Solid State Relay Design: Low-power contact load for efficient, reliable switching.
• Customizable: Supports optional 5V operation in addition to the standard 12V DC input.

Specifications

Common Applications

• Vehicle electronics — delay turn-on to prevent inrush current from stressing components at startup.
• Home automation — timed switching of lights, fans, or appliances.
• DIY electronics and hobbyist projects requiring precise timing control.
• Industrial equipment — sequenced startup of motors and devices.

Package Contents

• 1 × NE555 DC 12V Delay Relay Timer Switch Adjustable Module

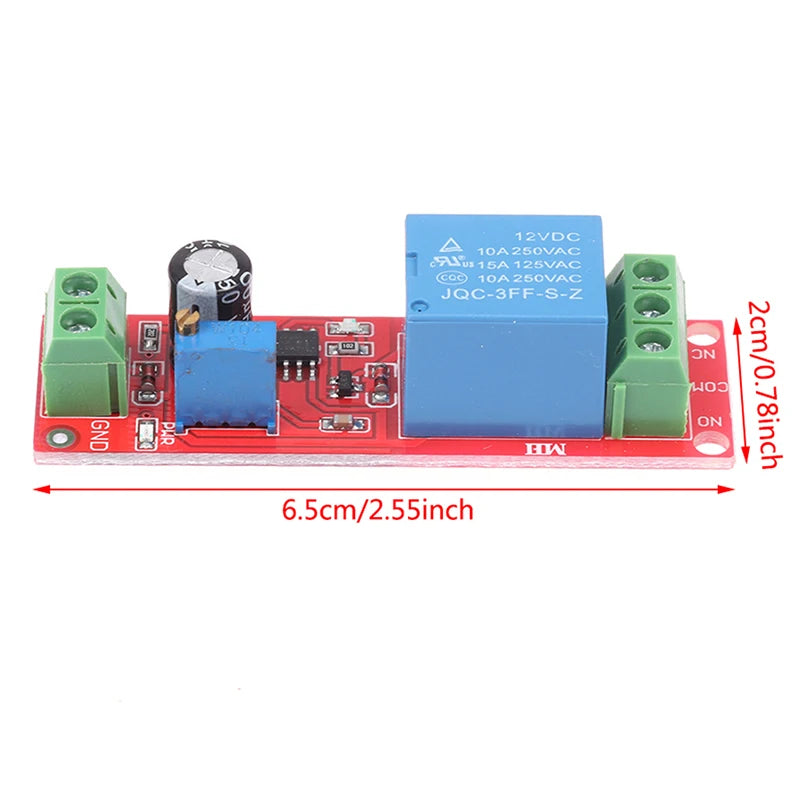

Note: Due to manual measurement, please allow a tolerance of 1–3 mm.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the default delay time range for the NE555 timer switch module?

A: The default adjustable delay time range is 0 to 10 seconds, set via the onboard potentiometer. You can extend this range by replacing the onboard capacitor with a higher-value one to achieve longer delay intervals.

Q: What voltage and load can this NE555 delay relay module handle?

A: The module operates on DC 12V input (with an optional 5V version available). Its output relay can switch AC loads up to 250V / 10A and DC loads up to 30V / 10A, with a maximum load capacity of 2200W.

Q: Can I use this delay timer module in automotive applications?

A: Yes. The module is well-suited for vehicle electronics, where a timed delay at startup helps protect components and devices from inrush current surges when power is first applied.
