5Pcs PCF4-03 3/8" PT to 4mm Push-In Pneumatic Quick Fittings
5Pcs PCF4-03 3/8" PT to 4mm Push-In Pneumatic Quick Fittings
Details

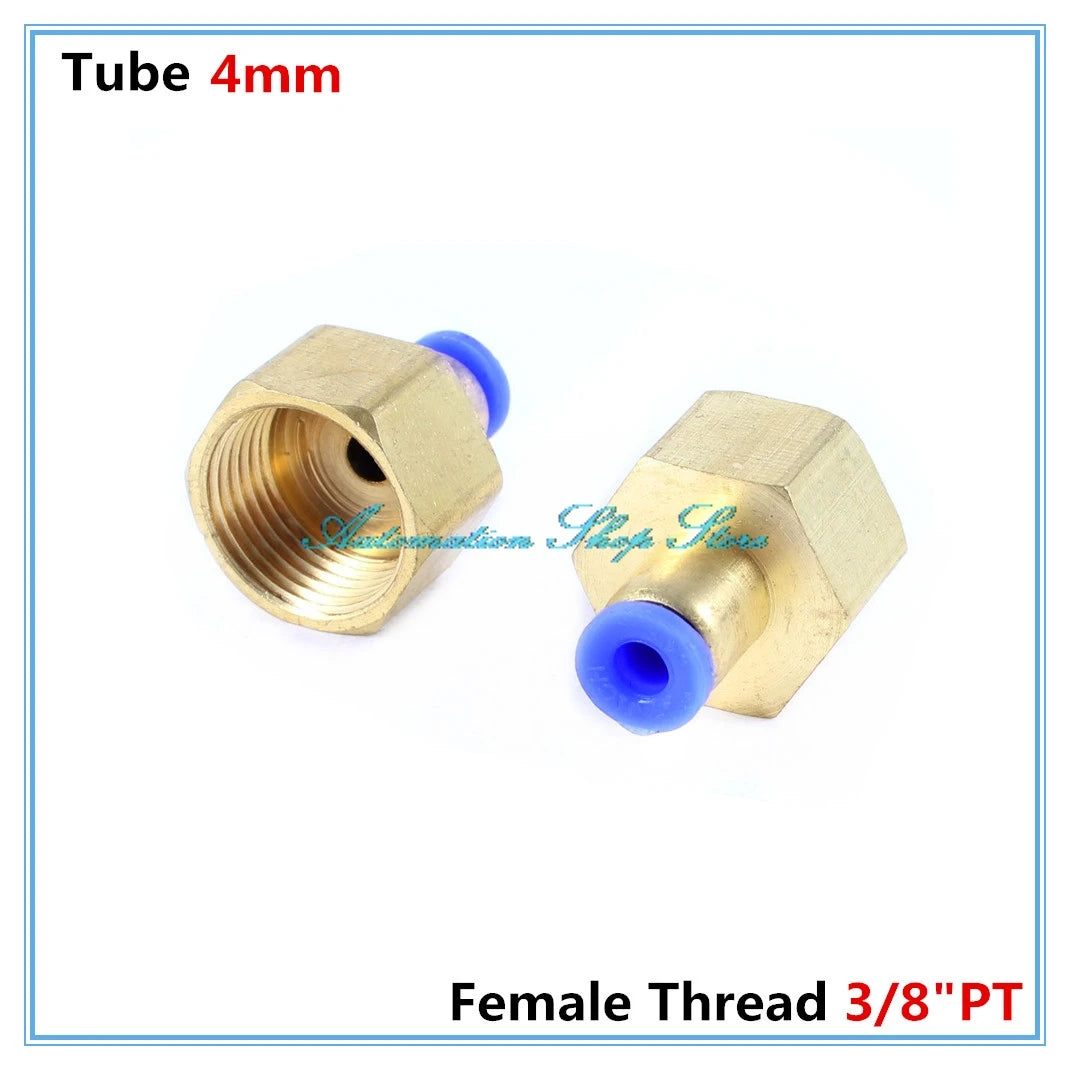

Keep your pneumatic systems running smoothly with these reliable PCF4-03 Push-In Air Pneumatic Quick Fittings. This pack of 5 connectors features a 3/8" PT female thread port paired with a 4mm tube push-in connection, making it easy to join air lines and vacuum lines without tools. Simply push the tube in to lock — no clamps or special tools needed.
Constructed from a durable combination of brass and plastic, these fittings are built to handle the demands of industrial and workshop pneumatic setups. The compact size (25 × 19mm each) makes them ideal for tight spaces where larger connectors won't fit.
Made in Mainland China.
Key Specifications
- Model: PCF4-03

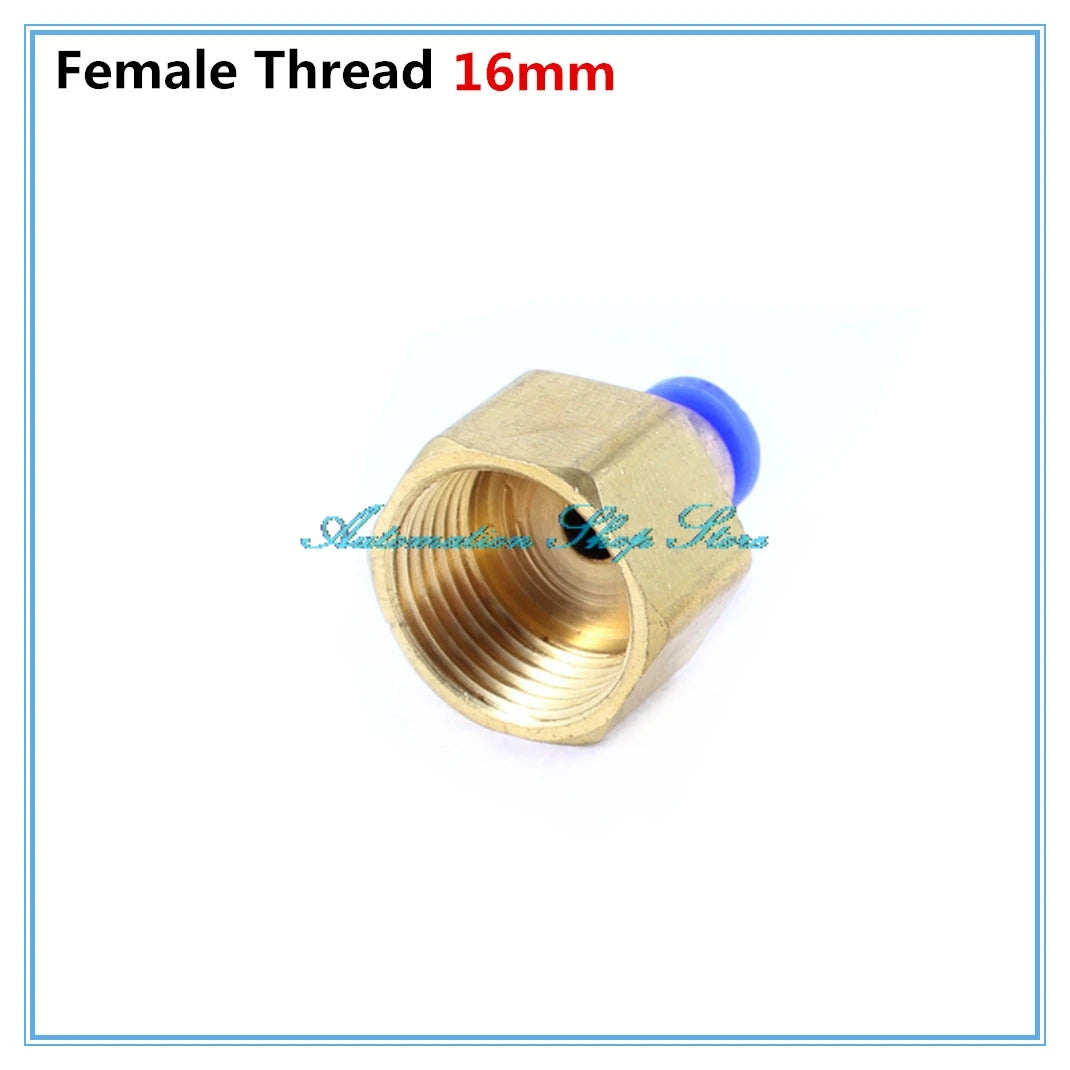

- Female Thread Size: 3/8" PT (ID: 16mm)
- Tube OD: 4mm (0.157")
- Overall Size (each): 25 × 19mm (L × Max. D)
- Fluid Type: Air / Vacuum
- Operating Pressure: 0–10.2 kgf/cm² (0–1.0 MPa)
- Negative Pressure: -750 mmHg (10 Torr)
- Operating Temperature: 0–60°C
- Material: Brass & Plastic
- Package Contents: 5 × Quick Fittings
Why Choose These Quick Fittings?
- Tool-free installation — push-in design connects tubing in seconds
- Secure, leak-resistant seal — reliable performance up to 1.0 MPa operating pressure
- Versatile compatibility — suitable for air compressors, pneumatic cylinders, automation equipment, and vacuum systems
- Durable construction — brass and plastic combination withstands everyday workshop use
- Value pack — 5 pieces for multiple connections or spares on hand
Full PCF Series Compatibility Chart
| Model | Tube OD (mm) | Female Thread Size | Thread ID (approx.) |
|---|---|---|---|
| PCF4-01 | 4 | PT 1/8 | 9.7mm |
| PCF4-02 | 4 | PT 1/4 | 12mm |
| PCF4-03 ★ | 4 | PT 3/8 | 16mm |
| PCF6-01 | 6 | PT 1/8 | 9.7mm |
| PCF6-02 | 6 | PT 1/4 | 12mm |
| PCF6-03 | 6 | PT 3/8 | 16mm |
| PCF6-04 | 6 | PT 1/2 | 20mm |
| PCF8-01 | 8 | PT 1/8 | 9.7mm |
| PCF8-02 | 8 | PT 1/4 | 12mm |
| PCF8-03 | 8 | PT 3/8 | 16mm |
| PCF8-04 | 8 | PT 1/2 | 20mm |
| PCF10-01 | 10 | PT 1/8 | 9.7mm |
| PCF10-02 | 10 | PT 1/4 | 12mm |
| PCF10-03 | 10 | PT 3/8 | 16mm |
| PCF10-04 | 10 | PT 1/2 | 20mm |
| PCF12-01 | 12 | PT 1/8 | 9.7mm |
| PCF12-02 | 12 | PT 1/4 | 12mm |
| PCF12-03 | 12 | PT 3/8 | 16mm |
| PCF12-04 | 12 | PT 1/2 | 20mm |
You May Also Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What tube outer diameter (OD) is compatible with the PCF4-03 pneumatic quick fitting?
A: The PCF4-03 is designed for tubes with a 4mm outer diameter (OD). Simply push the tube firmly into the fitting until it locks in place for a secure, airtight connection.
Q: What is the maximum operating pressure for these pneumatic quick fittings?
A: These fittings support an operating pressure range of 0 to 10.2 kgf/cm² (0 to 1.0 MPa), making them suitable for most standard air compressor and pneumatic tool applications.
Q: Can these fittings be used with vacuum systems?
A: Yes. The PCF4-03 supports both compressed air and vacuum applications, with a negative pressure rating of -750 mmHg (10 Torr), making them versatile for a wide range of pneumatic setups.
Q: What thread standard does the PCF4-03 use and how do I identify it?
A: The PCF4-03 uses a 3/8" PT (parallel taper) female thread with an inner diameter of approximately 16mm. PT is a commonly used pipe thread standard in pneumatic and plumbing applications across Asia and Europe.
