PL Elbow Pneumatic Fitting BSP Push-In Air Quick Connector

$5.55 $6.27

Shipping calculated at checkout.

Color

Specification

PL Elbow Pneumatic Fitting – L-Shape Push-In Air Quick Connector

Upgrade your pneumatic system with this versatile PL Elbow Push-In Fitting. Featuring an L-shaped 90° design, it allows quick, tool-free tube connections in tight spaces where straight fittings simply won't fit. Compatible with a wide range of BSP male thread sizes and tube outer diameters, this fitting is a must-have for workshops, manufacturing lines, and DIY pneumatic builds.

Key Features

L-Shape 90° Elbow Design: Ideal for routing air lines around corners and in confined spaces
Push-In Quick Connect: Tool-free installation — simply push the tube in for an instant, secure seal
Wide Thread Compatibility: Available in M5, 1/8", 1/4", 3/8", and 1/2" BSP/BSPT male threads
Multiple Tube Sizes: Fits hose outer diameters of 4mm, 6mm, 8mm, 10mm, 12mm, and 16mm
Durable Plastic Construction: Lightweight yet robust, resistant to wear and corrosion
CE Certified: Meets European conformity standards for quality and safety
Wide Operating Range: Handles pressures from 0 to 1.0 MPa (10.2 kgf/cm²) and temperatures from 0°C to 60°C
Negative Pressure Rated: Supports vacuum to -750 mmHg (10 Torr)

Specifications

Model	PL

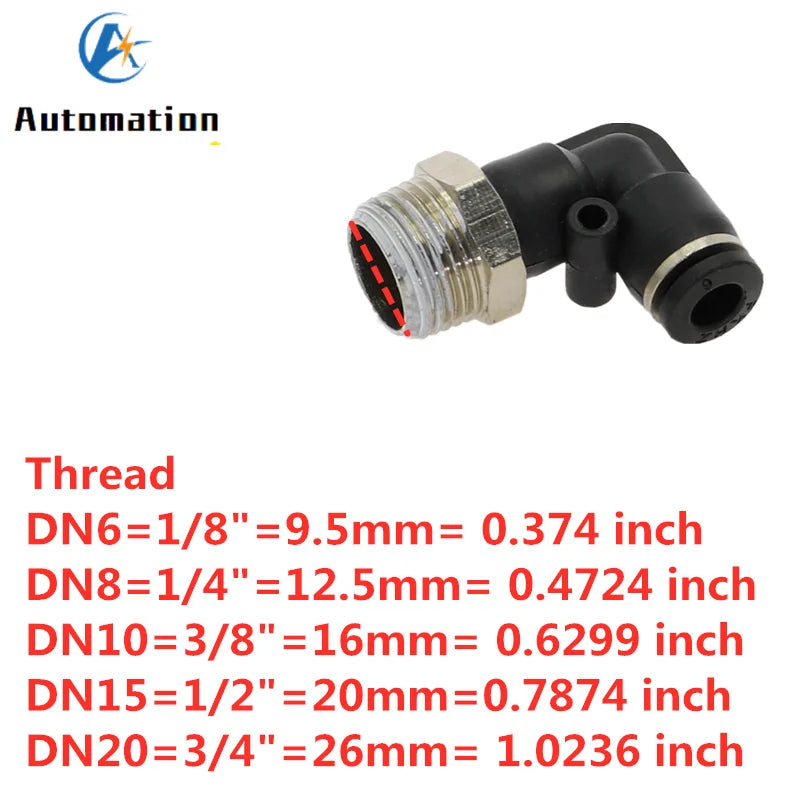

Male Thread Sizes	M5, 1/8" (9.7mm), 1/4" (12mm), 3/8" (16mm), 1/2" (20mm) BSPT
Tube OD	4mm, 6mm, 8mm, 10mm, 12mm, 16mm
Operating Pressure	0 – 1.0 MPa (0 – 10.2 kgf/cm²)
Negative Pressure	-750 mmHg (10 Torr)
Temperature Range	0°C – 60°C
Material	Plastic
Certification	CE
Package Contents	1 × PL Elbow Pneumatic Fitting
Origin	Made in China

Ideal Applications

Air compressor line routing
Pneumatic cylinder and valve connections
Automation equipment and machinery
Workshop air tool setups
DIY pneumatic projects
