Contour Profile Gauge Duplicator – 5" & 10" Woodworking Tool

Plastic Contour Profile Gauge & Shape Duplicator

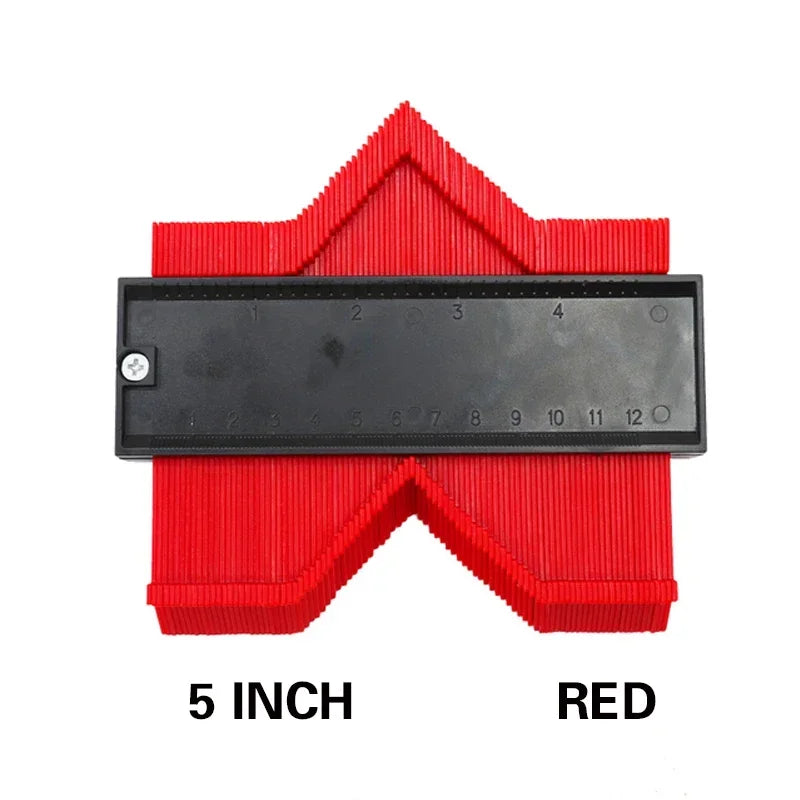

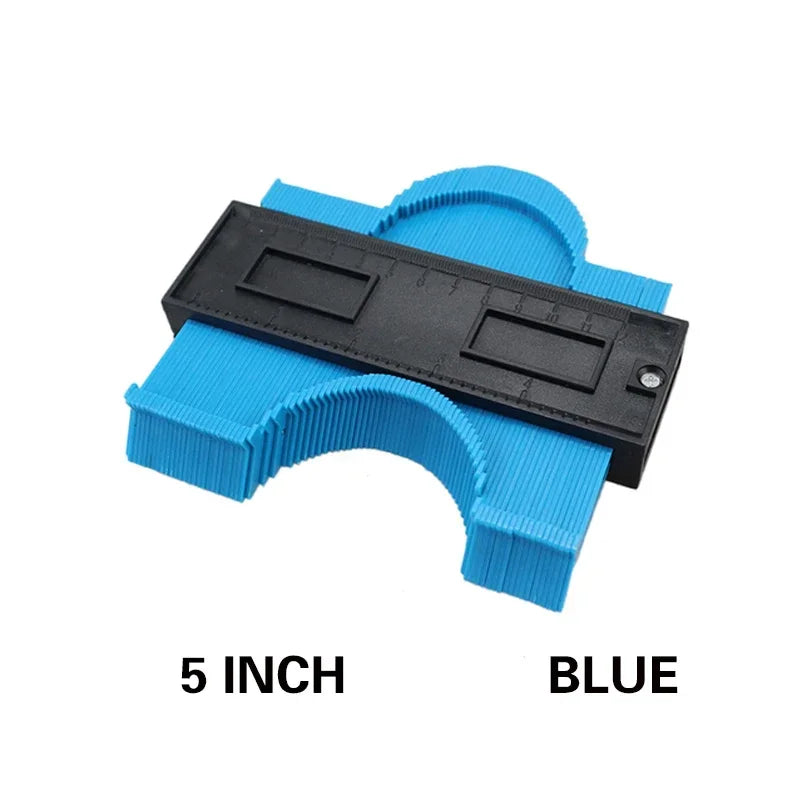

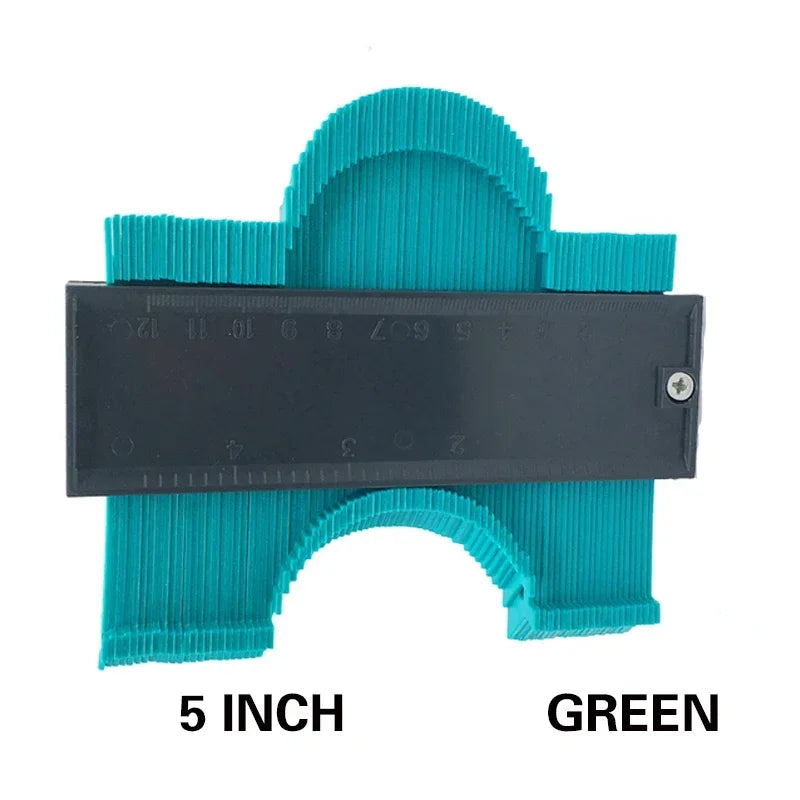

Take the guesswork out of tracing and transferring irregular shapes. This Profile Duplication Gauge lets you instantly copy the exact contour of pipes, frames, mouldings, tiles, and more — then transfer that outline directly to your workpiece for a precise, clean cut every time. Available in both 5-inch and 10-inch sizes to suit any project scale.

Key Features

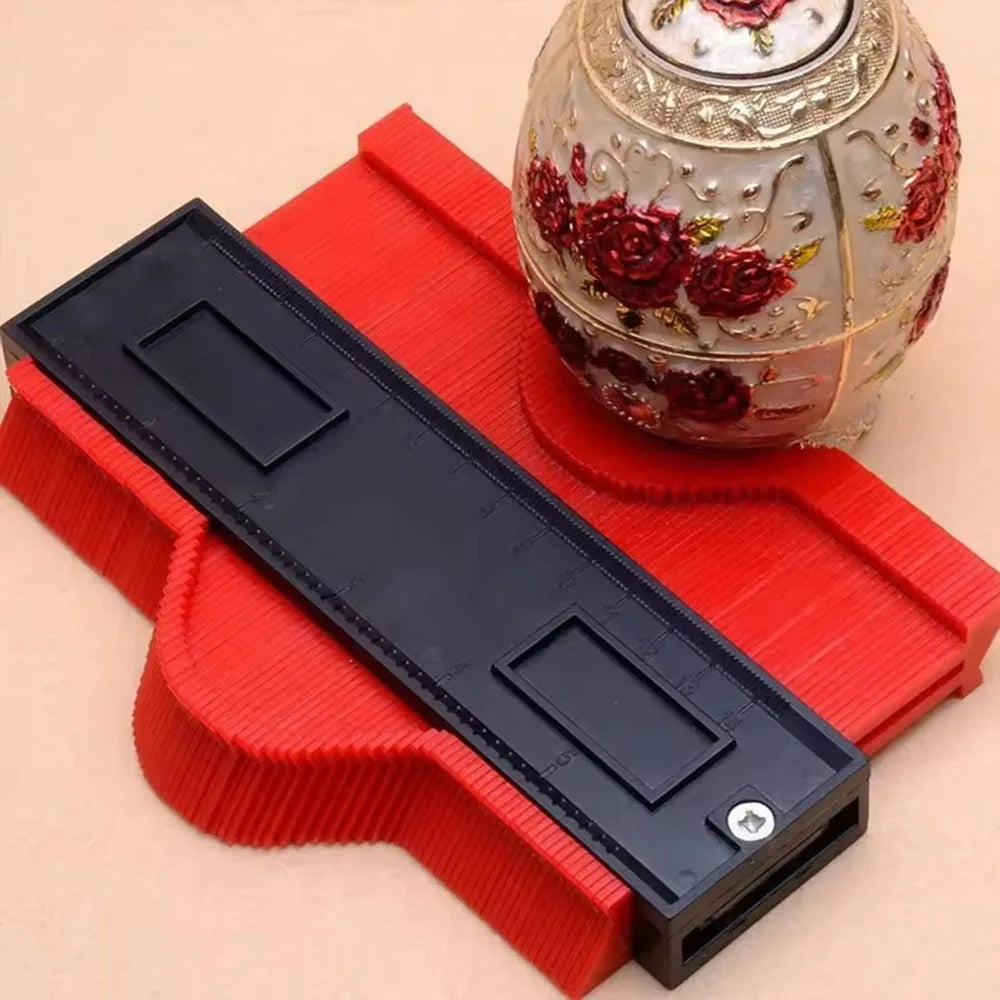

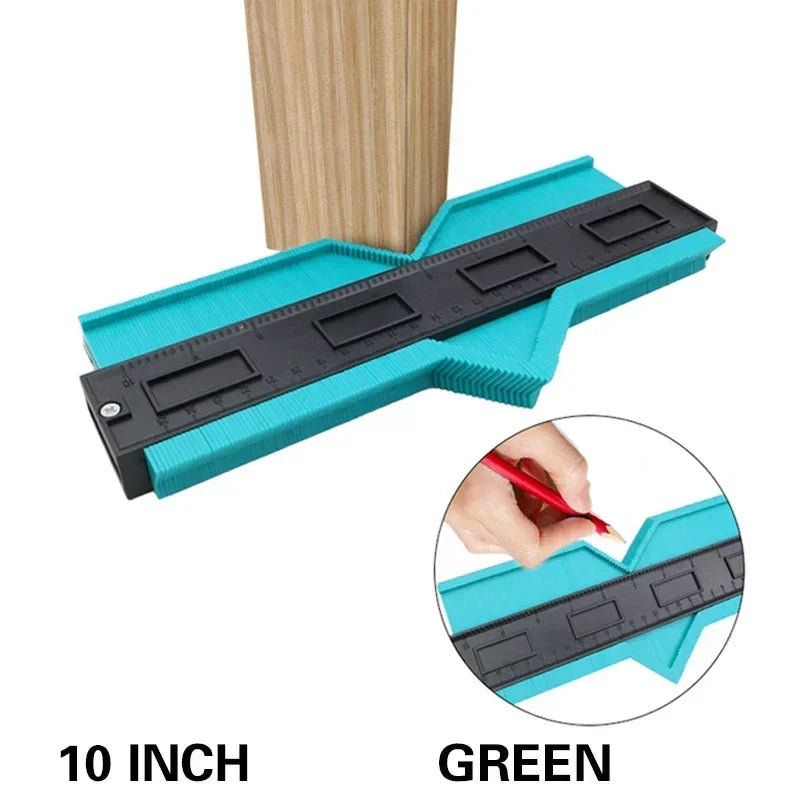

• Handles Irregular Profiles: Designed specifically for winding pipes, circular frames, ducts, and other complex shapes. Simply press the gauge firmly against any object, and the interlocking teeth conform to the exact profile instantly.
• Durable ABS Plastic Construction: Made from high-quality, tough ABS plastic that won't rust, warp, or break under regular workshop use — built to last through countless projects.
• High Accuracy: Clear, high-definition marker lines make it easy to read and trace your copied shape with confidence. Ideal for woodworking, auto body sheet metal, stainless steel fabrication, and any duplication task.

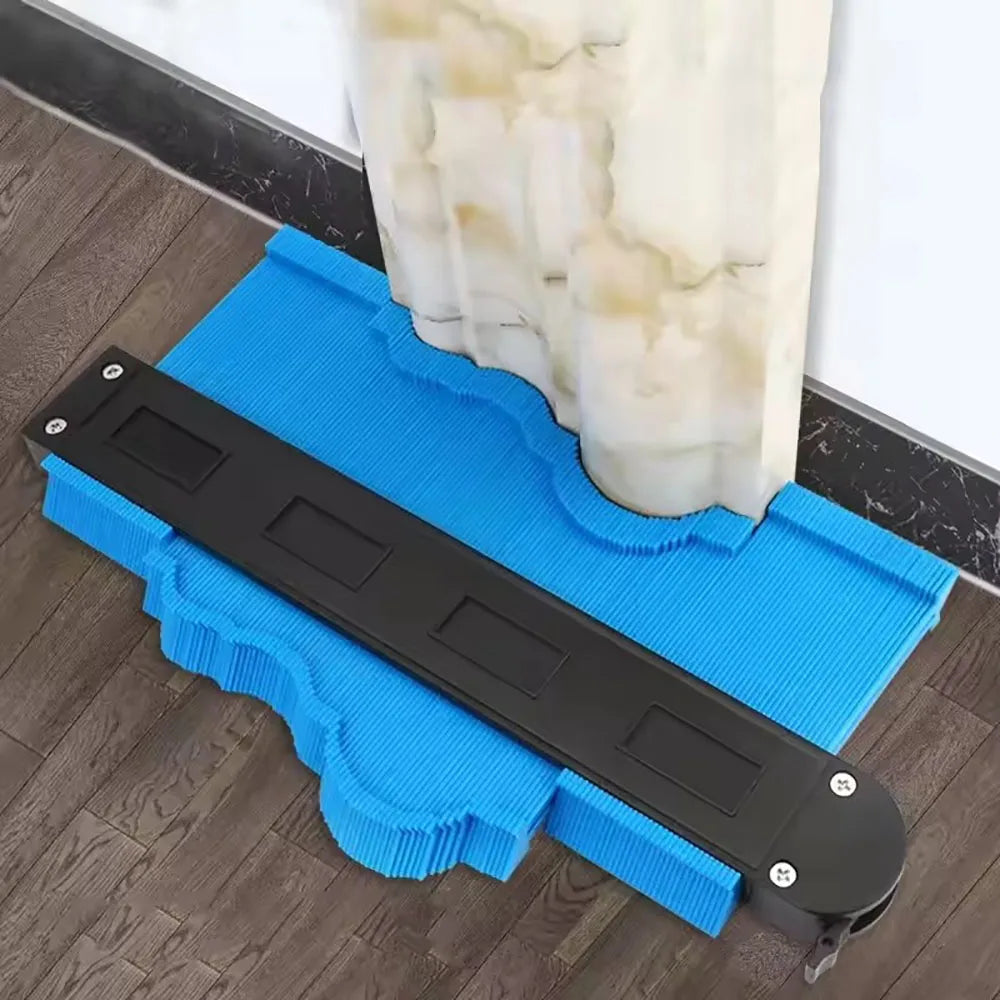

• Wide Range of Applications: Perfect for fitting tiles, laminate flooring, carpet, moulding, and checking dimensions across a variety of trades and DIY tasks.

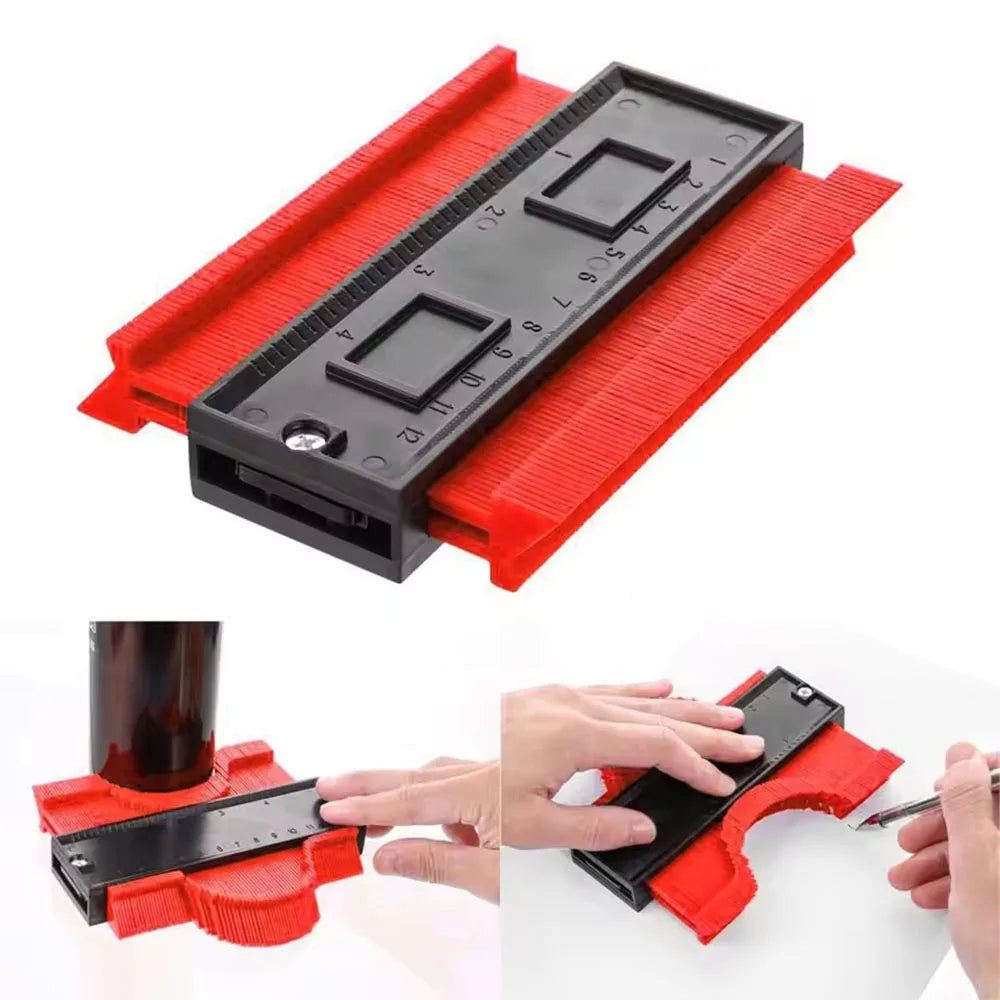

• Effortless to Use: Press → Copy → Cut. No experience needed — just press the gauge onto a surface, lock the teeth in place, trace the shape, and cut your material to a perfect fit.

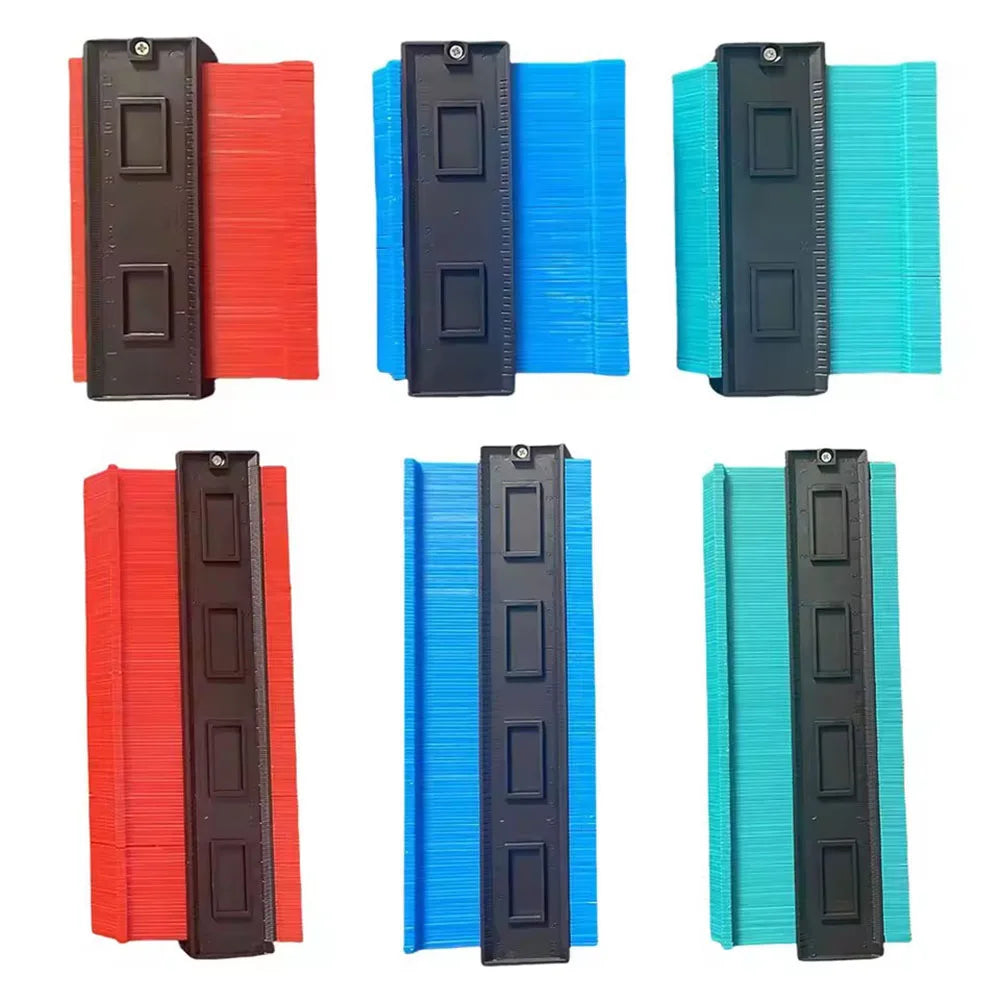

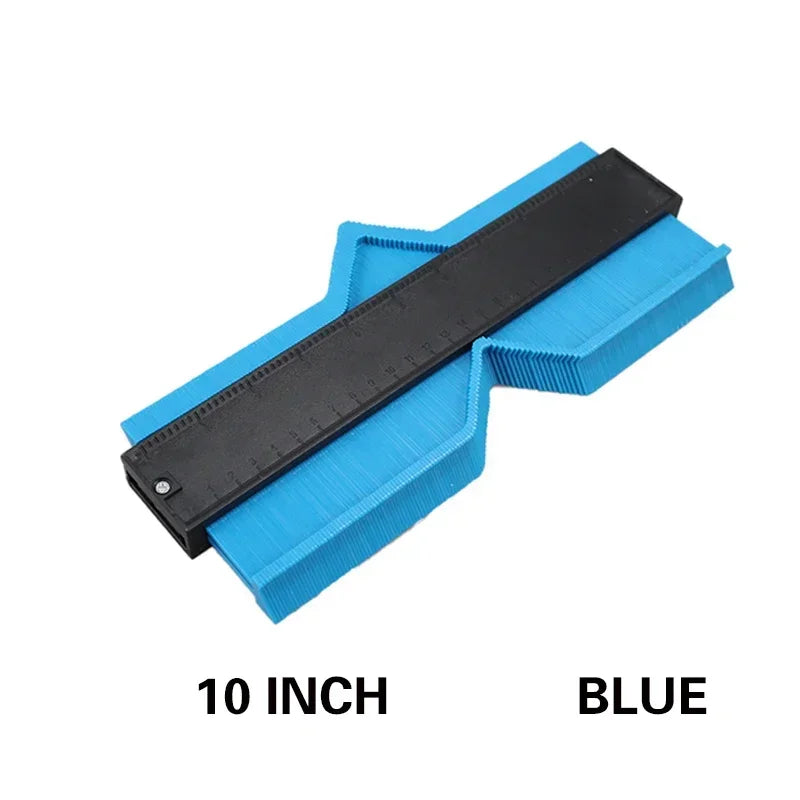

• Available in Multiple Colors: Choose from Blue, Red, or Green to keep your toolkit organized and easy to spot on the workbench.

Specifications

Package Includes

• 1 × Profile Duplication Gauge

Note: Due to different monitor settings and lighting conditions, the actual color may vary slightly from images. Please allow a 1–2 cm measurement deviation due to manual measurement.

You May Also Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
• 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder
• 10PCS Stainless Steel Self-Tapping Screws – Phillips Wood Hinge

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What materials can this profile gauge be used on?

A: This contour profile gauge works on virtually any surface — wood, tile, laminate flooring, carpet, metal sheet, pipes, ducts, and more. It's ideal for both woodworking and general construction or renovation projects where irregular shapes need to be accurately copied and transferred.

Q: What is the difference between the 5-inch and 10-inch profile gauge?

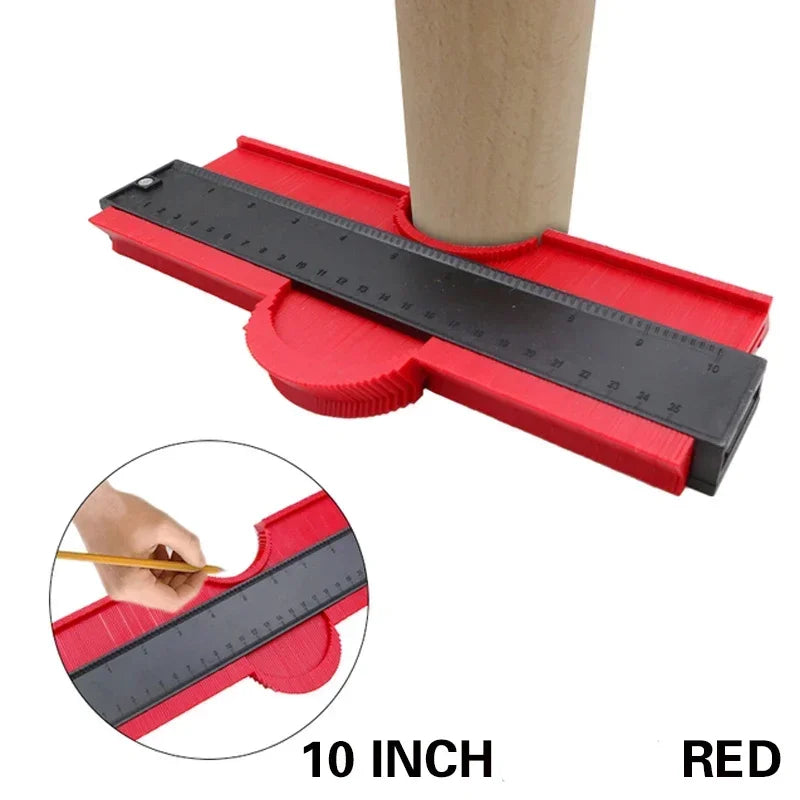

A: The 5-inch gauge is better suited for smaller, more detailed contours such as decorative mouldings or narrow pipes, while the 10-inch gauge covers a wider profile span — great for large tiles, wide baseboards, or full-width floor transitions. Choose based on the width of the shape you need to duplicate.

Q: How do I use the contour profile gauge?

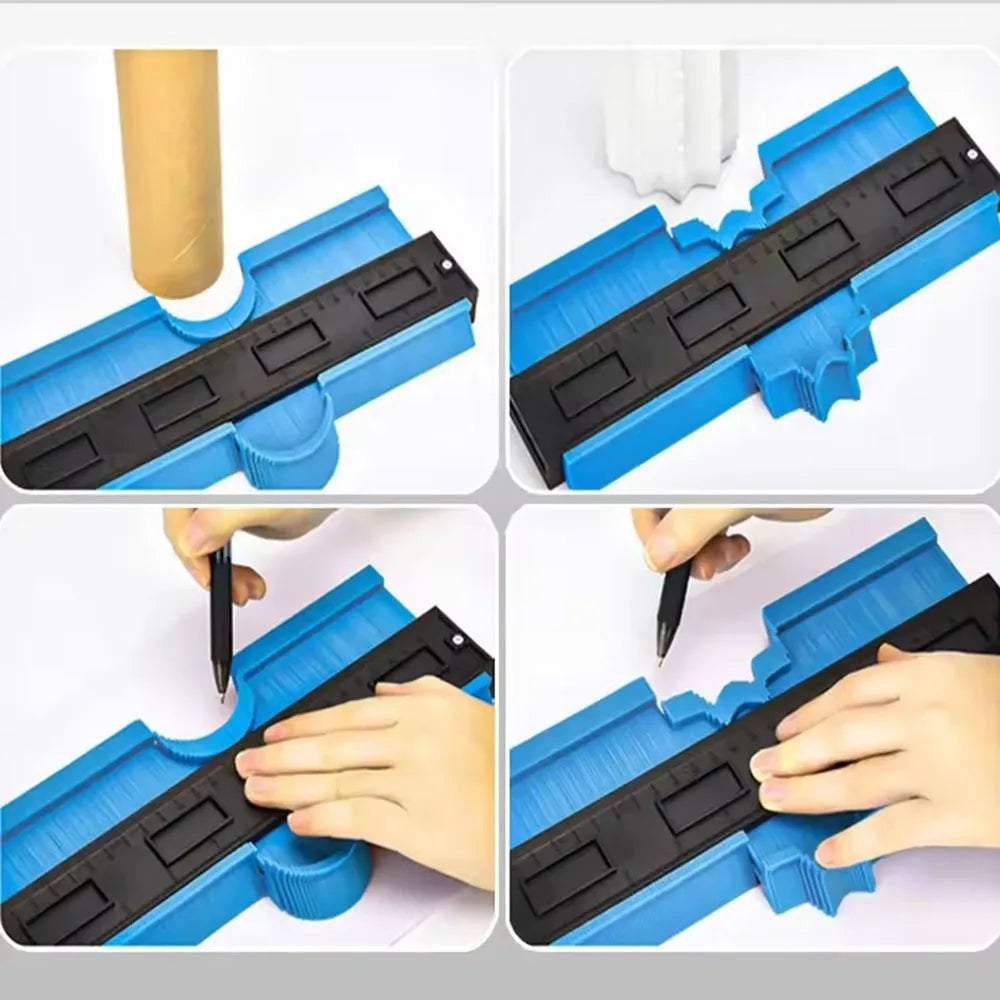

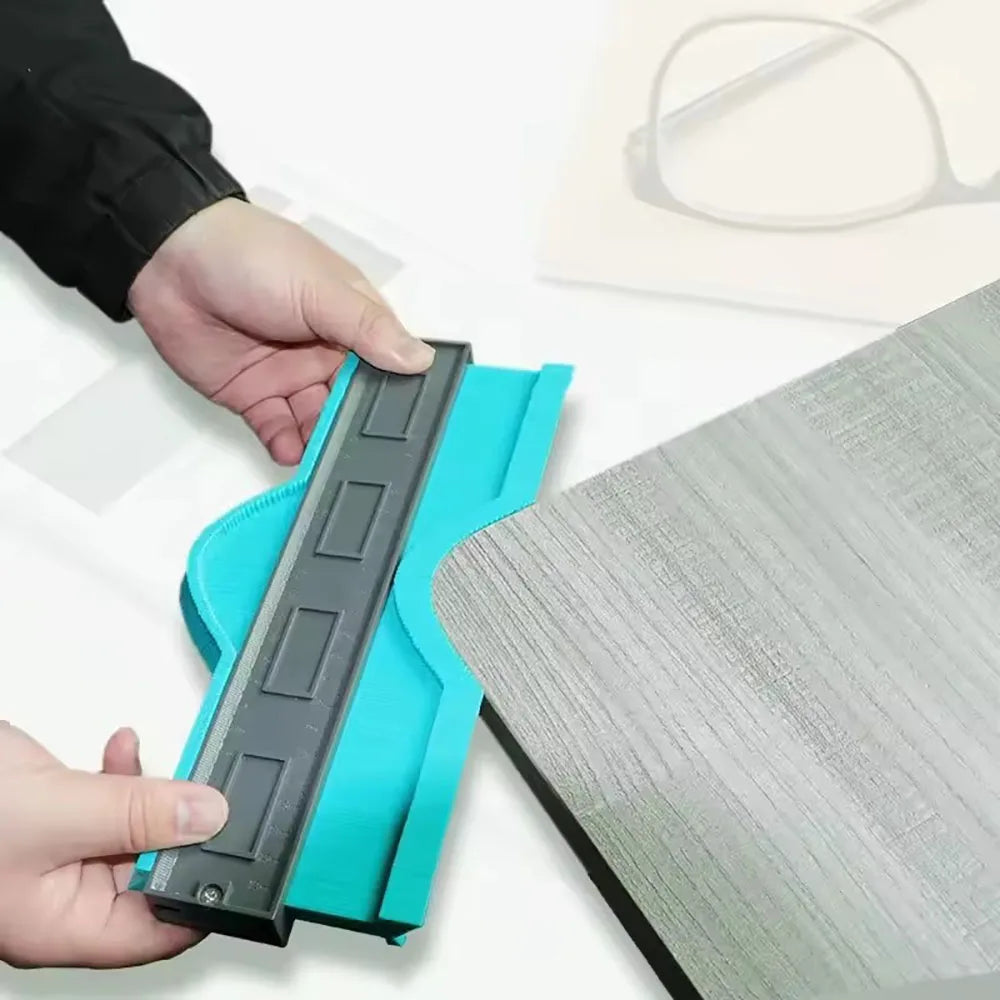

A: Simply press the gauge firmly and evenly against the object whose shape you want to copy. The individual teeth will lock against the surface and conform to the exact profile. Then place the gauge on your workpiece material, trace around the teeth with a pencil or marker, and cut along the traced line for a perfect fit.
