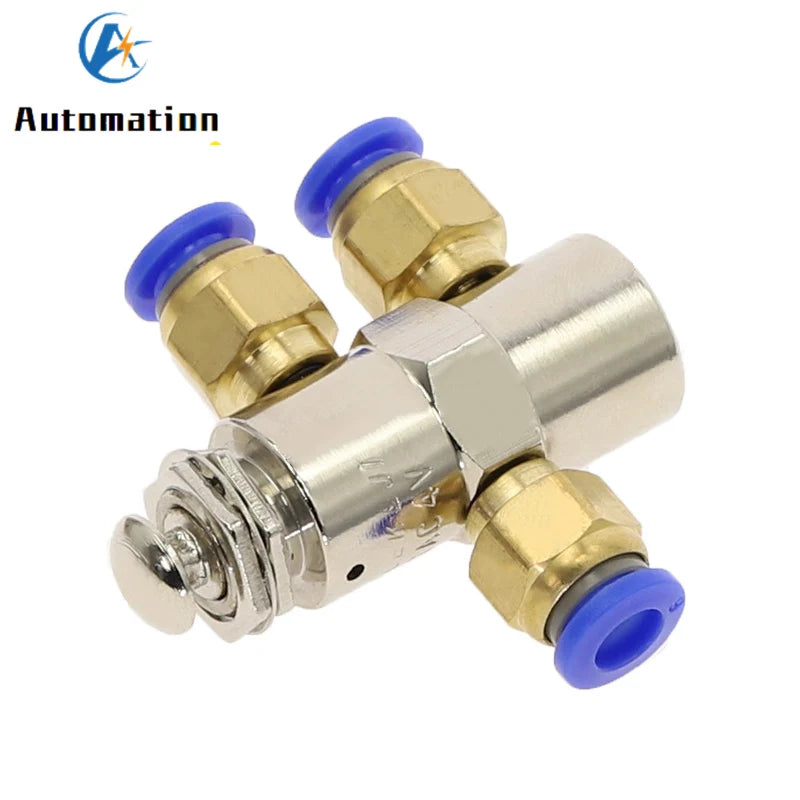

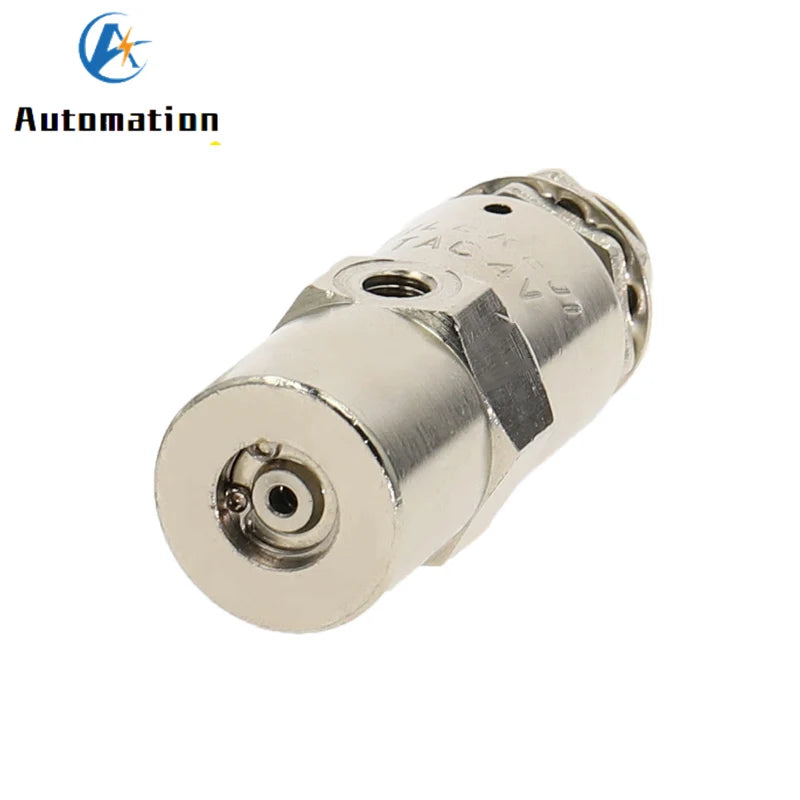

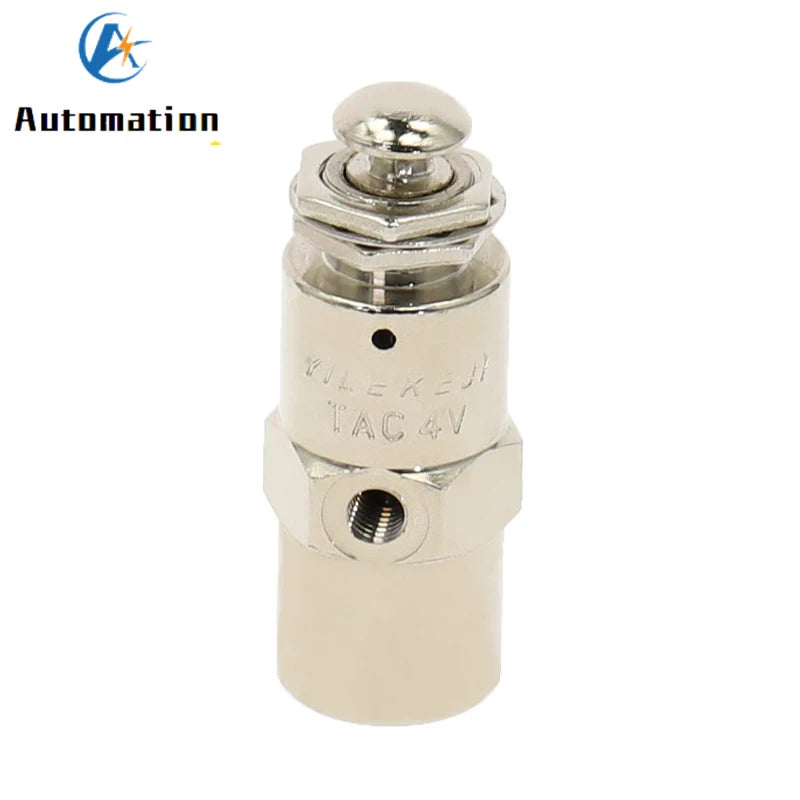

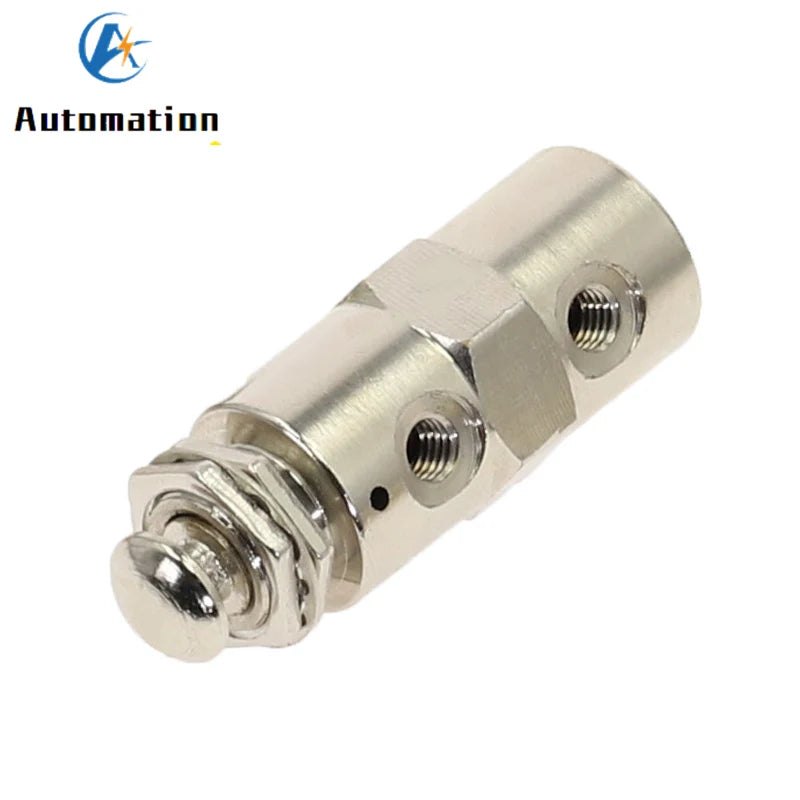

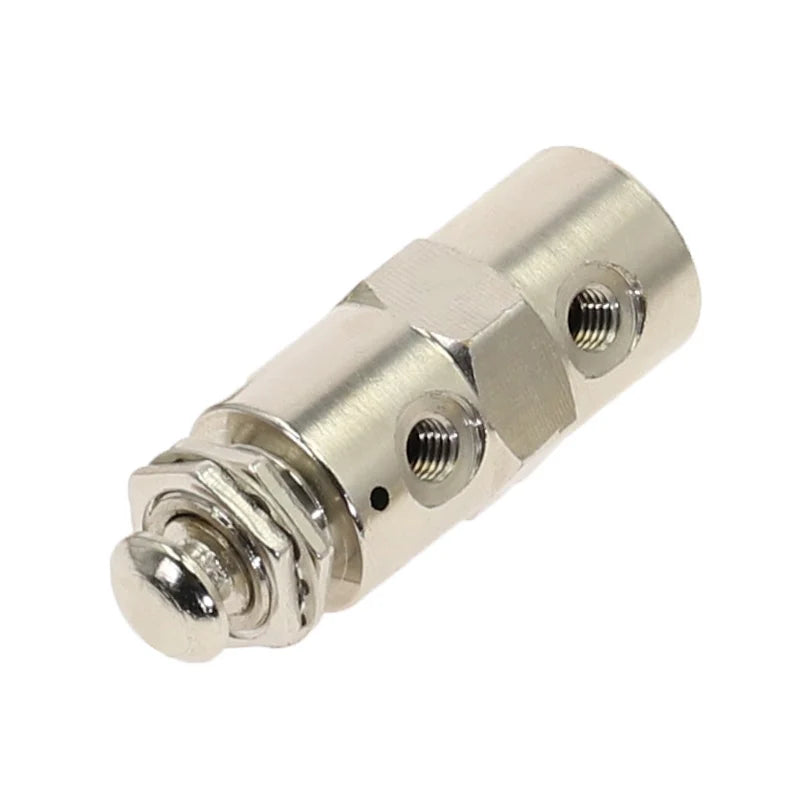

Pneumatic Valve 2-Position 5-Way M5 Push Button TAC2-4P

Pneumatic Mechanical Valve – 2-Position 5-Way Push Button Switch with PC Fittings

Take precise control of your pneumatic systems with this compact and reliable 2-Position 5-Way Pneumatic Mechanical Valve (Model TAC2-4P). Featuring a straightforward push-button actuation and M5 thread connections, this cylinder valve is engineered for consistent, repeatable air-flow switching in industrial, workshop, and automation applications. Complete with PC fittings included, it's ready to integrate into your existing pneumatic circuit.

Key Features

• 2-Position, 5-Way Configuration: Efficiently directs compressed air through five ports in two distinct positions, ideal for controlling double-acting cylinders and actuators.
• Push Button Actuation: Simple, mechanical push-button operation — no electrical power required — for fast, hands-on control of your air circuit.

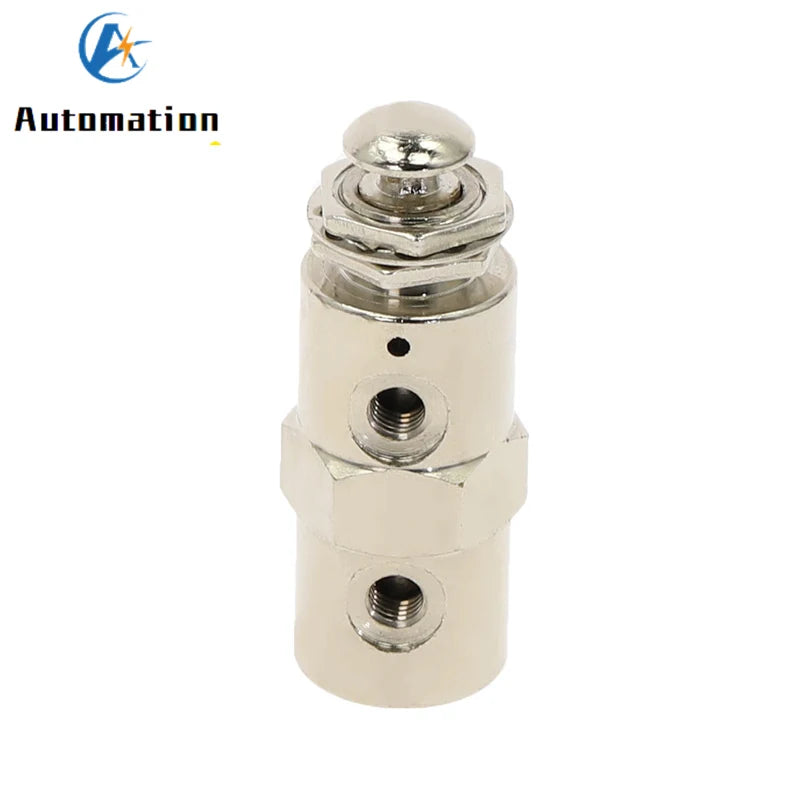

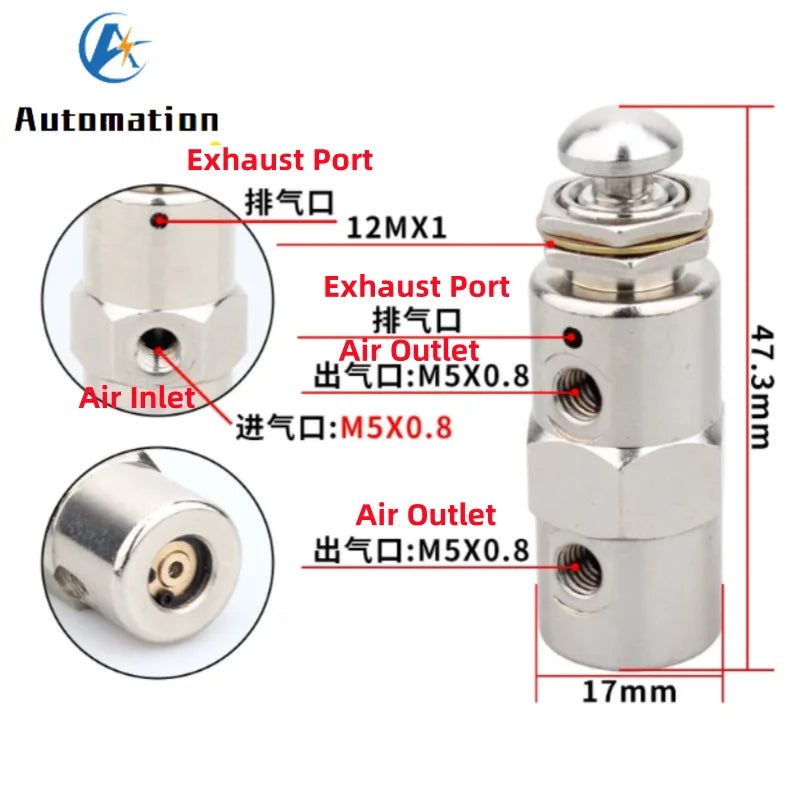

• M5 Thread (5mm): Standard M5 female thread ports for easy, leak-free connection to compatible pneumatic tubing and fittings.

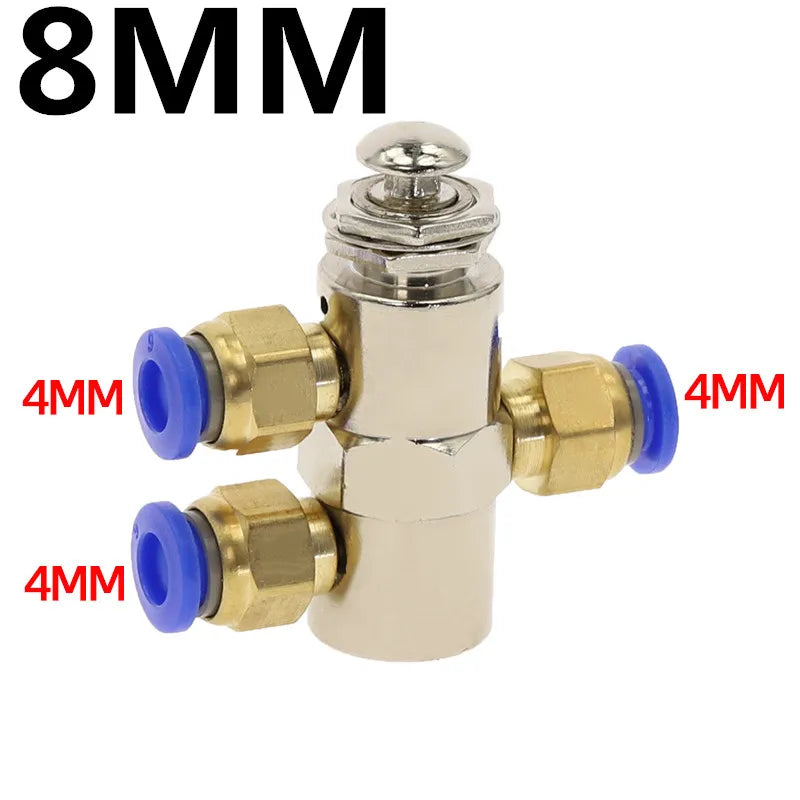

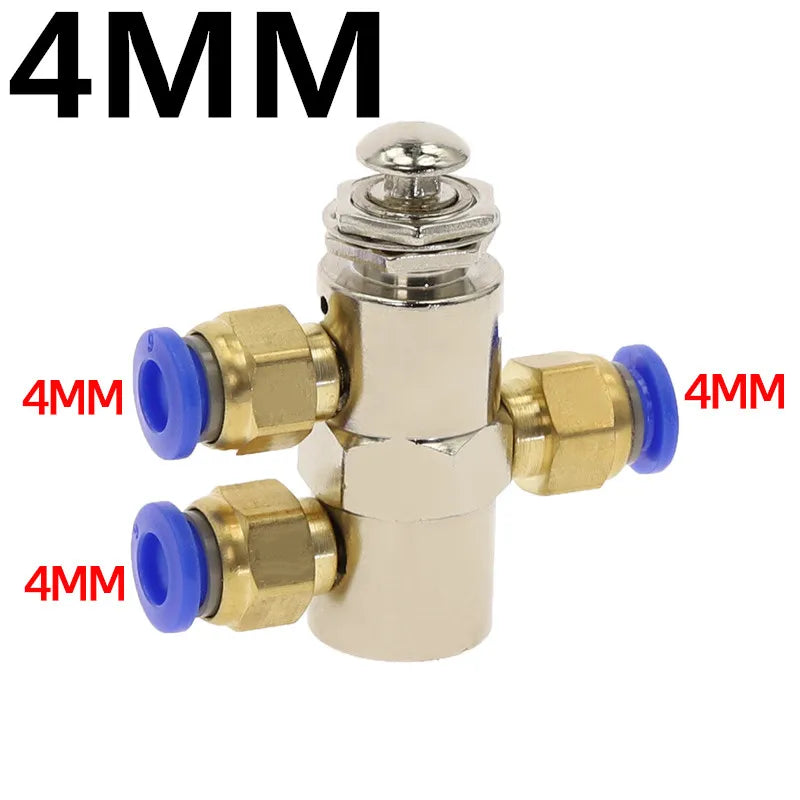

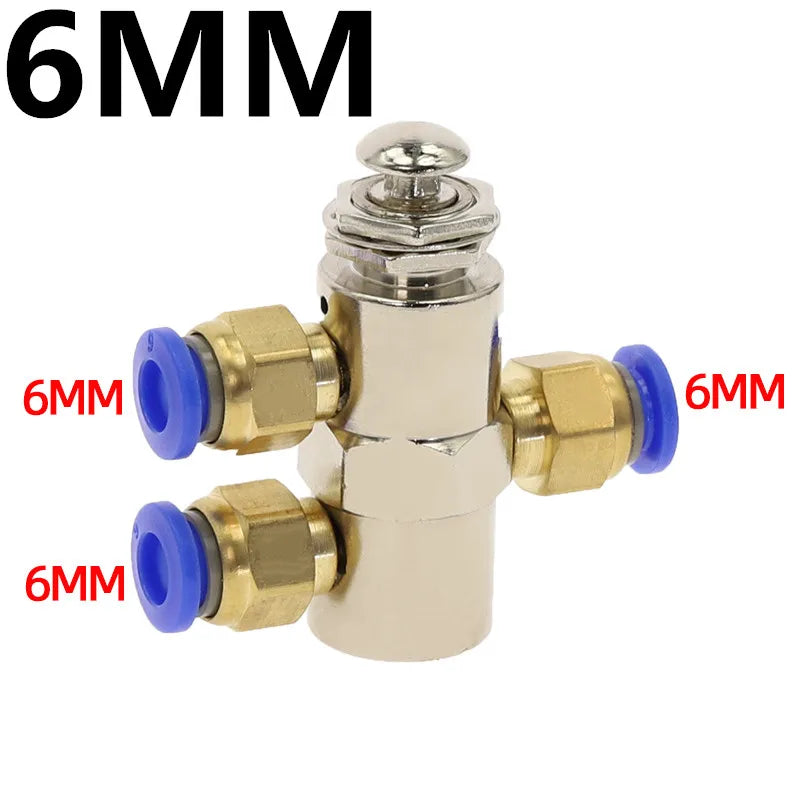

• Includes PC Fittings: Comes with matching push-connect (PC) fittings, so you can get up and running quickly without sourcing additional components.
• Compact & Durable Build: Robust construction designed to withstand the demands of regular workshop and light industrial use.
• Versatile Application: Suitable for pneumatic cylinders, air tools, automation lines, and DIY pneumatic projects.

Specifications

Compatible Projects & Applications

This valve is a great addition to any pneumatic toolkit. Whether you're building a custom cylinder actuator setup, automating a small production line, or tackling a DIY air-powered project, the TAC2-4P provides reliable directional control at the push of a button. Pair it with other workshop essentials for a complete setup.

Looking for other handy workshop and tool accessories? Check out our Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips or the 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories to round out your workspace.

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What does "2-Position 5-Way" mean for this pneumatic valve?

A: A 2-position 5-way valve has five ports and can switch between two positions. This configuration is commonly used to control double-acting pneumatic cylinders — allowing compressed air to extend and retract the cylinder by directing airflow through different ports when the push button is pressed or released.

Q: Does this pneumatic valve require electrical power to operate?

A: No. The TAC2-4P is a fully mechanical pneumatic valve operated by a manual push button. No electrical connections, solenoids, or power supply are needed — just connect it to your compressed air line and press the button to switch air direction.

Q: What fittings are compatible with this M5 thread valve?

A: This valve features standard M5 (5mm) female thread ports. It comes with PC push-connect fittings included. It is compatible with standard M5 pneumatic tubing and fittings commonly used in compact pneumatic systems and mini-cylinder setups.

Q: Can this valve be used with both single-acting and double-acting cylinders?

A: The 5-way configuration is designed primarily for use with double-acting pneumatic cylinders, providing supply and exhaust paths for both extend and retract strokes. It can also be incorporated into other pneumatic circuit designs depending on your specific application needs.
