Proxmark3 512M RFID Card Reader NFC 5.0 Smart Chip Copier Kit

Proxmark3 512M RFID Card Reader, IC/ID Key Writer & NFC 5.0 Smart Chip Copier Programmer Kit

Take your RFID research and access card management to the next level with the upgraded Proxmark3 512M — a professional-grade RFID reader, writer, and duplicator kit supporting both low-frequency (125 kHz) and high-frequency (13.56 MHz) card protocols. Whether you're a security researcher, IT professional, or hobbyist, this powerful kit delivers stable data analysis, fast card recognition, and broad firmware compatibility in a compact, portable form factor.

Made in Mainland China.

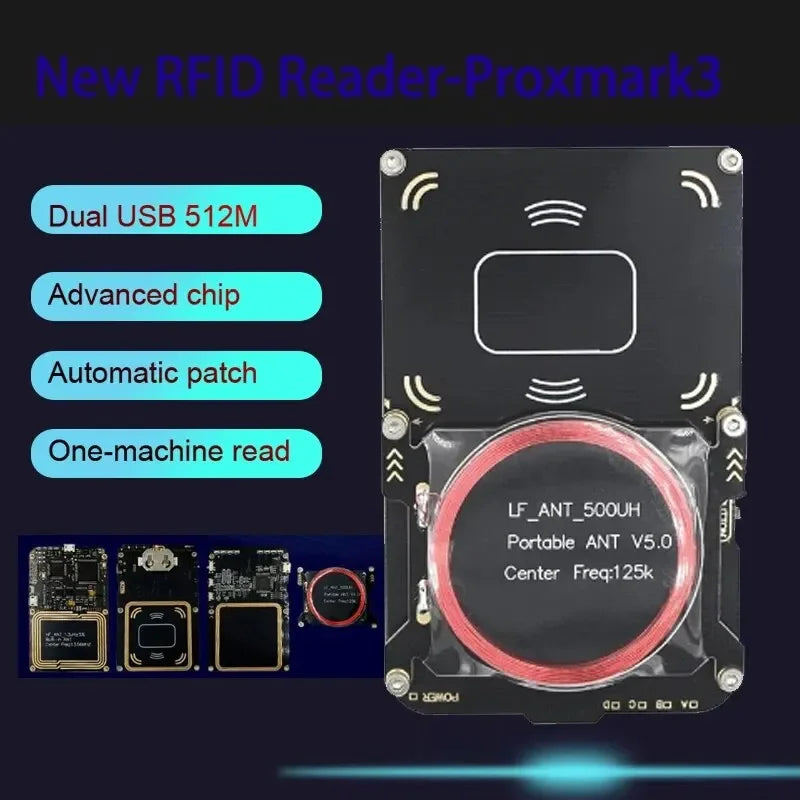

Key Features & Upgrades Over PM3 RD V2.0

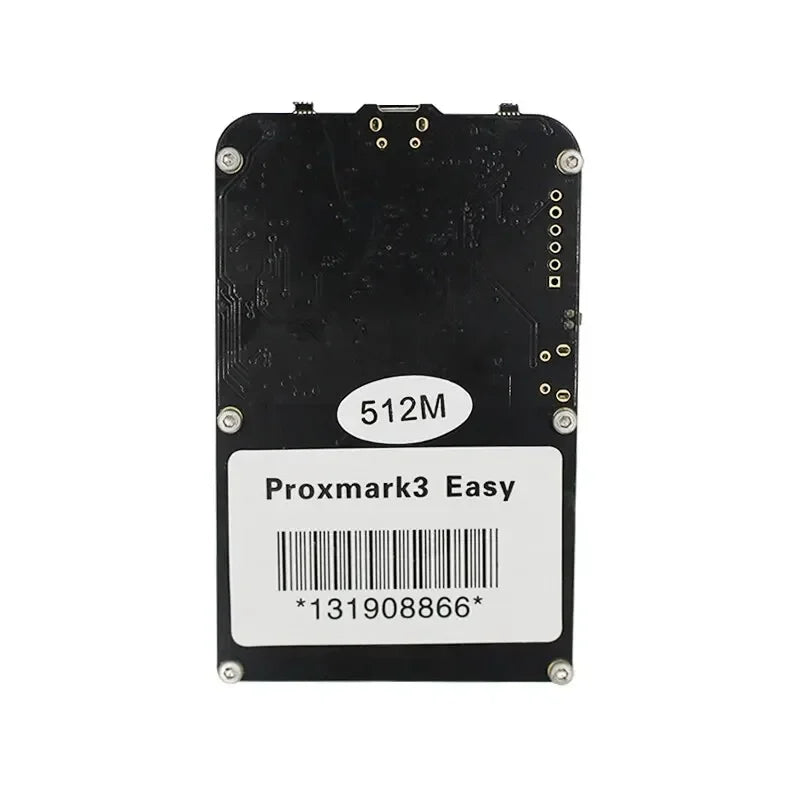

• 512M Processor Upgrade: Upgraded from AT91SAM7S256 to AT91SAM7S512 for enhanced performance and memory capacity.
• Dual USB Ports: One port for mobile power supply; the second enables offline monitoring flexibility.
• Built-In High-Frequency Antenna: Eliminates blind spots and reads entire card data without interruption.

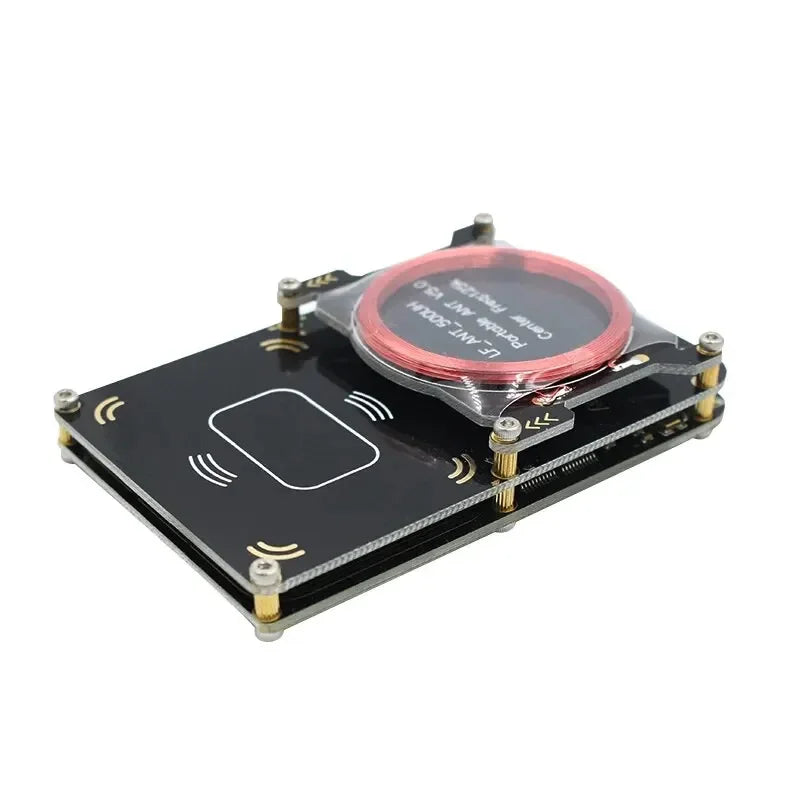

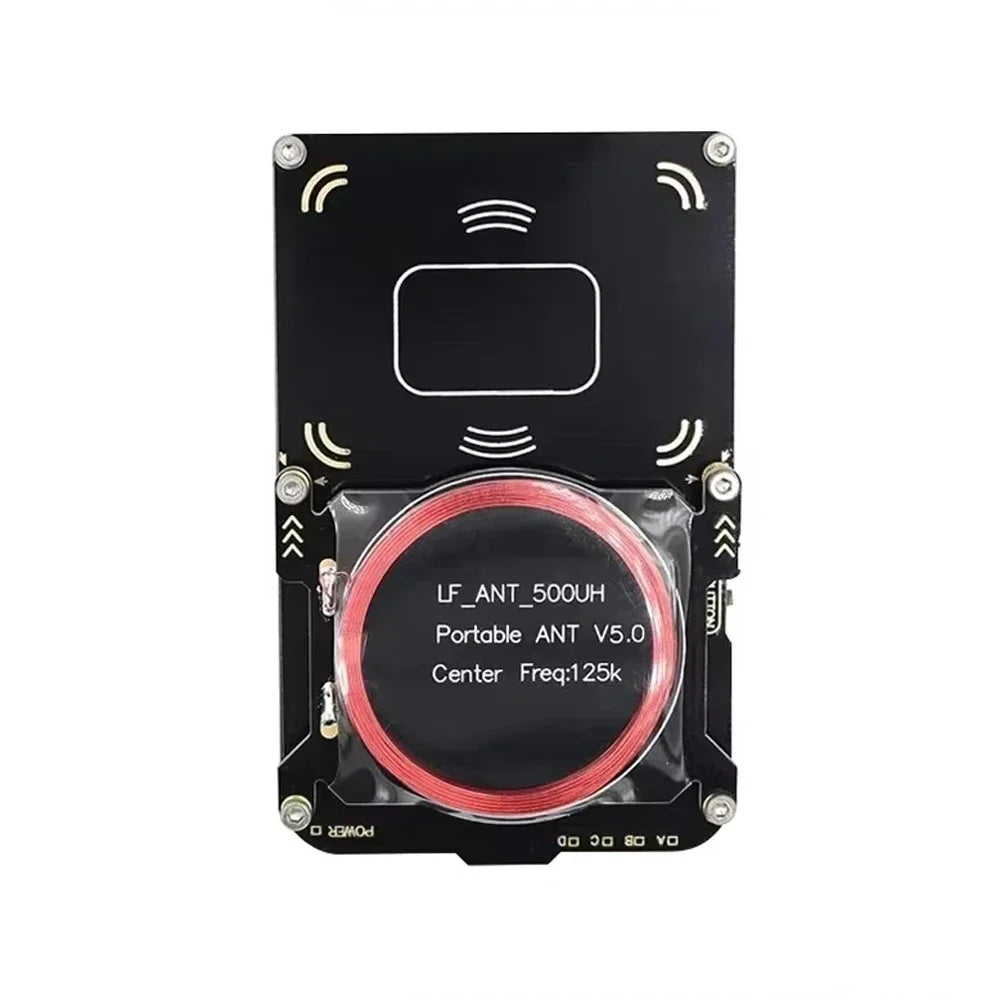

• Improved Low-Frequency Antenna: Enhanced signal-to-noise ratio for faster, more accurate card recognition — mounted externally for flexible positioning.
• Stable Data Analysis: Consistently low error rate for reliable read/write operations.
• No External Antenna Interface Needed: Simplified, streamlined design reduces potential connection points.
• No Built-In Lithium Battery: Powered via USB/power bank in offline mode — lightweight and travel-friendly.
• Full Firmware Compatibility: Compatible with all official Proxmark3 firmware versions. Use via command line or the official Proxmark Tool .exe application.
• CE Certified: Meets international CE quality standards.

Technical Specifications

• Working Voltage: 3.5 – 5.5V
• Working Current: 50 – 130 mA

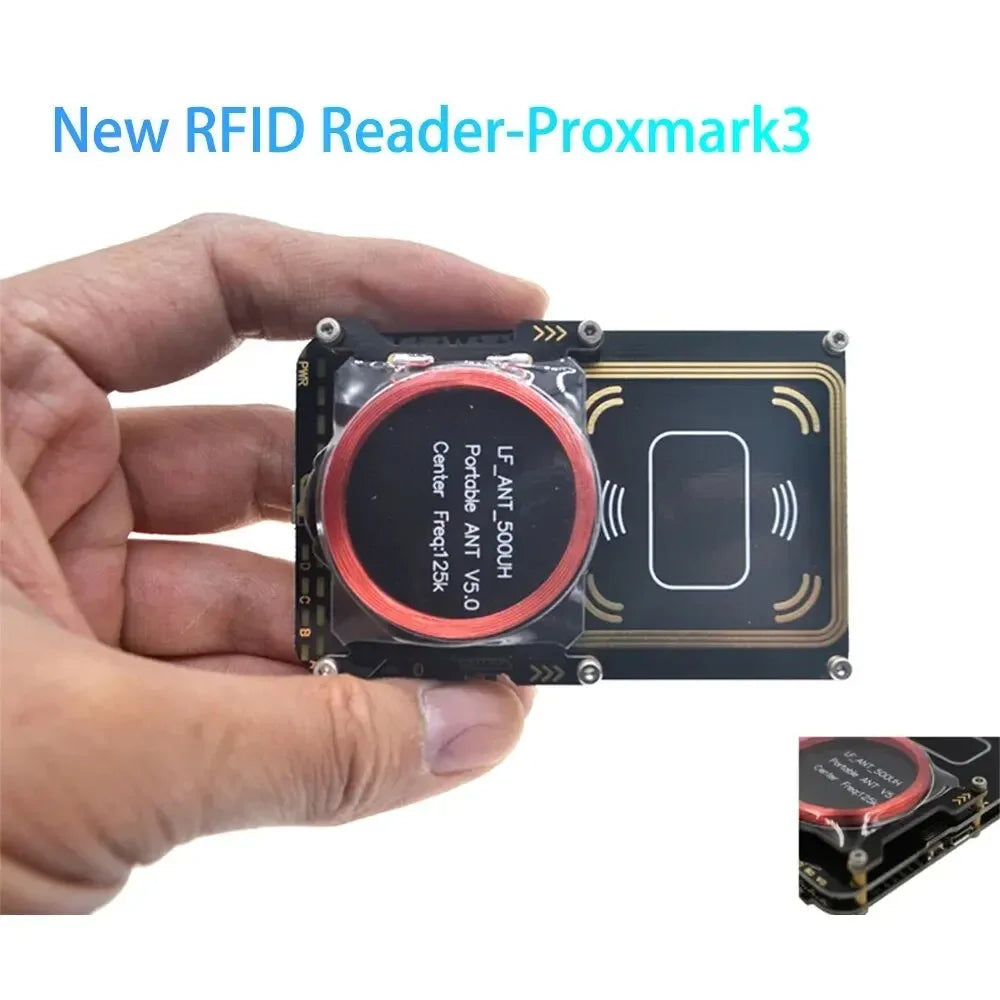

• Dimensions: 54 mm × 86.6 mm
• Thickness: 6.2 mm (thinnest) / 9.8 mm (with screws) / 15.8 mm (with LF antenna attached)
• LF Antenna: 30.41 V @ 125.00 kHz | 22.01 V @ 134.00 kHz
• HF Antenna: 28.43 V @ 13.56 MHz

Supported Card Operations

High-Frequency Card Mode

• Read standard M1 S50 and ISO 14443A Type B cards
• PRNG security analysis (darkside attack)
• Full-sector key parsing using built-in MFOC algorithm

Simulation Card Mode (HF)

• Simulate Mifare S50, Ultralight, and transparent card series for user identification
• Full M1 S50 sector data simulation
• Simulate M1 S50 protection board to derive key calculation data

Silent (Sniff) Mode (HF)

• Passively analyze communication between M1 S50 cards and readers
• Full ISO 14443A Type B passive communication support

Low-Frequency Card Mode

• Read low-frequency cards: ID, HID, T55xx, Indala, and more
• Write ID/HID/Indala data to T5577 cards
• Simulate ID/HID card types with ASK/FSK/PSK modulation schemes
• Passive LF data sniffing between card and reader

What's Included

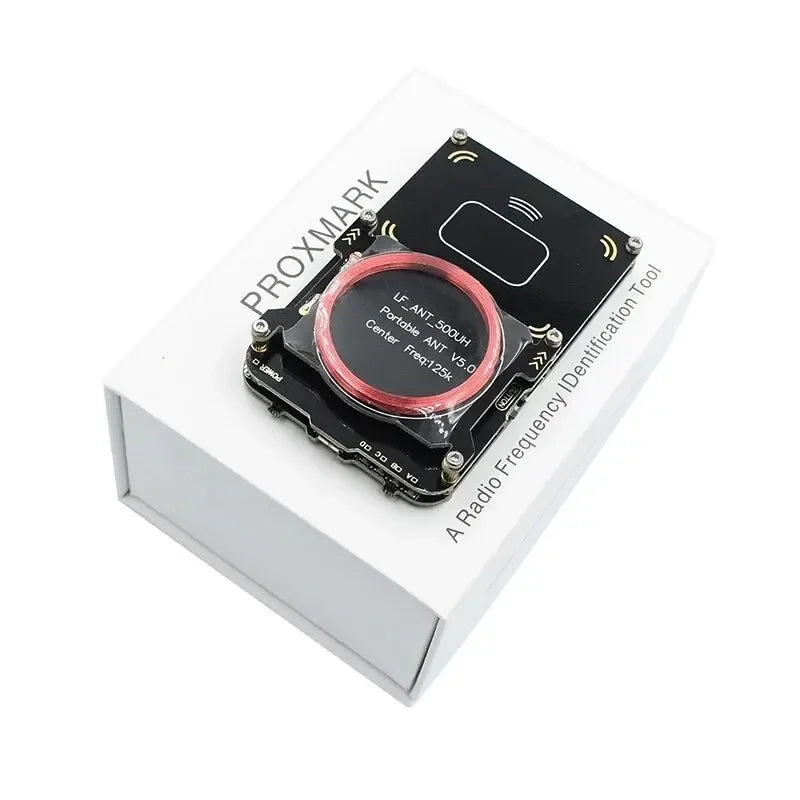

• 1 × Proxmark3 512M Main Board (with built-in HF antenna)
• 1 × Replaceable UID Card
• 1 × Interchangeable Key Chain UID Fob
• 1 × T5577 Card

Note: This device supports copying of most standard cards. It does not support live-card or specially encrypted proprietary card reading and writing.

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories Anti-Loosening

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What RFID card frequencies does the Proxmark3 512M support?

A: The Proxmark3 512M supports both low-frequency (125 kHz and 134 kHz) and high-frequency (13.56 MHz) RFID cards. This includes common card types such as ID, HID, T55xx, Indala (LF), as well as Mifare S50, ISO 14443A, and NFC 5.0-compatible HF cards.

Q: Does the Proxmark3 512M work with all official firmware versions?

A: Yes, the Proxmark3 512M is fully compatible with all official Proxmark3 firmware versions. You can flash and use any version via the official command-line interface or the Proxmark Tool .exe software, depending on your preference.

Q: Does this RFID programmer kit require a battery?

A: No internal lithium battery is required. The Proxmark3 512M is powered through its USB port. In offline mode, you can conveniently use a standard USB power bank, making it lightweight and easy to carry wherever you need it.

Q: What cards and fobs are included in the kit?

A: The kit includes one Proxmark3 512M main board with built-in HF antenna, one replaceable UID card, one interchangeable key chain UID fob, and one T5577 card — everything you need to get started with RFID reading, writing, and duplication.
