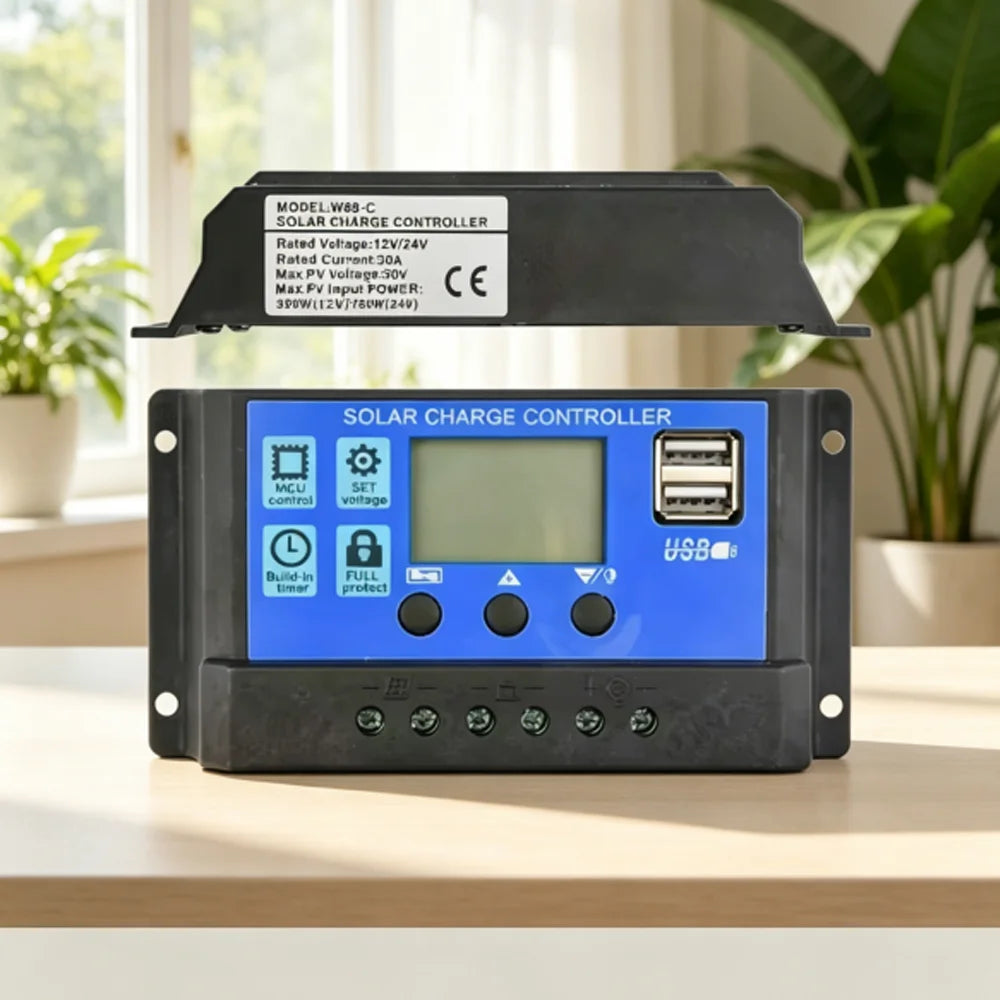

PWM Solar Charge Controller with LCD Display & Dual USB — 10A / 30A, 12V / 24V
Take full control of your solar energy system with this intelligent PWM Solar Charge Controller. Whether you're running an off-grid cabin, RV setup, boat, or backyard solar project, this controller keeps your lead-acid batteries charged safely and efficiently. The large, adjustable LCD screen gives you real-time visibility into charging status, voltage levels, and system parameters — all from one compact unit. Made in Mainland China.
Why Choose This Solar Charge Controller?

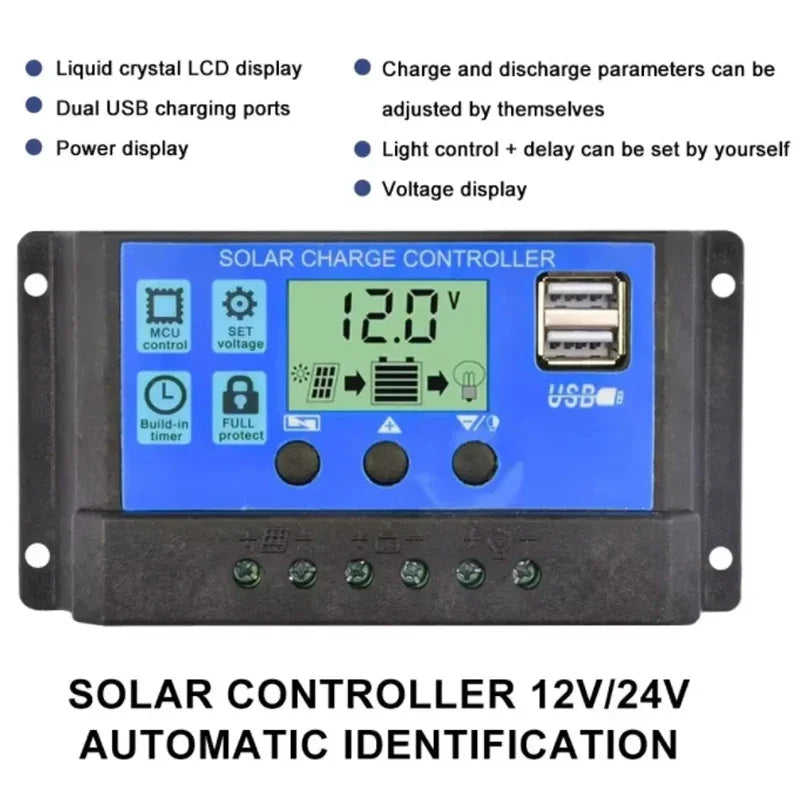

- Auto 12V/24V Detection: Automatically recognizes your battery bank voltage for plug-and-play convenience.
- 3-Stage PWM Charging: Bulk, absorption, and float charging stages maximize battery lifespan and efficiency.
- Dual USB Output (5V/2.5A Max): Charge smartphones, tablets, and other USB devices directly from your solar setup.
- Large Adjustable LCD Display: Monitor charging and discharging parameters at a glance; all key thresholds are fully adjustable to suit your system.
- Built-in Multi-Protection: Self-recovery overcurrent, short-circuit, open-circuit, and reverse-polarity protection keep your system and batteries safe without damaging the controller.
- Dual MOS Anti-Backflow Circuit: Ultra-low heat generation ensures reliable long-term operation.
- Timer Setting: Program load on/off times to optimize energy usage throughout the day and night.
- Industrial-Grade Master Control Chip: Ensures stable, accurate regulation even in demanding conditions.
Technical Specifications

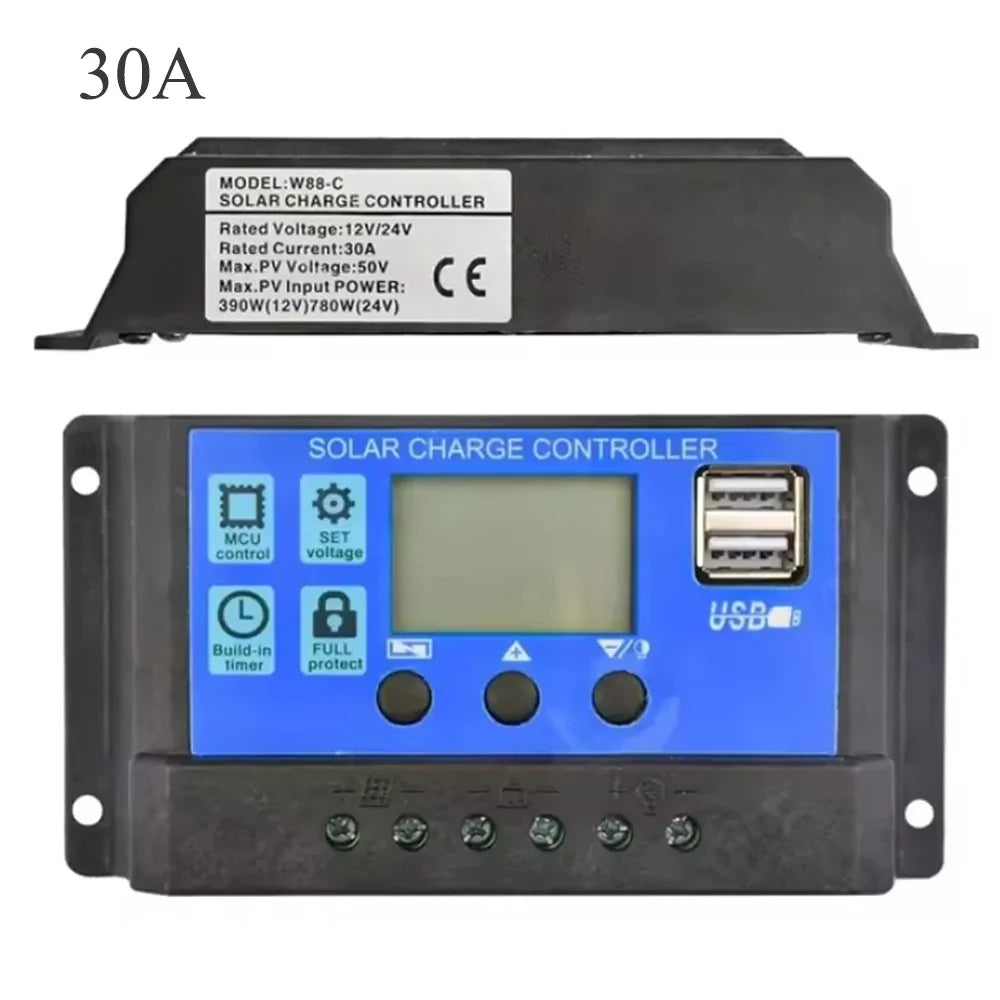

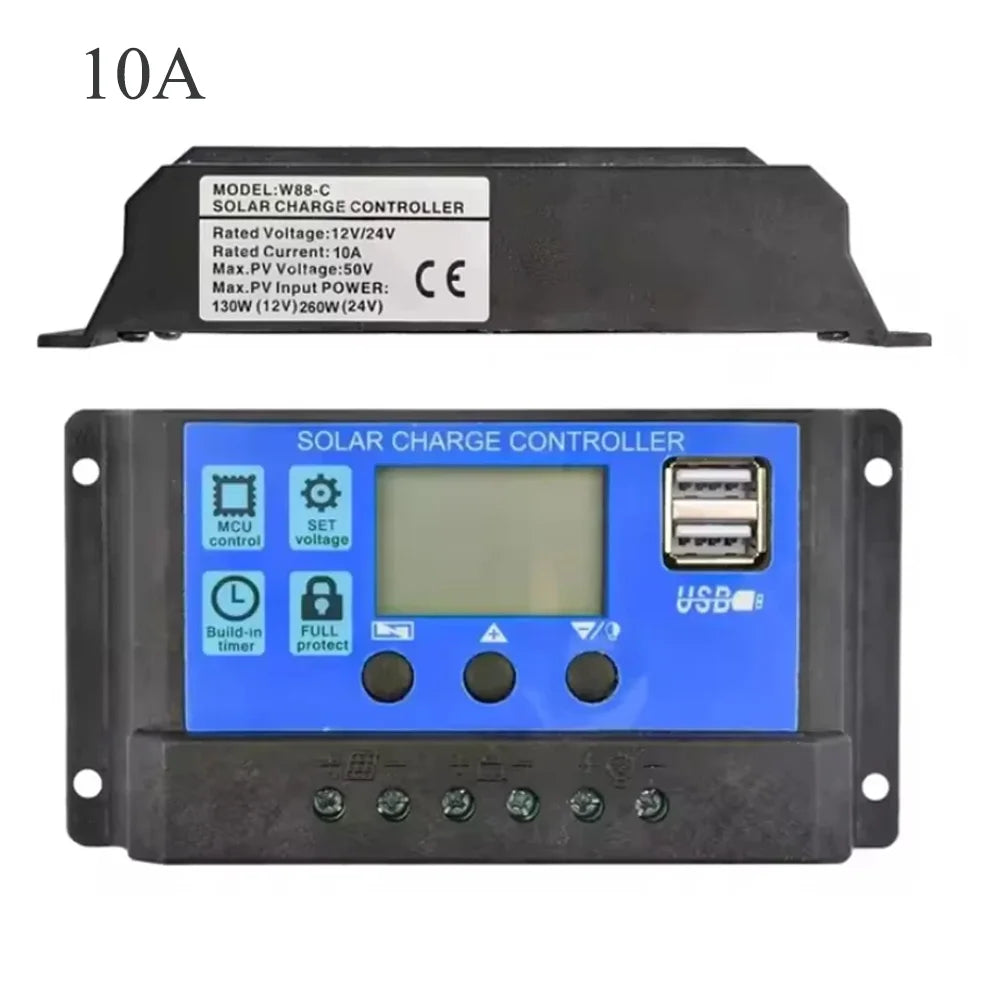

| Available Ratings | 10A / 30A |
| System Voltage | 12V / 24V (Auto-detect) |
| Max PV Input Voltage | 23V (12V system) / 46V (24V system) |
| Full Charge Cut-off Voltage | 14.4V (default, adjustable) |
| Discharge Cut-off Voltage | 10.7V (default, adjustable) |
| Discharge Recovery Voltage | 12.6V (default, adjustable) |
| Charge Recovery Voltage | 13.2V |
| USB Output | 2× USB, 5V / 2.5A (Max) |
| Standby Current | <10mA |
| Operating Temperature | -35°C to +60°C |
| Dimensions / Weight | 133.5 × 70 × 35mm / 160g |
| Compatible Batteries | All lead-acid types (open, sealed, gel/colloidal) |
| Charging Source | Photovoltaic (PV) panels only |

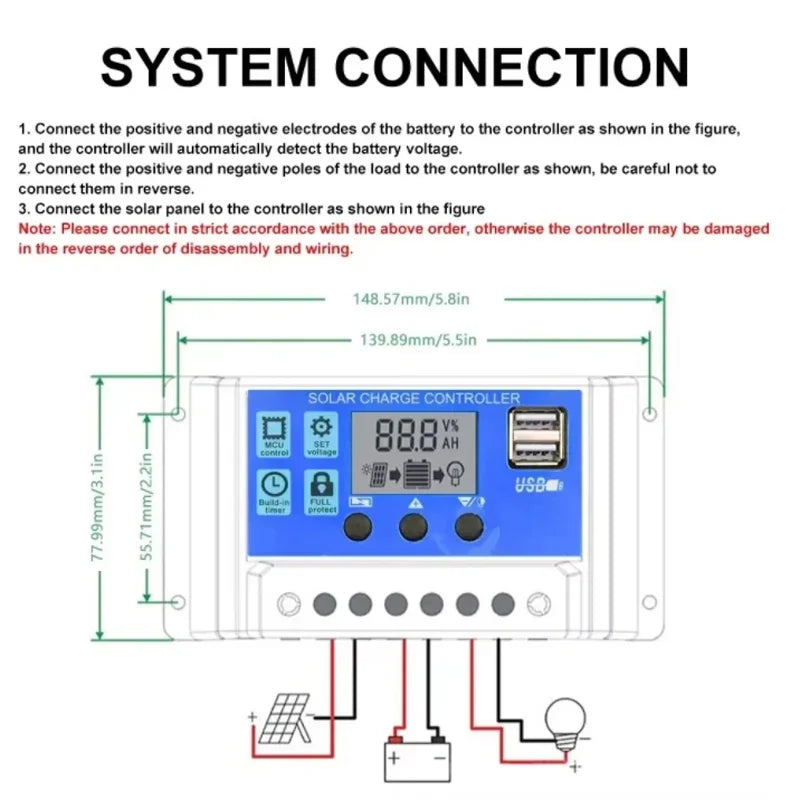

Installation Tips
- Ensure the battery has sufficient voltage before first connection so the controller correctly auto-detects 12V or 24V.
- Mount the controller as close to the battery as possible to minimize voltage drop from wiring.
- Install on a flat, well-ventilated surface — the unit generates some heat during normal operation.
- For lead-acid batteries only (open/sealed/gel). Do not use with lithium, NiMH, or other battery chemistries.
- Use PV solar panels as the sole charging source — do not connect DC power supplies or other sources.

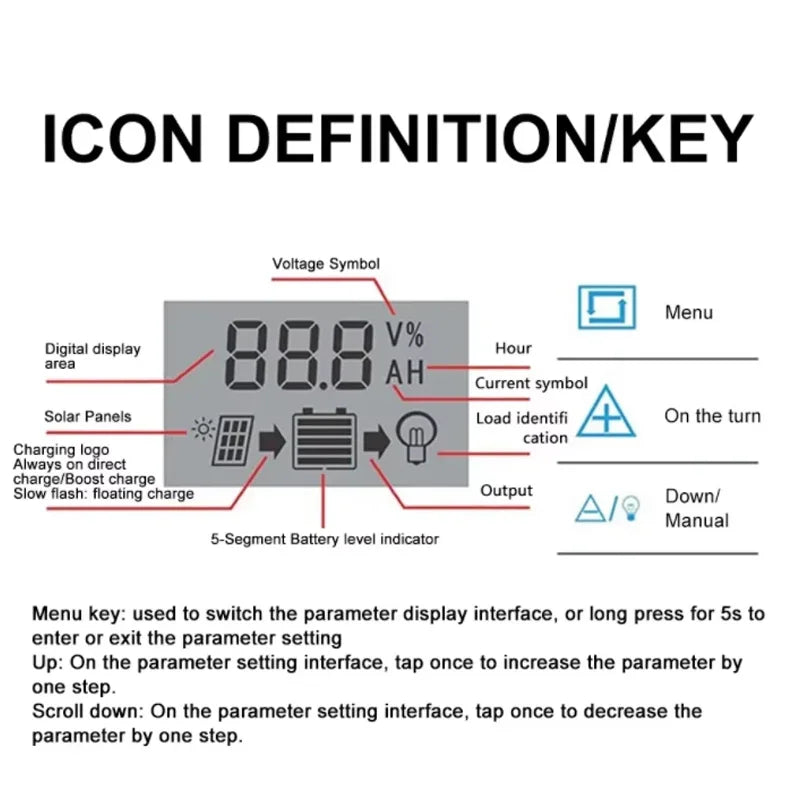

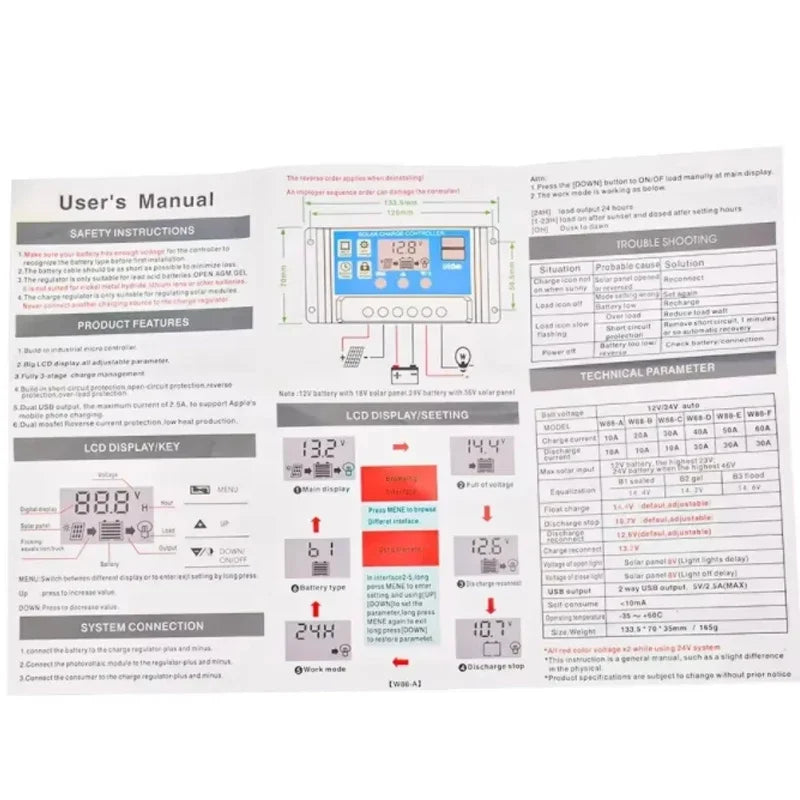

Button Guide
- Menu: Switch between parameter screens; hold for 5 seconds to enter or exit parameter-setting mode.
- Up (▲): In parameter-setting mode, increase the selected parameter by one step.
- Down (▼): In parameter-setting mode, decrease the selected parameter by one step.
What's in the Box?
- 1× Solar Charge Controller
Related Products You May Like
- 1000D Tactical EDC Bag – Portable Tool Storage Handbag
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What battery types are compatible with this solar charge controller?
A: This PWM solar charge controller is designed exclusively for lead-acid batteries, including open (flooded), sealed (AGM), and gel/colloidal types. It is not compatible with lithium-ion, lithium iron phosphate (LiFePO4), nickel-metal hydride (NiMH), or any other battery chemistry.
Q: Does this controller automatically detect whether my system is 12V or 24V?
A: Yes — the controller features automatic 12V/24V voltage detection. When you first connect it, ensure your battery has adequate charge so the controller can correctly identify your system voltage. No manual switching is required.
Q: Can I adjust the charging and discharging voltage thresholds?
A: Absolutely. All key parameters — including full charge cut-off voltage, discharge cut-off voltage, discharge recovery voltage, and more — are fully adjustable via the LCD menu. Hold the Menu button for 5 seconds to enter parameter-setting mode and use the Up/Down buttons to customize your settings.
Q: What does the Dual USB output on this solar charge controller do?
A: The two built-in USB ports provide a regulated 5V output (up to 2.5A combined) so you can charge smartphones, tablets, GPS devices, and other USB-powered accessories directly from your solar battery bank — no separate inverter or USB adapter needed.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
