SAE 2-Pin Quick Disconnect O-Ring Terminal Harness 10A Fuse

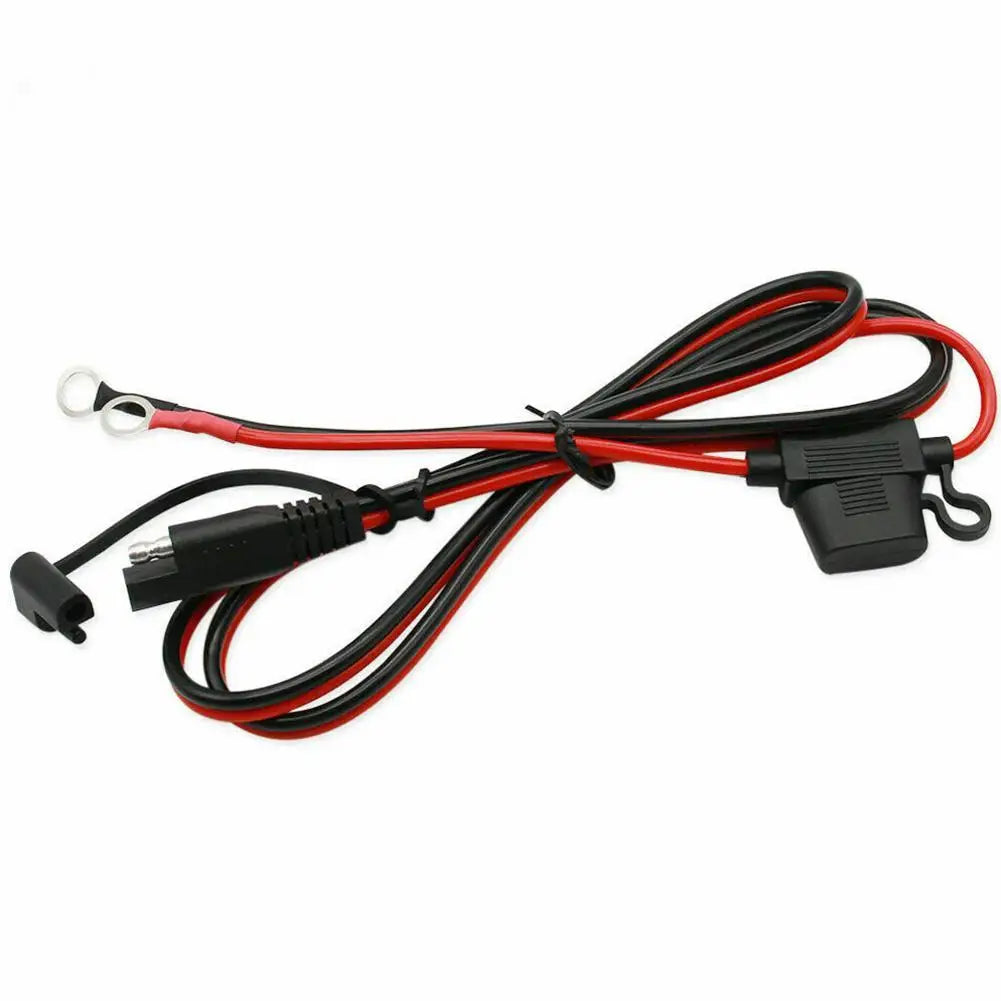

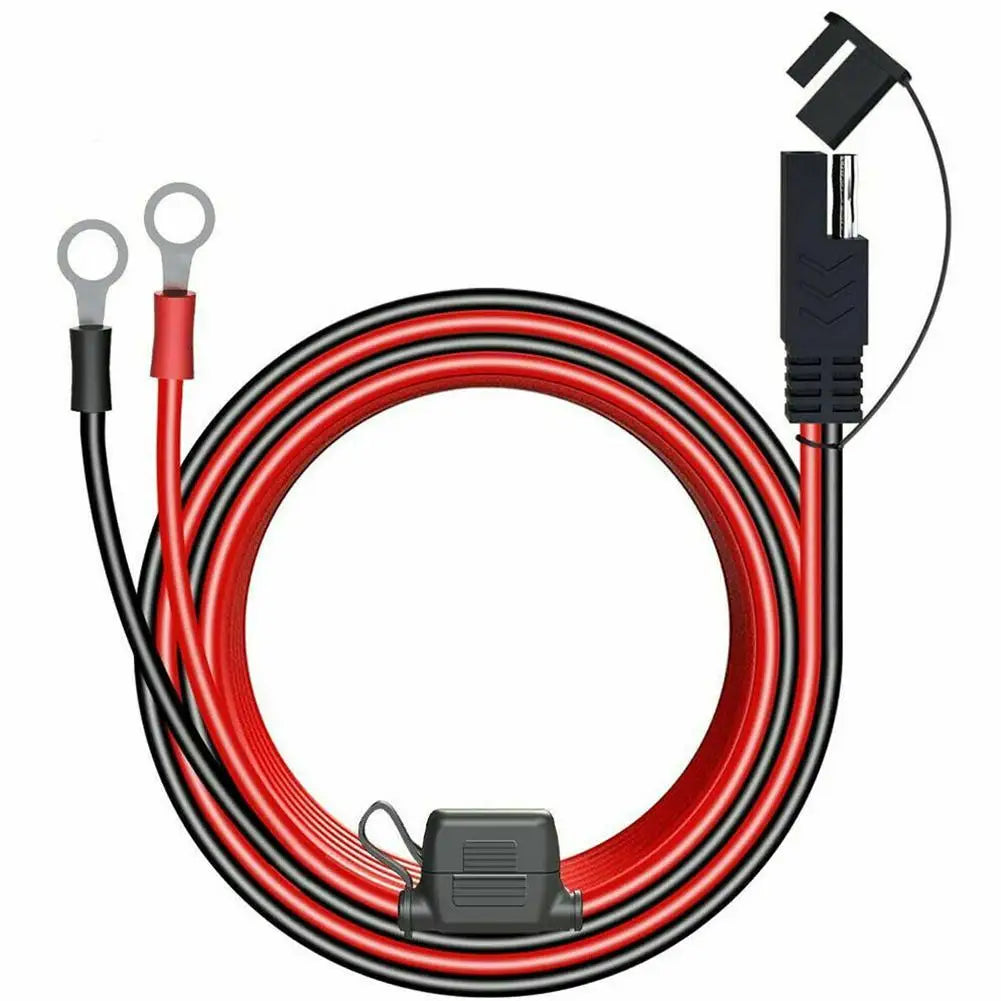

SAE 2-Pin Quick Disconnect to O-Ring Terminal Harness with 10A Fuse

Keep your battery charger connections fast, secure, and safe with this SAE 2-Pin Quick Disconnect to O-Ring Terminal Harness. Designed for 12–24V systems and built with a 16AWG cable, this harness makes charging and maintenance connections effortless — no tools, no hassle. The built-in 10A fuse adds an essential layer of circuit protection, while the nickel-plated brass bullet terminals ensure a reliable, corrosion-resistant connection every time.

Key Specifications

• Voltage Rating: 12V–24V

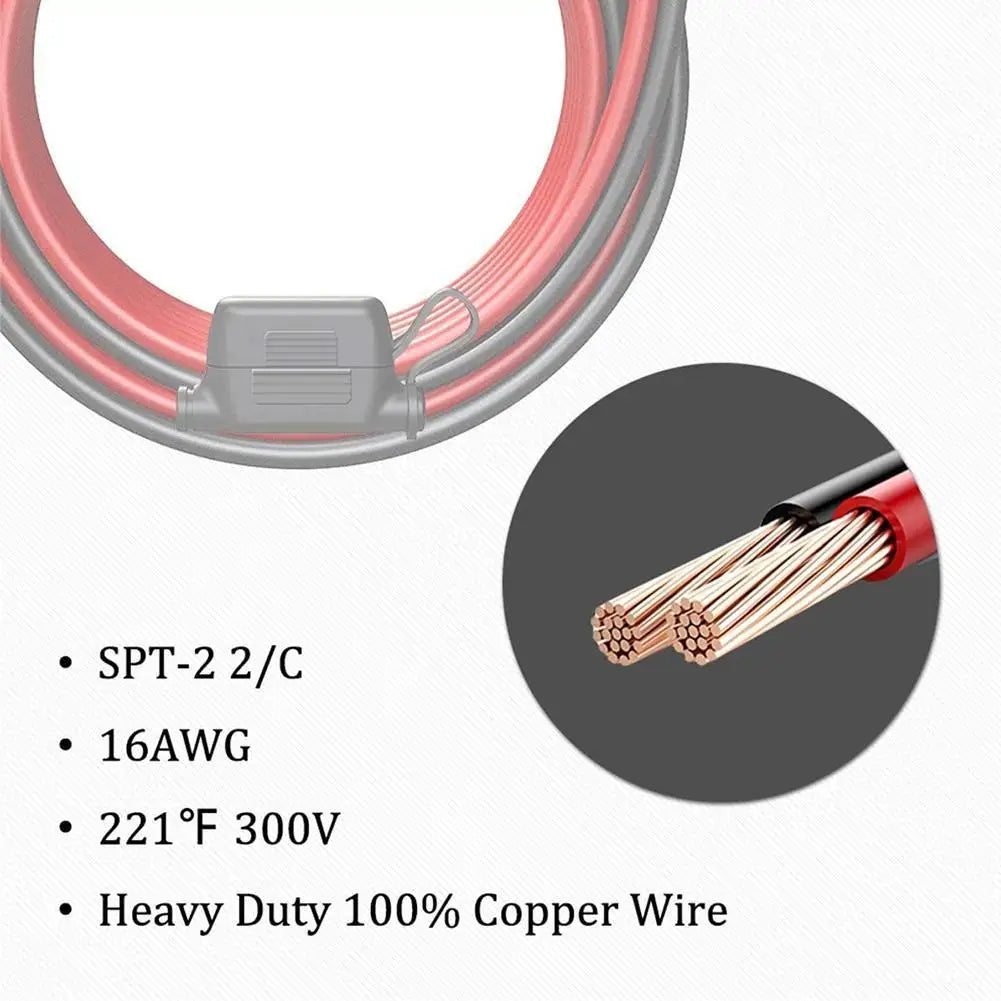

• Cable Gauge: 16AWG
• Cable Length: 0.6M (approx. 24 inches)
• Fuse Rating: 10A (inline, for circuit protection)
• Female Bullet Terminal: 4.57mm Receptacle, Nickel-Plated Brass
• Male Bullet Terminal: 4.57mm Pin, Nickel-Plated Brass
• O-Ring Terminal: 6.5×12R Type, Brass
• Inside Diameter: 6.5mm
• Outside Diameter: 12mm
• Certification: CE Certified
• Battery Included: No

Why Choose This SAE Connector Harness?

• ✅ Universal Compatibility: Standard SAE connectors fit most SAE cables and battery chargers on the market.
• ✅ Quick Disconnect Design: Connect and disconnect your battery charger in seconds — no soldering or special tools required.
• ✅ Built-In 10A Fuse: Protects your electrical system and charger from unexpected surges or shorts.
• ✅ Nickel-Plated Brass Terminals: Offers excellent conductivity and long-lasting corrosion resistance.
• ✅ Sturdy O-Ring Terminal: Provides a solid, vibration-resistant connection to battery posts or ring-terminal mounting points.
• ✅ CE Certified: Meets European safety and performance standards.

What's in the Box?

• 1× SAE 2-Pin Quick Disconnect to O-Ring Terminal Harness (with 10A Inline Fuse)

Perfect For

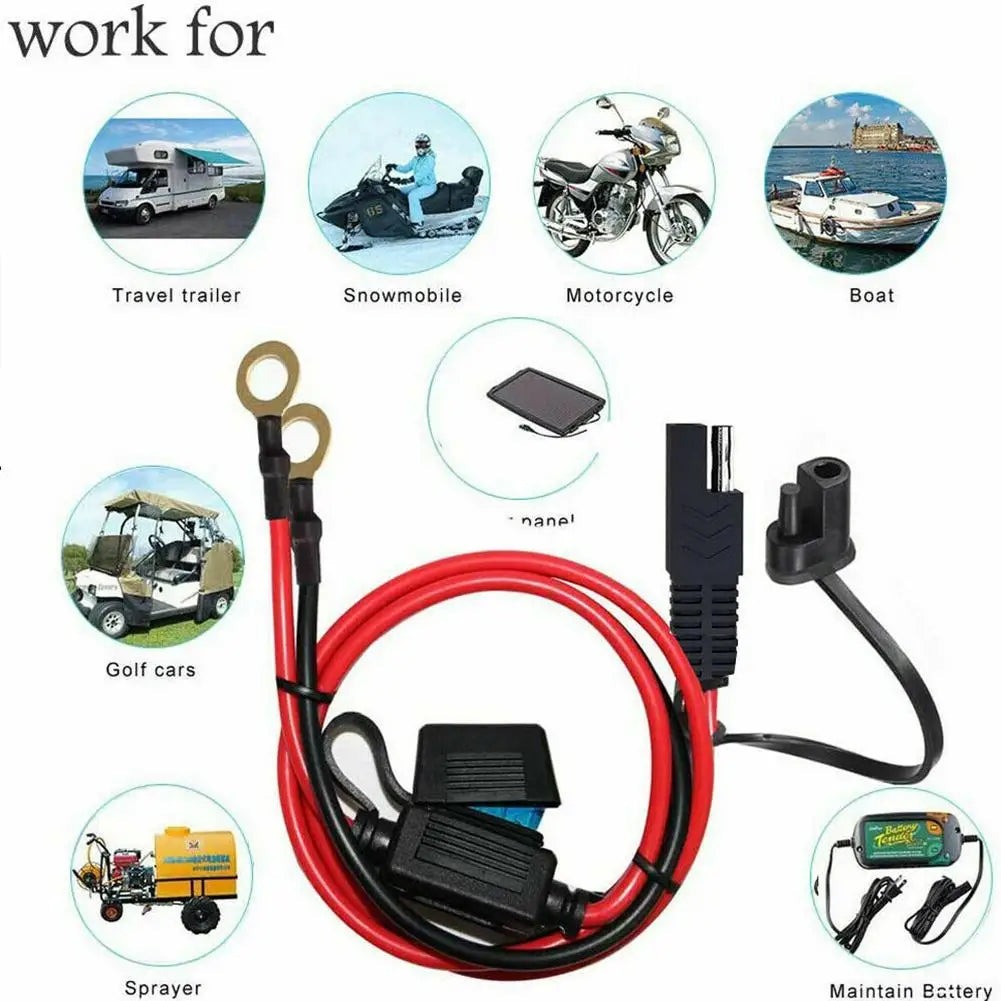

This connector harness is ideal for motorcycles, ATVs, lawn tractors, RVs, solar panels, and any 12–24V vehicle or equipment that uses an SAE charging port. Whether you're setting up a permanent charging point or need a quick-connect solution for maintenance, this harness delivers the reliability you need.

Made in Mainland China.

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What voltage systems is this SAE quick disconnect harness compatible with?

A: This SAE connector harness is rated for 12V to 24V DC systems, making it compatible with a wide range of vehicles and equipment including motorcycles, ATVs, cars, trucks, RVs, and solar charging setups.

Q: Does this harness fit standard SAE battery charger cables?

A: Yes. The harness uses standard SAE 2-pin connectors that are compatible with most SAE cables and battery maintainers/chargers available on the market.

Q: What is the purpose of the inline 10A fuse?

A: The inline 10A fuse protects both your battery charger and your vehicle's electrical system from overcurrent situations. If the current exceeds 10 amps, the fuse will blow and prevent potential damage to your equipment.

Q: What size are the O-ring terminals on this harness?

A: The O-ring terminals are a 6.5×12R type made of brass, with an inside diameter of 6.5mm and an outside diameter of 12mm — suitable for most standard battery bolt posts.
