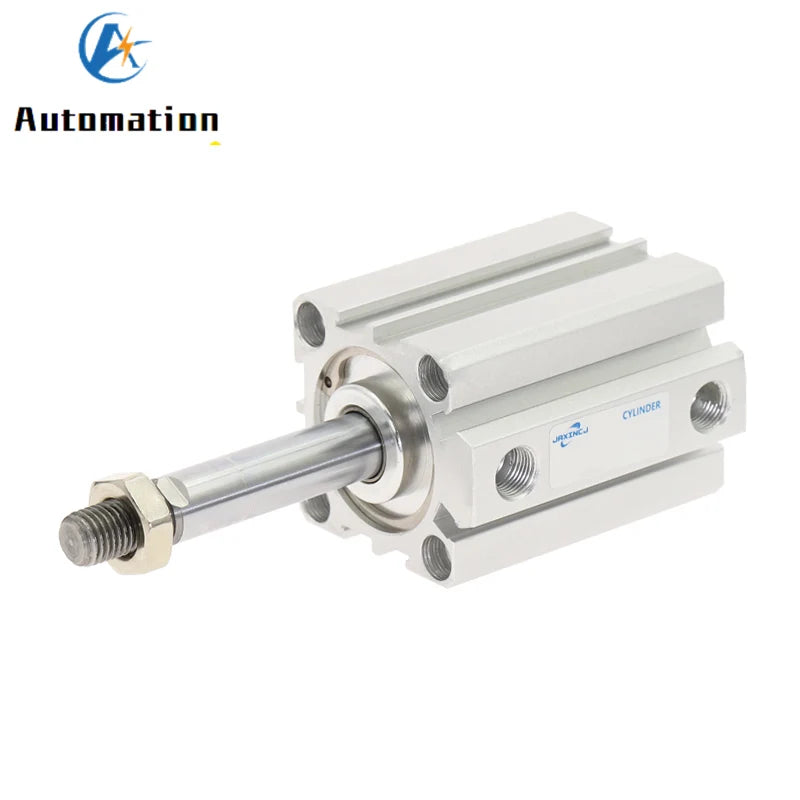

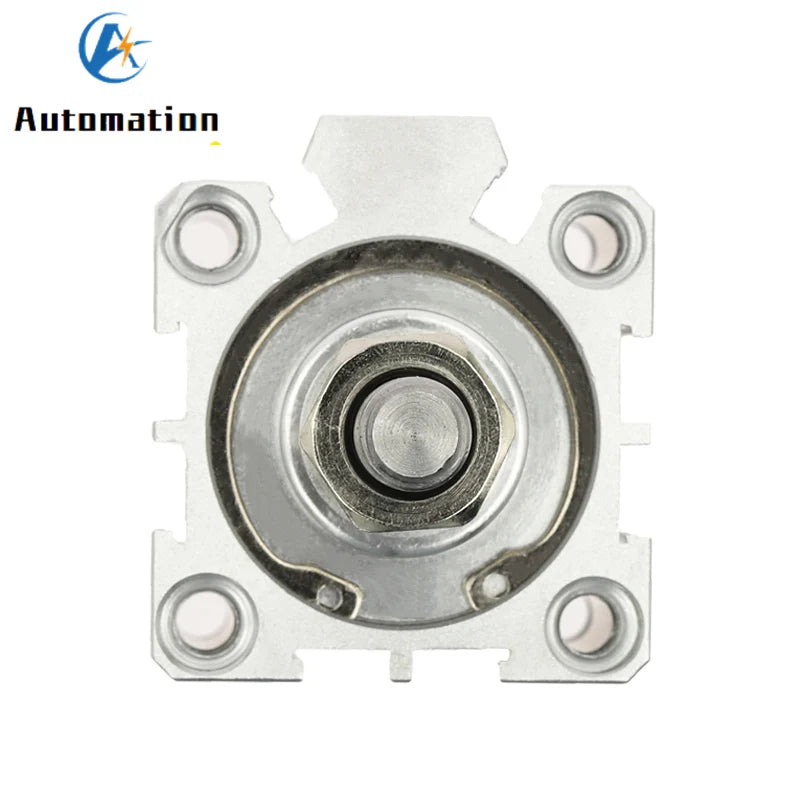

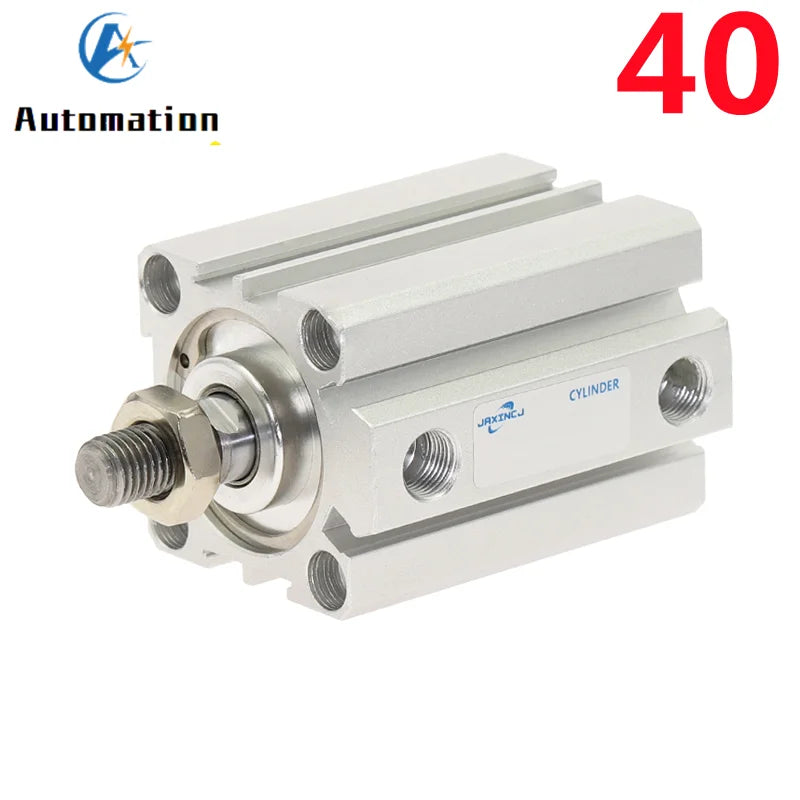

SDA40-B Compact Pneumatic Air Cylinder 40mm Bore 5–50mm Stroke
SDA40-B Compact Pneumatic Air Cylinder 40mm Bore 5–50mm Stroke
Details
SDA-B Series Pneumatic Compact Air Cylinder — 40mm Bore, Multiple Stroke Options
The SDA40-B Series Pneumatic Compact Air Cylinder is a high-performance, space-saving actuator built for demanding industrial and automation applications. With a 40mm bore diameter and your choice of stroke lengths from 5mm to 50mm, this double-acting cylinder delivers reliable, precise linear motion in a compact stainless steel body. Compatible with Airtac-type mounting and featuring a male thread rod end, it integrates seamlessly into new or existing pneumatic systems.
Key Features
- Bore Diameter: 40mm for robust force output in a compact footprint

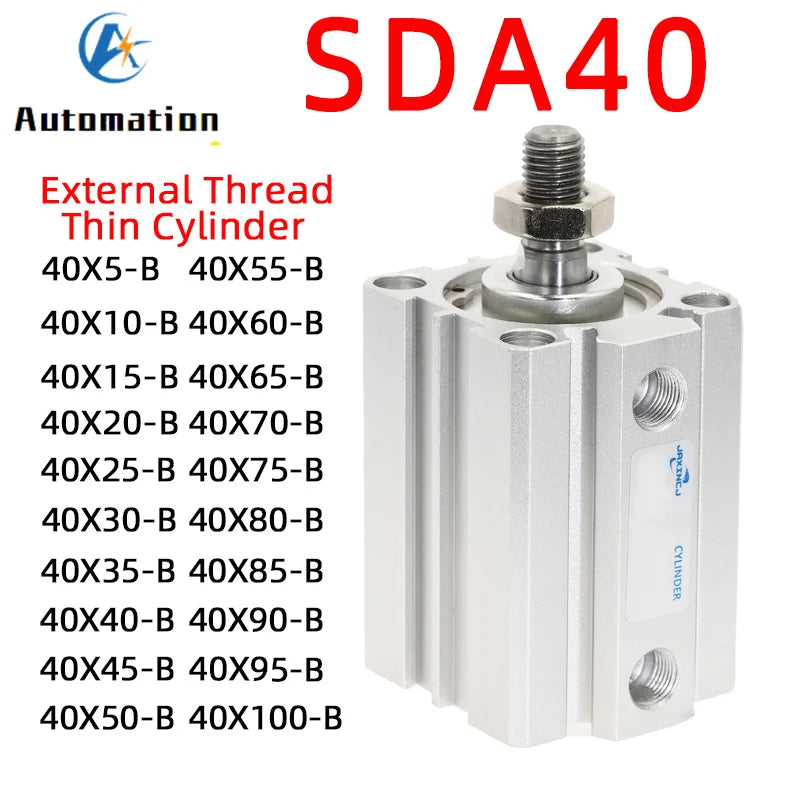

- Stroke Options: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50mm — select the exact stroke for your application
- Male Thread Rod End: Easy connection to fixtures, brackets, and tooling
- Airtac-Type Compatible: Drop-in replacement or upgrade for standard SDA-series cylinders
- Anticollision Pad Buffer: Reduces impact and vibration at end-of-stroke for smoother, quieter operation
- Stainless Steel Construction: Durable, corrosion-resistant body for long service life
- Working Fluid: Compressed air
Technical Specifications
| Model | SDA40-B (SDA40x5B) |
| Bore | 40mm |
| Stroke Range | 5mm – 50mm (multiple options) |
| Pressure Range | 0.1–1.0 MPa (15–145 PSI / 1.0–10.0 bar) |
| Working Temperature | -20°C to +80°C |
| Stroke Tolerance | +1.0mm |
| Material | Stainless Steel |
| Buffer Type | Anticollision Pad |
| Thread Type | Male Thread |
| Quantity | 1 piece |
Made in Mainland China.
Ideal Applications
This compact cylinder is well-suited for factory automation, assembly lines, pick-and-place systems, clamping fixtures, and any space-constrained pneumatic circuit requiring precise, repeatable linear actuation.
Related Products You May Like
- Carbide Tip Wood Lathe Turning Tool Kit with Cutting Inserts
- Durable Gold Blade Nut Metal Universal Trimmer Accessories
- Diamond Flat Grinding Wheel – Dry & Wet Use Heavy Duty
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What stroke lengths are available for the SDA40-B compact air cylinder?
A: The SDA40-B series air cylinder is available in ten stroke lengths: 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, and 50mm. Select the stroke that best suits your pneumatic application at checkout.
Q: Is this air cylinder compatible with Airtac-type systems?
A: Yes. The SDA40-B is designed as an Airtac-type compatible compact cylinder, making it a reliable drop-in replacement or upgrade for standard SDA-series pneumatic setups with minimal modification.
Q: What operating pressure and temperature range does this cylinder support?
A: This pneumatic compact air cylinder operates within a pressure range of 0.1–1.0 MPa (15–145 PSI), and is rated for working temperatures from -20°C to +80°C, making it suitable for a wide range of industrial environments.
Q: What material is the cylinder body made from?
A: The cylinder body is constructed from stainless steel, providing excellent durability, corrosion resistance, and a long operational service life even in demanding factory or automation settings.
