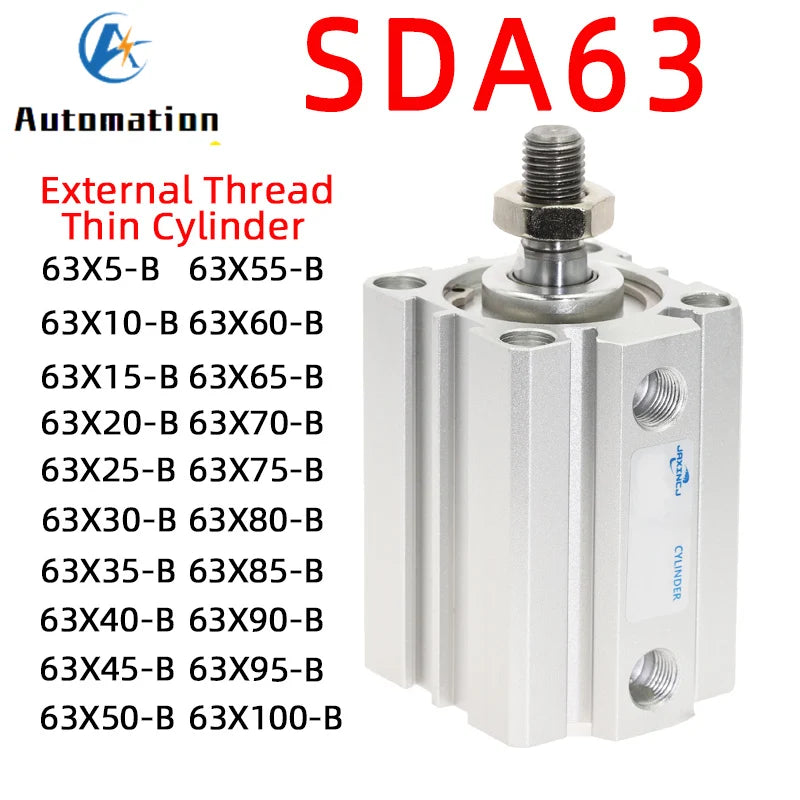

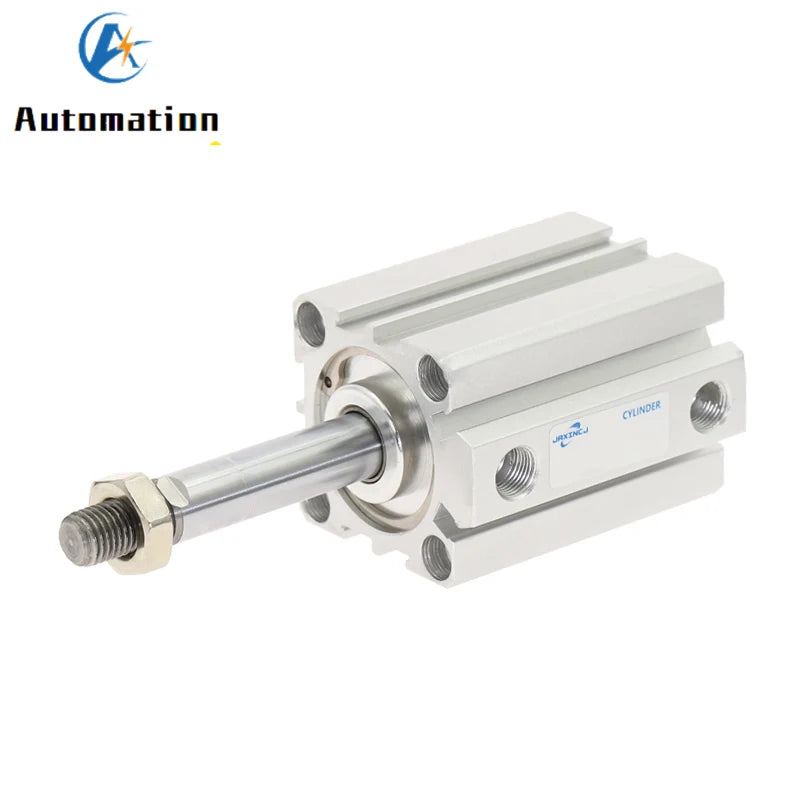

SDA-B Series Compact Pneumatic Air Cylinder – 63mm Bore, Multiple Stroke Options
The SDA63 Series Compact Air Cylinder is a high-performance, double-acting pneumatic cylinder designed for precision industrial automation, machinery, and manufacturing applications. Compatible with Airtac-type mounting configurations, this cylinder features a male thread (B-type) rod end and is available in 10 stroke lengths — making it a versatile choice for engineers and technicians who need reliable, space-saving linear motion control.
Key Features
- Model: SDA-B Series (Airtac-compatible compact type)
- Bore Diameter: 63 mm
- Available Strokes: 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
- Rod End: Male thread (B-type)
- Material: Stainless steel construction for durability and corrosion resistance
- Working Fluid: Compressed air
- Operating Pressure Range: 0.1–1.0 MPa (15–145 PSI / 1.0–10.0 bar)
- Working Temperature Range: -20°C to +80°C (-4°F to 176°F)
- Buffer Type: Anti-collision pad for smooth, low-impact end-of-stroke action
- Stroke Tolerance: +1.0 mm
- Quantity: 1 piece
Why Choose the SDA63 Compact Air Cylinder?
Built to Airtac dimensional standards, this cylinder integrates seamlessly into existing pneumatic systems as a direct replacement or upgrade. The stainless steel body ensures long service life even in demanding environments, while the compact SDA profile keeps your machine footprint small without sacrificing force output. The anti-collision pad buffer reduces shock at the end of stroke, helping to protect both the cylinder and your connected tooling or fixtures.
Typical Applications
- Industrial automation and robotic end-of-arm tooling
- Pneumatic clamping, pressing, and pushing fixtures
- Assembly line machinery and conveyor systems
- CNC machine tool accessories and workholding
- Packaging and material handling equipment

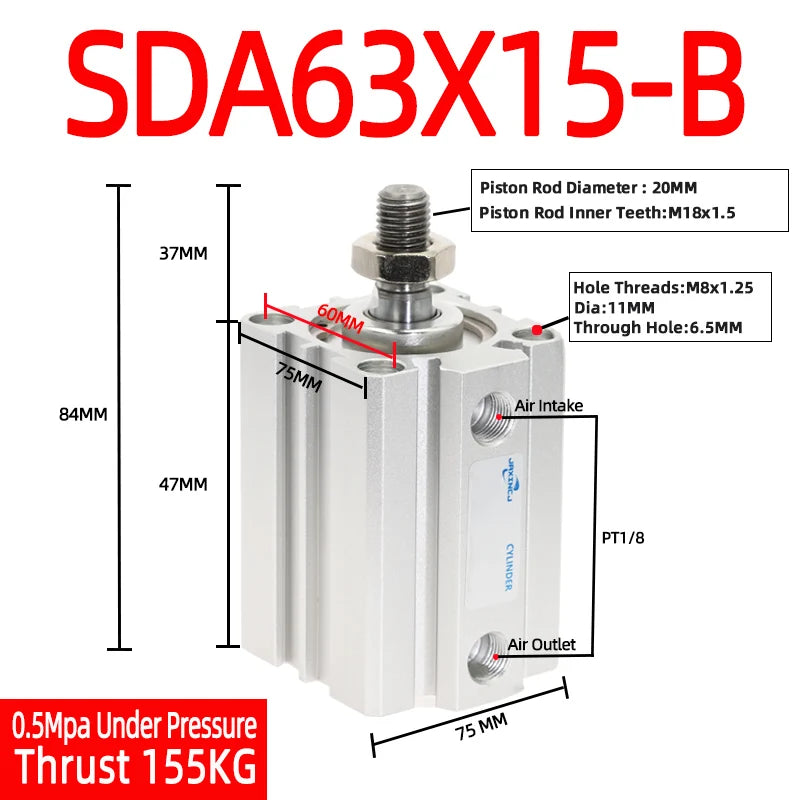

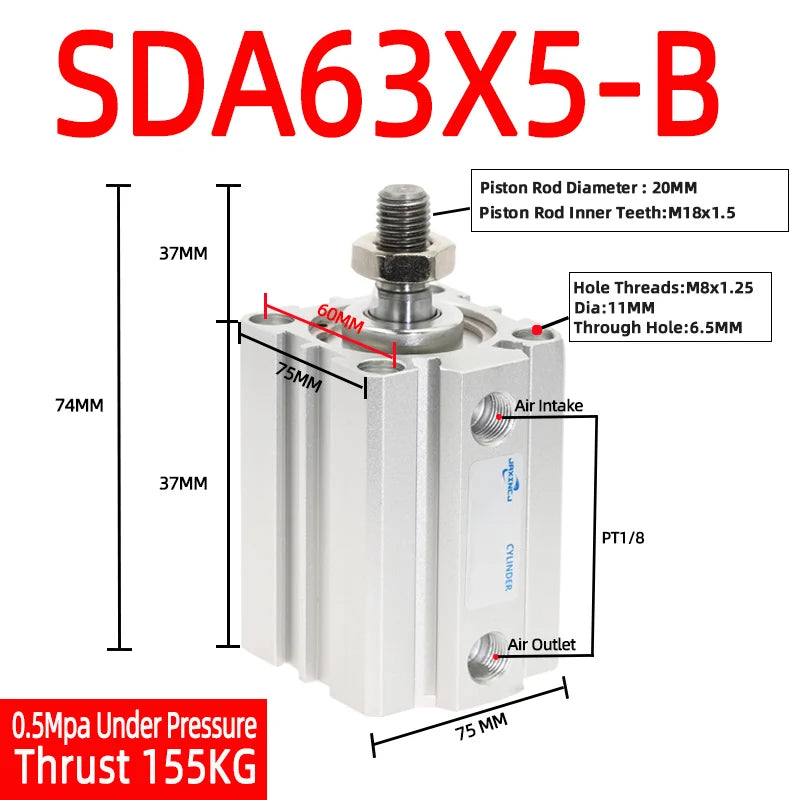

Specifications at a Glance
| Parameter | Value |
|---|---|
| Series | SDA-B (Airtac-compatible) |
| Bore | 63 mm |
| Stroke Options | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm |
| Pressure Range | 0.1–1.0 MPa (15–145 PSI) |
| Temperature Range | -20°C to +80°C |
| Material | Stainless Steel |
| Working Fluid | Compressed Air |
| Buffer | Anti-collision pad |
| Country of Origin | Made in China (Mainland) |
Looking for other precision industrial tools and fasteners? Check out our 10PCS Stainless Steel Self-Tapping Screws or our 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals for your next project.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What stroke lengths are available for the SDA63 compact air cylinder?
A: The SDA63-B series compact air cylinder is available in 10 stroke lengths: 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, and 50mm. Please select your required stroke at checkout.
Q: Is this SDA63 air cylinder compatible with Airtac pneumatic systems?
A: Yes. This cylinder is manufactured to Airtac-type dimensional standards, making it a direct drop-in compatible replacement or addition for systems already using Airtac SDA-series compact cylinders. The male thread (B-type) rod end ensures easy integration with standard pneumatic rod couplings and fittings.
Q: What operating pressure and temperature range does this compact air cylinder support?
A: The SDA63-B cylinder operates at pressures from 0.1 to 1.0 MPa (15–145 PSI / 1.0–10.0 bar) and handles working temperatures from -20°C to +80°C (-4°F to 176°F), making it suitable for a wide range of industrial environments.
Q: What material is the SDA63 cylinder body made from?
A: The cylinder is constructed from stainless steel, providing excellent corrosion resistance, mechanical strength, and long service life in demanding industrial and workshop conditions.
