SDA80 Compact Double Acting Pneumatic Air Cylinder 80mm Bore

SDA80 Compact Double Acting Pneumatic Air Cylinder – 80mm Bore

The SDA80 Compact Pneumatic Air Cylinder is a high-performance, double acting piston cylinder designed for precise linear motion control in industrial automation, machinery, and tooling applications. With an 80mm bore and a wide range of available stroke lengths — from 5mm to 100mm — this versatile cylinder fits seamlessly into tight spaces without sacrificing power or reliability.

Constructed from durable stainless steel, the SDA80 is built to withstand demanding environments and repetitive cycles. The anti-collision pad buffer system ensures smooth, controlled operation at end-of-stroke, minimizing wear and extending service life. Made in Mainland China.

Key Specifications

• Model: SDA80 (SDA Type)
• Bore Size: 80mm

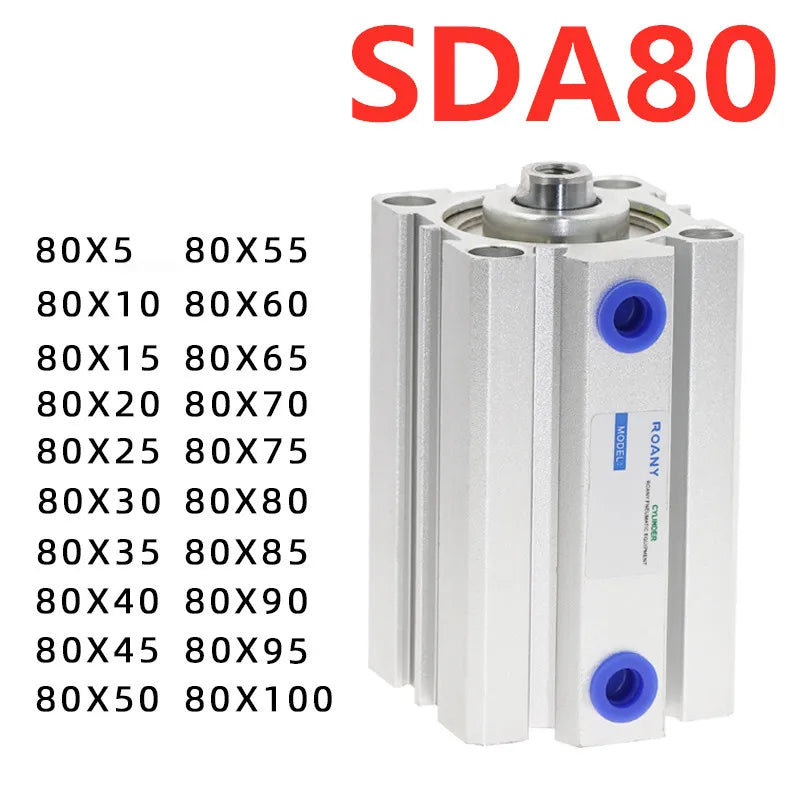

• Available Stroke Lengths: 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
• Action Type: Double Acting
• Working Fluid: Compressed Air
• Operating Pressure Range: 0.1–1.0 MPa (15–145 PSI / 1.0–10.0 bar)
• Working Temperature: -20°C to +80°C
• Stroke Tolerance: +1.0mm
• Buffer Form: Anti-collision pad
• Rod Connection: Female thread
• Material: Stainless steel
• Quantity: 1 piece

Why Choose the SDA80 Compact Air Cylinder?

• Space-Saving Design: The compact SDA profile makes it ideal for installations where space is limited, without compromising force output.
• Double Acting Operation: Air pressure drives both extension and retraction strokes, delivering consistent and repeatable motion control.
• Wide Stroke Selection: Choose from multiple stroke lengths to match your exact application requirements.
• Robust Construction: Stainless steel body resists corrosion and wear, ensuring long service life in industrial environments.
• Broad Pressure Compatibility: Works across a wide pressure range, making it compatible with most standard compressed air systems.
• Anti-Collision Cushioning: Built-in anti-collision pad absorbs impact at stroke end, protecting both the cylinder and connected equipment.

Typical Applications

• Industrial automation and assembly lines
• Pneumatic clamping and pressing fixtures
• Robotic actuator systems
• Material handling and conveyor systems
• Machine tooling and positioning
