Slide Hammer Internal Bearing Puller Blind Hole Kit 9/10 PCS

Slide Hammer Pilot Internal Bearing Puller & Blind Hole Extractor Kit

Tackle even the most stubborn blind-hole bearings with confidence. This professional-grade Slide Hammer Internal Bearing Puller Kit gives mechanics, machinists, and DIY enthusiasts a reliable, all-in-one solution for extracting pilot bearings, bushings, and seals from blind bores where standard pullers simply can't reach. Available in a 9-piece or 10-piece configuration to suit your workshop needs.

Made in Mainland China.

Note: The metal components are treated with a rust-preventive oil coating to protect against moisture and corrosion during storage. We recommend cleaning and re-lubricating with your preferred grease or oil before first use and after each application.

Key Features

• Wide size range: Collets cover 8 mm up to 32 mm (approx. 5/16" – 1¼"), handling the vast majority of automotive and industrial blind-bore applications in a single kit.

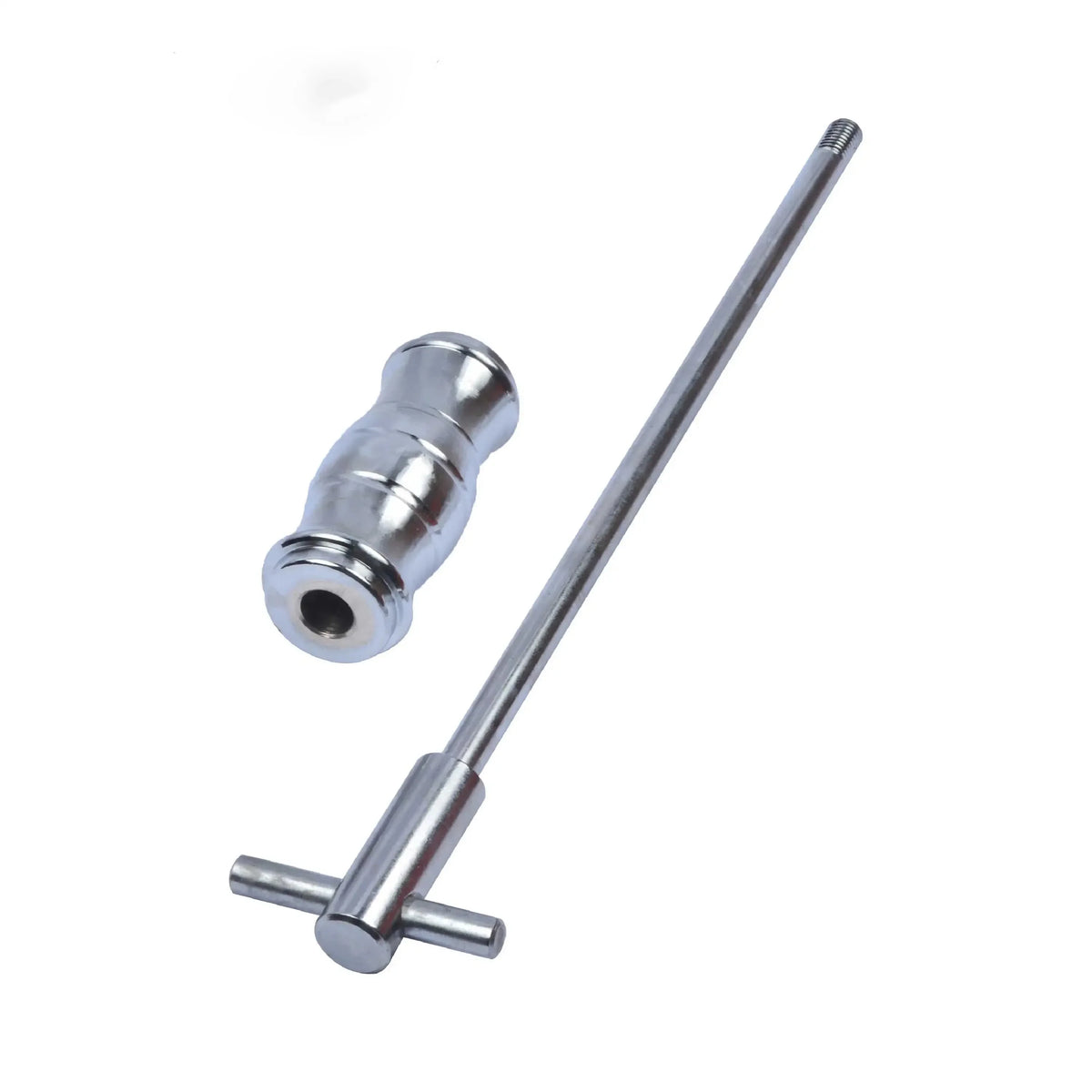

• Slide hammer with T-handle: 390 mm shaft length and 105 mm hammer travel deliver powerful, controlled extraction force without damaging surrounding components.
• Durable metal construction: All collets and the slide hammer assembly are machined from metal for long-lasting performance under demanding workshop conditions.

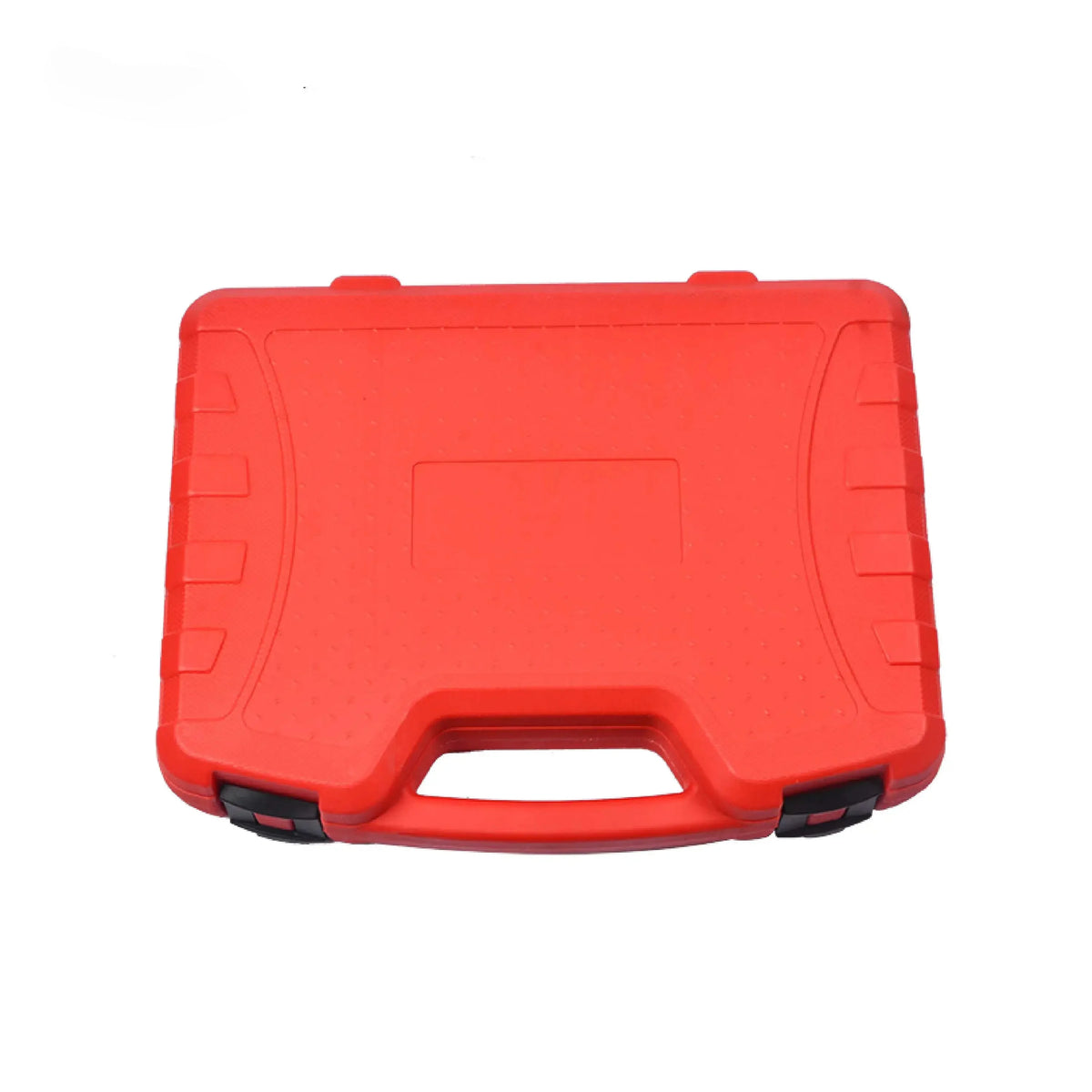

• Convenient storage case: Red plastic carry case keeps every collet organized and protected, ready for the next job.
• Easy to use: Simply select the correct collet size, insert and expand it inside the bore, attach the slide hammer, and pull — no specialist training required.

Specifications

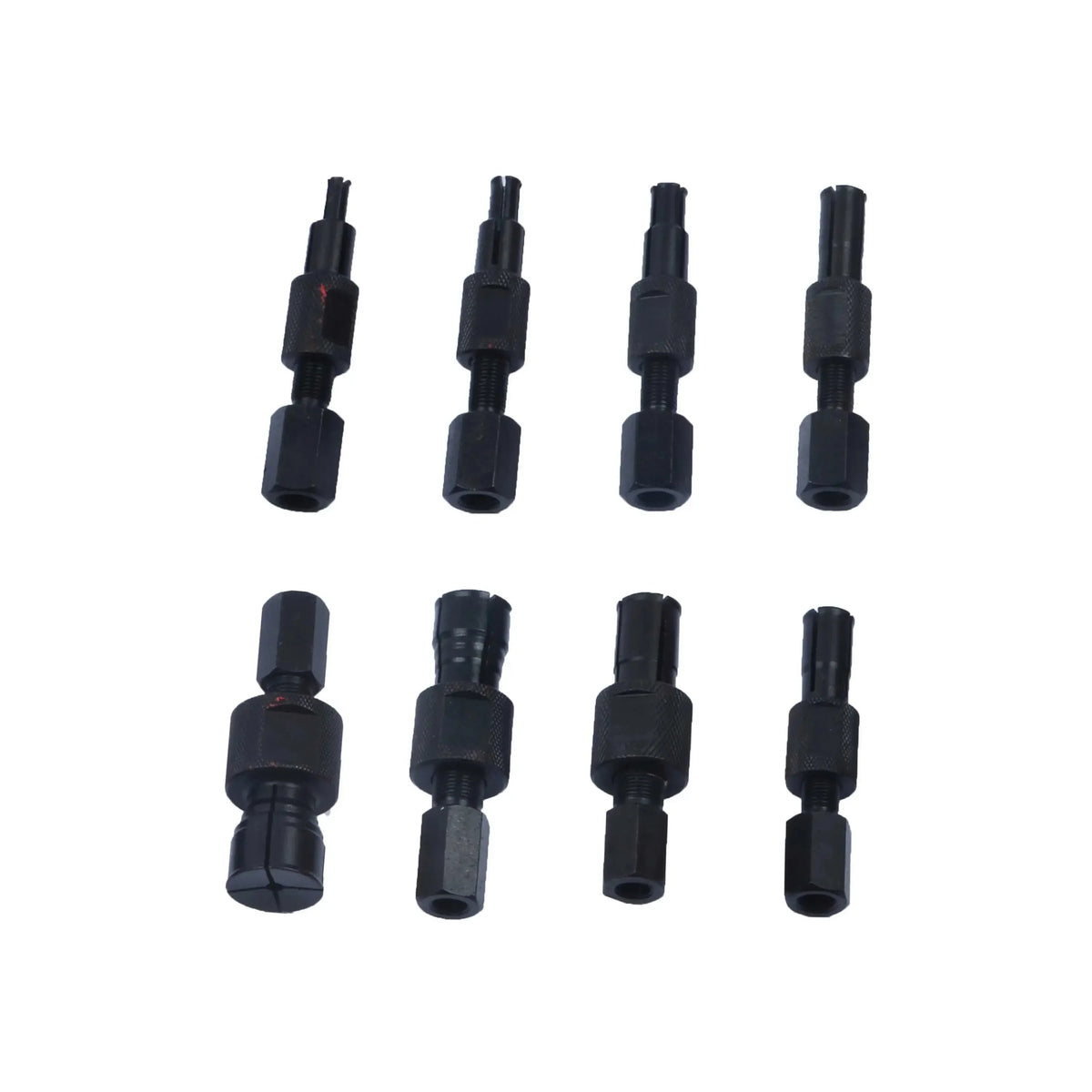

Collet / Clamp Sizes Included

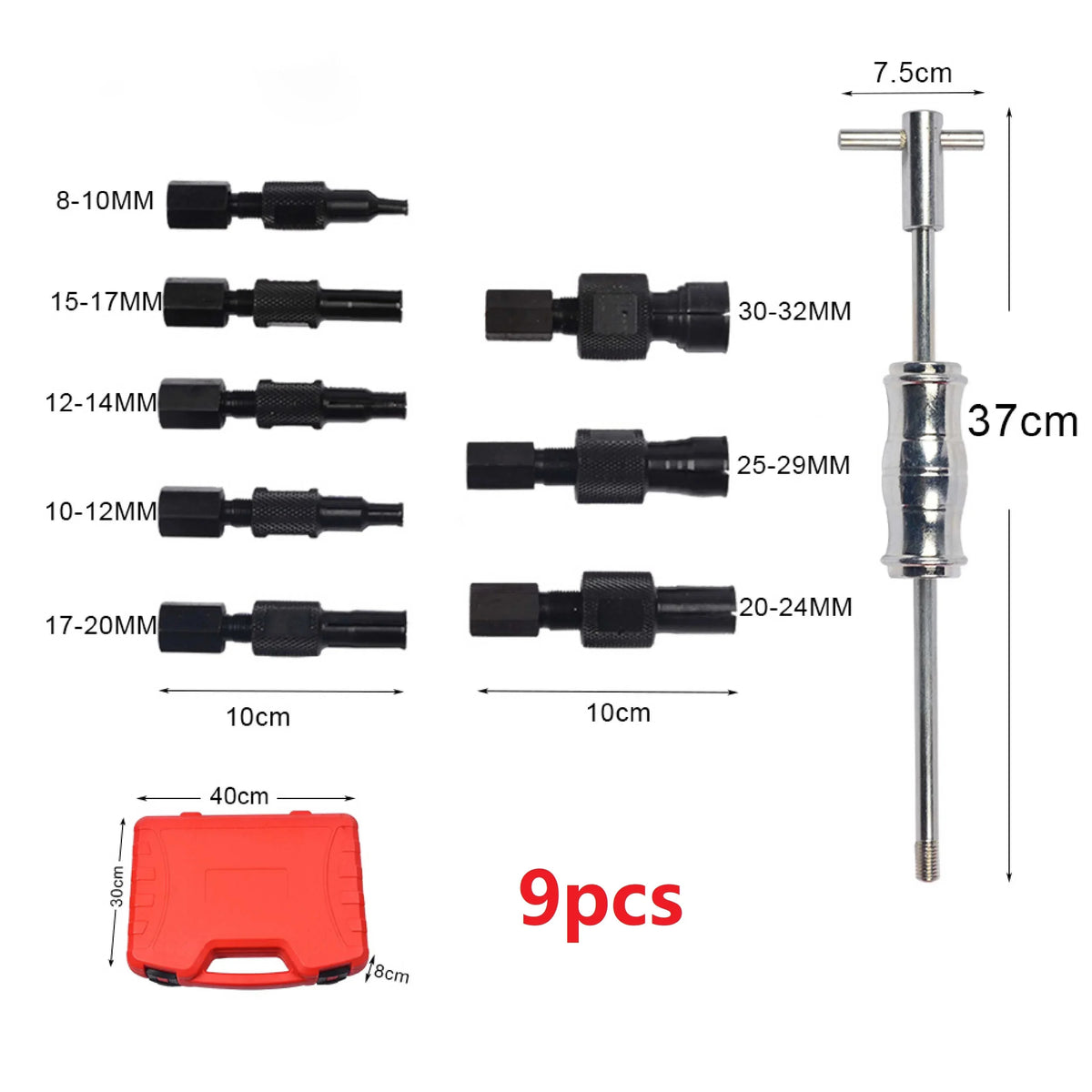

9-Piece Set (1034)

• 1 pc — 8–10 mm (5/16″–13/32″)
• 1 pc — 10–12 mm (13/32″–15/32″)
• 1 pc — 12–14 mm (15/32″–9/16″)
• 1 pc — 15–17 mm (9/16″–11/16″)
• 1 pc — 17–20 mm (11/16″–25/32″)
• 1 pc — 20–24 mm (25/32″–15/16″)
• 1 pc — 25–29 mm (1″–1-1/8″)
• 1 pc — 30–32 mm (1-3/16″–1-1/4″)
• 1 x Slide Hammer with T-handle

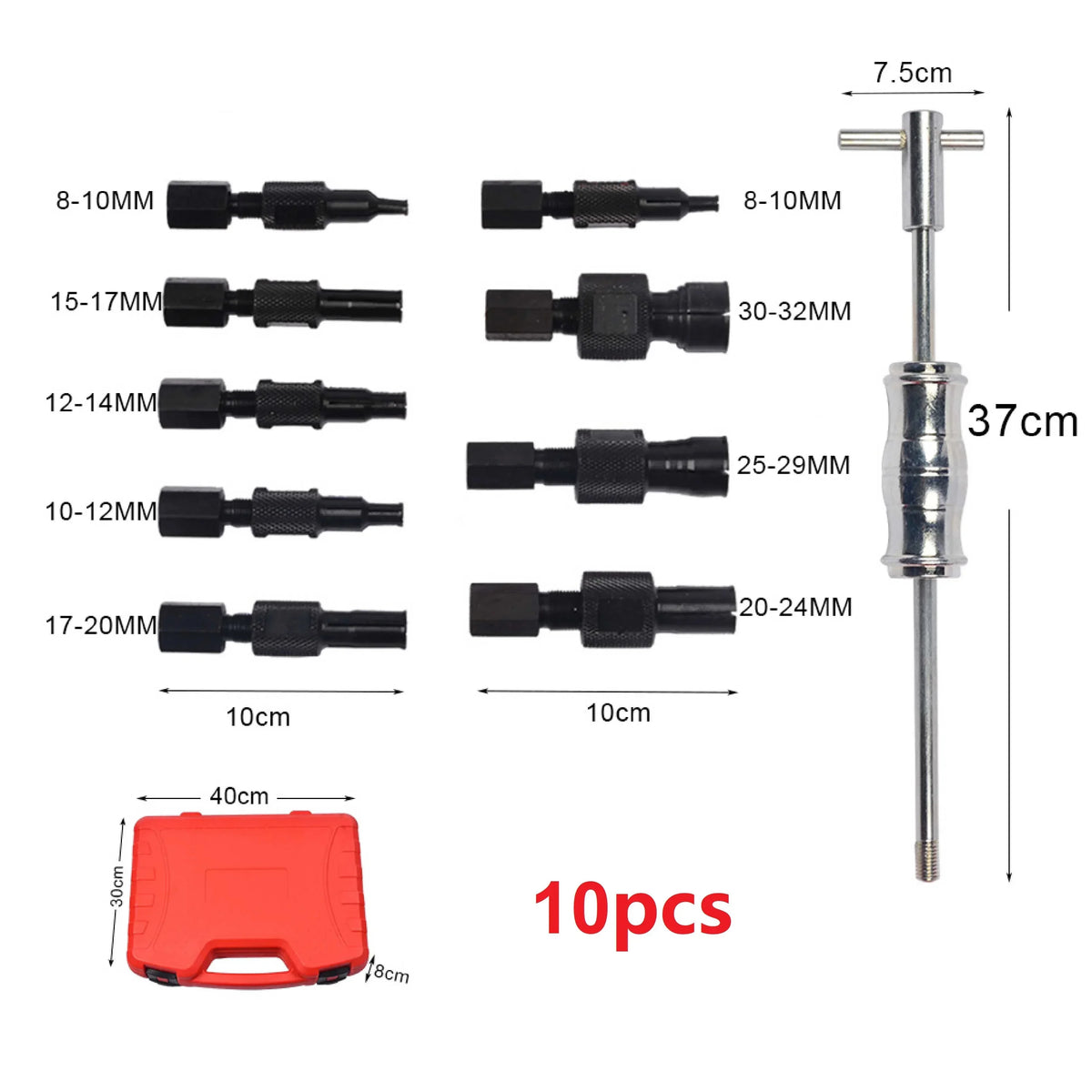

10-Piece Set (1876)

• 2 pc — 8–10 mm (5/16″–13/32″)
• 1 pc — 10–12 mm (13/32″–15/32″)
• 1 pc — 12–14 mm (15/32″–9/16″)
• 1 pc — 15–17 mm (9/16″–11/16″)
• 1 pc — 17–20 mm (11/16″–25/32″)
• 1 pc — 20–24 mm (25/32″–15/16″)
• 1 pc — 25–29 mm (1″–1-1/8″)
• 1 pc — 30–32 mm (1-3/16″–1-1/4″)
• 1 x Slide Hammer with T-handle

Package Contents

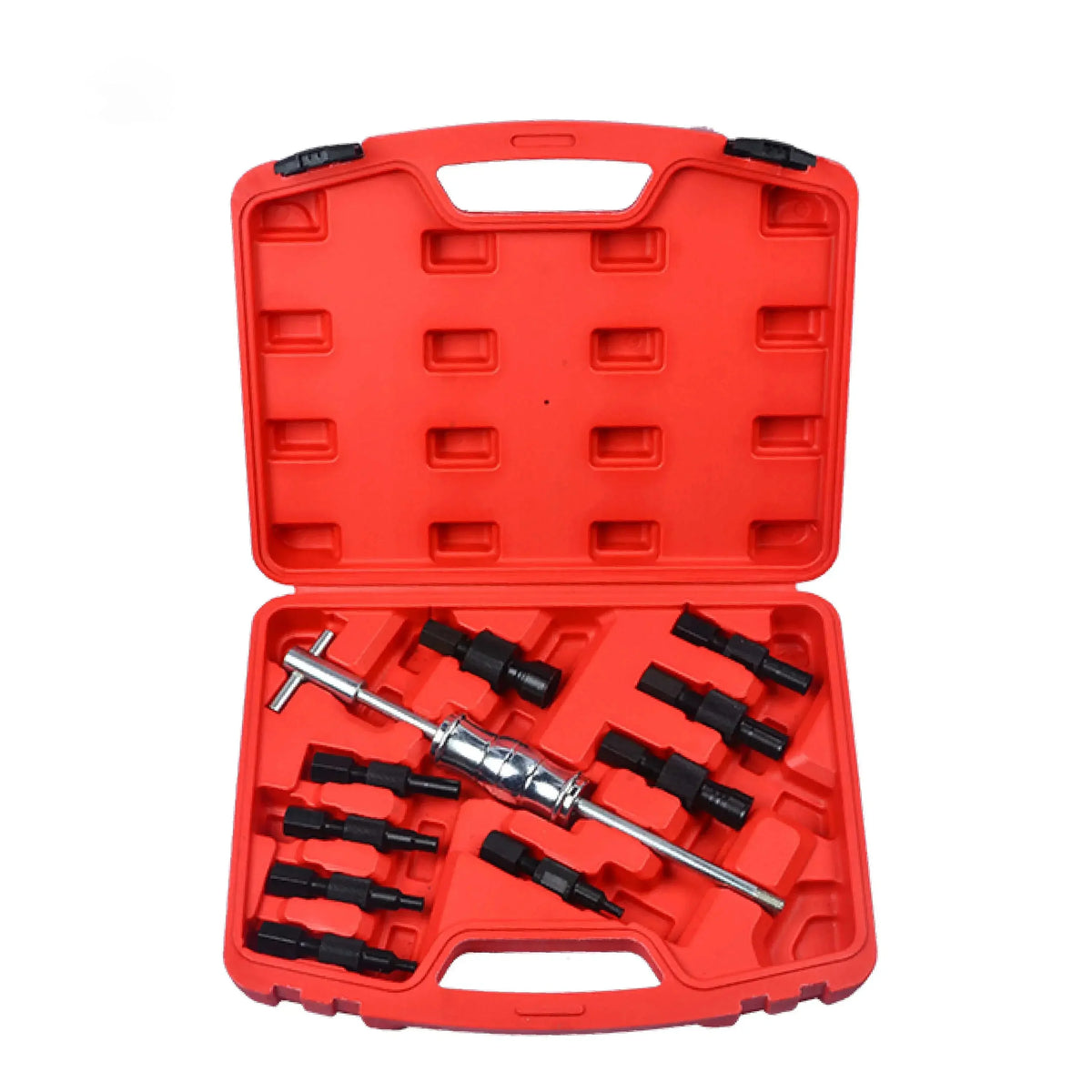

1 × Complete Blind Hole Bearing Puller Kit (9-piece or 10-piece as selected), housed in a red plastic storage case.

Related Products You May Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories – Anti-Loosening Replacement Parts
• 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder Wheel
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What size bearings can this slide hammer blind hole puller kit remove?

A: The kit covers a broad range from 8 mm up to 32 mm (approximately 5/16″ to 1¼″). Eight graduated collet sizes are included, making this set suitable for most automotive pilot bearings, bushings, and blind-bore seals encountered in everyday workshop use.

Q: Is this blind hole bearing puller kit suitable for automotive use?

A: Yes. The slide hammer and collet design is specifically engineered for internal pulling jobs — including pilot bearings, transmission bushings, and similar automotive components — where the bore has no through-hole for conventional pullers to grip.

Q: How do I use the collets correctly?

A: Select the collet that most closely matches the inner diameter of the bore you need to extract from. Insert the collapsed collet into the bore, then turn the adjustment mechanism to expand it so the collet grips the inner race firmly. Attach the slide hammer assembly and deliver sharp, controlled strokes to extract the bearing cleanly.

Q: Do I need to do anything before first use?

A: The metal components arrive coated in a light rust-preventive oil. Before first use, wipe off any excess oil and apply your preferred workshop grease or lubricant to the collet threads and slide hammer shaft for smooth, reliable operation.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
