Solid State Relay SSR 10A–100A DC to AC 24-380VAC CE Certified

Solid State Relay (SSR) — DC Controlled AC, 24–380VAC Output

Upgrade your automation and control systems with this high-performance Solid State Relay (SSR). Available in multiple current ratings — 10A, 25A, 40A, 50A, 60A, 80A, and 100A — these relays offer DC-controlled AC switching with zero mechanical contacts, meaning no sparks, no noise, and virtually unlimited switching cycles. CE certified and built for demanding environments, they are the go-to choice for engineers, hobbyists, and industrial system builders.

Key Features

• No-Contact Switching: Zero electric spark, no noise, and no mechanical wear for outstanding longevity.
• Fast Switching Speed: On/off time ≤2ms for precise, responsive control.
• Wide Output Voltage Range: 24–380VAC output suitable for a broad range of AC loads.
• Low Drive Requirements: Control current 3–35mA; minimal input power needed.
• Epoxy-Encapsulated Body: Excellent resistance to corrosion, moisture, and dust — ideal for harsh environments.
• High Insulation Voltage: ≥2500VAC insulation voltage; 1000MΩ/500VDC insulation resistance.
• Wide Operating Temperature: -30°C to +70°C for reliable use in varied conditions.
• CE Certified for quality and safety compliance.

Specifications (SSR-100VA Example)

Available Models

• SSR-10VA — 10A
• SSR-25VA — 25A
• SSR-40VA — 40A
• SSR-50VA — 50A
• SSR-60VA — 60A
• SSR-80VA — 80A
• SSR-100VA — 100A

Common Applications

• Industrial automation systems
• Electric furnace and heating element control
• Stage and architectural lighting control
• Medical and laboratory instruments
• Computer peripheral and CNC connections
• AC motor speed and direction control
• Automatic fire safety and alarm systems
• Traffic lights, street lighting, and signal control

What's in the Box

1 × Solid State Relay (model selected at checkout)

Made in Mainland China.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between the SSR-10VA, SSR-25VA, SSR-40VA, and SSR-100VA models?

A: The models differ in their maximum load current ratings — 10A, 25A, 40A, and 100A respectively. All models share the same 24–380VAC output range and DC control input. Choose the model rated at or above your application's maximum load current for safe, reliable operation.

Q: What control voltage do I need to trigger these solid state relays?

A: These SSRs accept a DC control voltage of 5–250VDC, making them compatible with a wide range of controllers including PLCs, Arduino/microcontrollers, and standard DC power supplies.

Q: Are these solid state relays suitable for outdoor or harsh environments?

A: Yes. The epoxy-encapsulated housing provides excellent resistance to corrosion, moisture, and dust. They also operate across a wide temperature range of -30°C to +70°C, making them well-suited for challenging industrial and outdoor environments.

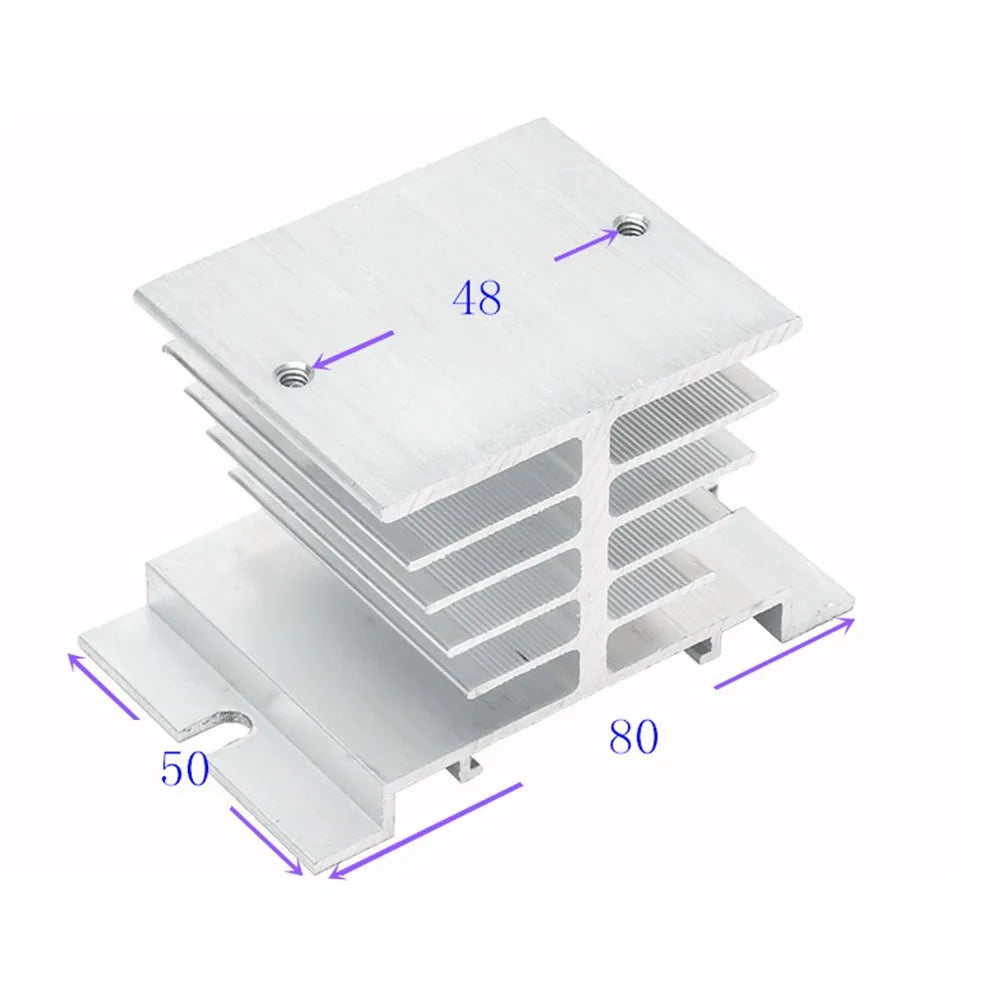

Q: Do these SSRs require a heat sink?

A: For higher current models (40A and above) operating near maximum load, attaching an appropriate heat sink is recommended to maintain optimal performance and extend the relay's service life. Lower-current models used within their rated limits typically generate less heat.
