SSR-41FDD/41FDA Solid State Relay Slim DIN Rail Module 3-32VDC 6A

SSR-41FDD / 41FDA Solid State Relay — Slim DIN Rail Module

Upgrade your control system with the SSR-41FDD/41FDA Solid State Relay Module — a compact, non-contact switching solution designed for reliable DC-to-DC and DC-to-AC signal control. Featuring a slim DIN Rail-compatible form factor, this relay module is engineered for industrial, automation, and DIY electronics applications where space efficiency and switching durability matter most.

Made in Mainland China.

Key Features

• Wide Control Voltage Range: Accepts a 3–32V DC input signal, with load voltage support of 5–60V DC or 24–250V AC — perfect for a broad range of applications.
• 6A Load Capacity: Handles up to 6 amps, providing dependable control of moderate to high-power loads.
• Non-Contact Solid State Switching: SSR (Solid State Relay) technology eliminates mechanical contacts, resulting in faster switching, zero arcing, and greatly extended operational lifespan.
• Slim, Space-Saving Design: Ultra-compact form factor designed specifically for DIN Rail mounting, keeping your control panel neat and organized.

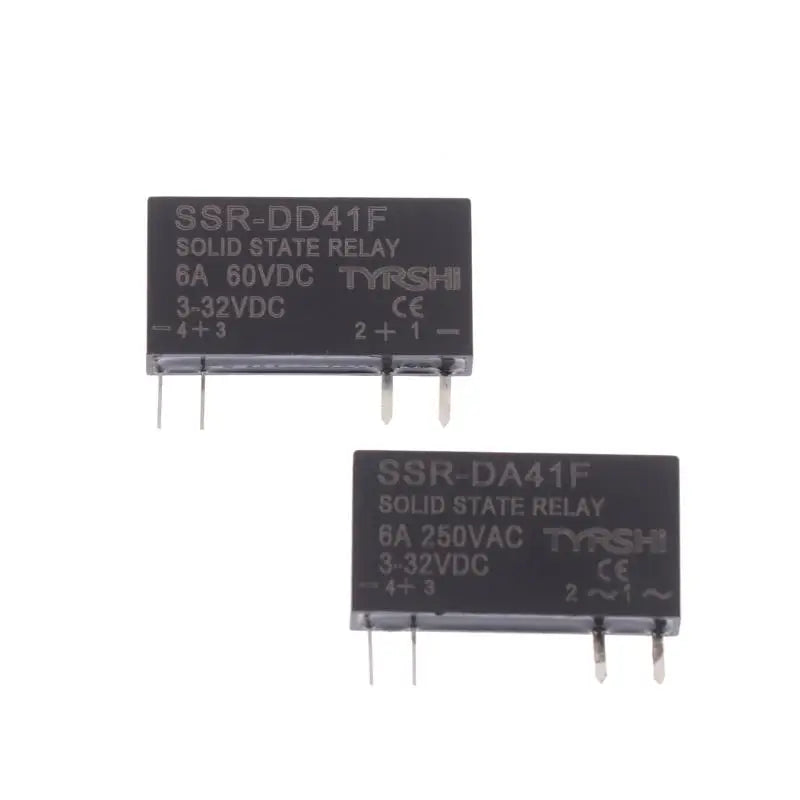

• Versatile Signal Relay: Available in DC-to-DC (SSR-41FDD) and DC-to-AC (SSR-41FDA) variants to suit a wide variety of control scenarios.
• Vibration & Noise Free: Solid state construction means no moving parts, no switching noise, and no electromagnetic interference from mechanical contacts.

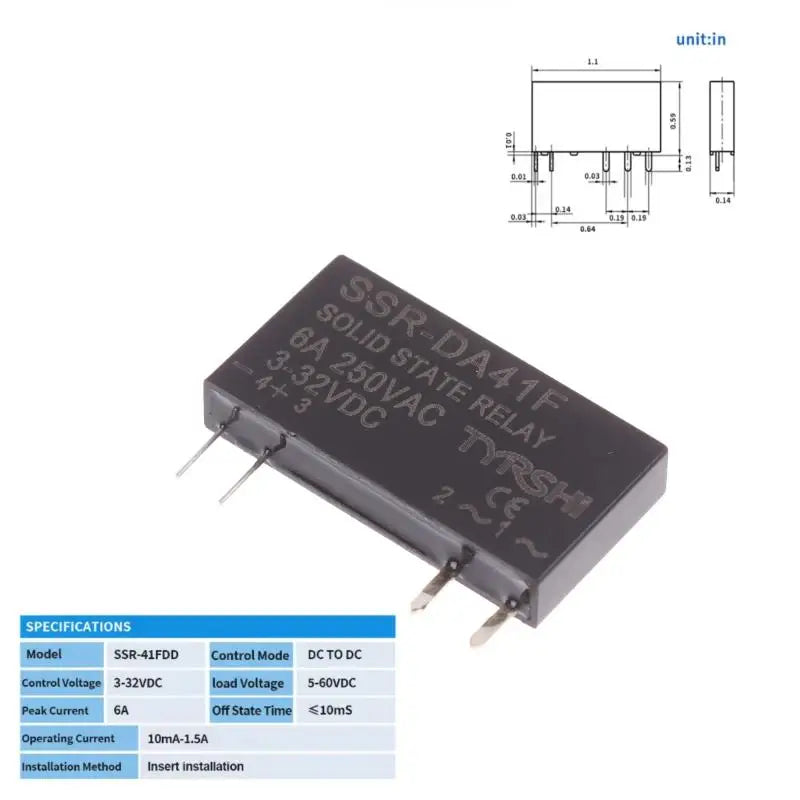

Specifications

• Model: SSR-41FDD (DC to DC) / SSR-41FDA (DC to AC)
• Control Voltage: 3–32V DC
• Load Voltage (DC): 5–60V DC
• Load Voltage (AC): 24–250V AC
• Load Current: 6A
• Mounting: DIN Rail
• Switching Type: Non-contact (Solid State)
• Package Contents: 1 × Solid State Relay Module

What's Included

• 1 × SSR-41FDD or SSR-41FDA Solid State Relay Module

Note: Slight dimensional differences may occur due to manual measurement. Color may vary slightly from product images due to monitor display settings.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between the SSR-41FDD and SSR-41FDA solid state relay models?

A: The SSR-41FDD is a DC-to-DC solid state relay, meaning it switches DC load circuits using a DC control signal. The SSR-41FDA is a DC-to-AC variant, controlling AC load circuits with a DC input. Both accept a 3–32V DC control voltage and support up to 6A load current.

Q: Can this solid state relay be mounted on a DIN rail in an existing control panel?

A: Yes! The SSR-41FDD/41FDA is specifically designed for DIN Rail mounting, making it straightforward to integrate into standard electrical enclosures and control panels without additional hardware.

Q: Is the SSR-41FDD/41FDA suitable for automation or industrial control applications?

A: Absolutely. Its wide control voltage range (3–32V DC), 6A load capacity, and non-contact switching make it well-suited for industrial automation, PLC control systems, home automation, and general-purpose DC/AC switching tasks.
