304 SS Truss Head Self-Tapping Screws M3–M6 | 6–100mm

304 Stainless Steel Truss Head Self-Tapping Screws — M3, M4, M5 & M6

Built for durability and a clean finish, these large flat (truss/mushroom) head, cross-drive self-tapping screws are machined from 304/316 stainless steel for outstanding corrosion resistance and long-lasting strength. The wide, low-profile truss head spreads clamping load over a larger surface area, making these screws ideal for thin materials, plastics, sheet metal, wood, and light fabrication work. Available in M3, M4, M5, and M6 diameters with lengths ranging from 6 mm to 100 mm, you'll find exactly the right size for your project.

Made in Mainland China.

Key Features

• Material: 304 / 316 Stainless Steel — rust-resistant and suitable for indoor and outdoor use
• Head Style: Large flat truss (mushroom) head with Phillips (cross) drive
• Thread Type: Self-tapping — cuts its own thread for fast, secure fastening without a pre-tapped hole

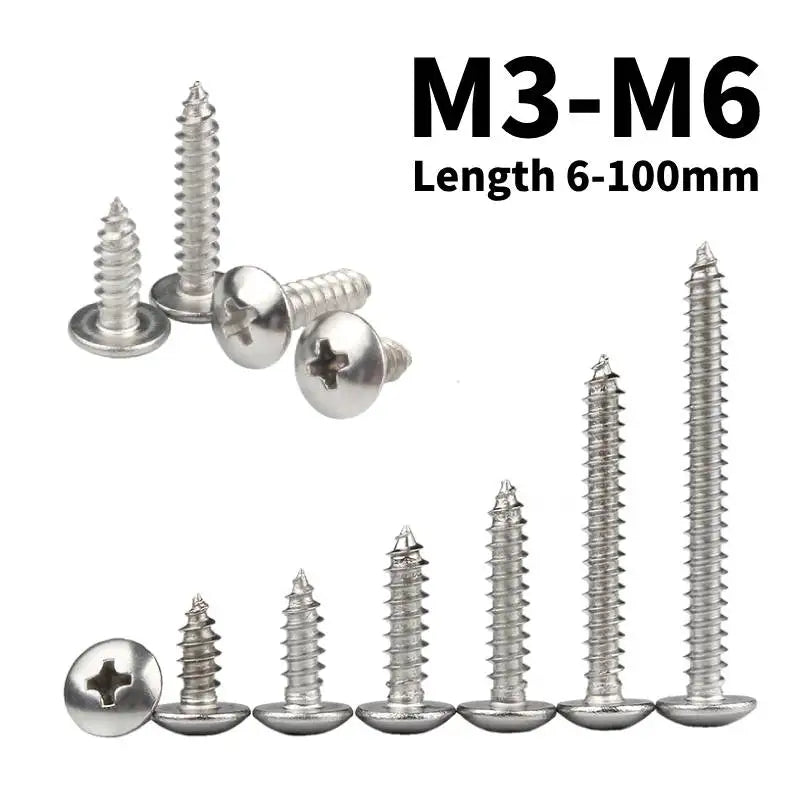

• Size Range: M3, M4, M5, M6 diameters; lengths from 6 mm to 100 mm
• Standard: GB (Guobiao) — consistent, precise dimensions across every piece
• Wide clamping surface distributes load evenly, reducing pull-through in softer materials
• Bright, smooth finish for a professional look on visible surfaces

Ideal Applications

• Sheet metal fabrication and enclosures
• Plastic panels, electronics housings, and cabinetry
• DIY home improvement, electrical installations, and general hardware
• Outdoor fixtures, signage, and marine-adjacent environments
• Woodworking and light structural assembly

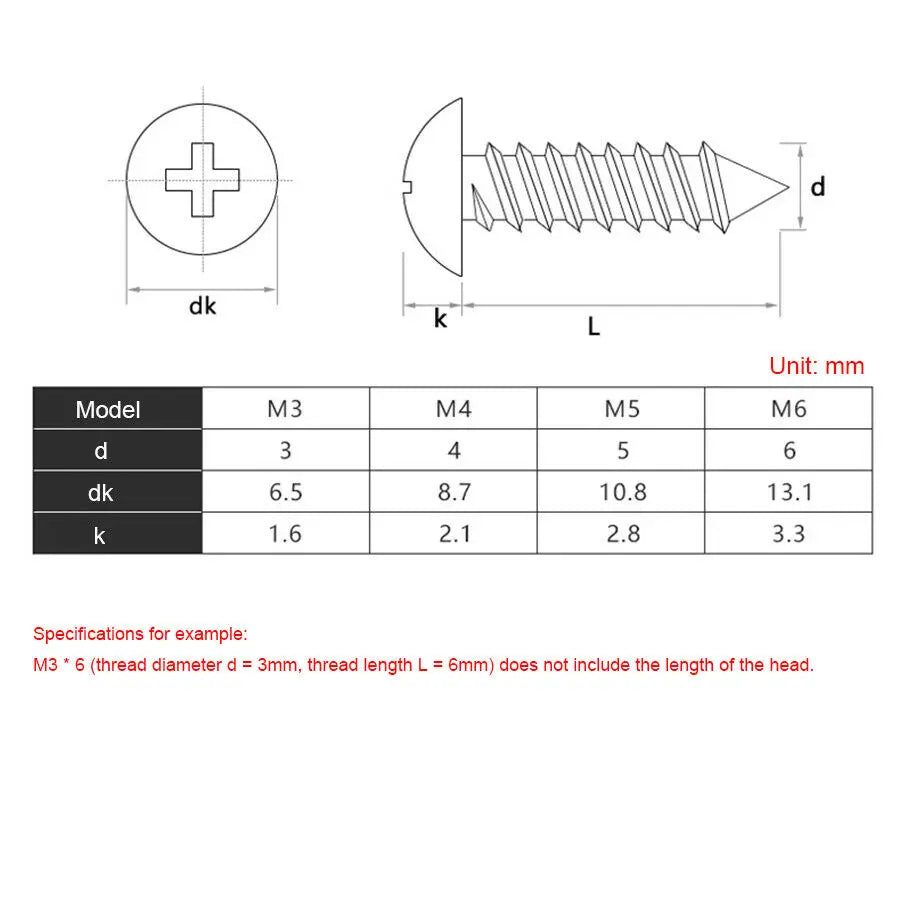

Specifications

Related Products You May Need

• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories Anti-Loosening Line Left Hand Thread Replacement Parts
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between a truss head and a standard pan head self-tapping screw?

A: A truss head (also called a mushroom or large flat head) has a wider, lower-profile dome than a standard pan head. This wider bearing surface distributes clamping force over a greater area, making it ideal for thin sheet metal, plastics, or soft materials where a smaller head might pull through.

Q: Are these screws suitable for outdoor or humid environments?

A: Yes. Made from 304/316 stainless steel, these screws offer excellent corrosion and rust resistance, making them well-suited for outdoor fixtures, damp environments, and marine-adjacent applications.

Q: Do I need to pre-drill a hole before using these self-tapping screws?

A: For harder materials such as thick sheet metal, a small pilot hole is recommended to guide the screw and prevent material distortion. For softer materials like wood, thin plastic, or light-gauge metal, the sharp self-tapping thread can drive directly without pre-drilling.

Q: What sizes are available, and how do I choose the right one?

A: These screws are available in M3, M4, M5, and M6 diameters with lengths ranging from 6 mm to 100 mm. As a general rule, choose a diameter that matches your existing hardware or pilot hole size, and select a length approximately 2–3 times the thickness of the material being fastened for a secure hold.
