Suction Base Drill Guide – Metal Fixture for Glass & Tile Holes

Drill with Confidence on Glass, Tile & Glazed Panels

The Suction Base Drill Alignment Fixture is the smart DIYer's secret weapon for accurate hole placement on smooth, hard-to-drill surfaces. Whether you're mounting towel racks, kitchen hardware, shower fixtures, or shelf brackets, this compact metal guide keeps your drill bit exactly where you need it — no slipping, no guesswork.

Made in Mainland China.

Key Features

• Precision Drill Entry: The guide channel directs your drill bit accurately on ceramic tiles, glazed wall panels, and glass surfaces — so every hole starts exactly where you planned.
• Stable Silicone Suction Base: The integrated silicone suction cup locks onto smooth, flat surfaces to minimize movement during setup, giving you steady control while you align your drilling point.
• Durable Metal Construction: Built from steel (iron body) for lasting durability. The raised handle provides a firm grip and easy press-release action — ideal for repeat positioning across multiple install tasks.

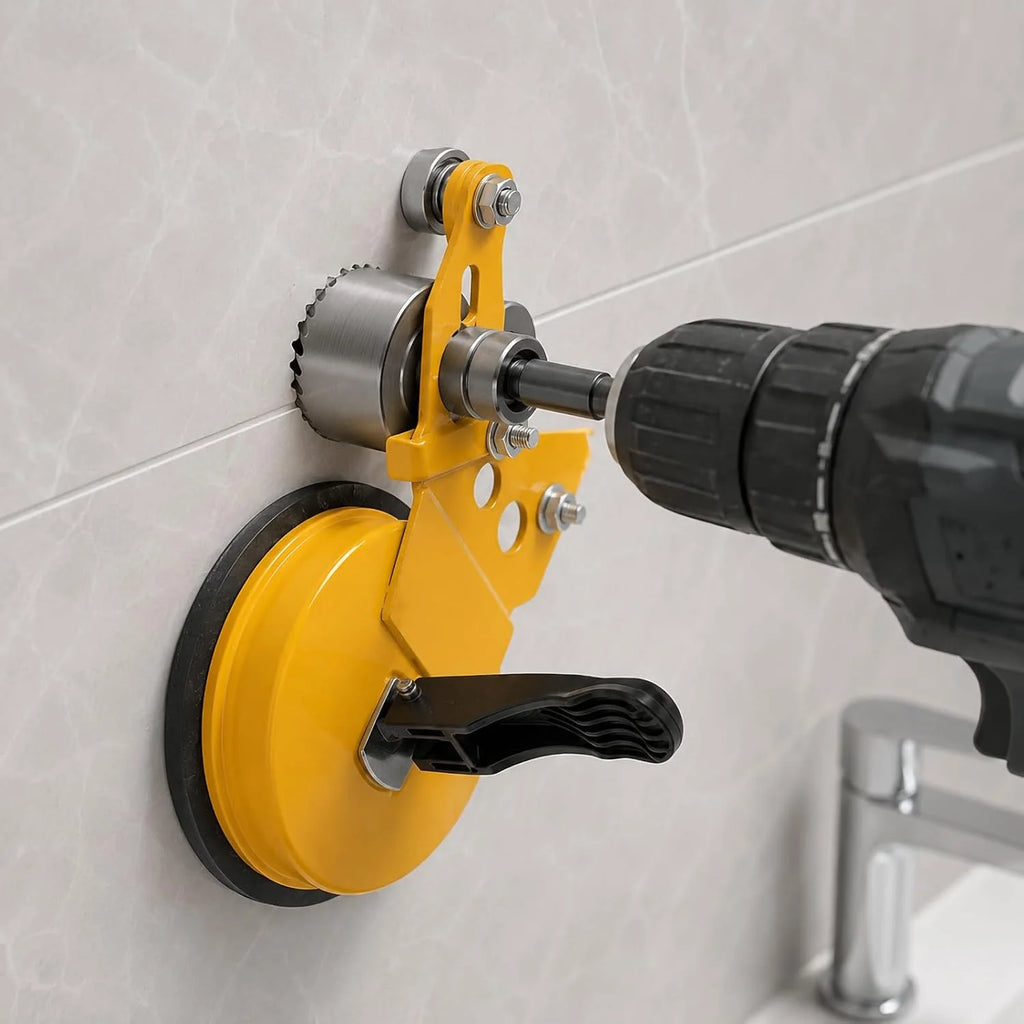

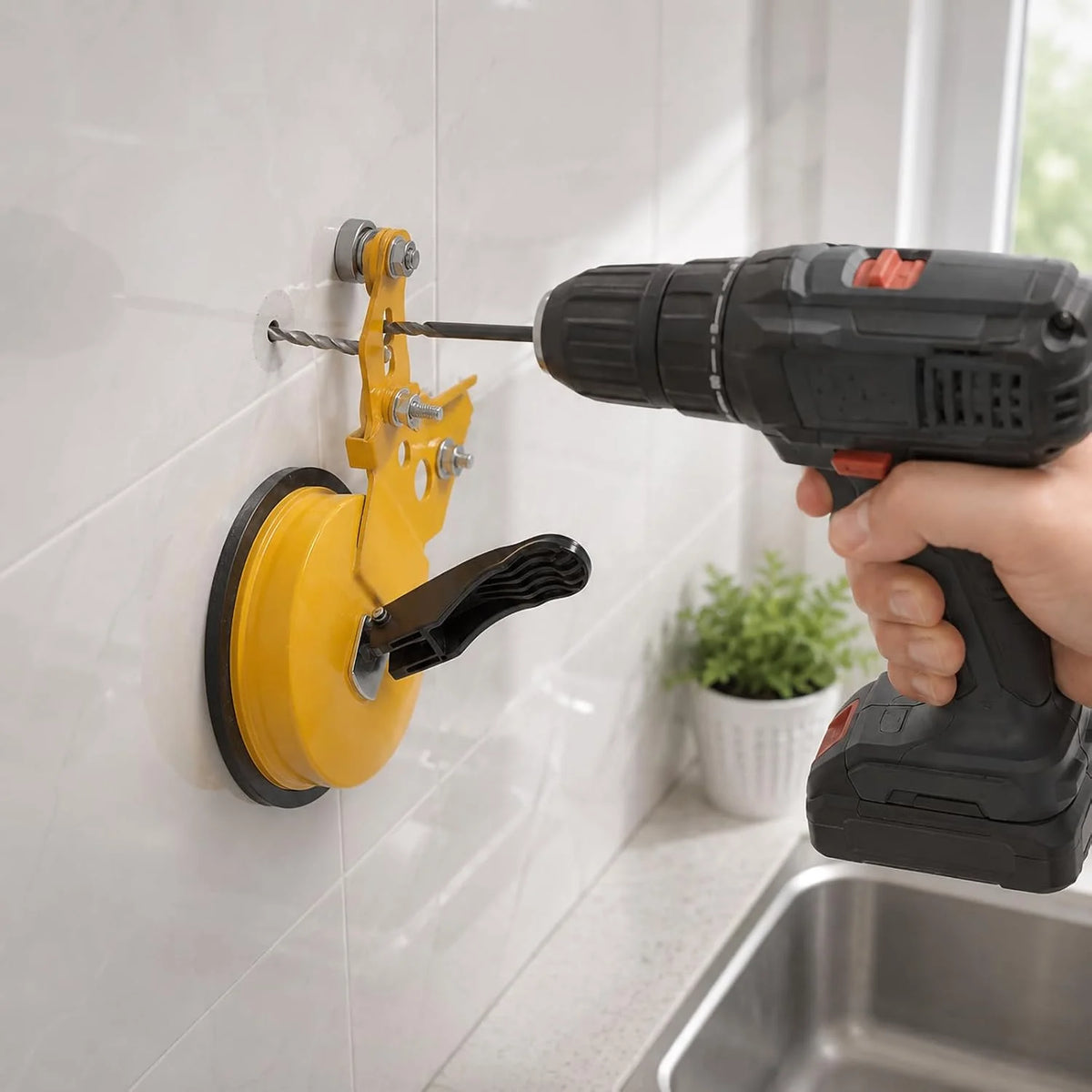

• Versatile Surface Compatibility: Designed for glass, ceramic tile, and glazed panels. Perfect for bathroom fixtures, kitchen hardware, towel bars, shelf installation, and general home repair projects.
• Compact & Focused Design: No oversized components — just an efficient, no-fuss locator with suction base that fits neatly in your toolbox and is ready when you need it.

Specifications

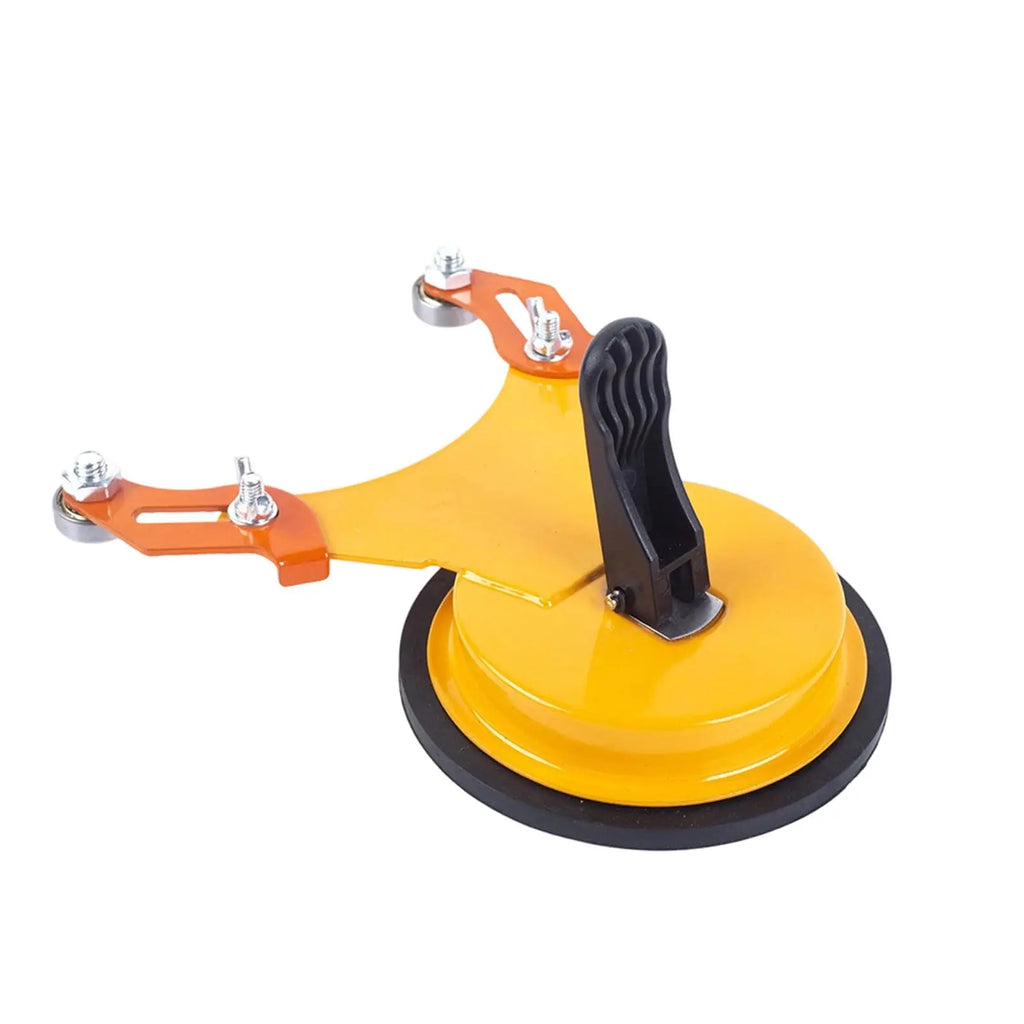

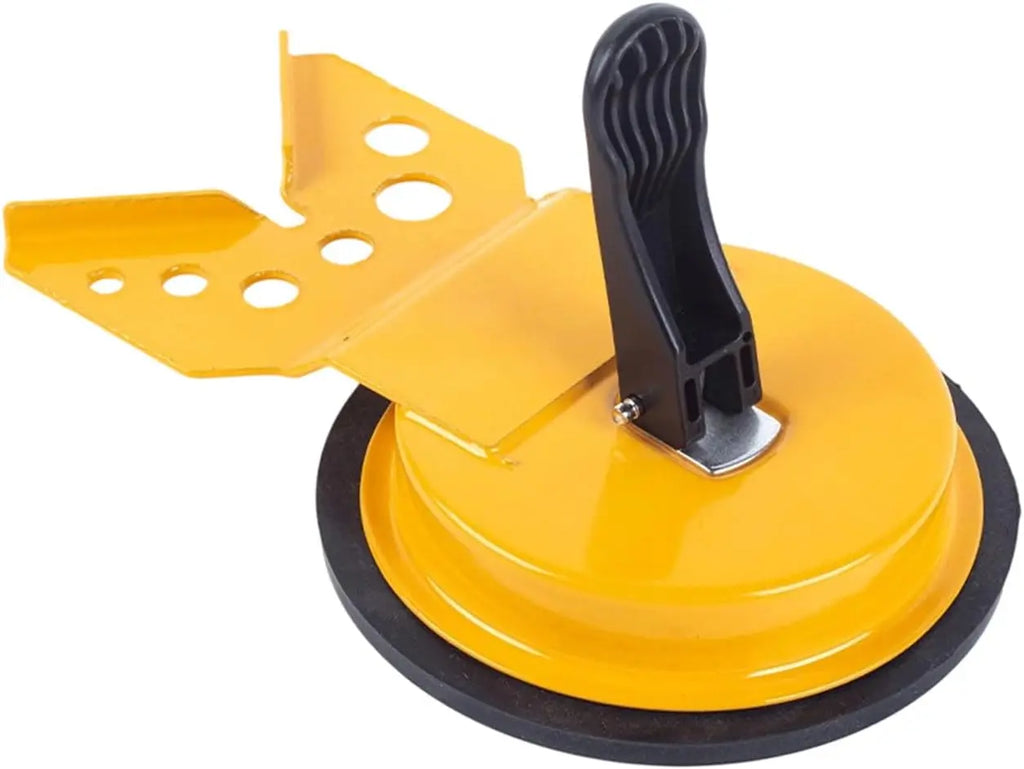

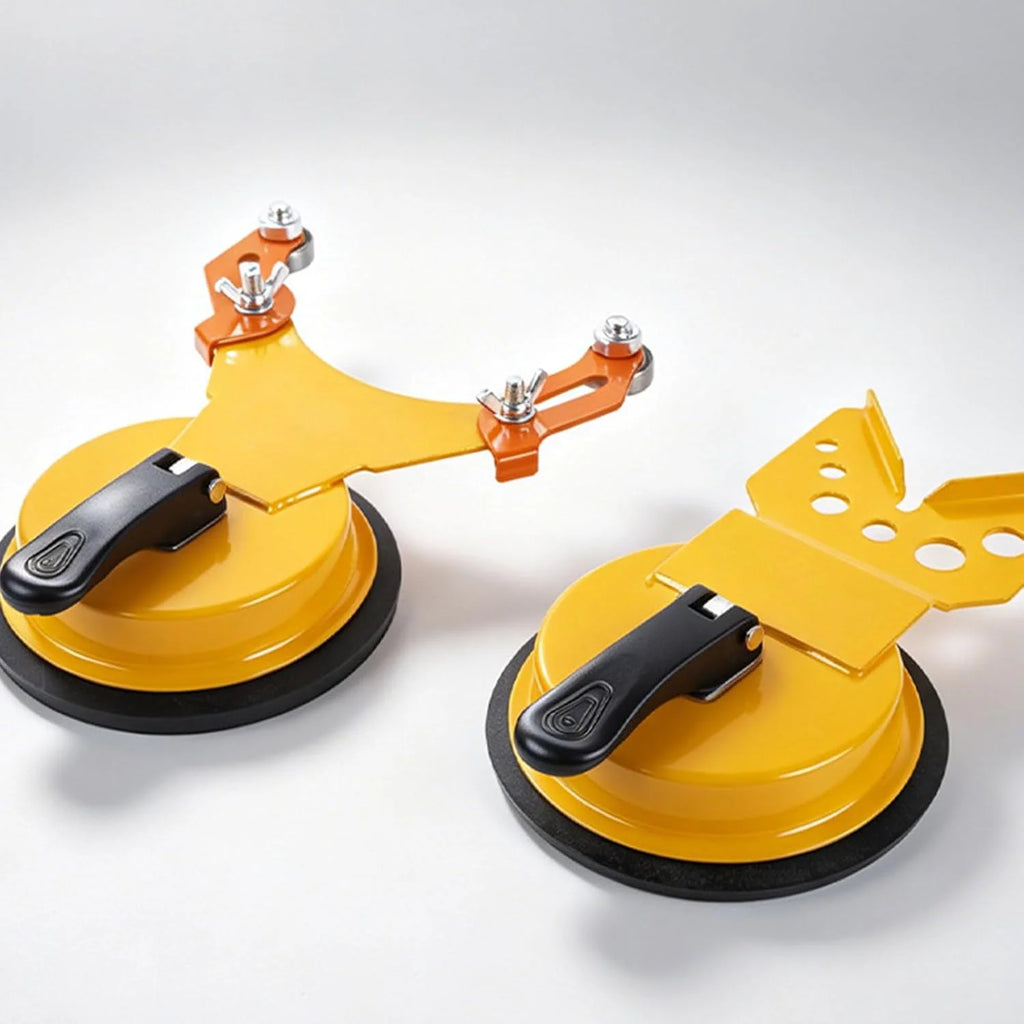

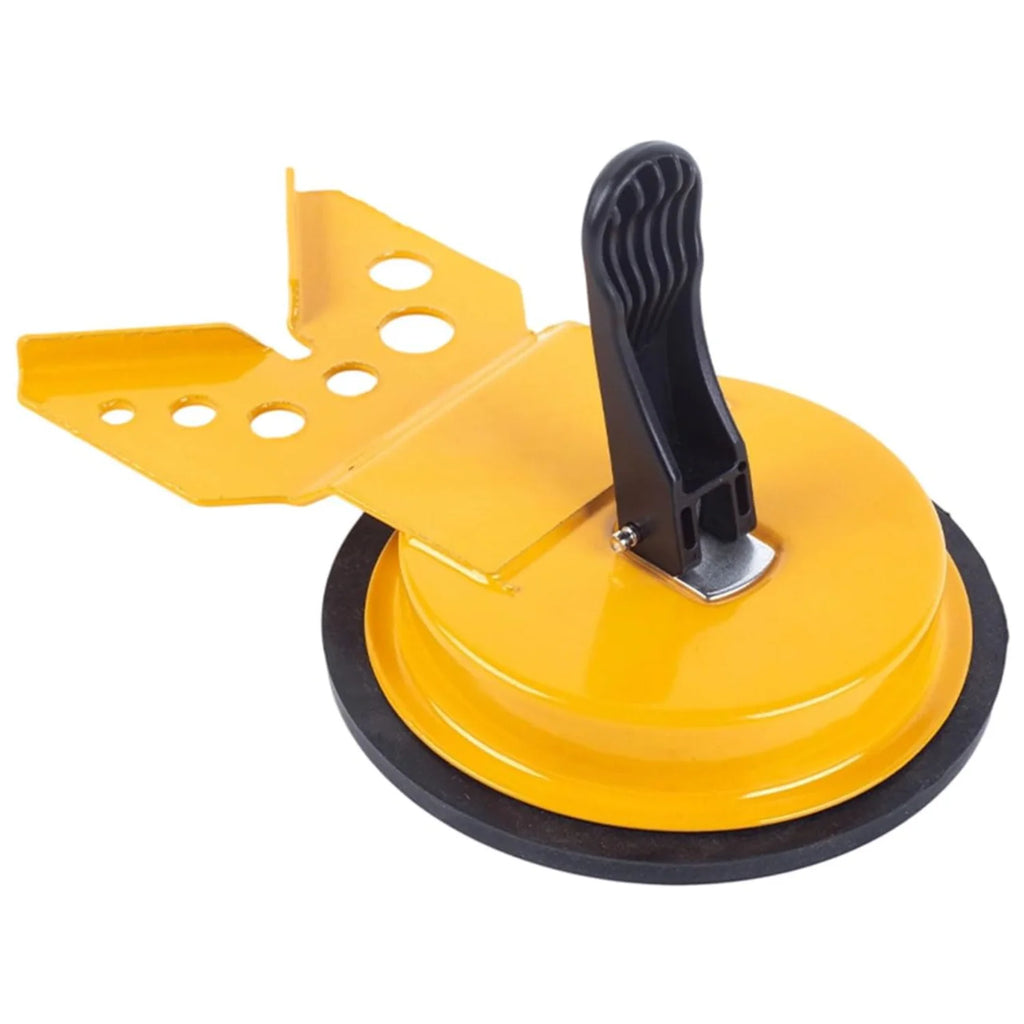

• Optional Types: Drilling Locator / Adjustable Drilling Locator
• Materials: Steel (Iron) body + Silicone Suction Cup

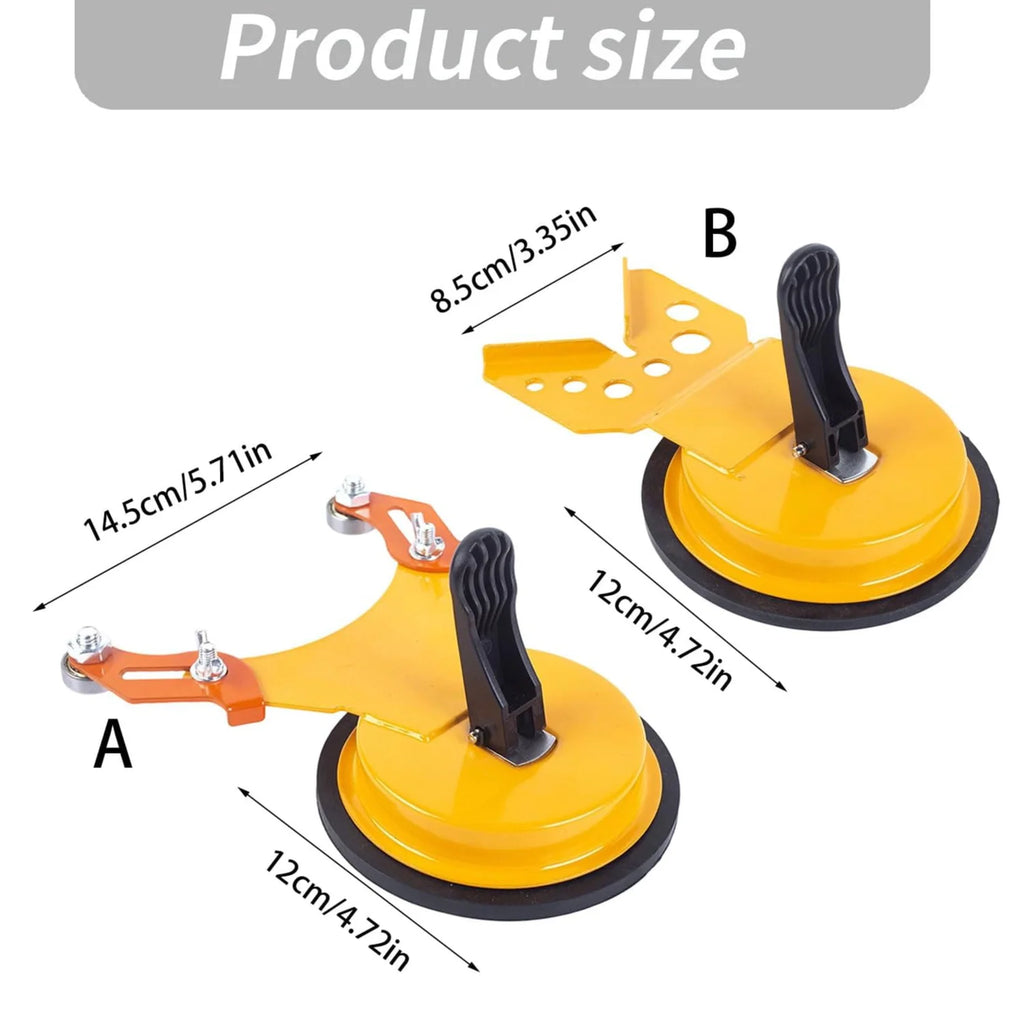

• Size: Approx. 12 × 14.5 cm (4.72 × 5.71 in)
• Quantity: 1 Piece

Package Includes

• 1 × Drill Alignment Guide with Suction Base

Notes

• Please allow 1–2 cm variance due to manual measurement.
• Colors may vary slightly from images depending on monitor settings.

You Might Also Like

Looking for more tools and accessories for your projects? Check out these items from our store:

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What surfaces is the suction base drill guide compatible with?

A: This drill alignment fixture is designed for smooth, non-porous surfaces including glass, ceramic tile, and glazed wall panels. The silicone suction cup adheres firmly to flat, smooth surfaces, making it ideal for bathroom and kitchen installations such as shower fixtures, towel racks, shelf mounts, and kitchen hardware.

Q: Will this drill guide work with standard drill bits?

A: Yes. The metal guide channel is sized to direct standard drill bits commonly used for glass and tile work. For best results, use appropriate diamond-tipped or carbide-tipped drill bits suited to the specific surface material (glass, ceramic, or glazed tile).

Q: Is the suction base strong enough to hold during drilling?

A: The silicone suction cup is engineered to maintain a secure grip on clean, smooth, flat surfaces throughout the alignment and initial drilling process, significantly reducing lateral movement. For optimal suction, ensure the surface is clean and dry before attaching the fixture.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
