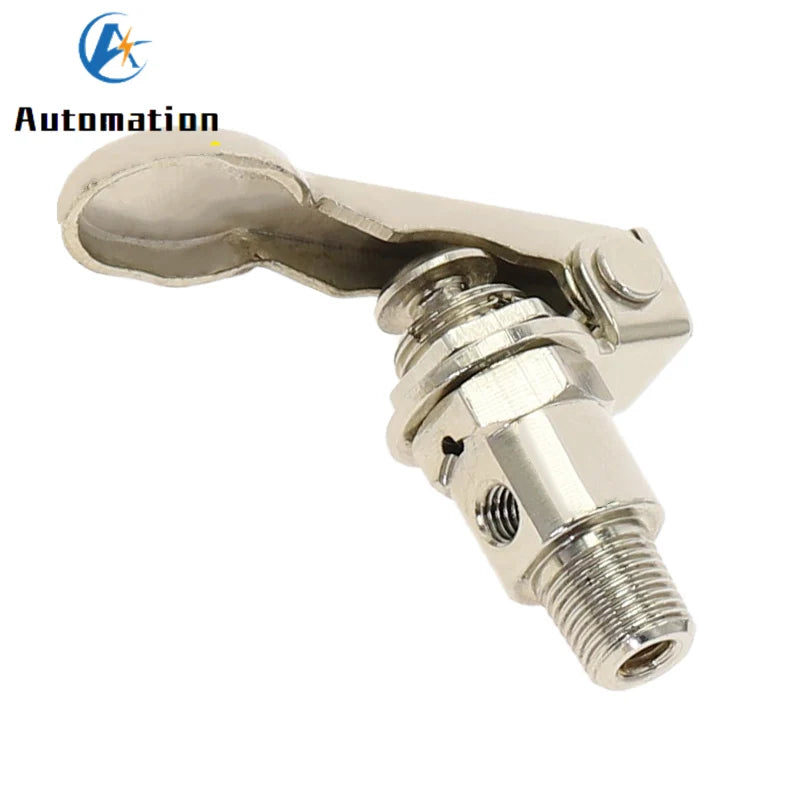

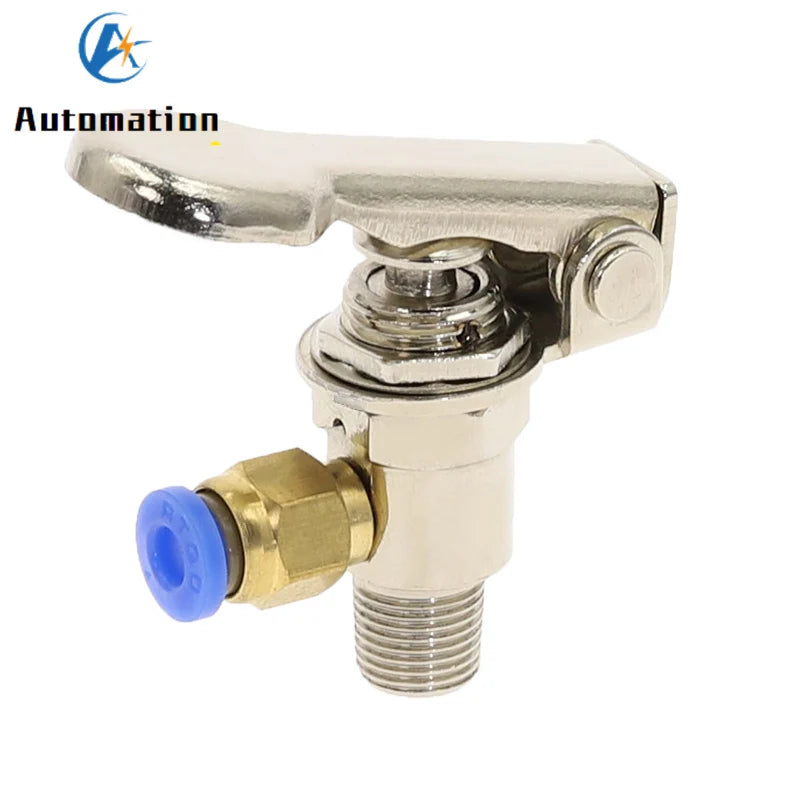

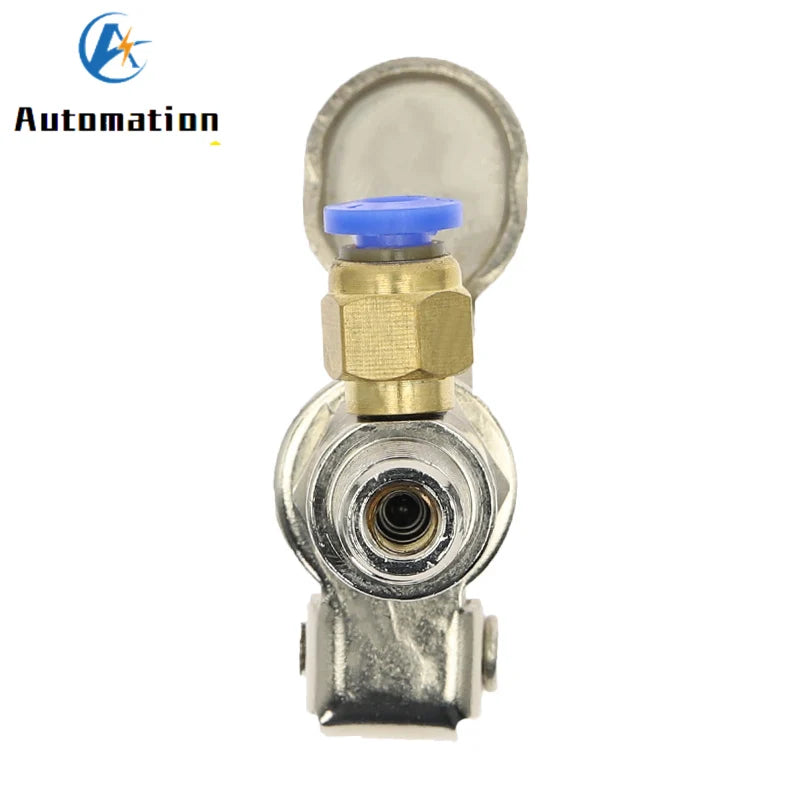

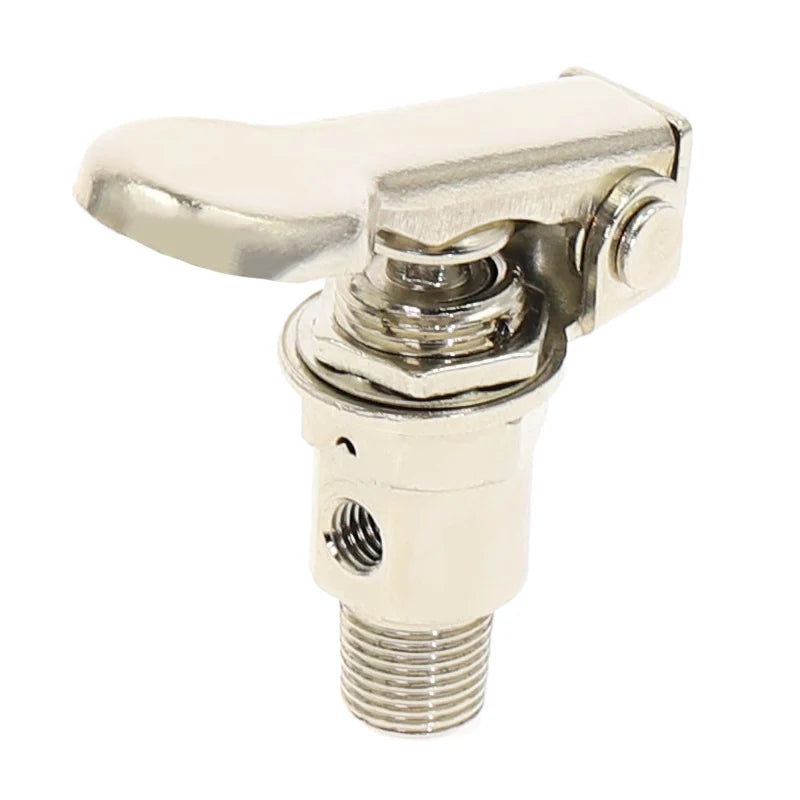

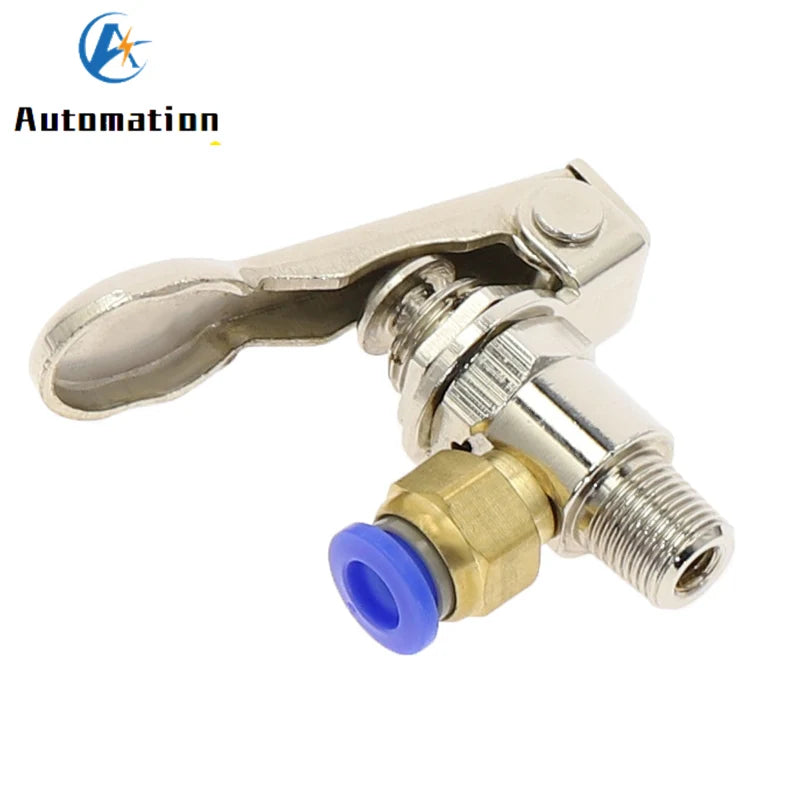

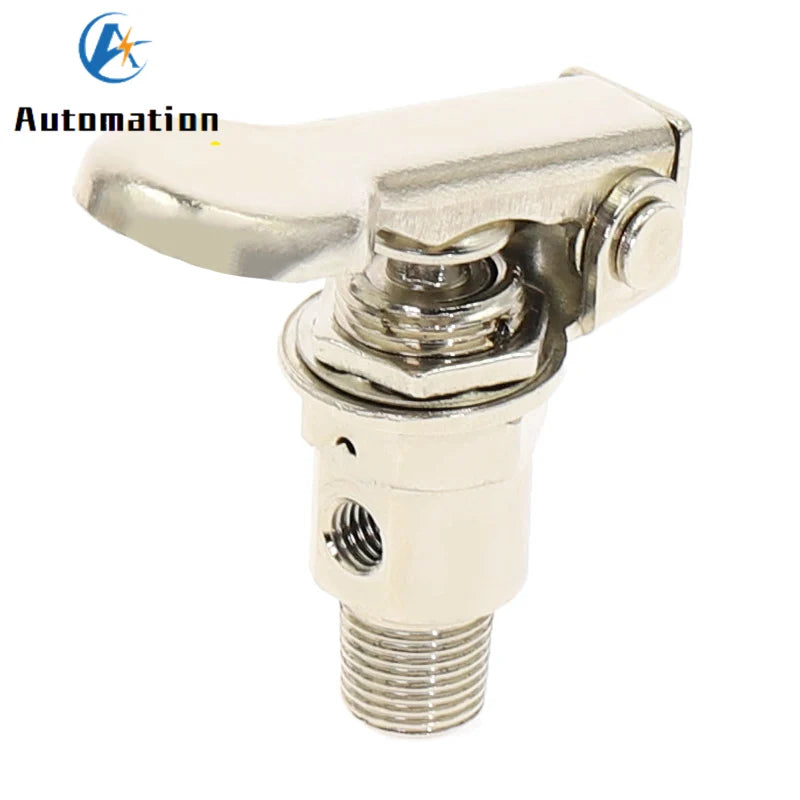

TAC-3P Pneumatic Mechanical Valve 2-Way 3-Port M5 1/8" w/ Fittings

TAC-3P Pneumatic Mechanical Valve – 2-Position 3-Way Lever Button Switch

Take precise control of your pneumatic systems with the TAC-3P Air Pneumatic Mechanical Valve. This compact and reliable 2-position, 3-way exhaust valve features a lever-style button actuator for manual air flow control. Equipped with both M5 Female and 1/8" Male thread ports — plus PC push-in fittings included — it's ready to integrate into your existing air circuit with minimal setup.

Whether you're building automated machinery, pneumatic tooling rigs, or air-powered workshop equipment, this valve delivers consistent, dependable performance in a durable compact form factor. Made in Mainland China.

Key Features

• Model: TAC2-3P+34T
• Configuration: 2-Position, 3-Way (exhaust type)
• Actuation: Lever button switch (manual mechanical)

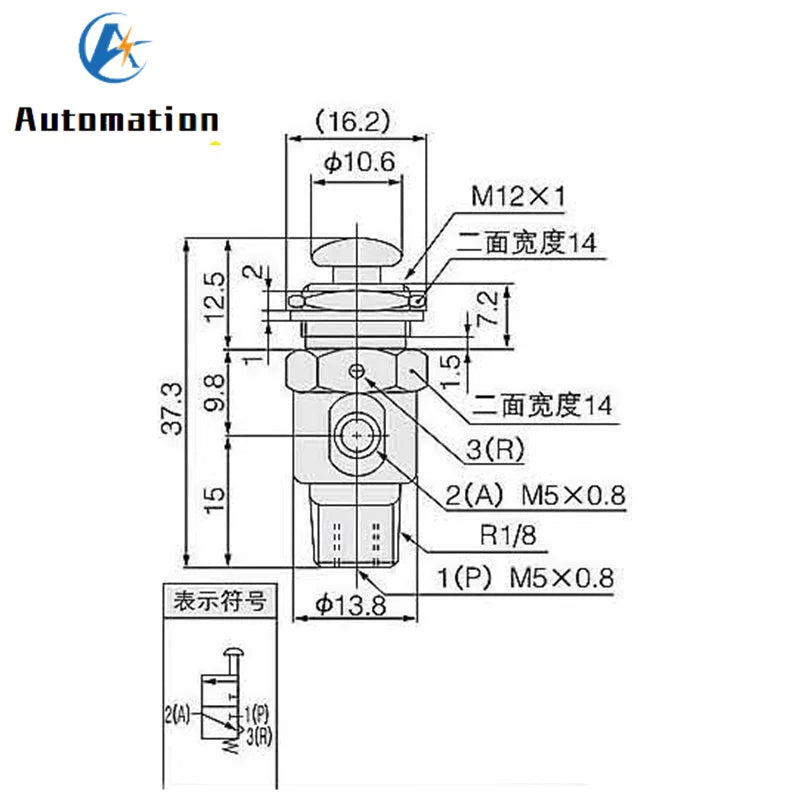

• Inlet Thread (Female): M5 x 0.8 (5mm)
• Inlet Thread (Male): 1/8" = 9.5mm
• Outlet Threads: M5 x 0.8

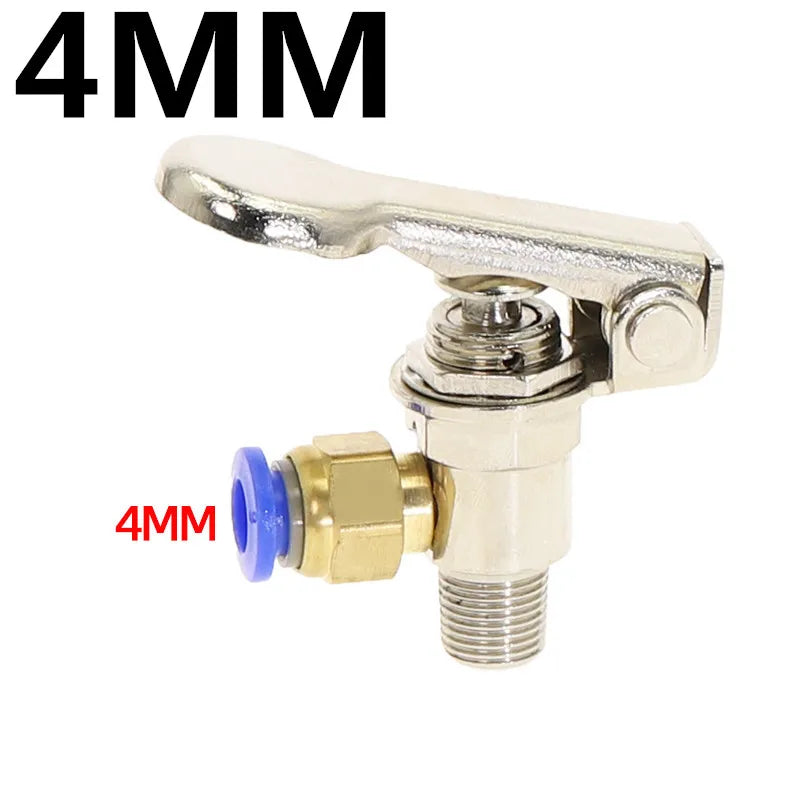

• Accessories Included: PC push-in fittings
• Package Contents: 1 × Pneumatic Valve + 1 × Fittings set

What's in the Box?

• 1 × TAC-3P Pneumatic Mechanical Valve (Model: TAC2-3P+34T)
• 1 × PC Push-In Fittings

Applications

• Pneumatic automation and control systems
• Air-powered workshop machinery and tools
• Industrial assembly equipment
• DIY pneumatic circuits and rigs
• Robotics and motion control projects

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What does "2-Position 3-Way" mean on this pneumatic valve?

A: A 2-position, 3-way pneumatic valve has three ports (inlet, outlet, and exhaust) and switches between two flow states. In one position, air flows from the inlet to the outlet; in the other position, the outlet is connected to the exhaust port to release air pressure. This TAC-3P valve uses a manual lever button to toggle between these two positions.

Q: What thread sizes does the TAC-3P pneumatic valve use?

A: The TAC-3P valve features an M5 x 0.8 female thread inlet (5mm), a 1/8" male thread inlet (9.5mm), and M5 x 0.8 outlet threads. PC push-in fittings are included in the package for quick and easy connection to standard pneumatic tubing.

Q: Is the TAC-3P valve suitable for DIY pneumatic projects?

A: Yes! The TAC-3P mechanical lever valve is an excellent choice for DIY pneumatic circuits, workshop machinery, automation rigs, and robotics projects. Its simple manual lever actuation makes it easy to operate without any electrical solenoid controls, and the included PC fittings make installation straightforward.

Q: Does this valve require any special tools for installation?

A: No special tools are required. The valve connects via standard threaded fittings (M5 and 1/8" ports) and includes PC push-in fittings for tubing. Standard wrenches and pneumatic tubing are all you need to complete the installation.
