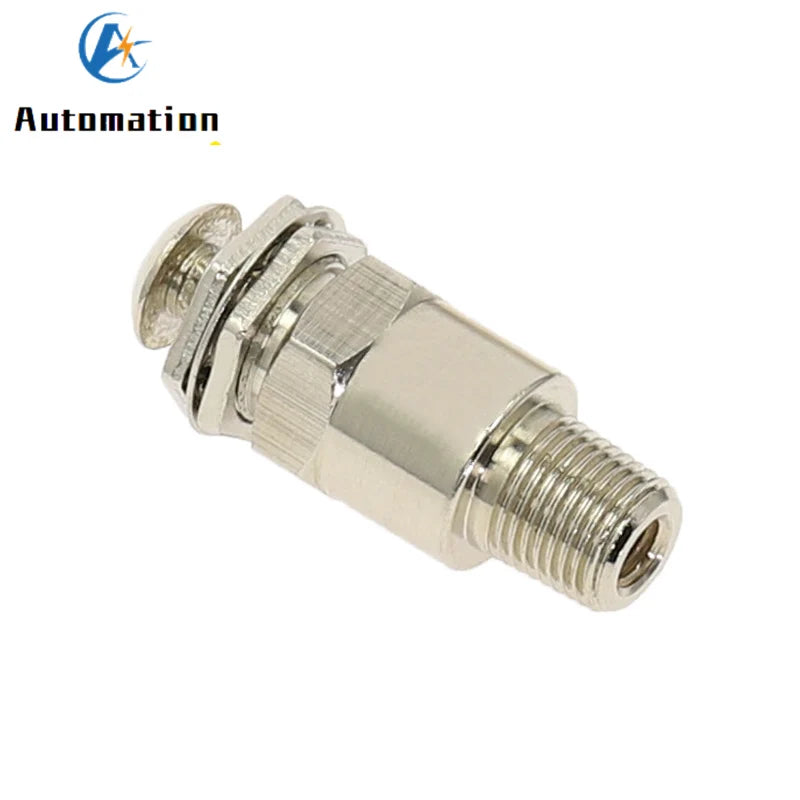

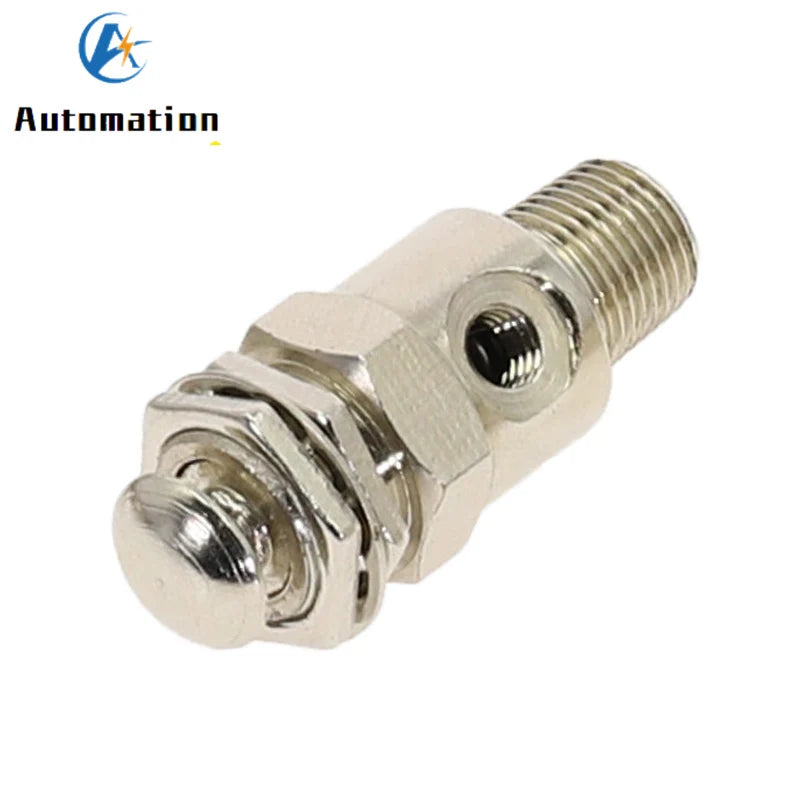

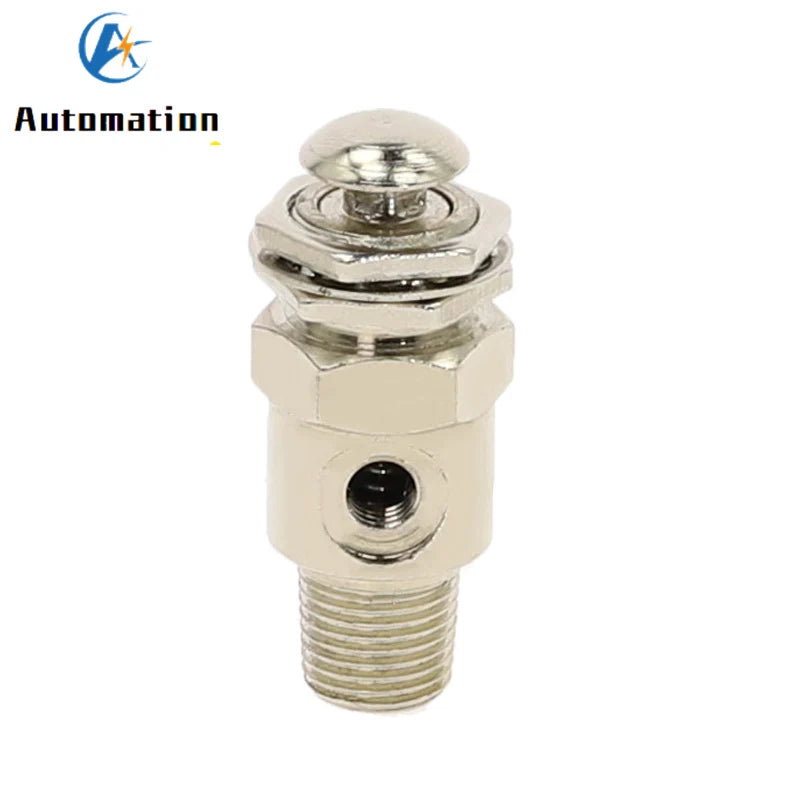

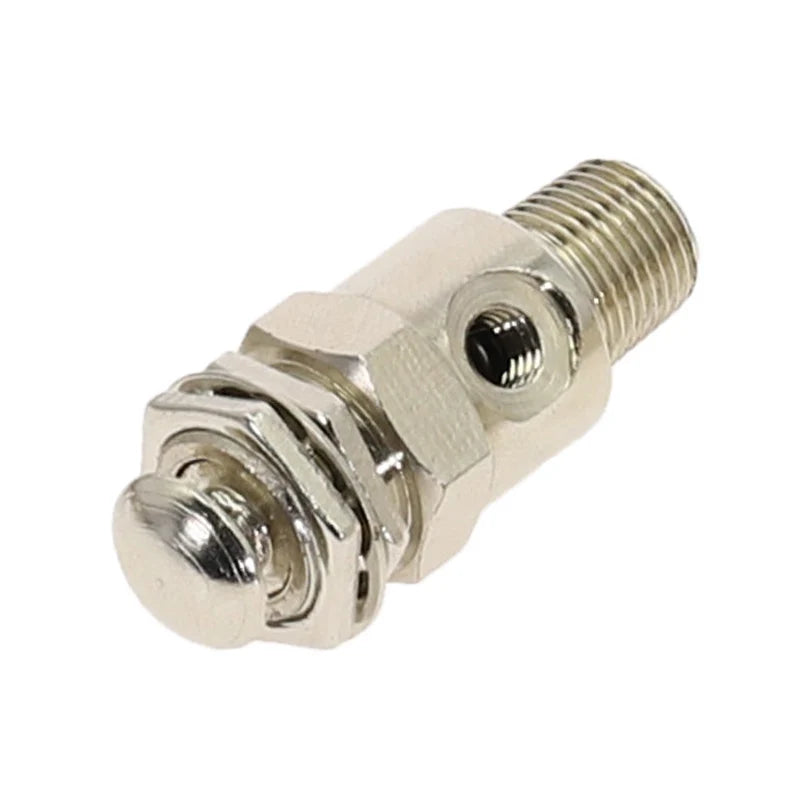

TAC2-2P Pneumatic Exhaust Valve 2/2 Way M5 & 1/8" Push Button

TAC2-2P Air Pneumatic Mechanical Exhaust Valve – 2 Position 2 Way

Take precise control of your pneumatic systems with the TAC2-2P Air Pneumatic Mechanical Exhaust Valve. Designed for industrial and workshop applications, this compact 2-position, 2-way valve features a self-resetting push button switch for fast, reliable actuation. Whether you're building automated machinery, managing air circuits, or upgrading existing pneumatic setups, this valve delivers consistent, dependable performance every time.

Key Features

• Model: TAC2-2P — 2 Position, 2 Way Pneumatic Exhaust Valve
• Self-Reset Push Button: Spring-loaded button automatically returns to the default position when released, ensuring safe and repeatable operation

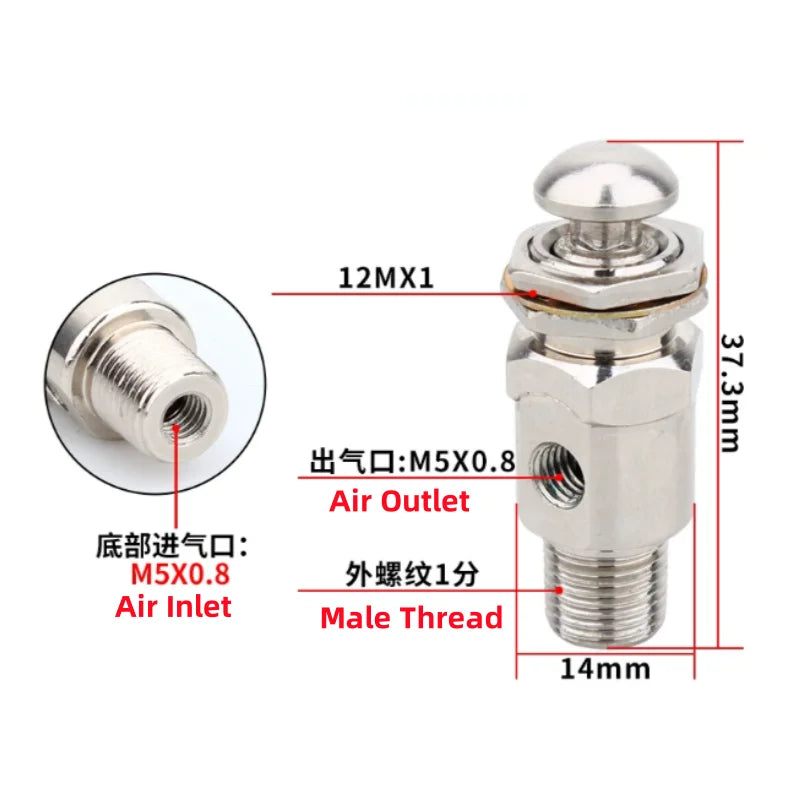

• Dual Thread Compatibility: Inlet accepts both M5 Female (M5 × 0.8) and 1/8" Male (≈9.5mm) threads; outlet is M5 × 0.8 — versatile fit for a wide range of pneumatic fittings

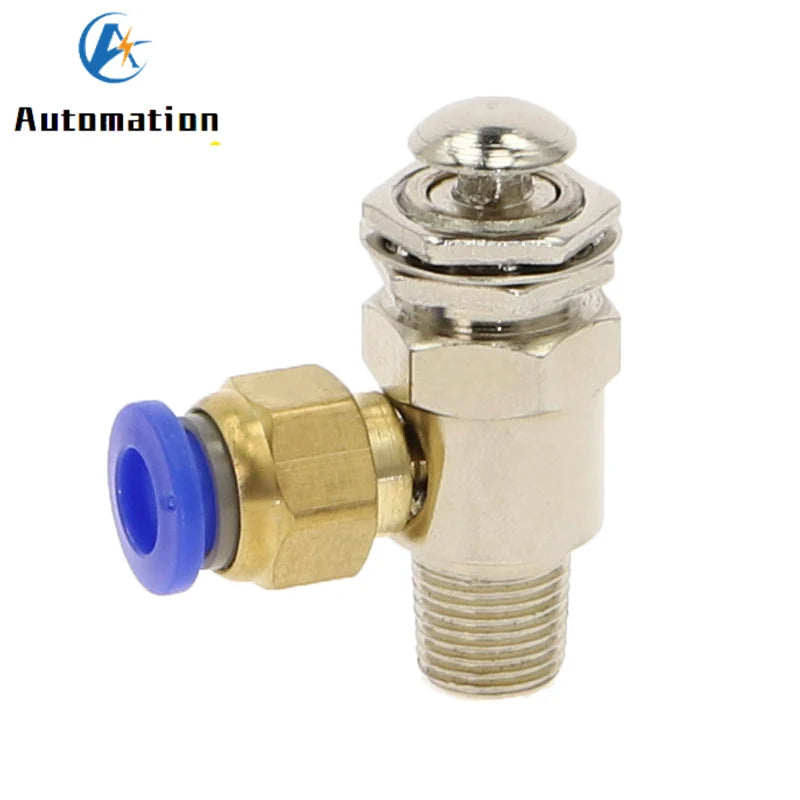

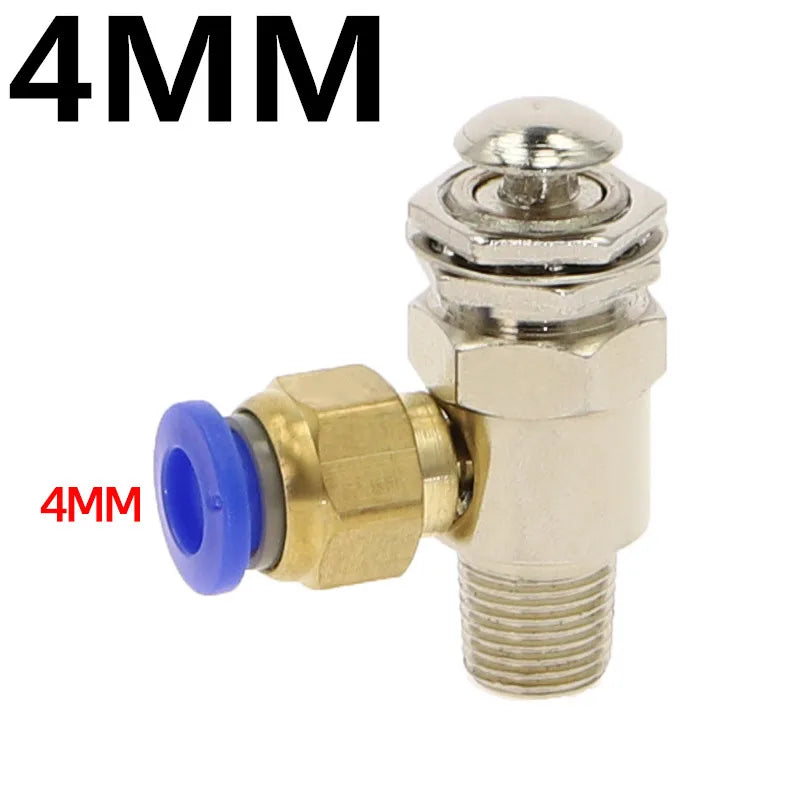

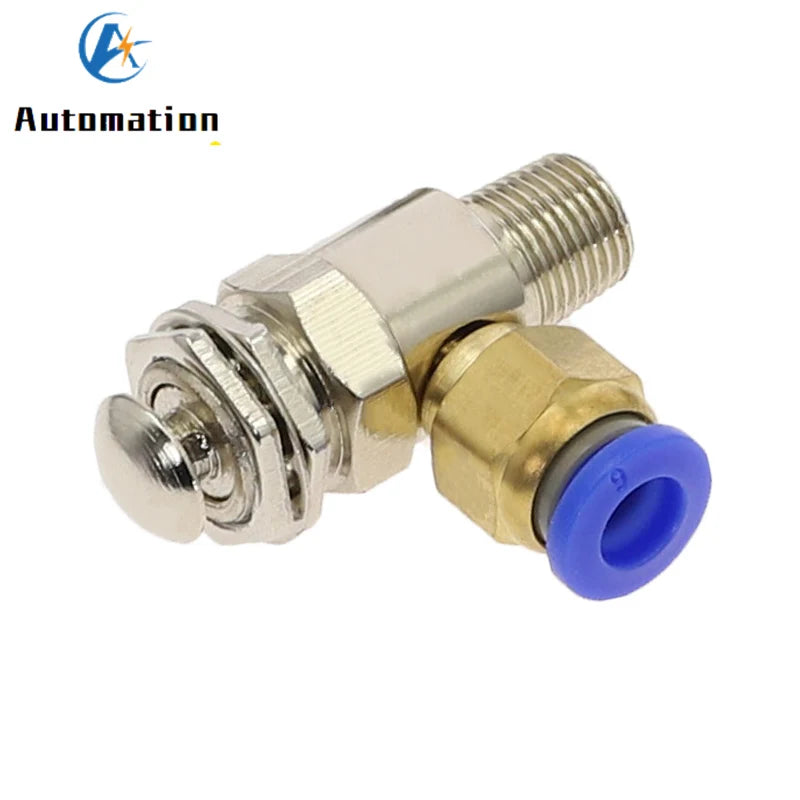

• Compatible with PC Fittings: Works seamlessly with standard push-to-connect (PC) pneumatic fittings for easy integration
• Compact & Durable Design: Small footprint makes it ideal for tight spaces in machinery, automation panels, and pneumatic circuits
• Mechanical Actuation: Manual push-button operation provides direct, hands-on control without the need for electrical input

Specifications

What's in the Box?

• 1 × TAC2-2P Pneumatic Mechanical Exhaust Valve

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories Anti-Loosening

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What does "2 Position 2 Way" mean for this pneumatic valve?

A: A 2 Position 2 Way (2/2) valve has two ports (inlet and outlet) and two switching positions — open or closed. When the push button is pressed, air flows from the inlet to the outlet; when released, the self-reset spring returns the valve to its default closed (exhaust) position, stopping airflow automatically.

Q: What thread sizes does the TAC2-2P valve support?

A: The TAC2-2P features an inlet that accommodates both an M5 Female thread (M5 × 0.8 pitch) and a 1/8" Male thread (approximately 9.5mm). The outlet uses an M5 × 0.8 thread. This dual-thread design makes it compatible with a broad range of pneumatic components and PC fittings.

Q: Is this valve suitable for automated or continuous-use applications?

A: The TAC2-2P is a mechanically actuated push-button valve designed for manual or semi-automated pneumatic circuits. It is well-suited for machinery, assembly equipment, and air circuits where direct operator control is required. For fully automated systems requiring electrical actuation, a solenoid valve would be more appropriate.

Q: Does the self-reset button require any tools to operate?

A: No tools are required. The self-reset push button is spring-loaded and designed for finger-tip operation. Simply press to activate airflow and release to return to the default closed position automatically.
