TFS-201 SPDT Foot Pedal Switch Momentary 15A 2M Wire
TFS-201 SPDT Foot Pedal Switch Momentary 15A 2M Wire
Details

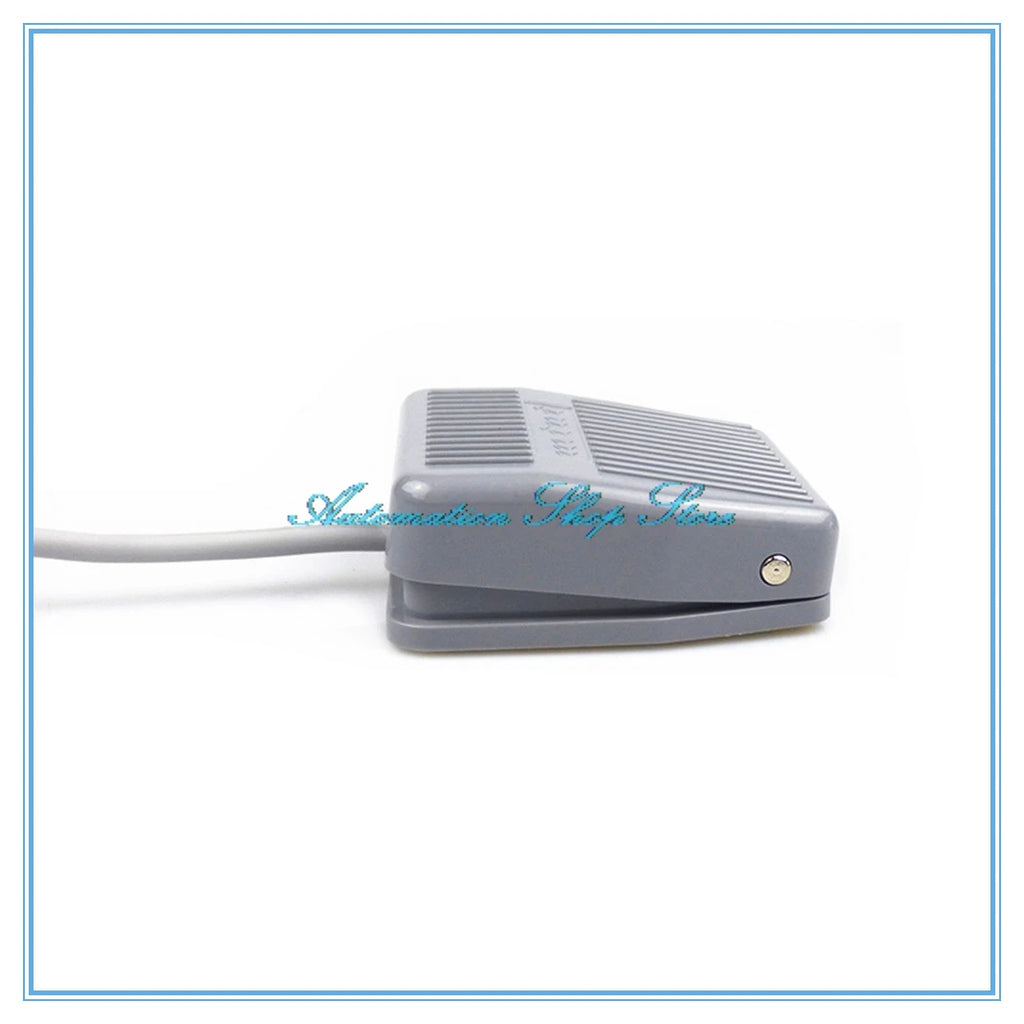

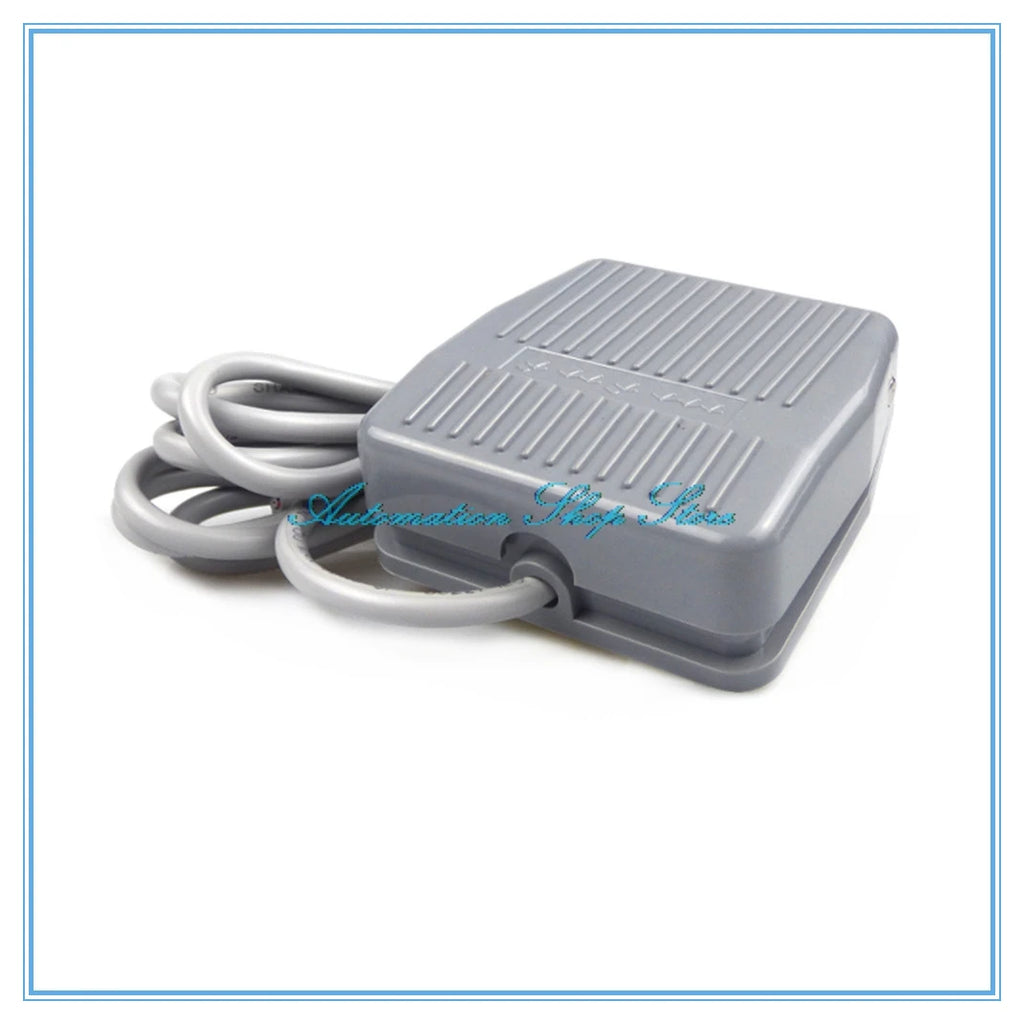

TFS-201 SPDT Foot Pedal Switch – Hands-Free Momentary Control
Take control of your equipment without ever lifting a hand. The TFS-201 Foot Pedal Switch lets you trigger power on/off with a simple press of your foot, keeping your hands completely free for the task at hand. Built for industrial and workshop environments, this momentary-action SPDT switch delivers reliable, responsive performance with every step.
Key Features
- Hands-Free Operation: Foot-operated design frees your hands for precision work while maintaining full control of connected equipment.
- Momentary Action: SPDT (1NO / 1NC) contact type activates only while pressed — ideal for controlled, intermittent operation.
- High Current Rating: Rated at 250V / 15A (Ui: 380V, Ith: 15A) for compatibility with a wide range of industrial machines and power tools.
- Generous Cable Length: Comes with a 2-meter (approx. 6.6 ft) cable (5mm diameter) giving you flexibility to position the switch comfortably at your feet.
- Sturdy Construction: Made from durable metal with a compact gray housing (8.2 × 8 × 3.5 cm / 3.2" × 3.1" × 1.8"), built to withstand repeated use in demanding environments.
- CCC Certified: Meets CCC certification standards for quality and safety assurance.
Specifications
| Model | TFS-201 |
| Action Type | Momentary |

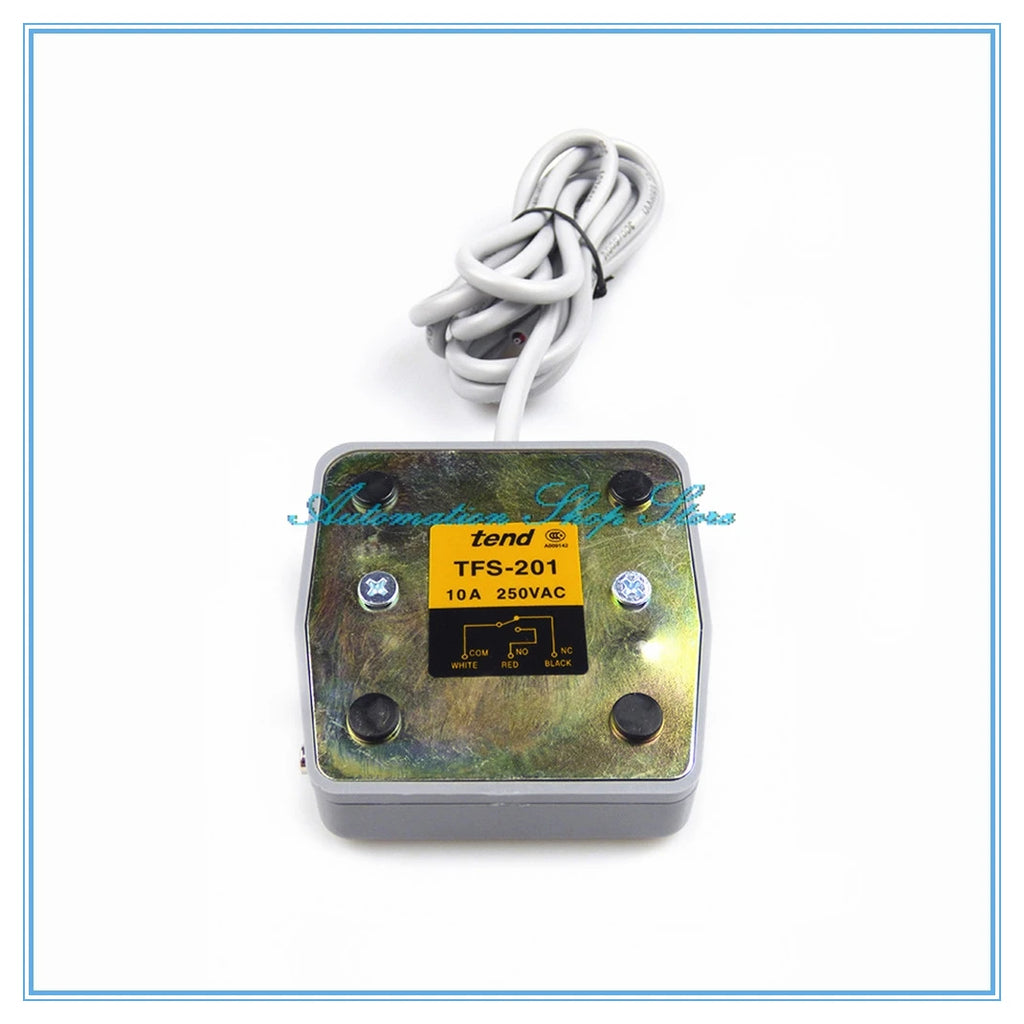

| Contact Type | SPDT (1NO 1NC) |
| Voltage (Ui) | 380V |
| Max Current (Ith) | 15A |
| Rating Current | 5–10A |
| Power Rating | 250V 15A |
| Cable Length | 2M (approx. 6.6 ft) |
| Cable Diameter | 5mm / 0.2" |
| Dimensions | 8.2 × 8 × 3.5 cm / 3.2" × 3.1" × 1.8" |
| Color | Gray |
| Material | Metal |
| Certification | CCC |
What's in the Box
- 1 × TFS-201 Foot Pedal Switch (with 2M wire attached)
Made in Mainland China.
You May Also Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does "momentary" action mean for this foot pedal switch?
A: Momentary action means the switch is only active (circuit closed) while you are pressing the pedal with your foot. As soon as you lift your foot, the switch returns to its default state. This makes the TFS-201 ideal for applications requiring short, controlled bursts of power rather than continuous operation.
Q: What equipment is the TFS-201 SPDT foot switch compatible with?
A: The TFS-201 is widely compatible with industrial machines, power tools, soldering stations, sewing machines, welding equipment, and other devices that accept an external momentary SPDT switch rated up to 250V / 15A. Always verify your equipment's input requirements before connecting.
Q: How long is the cable, and can I extend it?
A: The TFS-201 comes with a 2-meter (approximately 6.6 ft) pre-attached cable with a 5mm diameter. If you need extra reach, you can use an appropriate wire connector or extension rated for the switch's current and voltage specifications.
