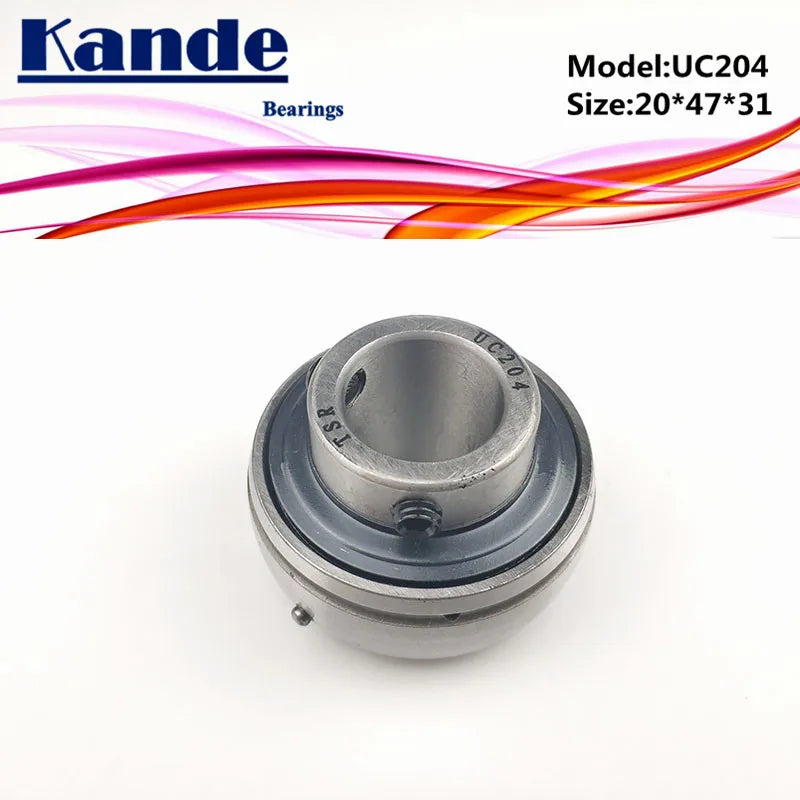

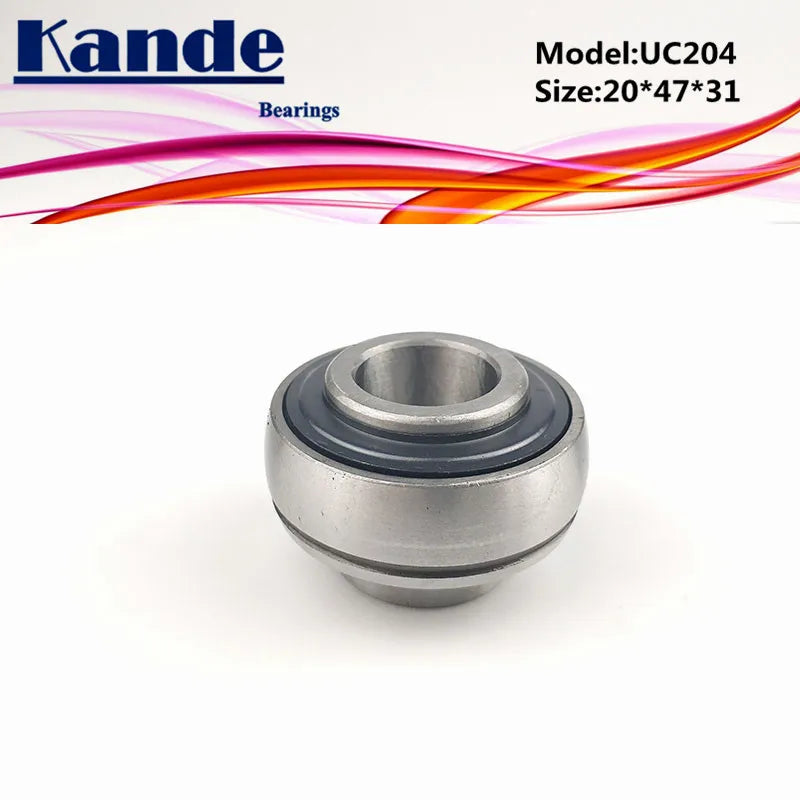

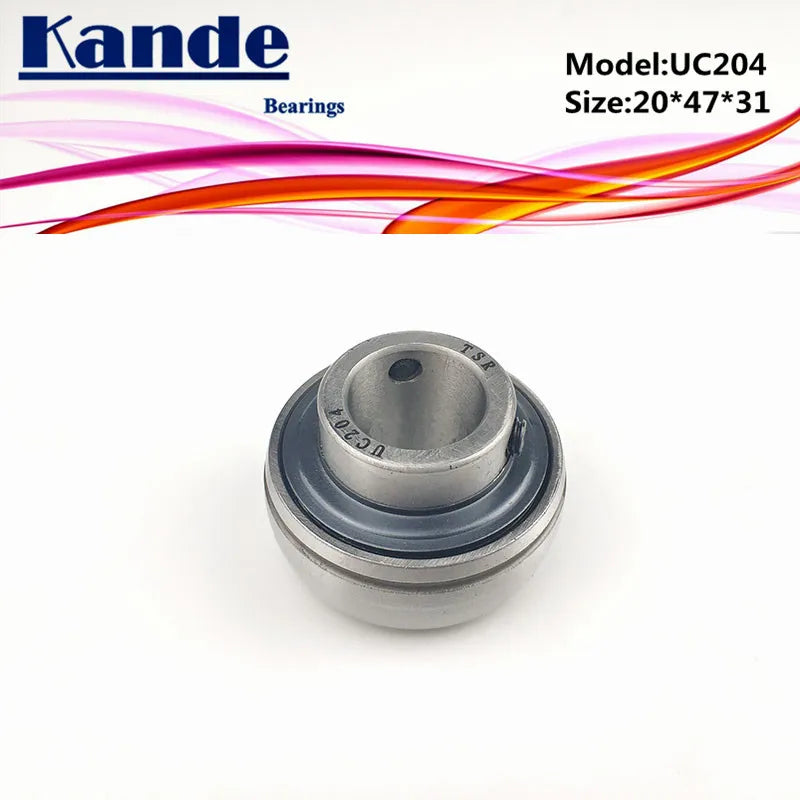

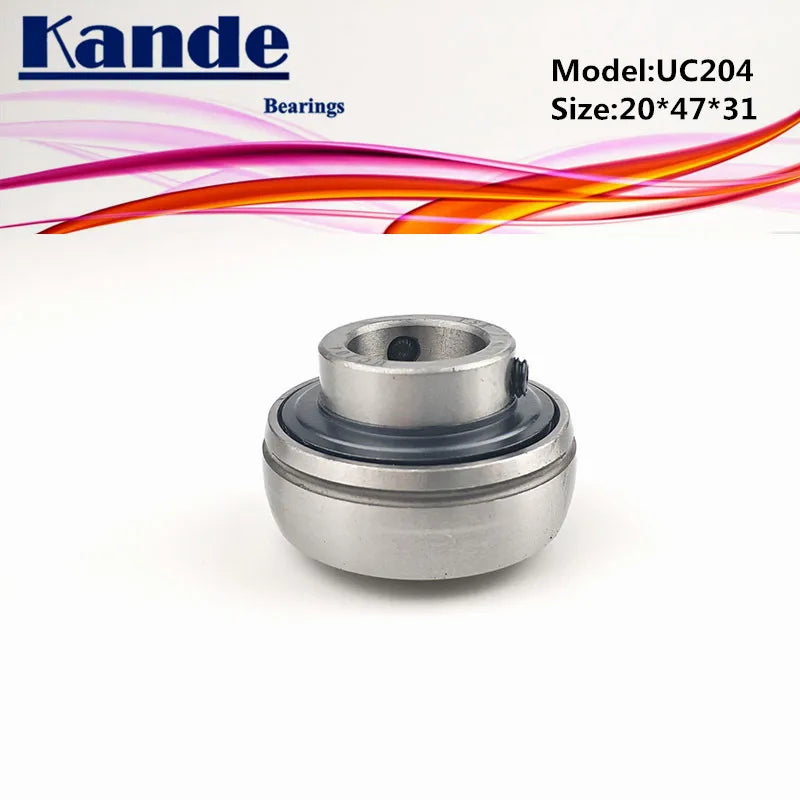

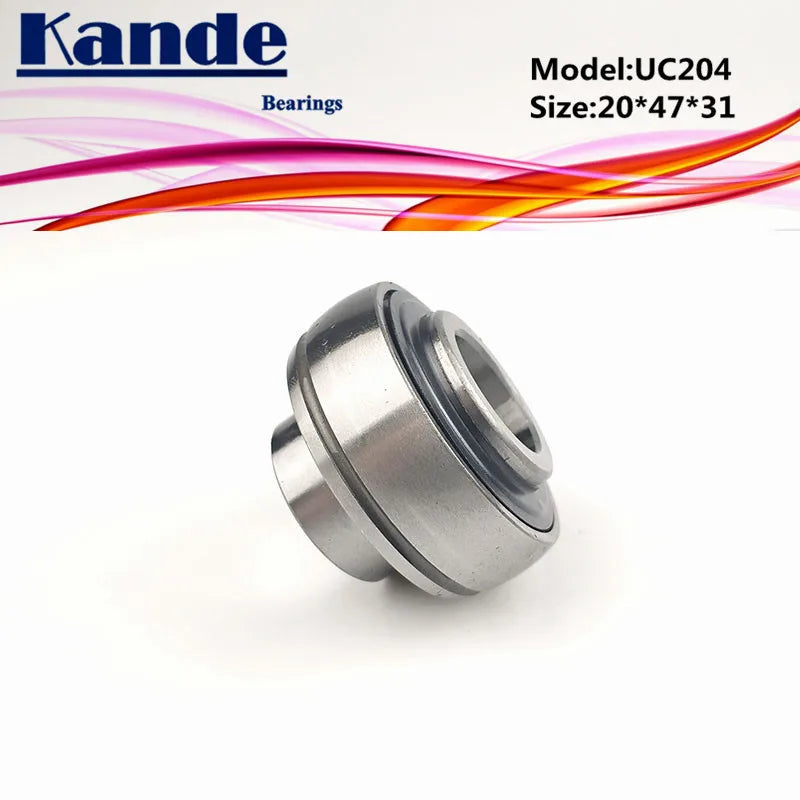

UC204 / UC204-12 Pillow Block Spherical Bearing 20×47×31mm

Kande Bearings UC204 / UC204-12 Pillow Block Spherical Bearing

Upgrade your machinery with the Kande Bearings UC204 / UC204-12 Pillow Block Bearing — a precision-engineered spherical insert bearing designed for reliable shaft support in a wide range of industrial and mechanical applications. Whether you need a standard 20mm bore (UC204) or a 3/4" bore (UC204-12), this bearing delivers smooth, dependable performance in demanding environments.

Key Specifications

• Brand: Kande Bearings
• Type: Spherical Insert Bearing (Pillow Block)
• Models Available: UC204 (20mm bore) / UC204-12 (3/4" bore)
• Dimensions: 20 × 47 × 31 mm
• Material: High-grade bearing steel
• Inner Diameter (UC204): 20mm
• Inner Diameter (UC204-12): 3/4 inch

Why Choose Kande Bearings UC204?

• ✅ Precision Engineered: Manufactured from high-grade bearing steel for long service life and consistent performance
• ✅ Spherical Design: Self-aligning capability compensates for shaft misalignment, reducing wear and extending bearing life
• ✅ Versatile Fit: Available in metric (20mm) and imperial (3/4") bore sizes — choose the right fit for your application
• ✅ Wide Application: Ideal for conveyors, agricultural equipment, fans, pumps, and general industrial machinery
• ✅ Easy Installation: Compact pillow block design enables quick and straightforward mounting

Applications

The UC204 / UC204-12 pillow block bearing is widely used in:

• Conveyor systems and belt drives
• Agricultural machinery (tillers, seeders, harvesters)
• Industrial fans and pumps
• Woodworking and metalworking equipment
• General mechanical assemblies requiring radial and axial shaft support

Product Details

Please select the correct bore size (20mm metric or 3/4" imperial) before ordering to ensure a proper fit for your application. Refer to the dimension charts provided for full technical measurements.

Note: Product color may vary slightly due to different lighting conditions in photography.

Made in Mainland China.

Related Products You May Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Replacement Parts
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder Wheel

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between UC204 and UC204-12 pillow block bearings?

A: The UC204 has a metric inner bore diameter of 20mm, while the UC204-12 has an imperial inner bore diameter of 3/4 inch (approximately 19.05mm). Both share the same outer dimensions (47mm OD, 31mm width) and spherical insert design. Choose based on the shaft size used in your application.

Q: What material is the Kande Bearings UC204 made from?

A: The UC204 / UC204-12 bearing is manufactured from high-grade bearing steel, offering excellent hardness, durability, and resistance to wear under load — making it suitable for both light and moderate industrial applications.

Q: What types of machinery is the UC204 pillow block bearing compatible with?

A: The UC204 spherical insert pillow block bearing is compatible with a wide range of machinery including conveyor systems, agricultural equipment, industrial fans, pumps, woodworking machines, and general mechanical assemblies that require reliable radial shaft support.

Q: How do I install the UC204 pillow block bearing?

A: The UC204 features a standard pillow block housing design. Simply mount the housing to a flat surface using the bolt holes provided, insert the shaft through the bore, and secure with the set screws. The spherical insert allows for minor angular misalignment during installation for a precise, stable fit.
