Universal CV Joint Puller Tool – 9-Hole Propshaft Separator

Universal CV Joint Puller & Propshaft Separator Tool

The Universal CV Joint Assembly Puller is a must-have specialty tool for DIY mechanics and professional technicians alike. Designed to quickly and safely separate constant velocity (CV) joints from the driveshaft without causing damage to the joint, transmission, or surrounding components, this tool puts efficiency and safety first. Made in Mainland China.

Key Features

• 9-Hole Adjustment System: Includes 9 clamp holes for full adjustability, allowing the tool to fit a wide variety of CV joint lengths across most car makes and models equipped with constant velocity U-joints.

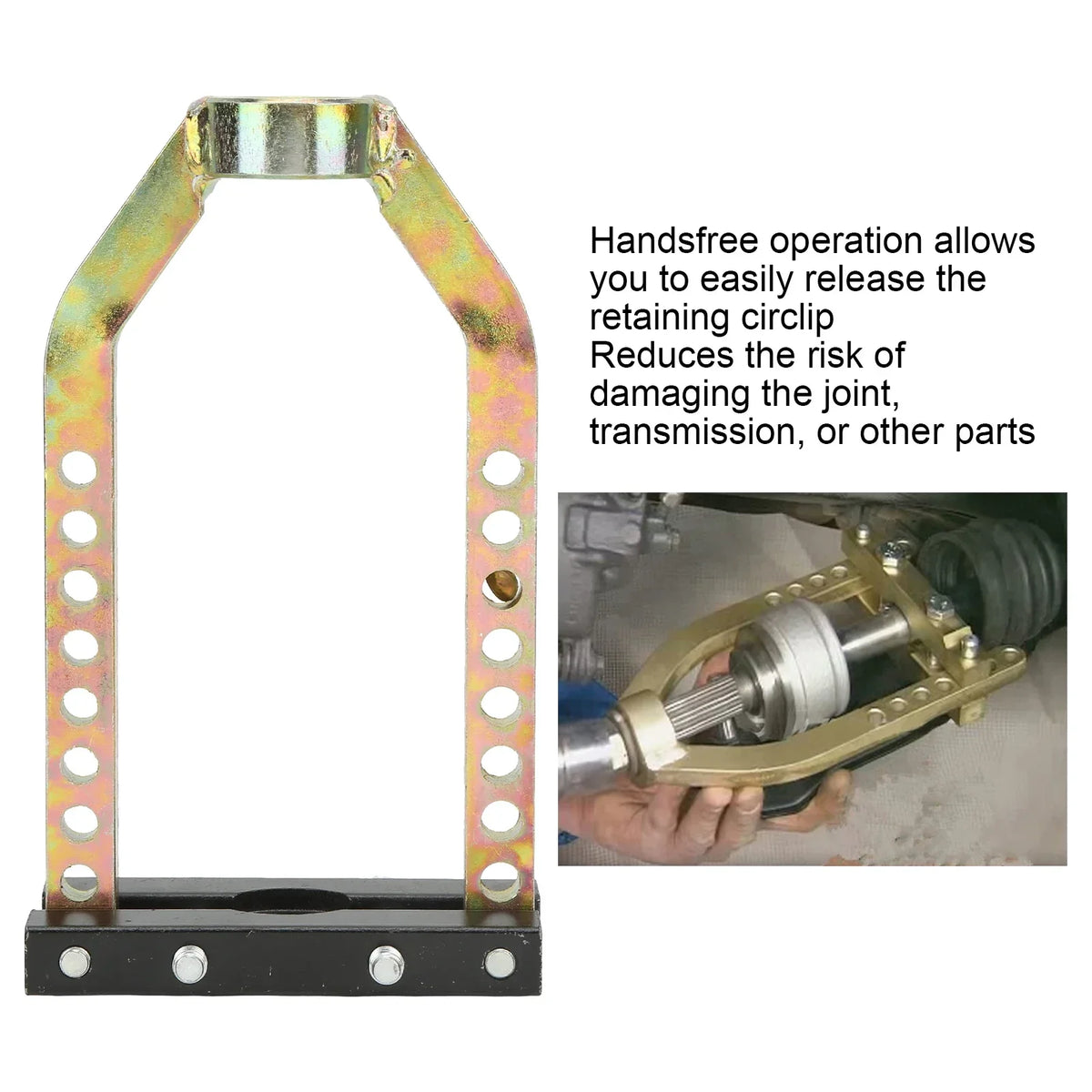

• Hands-Free Operation: Allows you to keep both hands free to release the retaining circlip easily, reducing the risk of damage to joints, transmission, or other drivetrain components.
• Wide Compatibility: Minimum shaft diameter of 0.7 in (17 mm); recommended minimum of 18–19 mm (0.71–0.75 in) for optimal grip. Maximum CV joint diameter of approximately 95 mm (3.8 in). Note: suitable for shafts with a groove diameter — not designed for smooth shafts.
• Durable Construction: Body is crafted from zinc-plated steel and the bars are made of black oxide-coated steel, ensuring maximum strength, corrosion resistance, and long-lasting performance.

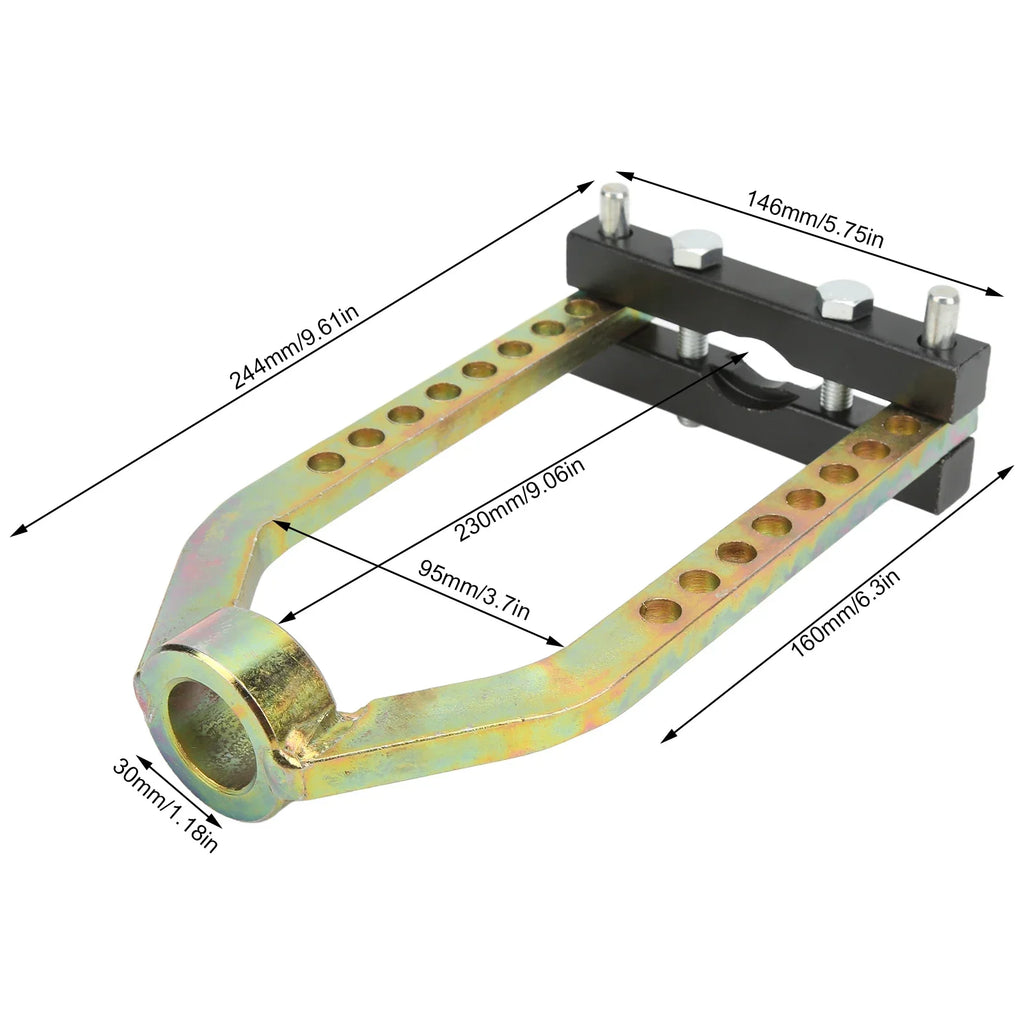

• Compact & Precise: Overall tool dimensions: 9.61 in × 5.75 in (24.4 cm × 14.6 cm). Measure your specific application before use to ensure a precise fit.
• Saves Time & Labor: Eliminates the guesswork and brute-force methods of CV joint removal, saving significant labor time on driveshaft axle boot repairs and half-shaft rebuilds.

Specifications

What's in the Box

• 1 × Propshaft Separator / CV Joint Puller Tool

Related Products You May Like

• Car Molding Trim Tape – Decorative Auto Adhesive Strip
• Tactical EDC Tool Storage Bag – Military Utility Pouch
• Stainless Steel Self-Tapping Screws – M2.2–M4.8 Phillips

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What vehicles is this CV joint puller compatible with?

A: This universal CV joint puller is designed to fit most cars and light trucks equipped with constant velocity (CV) U-joints. The 9-hole adjustment system accommodates different joint lengths, and it supports shaft groove diameters starting from 17 mm (0.7 in) up to a maximum CV joint diameter of approximately 95 mm (3.8 in). Always measure your vehicle's CV joint dimensions before use to confirm compatibility. Note: it requires a retaining ring groove and is not suitable for smooth shafts.

Q: Do I need any additional tools to use this CV joint puller?

A: The CV joint puller is largely self-contained and designed for hands-free operation, freeing both hands to manage the retaining circlip. While no additional specialty tools are required for the pulling action itself, standard automotive hand tools (such as wrenches or pliers for the circlip) may be helpful for the full driveshaft service procedure. No batteries or power source are needed.

Q: How durable is this tool, and will it rust over time?

A: The tool body is constructed from zinc-plated steel and the clamping bars are finished in black oxide-coated steel. Both surface treatments are specifically chosen to resist rust, corrosion, and general wear, ensuring the tool delivers long-lasting performance through repeated professional use.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
