10Pcs USB 3.1 Type-C Female 16-Pin Mid Mount Solder Connector

10Pcs USB 3.1 Type-C Female Socket 16-Pin Mid Mount Soldering Connectors

Whether you're repairing a charging port or building a custom PCB project, these USB 3.1 Type-C Female Socket Connectors are the perfect solution. Each pack includes 10 pieces in your choice of mid-mount height (0.8mm or 1.6mm), making them versatile for a wide range of DIY electronics and repair applications.

These 16-pin female connectors support up to 3A rated current, making them fully capable of handling fast-charging requirements. Their horizontal, mid-mount design allows for secure, low-profile PCB installation with reliable soldering points on all sides.

Made in Mainland China.

Key Specifications

• Connector Type: USB 3.1 Type-C Female Jack
• Gender: Female
• Pins: 16-Pin

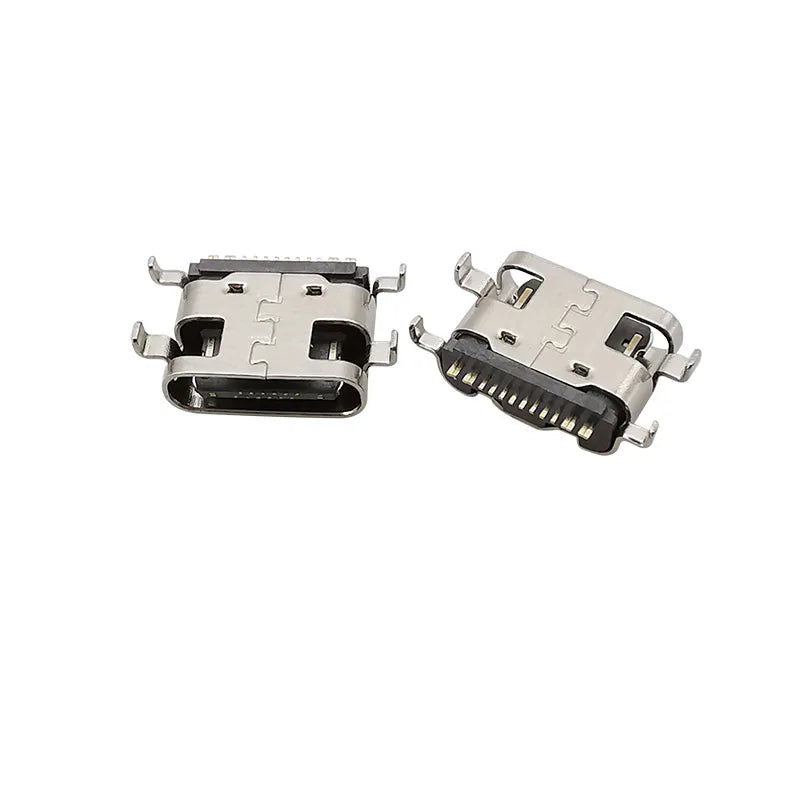

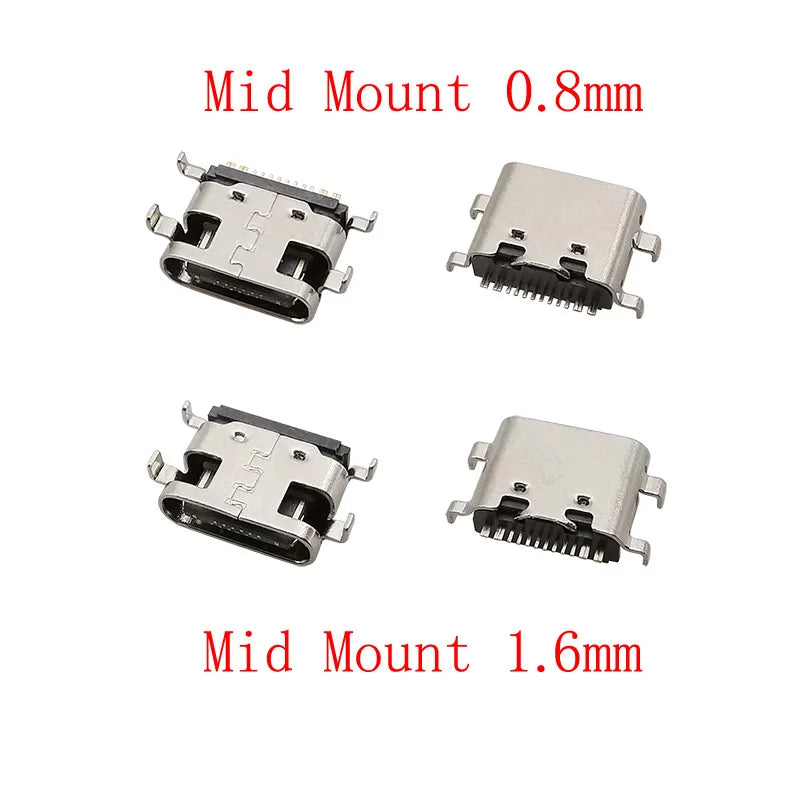

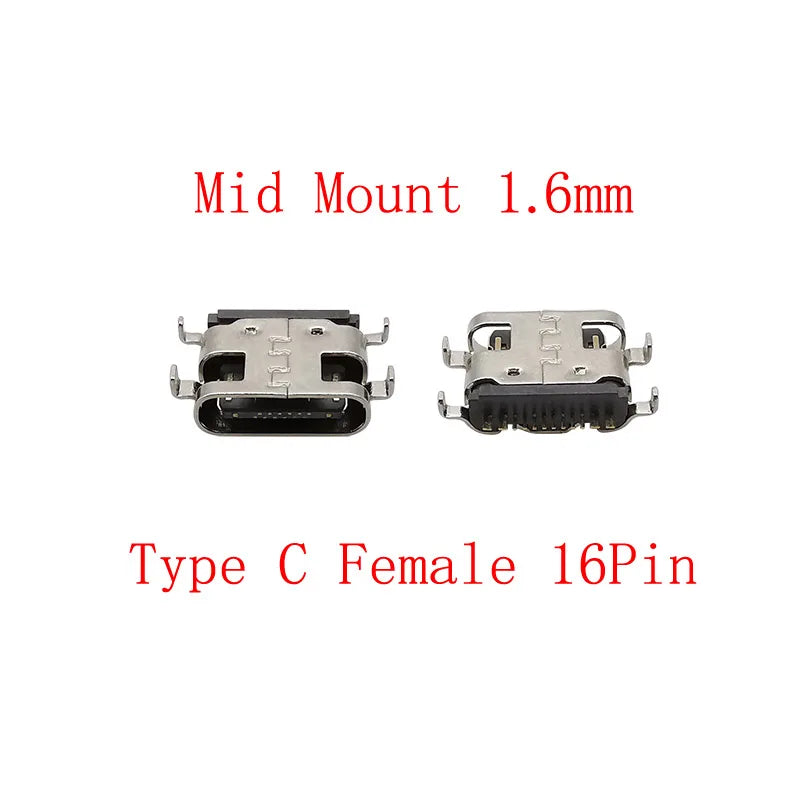

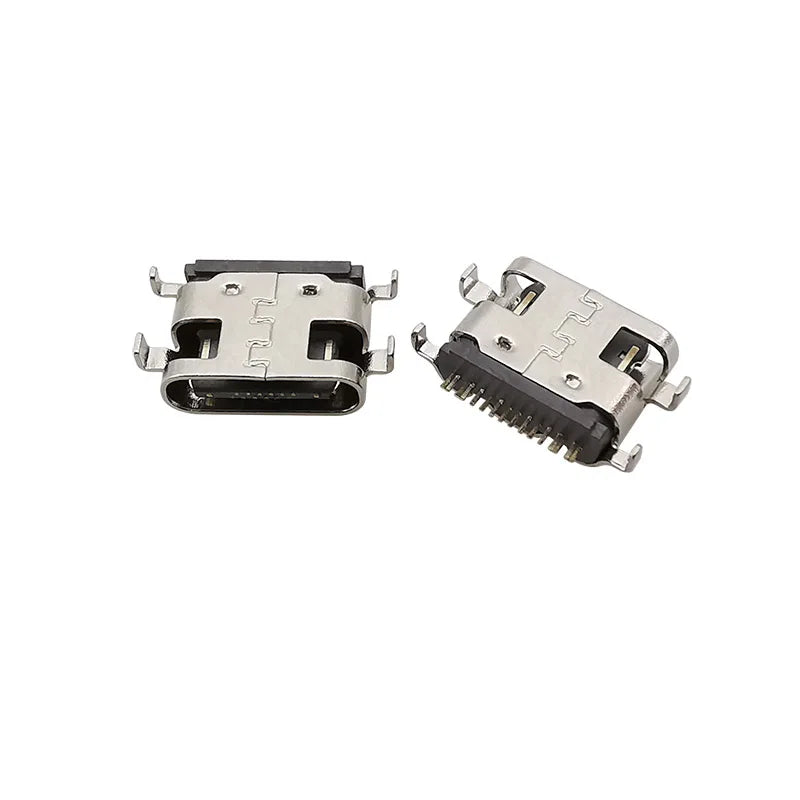

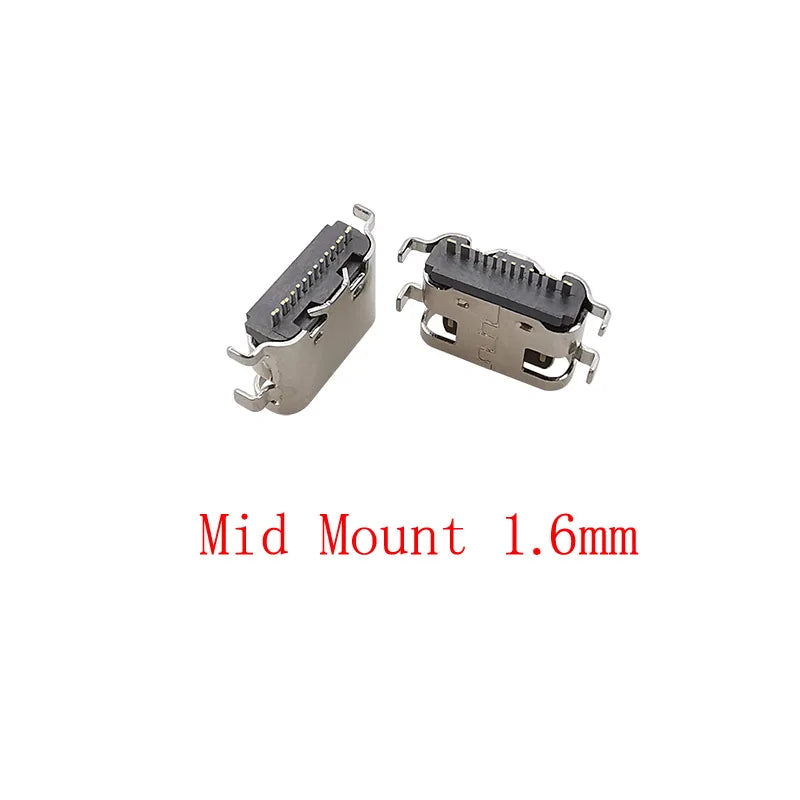

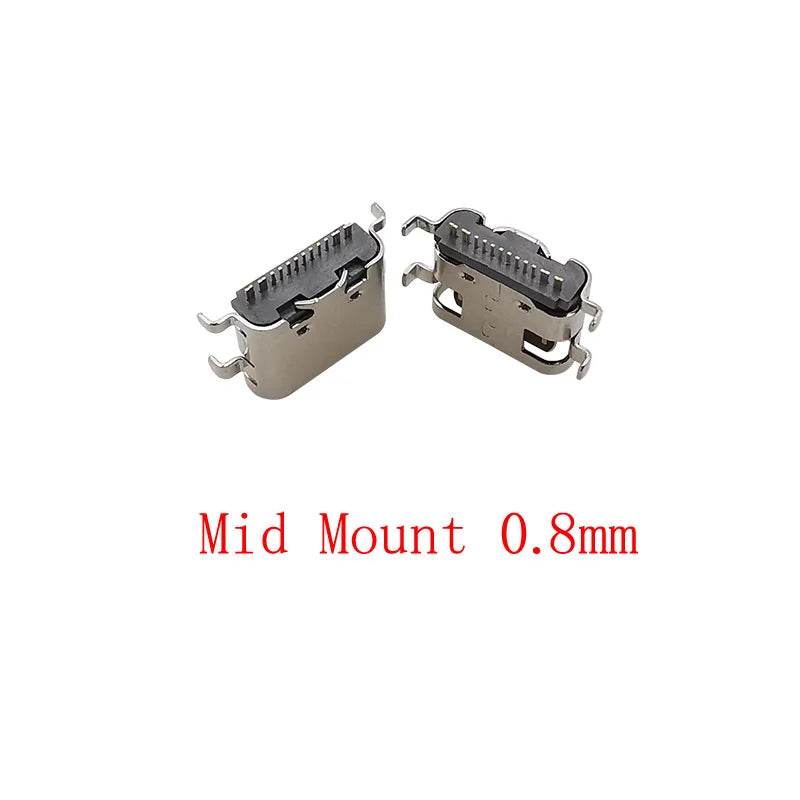

• Mid Mount Height: 0.8mm or 1.6mm (choose your preference)
• Style: Horizontal Mid Mount
• Rated Current: Max. 3A
• Voltage: Low voltage — Below 50V AC or 75V DC
• Material: Metal & Plastic
• Colors Available: Silver, Black
• Quantity: 10 Pieces per pack

Why Choose These Type-C Connectors?

• ✅ DIY-Friendly: Designed for soldering — ideal for custom electronics projects, PCB builds, and port repairs
• ✅ USB 3.1 Standard: Supports high-speed data transfer and fast-charging compatibility
• ✅ Mid-Mount Design: Two height options (0.8mm & 1.6mm) for flexible PCB integration
• ✅ Durable Construction: Metal and plastic housing ensures long-lasting performance
• ✅ Pack of 10: Great value — have spares on hand for multiple projects or repairs

Ideal Use Cases

• Smartphone and tablet charging port repair
• Custom PCB board design and prototyping
• DIY USB-C charging docks and cables
• Electronics hobby projects and maker builds
• Replacement connectors for consumer electronics

Important Notes

• Please confirm the correct mid-mount height (0.8mm or 1.6mm) before ordering.
• Allow ±0–2mm tolerance due to manual measurement.
• Product color may vary slightly from images — actual product is the reference.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the difference between the 0.8mm and 1.6mm mid-mount heights?

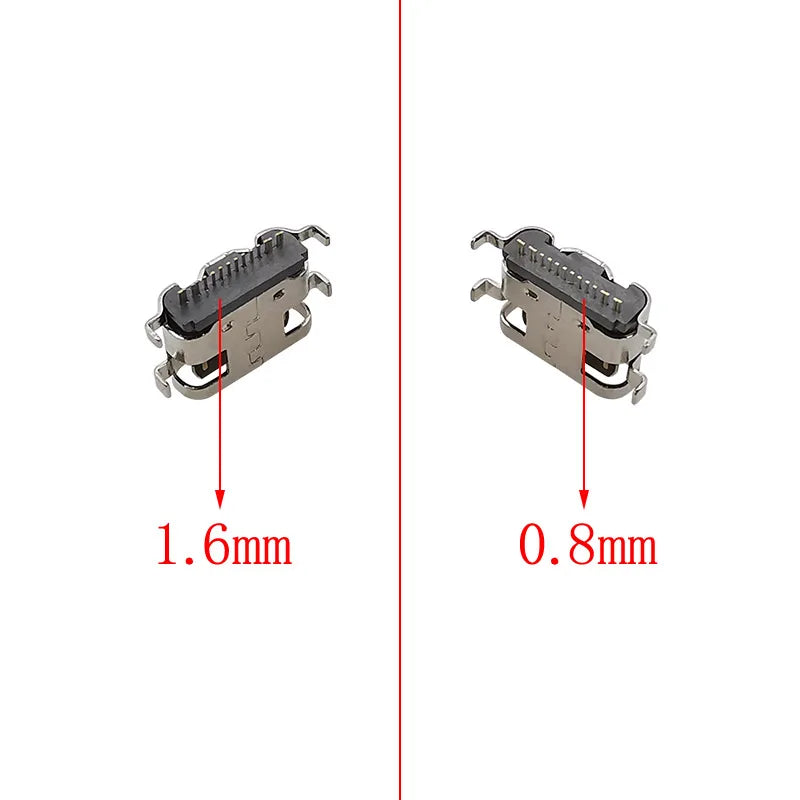

A: The mid-mount height refers to how far the connector sits above the PCB surface. The 0.8mm option is lower-profile and suited for thinner boards or compact builds, while the 1.6mm option is the standard PCB thickness and works with most general-purpose designs. Choose based on your specific board and housing requirements.

Q: Are these connectors compatible with USB 3.1 fast charging?

A: Yes. These USB 3.1 Type-C Female Socket Connectors are rated for up to 3A current, making them suitable for fast-charging applications as well as high-speed data transfer in USB 3.1 compliant devices.

Q: Do these require special soldering equipment?

A: These connectors are designed for standard PCB soldering. A fine-tip soldering iron and flux are recommended for clean, precise joints, especially given the small 16-pin layout. They are suitable for intermediate to experienced DIY electronics hobbyists and technicians.

Q: Can I use these for smartphone charging port repairs?

A: Yes, these connectors are widely used for charging port repairs on smartphones, tablets, and other USB-C-equipped devices. Always verify that the pin count and mid-mount height match your device's motherboard specifications before soldering.
