5Pcs USB Type-C Female to JST PH 2.0mm 2-Pin Wire Connectors

5Pcs USB Type-C Female Socket to JST PH 2.0mm 2-Pin Plug Wire Cable Connectors

Upgrade your DIY electronics projects with these versatile USB Type-C Female to JST PH 2.0mm 2-Pin Plug Wire Connectors. Perfect for makers, hobbyists, and electronics engineers who need a reliable snap-in USB-C charging port that connects directly to compact JST PH 2.0mm connectors. Each connector comes pre-wired with flexible 24AWG PVC wire, saving you time and effort on your builds.

Key Features

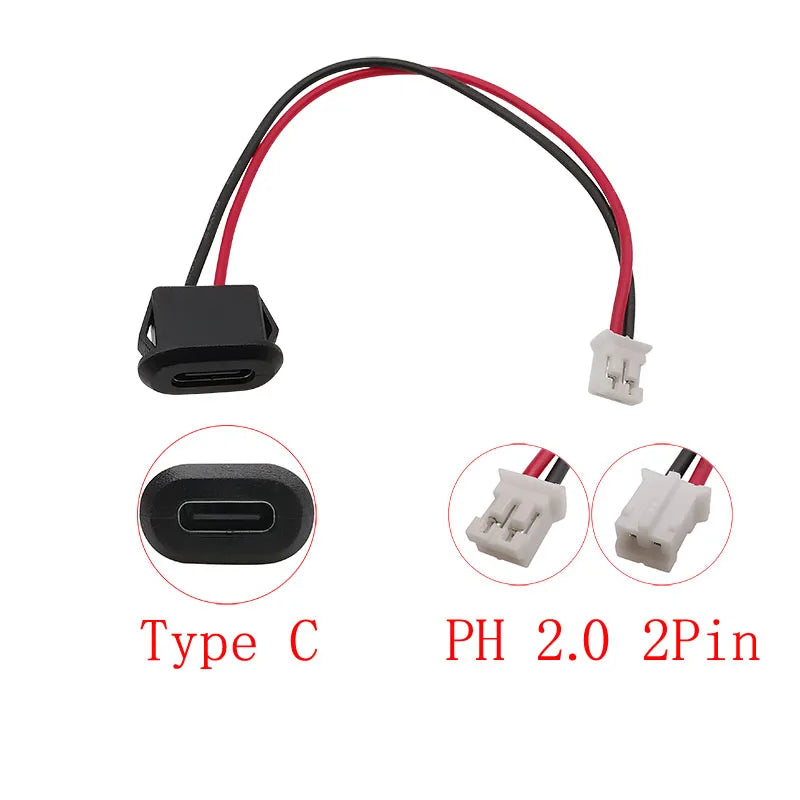

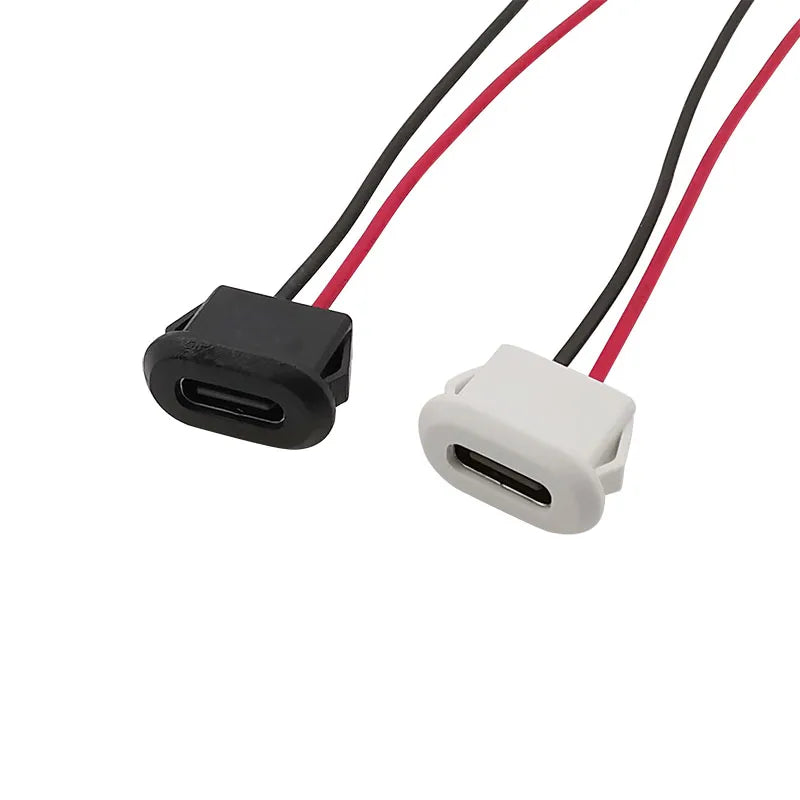

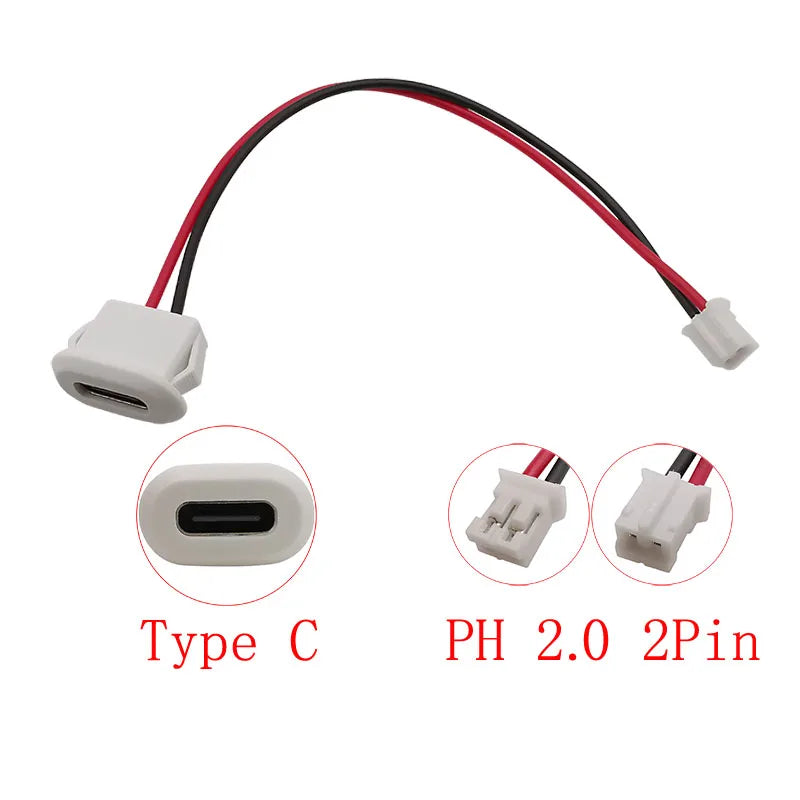

• Connector A: USB Type-C Female Jack (snap-in panel mount style)
• Connector B: JST PH 2.0mm 2-Pin Plug

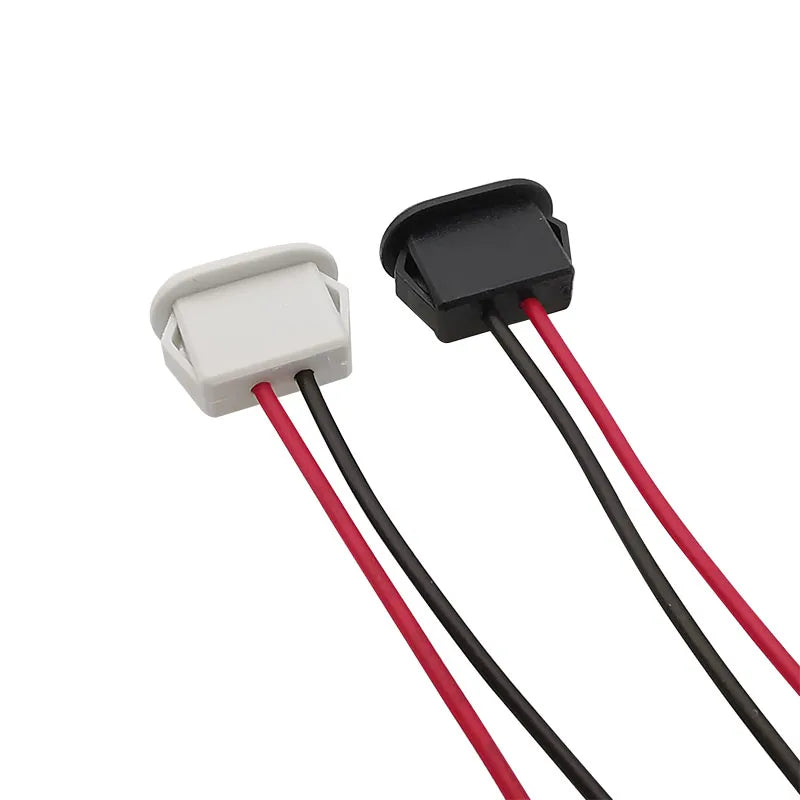

• Wire Gauge: 24AWG PVC insulated wires for reliable current handling
• Cable Length: Approx. 10 cm / 3.93 inches
• Material: Durable metal and plastic construction

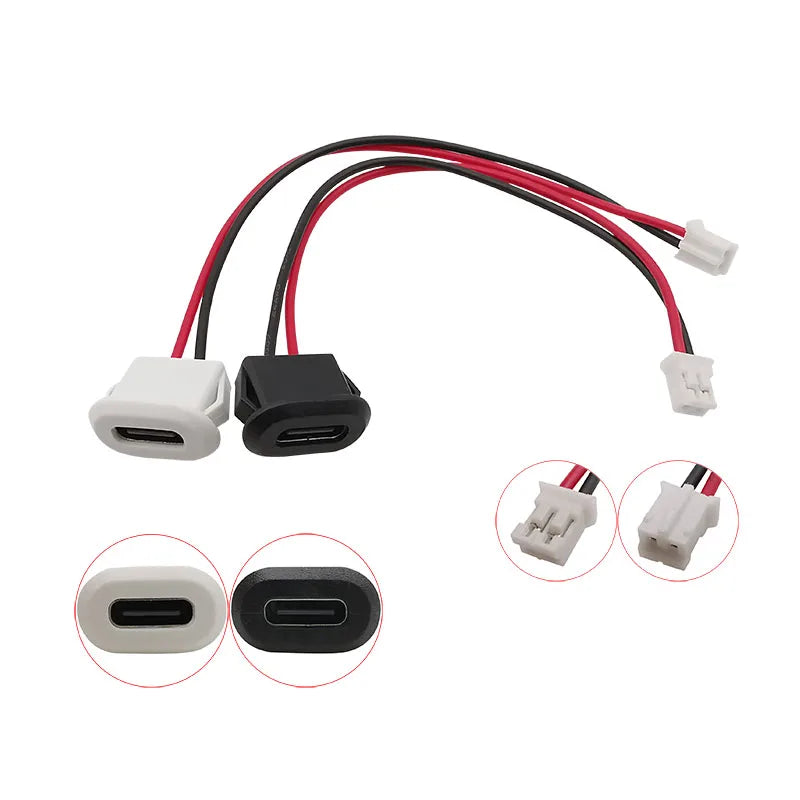

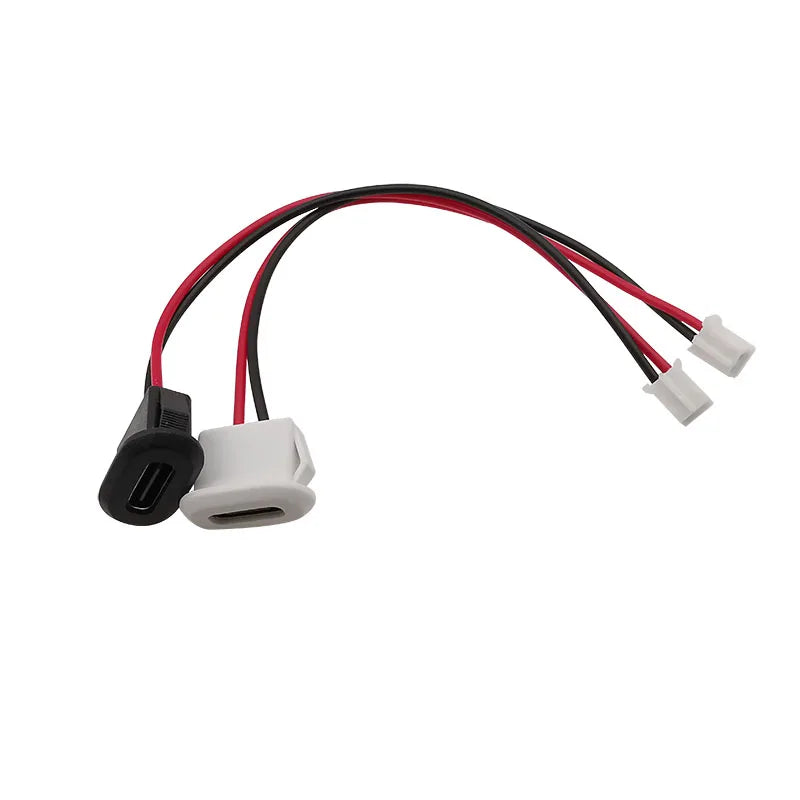

• Available Colors: Black, Red, White — choose your preferred color
• Low Voltage Rated: EU LVD compliant — below 50V AC or 75V DC
• Package Includes: 5 x USB Type-C Female to PH2.0 2-Pin Plug Connectors

Wire Sequence Note

Important: The red/black wire sequence of the JST PH2.0mm 2-Pin housing does not guarantee compatibility with all devices. If you need to reverse the wire sequence, follow these simple steps:

1. Release the latch: Insert tweezers or a thin needle from the rear of the terminal (the cable entry side) and gently lift the plastic latch.
2. Remove the terminal: Lightly pull the cable while holding the tweezers or needle — the terminal will slide out smoothly.
3. Swap the wires: Interchange the red and black wires, then reinsert them into the correct terminal slots, ensuring the latch clicks securely into place.
4. Reinsert carefully: Make sure the plastic latch is fully restored before reinserting. If damaged, replace with a new housing.

Ideal Applications

• DIY battery charging circuits and power boards
• Custom PCB charging port integration
• Robotics, RC models, and drone charging systems
• Portable electronics repair and prototyping
• Arduino, Raspberry Pi, and other maker platform projects

Specifications

Note: Please verify this is the correct product for your application before purchasing. Measurements may vary ±0–5mm due to manual measurement. Actual product color may differ slightly from images shown.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the JST PH 2.0mm 2-Pin connector compatible with?

A: The JST PH 2.0mm 2-Pin plug is widely used in small lithium battery packs, compact PCBs, RC models, drones, and various DIY electronics projects. It is one of the most common small connector standards in the maker and electronics community. Always verify your device's connector polarity before connecting.

Q: Can I use these USB Type-C connectors for fast charging?

A: These connectors are wired with only 2 pins (power and ground), which supports standard USB charging at low voltages (below 50V AC / 75V DC). They are not designed for USB 3.x data transfer or USB Power Delivery fast-charging protocols. They are best suited for basic 5V charging applications in DIY and prototyping builds.

Q: How do I snap-mount the USB Type-C female socket into a panel?

A: The USB Type-C female socket features a snap-in panel mount design. Simply cut or drill an appropriately sized rectangular cutout in your enclosure panel, then press the socket into the opening until the retaining clips snap securely into place — no soldering or additional hardware required for mounting.

Q: Are all 5 connectors the same color, or can I choose different colors?

A: You can select your preferred wire color (Black, Red, or White) from the product options. All 5 pieces in a single pack will be the same color as selected at checkout.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
