OST Wire Woven Cloth Spring Sheath Hose – Machine Tubing for Lubricating Oil Lines
Keep your machinery running smoothly with this durable wire woven cloth spring sheath hose. Engineered for industrial and mechanical applications, this iron-construction bushing-style tube sheath is purpose-built to protect lubricating oil lines, hydraulic conduits, and machine tubing from abrasion, mechanical wear, and elevated operating temperatures.
Key Features
- High-Temperature Resistance: Rated for use in environments from -20°C to +80°C (-4°F to 176°F), making it suitable for demanding machine environments.
- High Pressure Rated: Withstands pressures of 0–30 kg (0–3 MPa / ≥850 kPa), ensuring reliable performance under load.

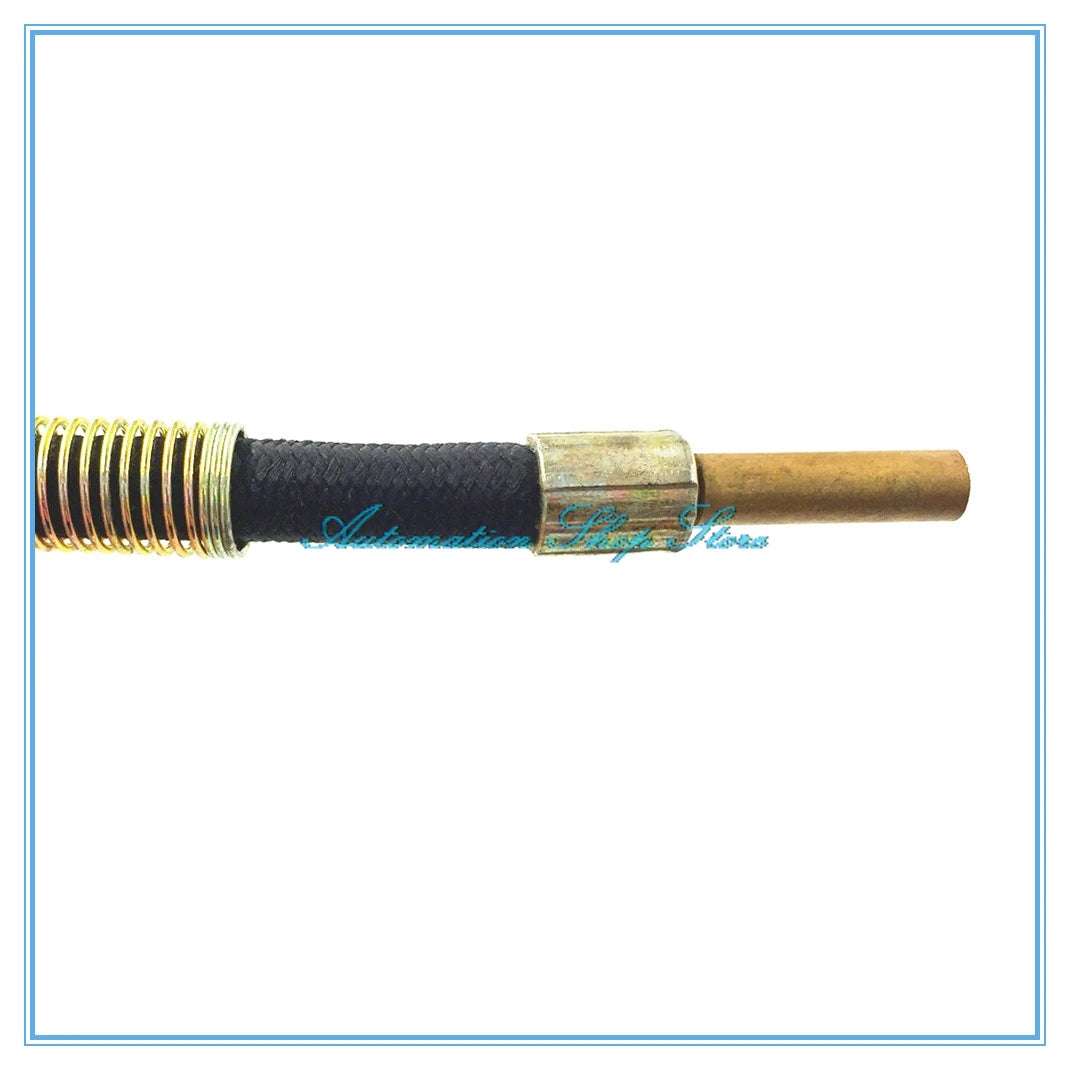

- Wire Woven Cloth Construction: The reinforced woven iron wire sheath provides excellent structural integrity, flexibility, and resistance to crushing or kinking.
- Flange Connection: Designed with a flange-style connection for secure, leak-resistant fitting in mechanical assemblies.
- Spring Sheath Design: The coiled spring structure allows the hose to flex and bend while maintaining its shape and protecting the inner tubing.
- Cast Iron Material: Manufactured via casting for consistent quality, strength, and dimensional accuracy.
- Versatile Use: Ideal for lubricating oil transfer lines, machine tool tubing, coolant delivery systems, and industrial hose protection.
Specifications
| Specification | Details |
|---|---|
| Material | Iron (Cast) |
| Type | Bushing / Spring Sheath Hose |
| Connection Type | Flange |
| Temperature Range | -20°C to +80°C |
| Max Pressure | 0–30 kg / 0–3 MPa (≥850 kPa) |
| Shape | Equal (Uniform) |
| Model | OST |
| Country of Origin | Made in China |
Applications
This wire woven spring sheath hose is widely used across a range of industrial and mechanical settings, including:
- CNC machine tool lubricating oil supply lines
- Industrial hydraulic and pneumatic tubing protection
- Coolant and fluid delivery conduits in manufacturing equipment
- General-purpose mechanical hose sheathing and cable guard
Related Products You May Like
- 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories – Anti-Loosening Replacement Parts
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 1000D Tactical EDC Bag – Portable Tool Storage Handbag
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the maximum operating temperature for this wire woven spring sheath hose?
A: This machine tubing spring sheath is rated for temperatures ranging from -20°C to +80°C, making it well-suited for most industrial machinery and lubricating oil line applications where moderate heat is present.
Q: What type of connection does this lubricating oil tube sheath use?
A: The hose features a flange-style connection, which provides a secure and leak-resistant fit when installed in mechanical assemblies and machine tool systems.
Q: What pressure can this spring sheath hose handle?
A: This wire woven cloth hose can withstand pressures of 0–30 kg (0–3 MPa), with a minimum rated pressure of ≥850 kPa, ensuring robust performance in demanding industrial environments.
Q: Is this hose sheath flexible enough for complex machine routing?
A: Yes. The spring sheath design allows the hose to flex and bend along routing paths while maintaining its tubular form, protecting the inner oil line from kinking, crushing, or abrasion.
