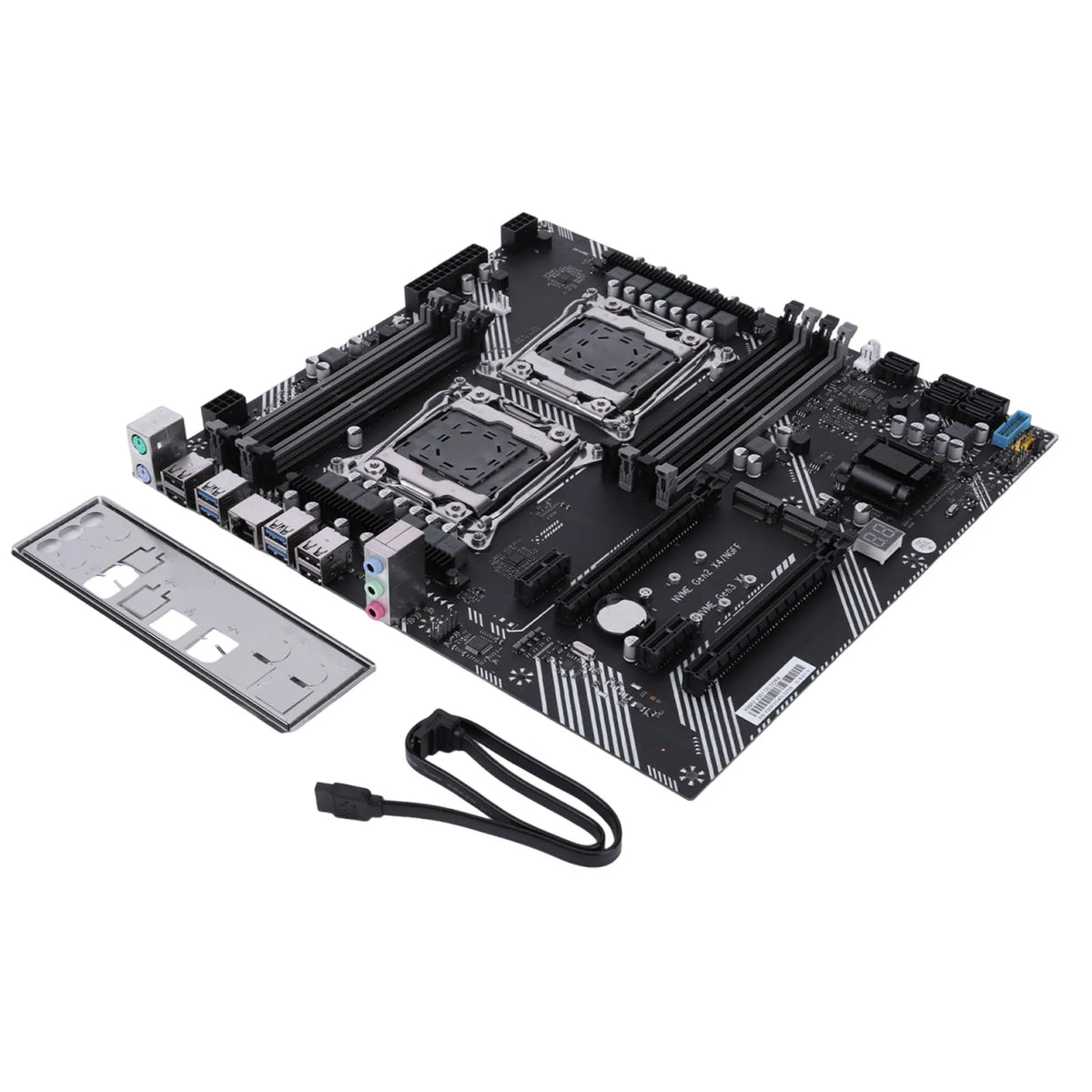

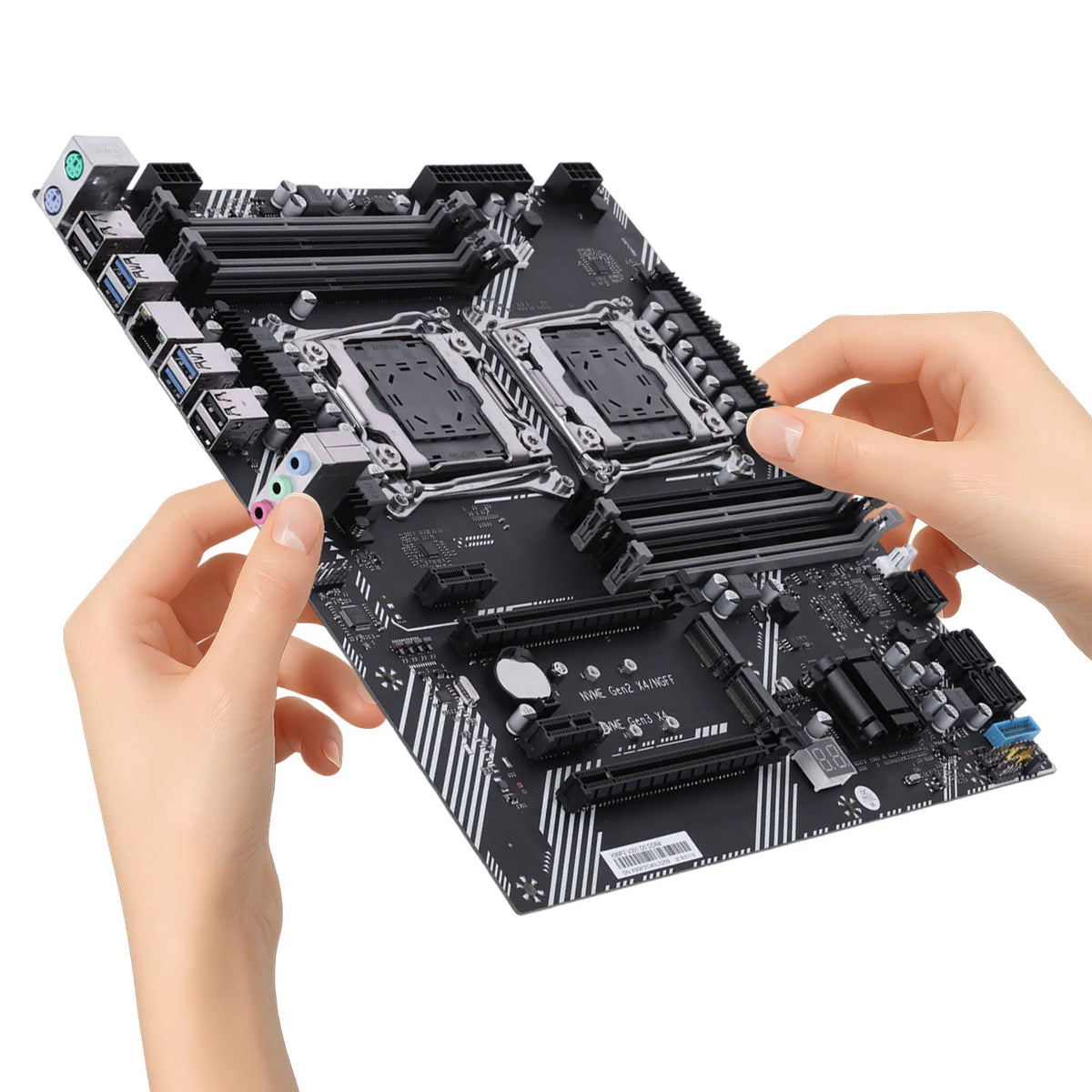

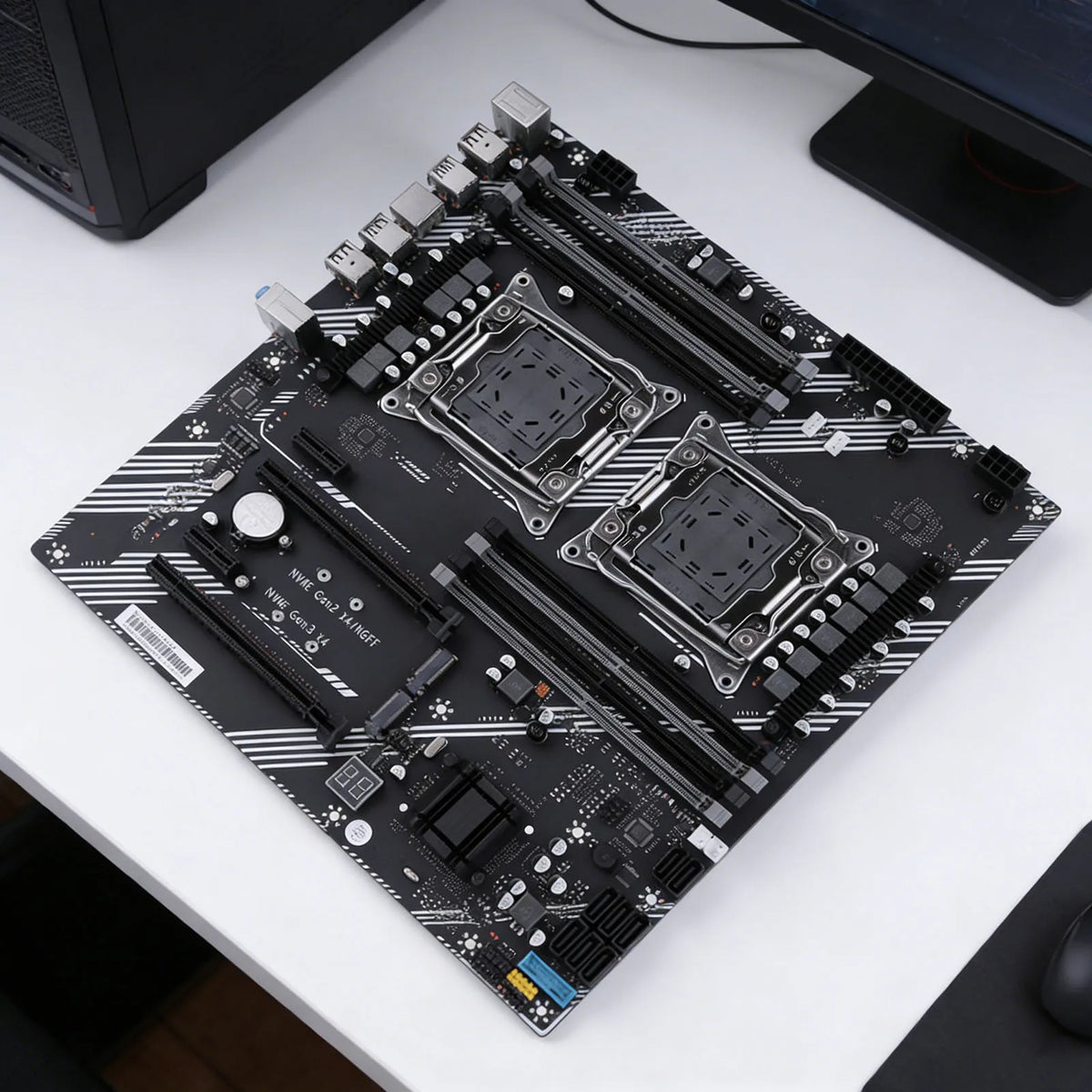

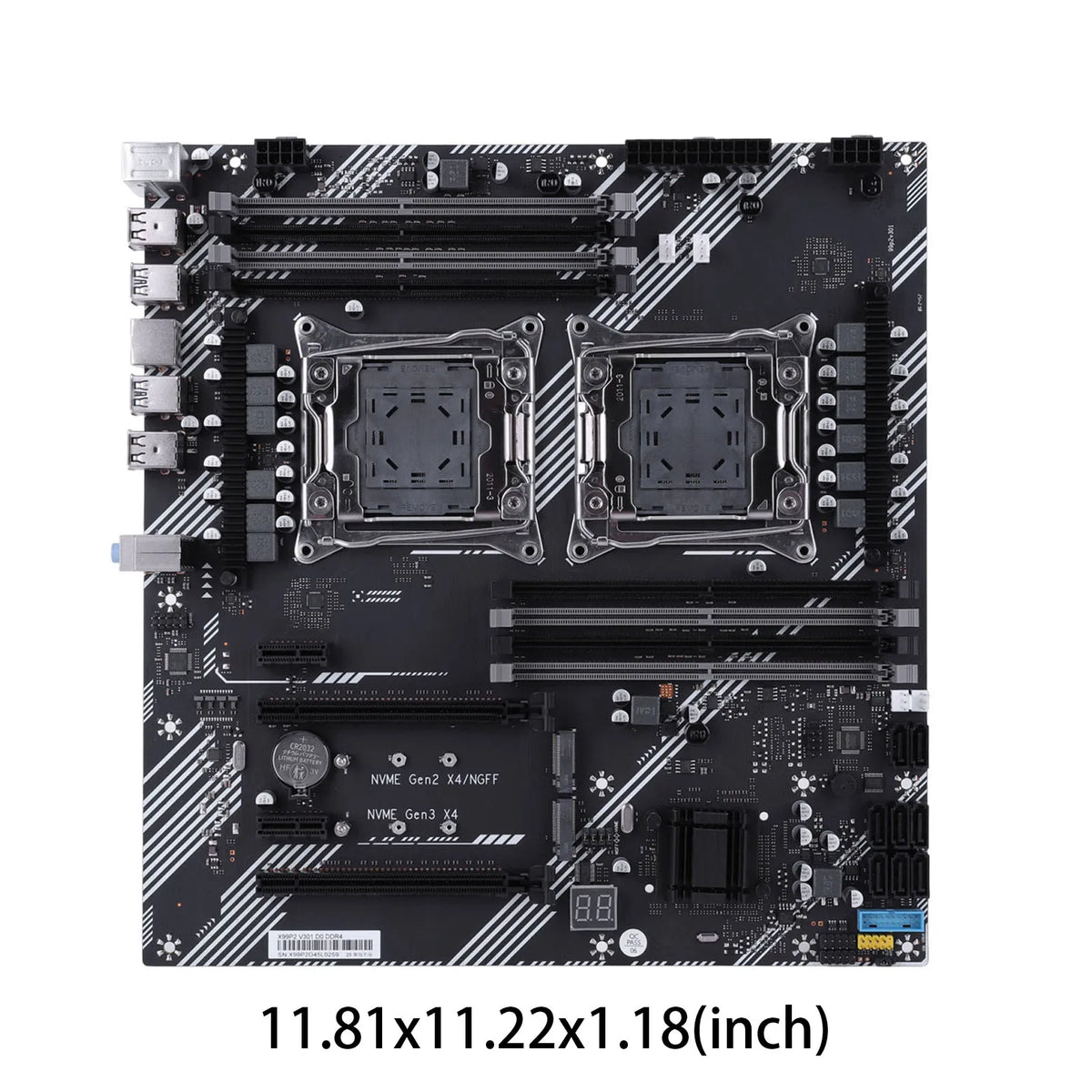

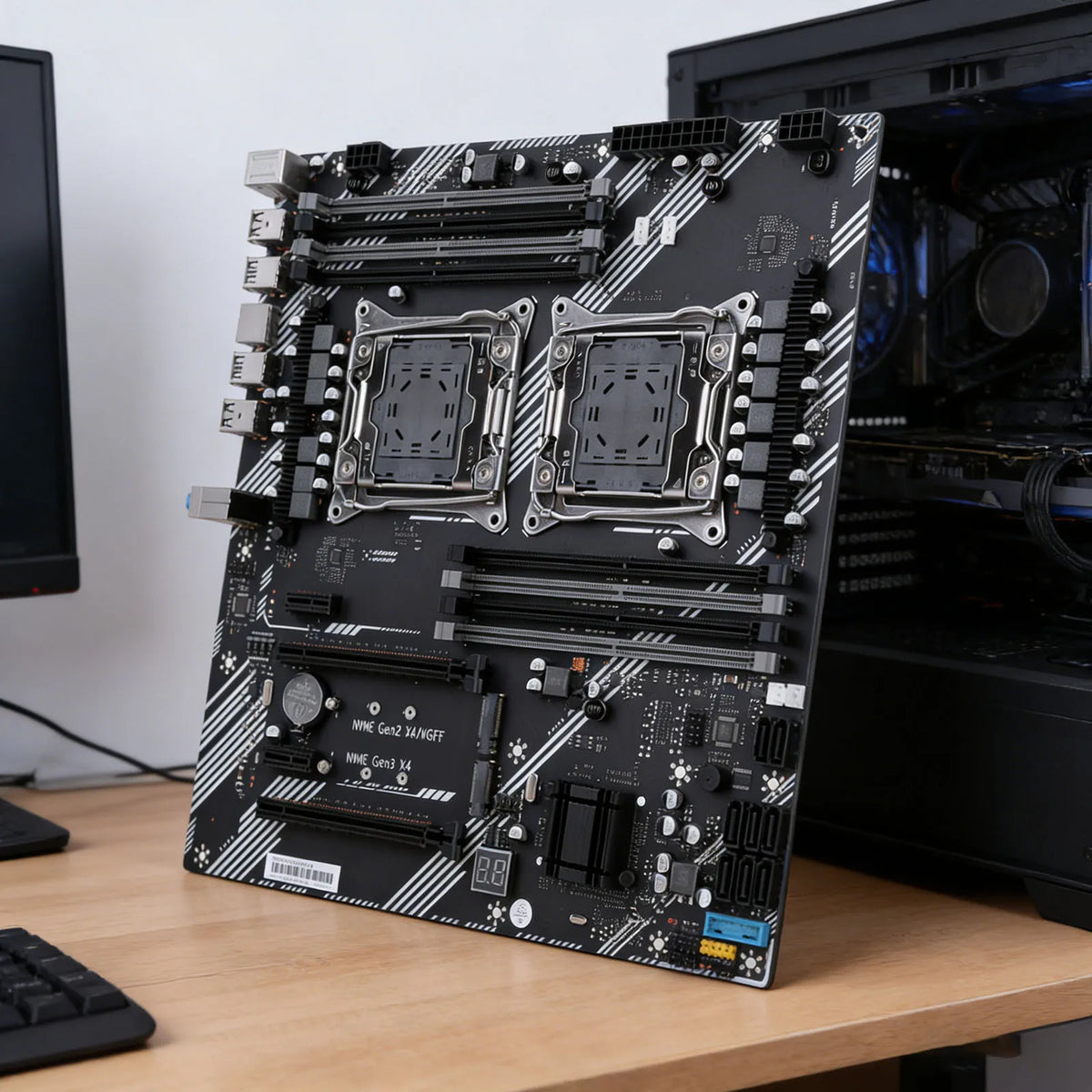

APWIKOGER X99 Dual CPU Motherboard 8x DDR4 LGA2011 ATX

APWIKOGER X99 Dual CPU Desktop Motherboard — 8 DDR4 Slots, M.2 NVMe, USB 3.0 & SATA 3.0

Unlock workstation-class performance with the APWIKOGER X99 Dual CPU Motherboard. Built on the Intel X99 chipset with dual LGA2011 sockets, this powerhouse mainboard is engineered for demanding desktop builds — from 3D modeling and video rendering to data center and industrial control applications. Made in Mainland China.

Key Features

1. Dual CPU Support for Maximum Throughput

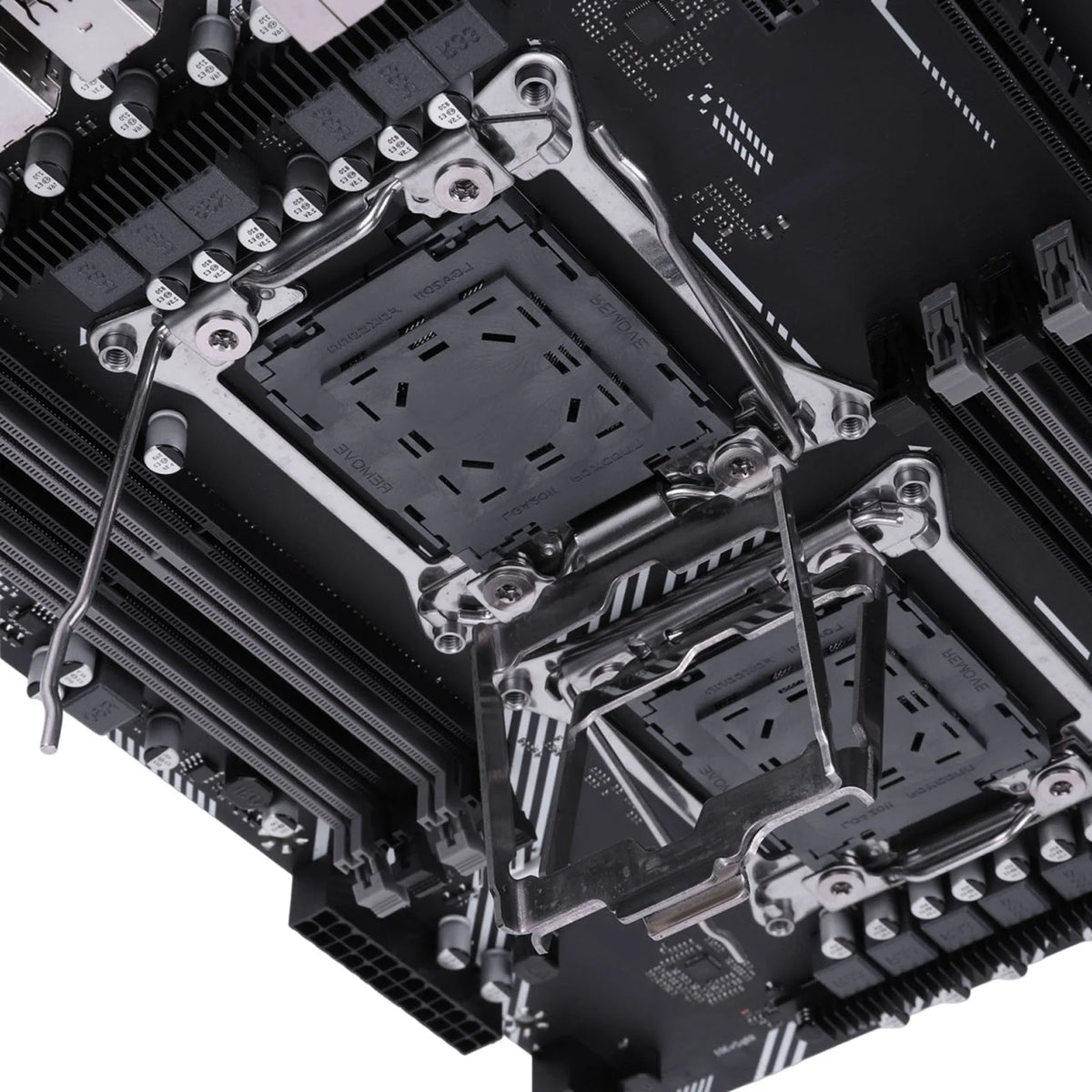

Equipped with two LGA2011 sockets compatible with Intel Xeon E5/E7 series and Intel Core i7 processors, this motherboard delivers exceptional multi-threaded processing. Eight DDR4 memory slots support up to 256 GB of RAM at 2133/2400 MHz for blazing-fast data performance across all workloads.

2. Flexible, High-Speed Storage Expansion

Two M.2 NVMe slots (one with NGFF manual switching) plus eight SATA 3.0 ports give you the freedom to combine ultra-fast SSDs with high-capacity HDDs. RAID 0/1/5/10 support (with driver) lets you optimize for speed or data redundancy — whichever your workflow demands.

3. Comprehensive Connectivity

Six USB 3.0 and six USB 2.0 ports keep all your peripherals connected without compromise. Dual PCIe x16 slots handle top-tier GPUs or compute cards, while dual PCIe x1 slots expand your options further. A Realtek ALC high-fidelity audio solution rounds out the feature set with clear, professional-grade sound.

4. Reliable Networking & Stable Power Delivery

A Realtek 8111H Gigabit LAN controller with a separate split filter minimizes interference for a stable, low-latency network connection. Standard ATX 24-pin and dual 8-pin CPU power connectors ensure consistent, clean power delivery under heavy load.

5. Industrial-Grade Durability

Engineered to operate from −20 °C to 60 °C and withstand 0–95% relative humidity (non-condensing), this board is built for demanding environments including workstations, server racks, and industrial control installations.

Full Specifications

What's in the Box

• 1 × X99 Dual CPU Motherboard
• 1 × I/O Baffle

Note: CPU not included. Color may vary slightly due to monitor settings. Please allow 1–2 cm tolerance in measurements.

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Which processors are compatible with this X99 dual motherboard?

A: This motherboard supports Intel Xeon E5 and E7 series processors as well as Intel Core i7 CPUs that use the LGA2011 socket. It does not come with a CPU, so you will need to purchase compatible LGA2011 processors separately.

Q: How much RAM can this X99 motherboard support?

A: The board features eight DDR4 memory slots, each supporting up to 32 GB, for a maximum total of 256 GB of DDR4 RAM running at 2133 or 2400 MHz speeds.

Q: Does this motherboard support NVMe SSDs?

A: Yes. It includes two M.2 slots — one dedicated M.2 NVMe slot and one M.2 NVMe/NGFF switchable slot — so you can install fast NVMe solid-state drives alongside the eight available SATA 3.0 ports.

Q: What RAID configurations does this board support?

A: With the appropriate driver installed, this motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10, allowing you to configure your storage array for maximum performance, data redundancy, or a combination of both.
