ZH Series Pneumatic Vacuum Generator Nozzle Box Ejector

Pneumatic Vacuum Generator – ZH Series Nozzle Box Type Ejector

Upgrade your pneumatic automation setup with the ZH Series Pneumatic Vacuum Generator. Engineered as a compact, box-type vacuum ejector, this unit converts compressed air into consistent, reliable vacuum suction — making it an essential component for pick-and-place systems, robotic arms, packaging lines, and industrial automation applications.

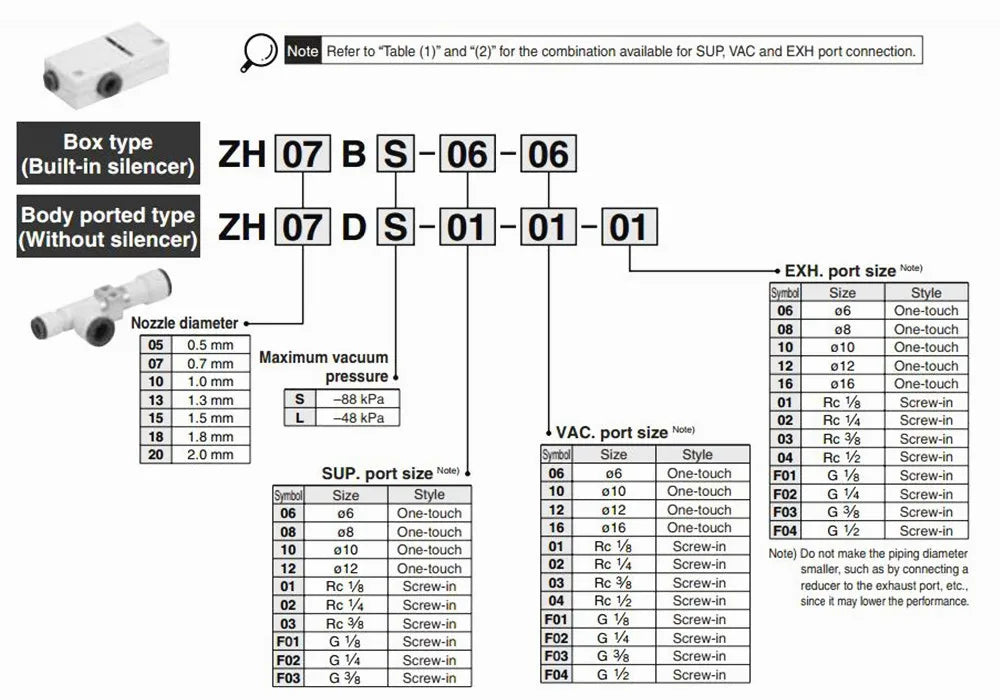

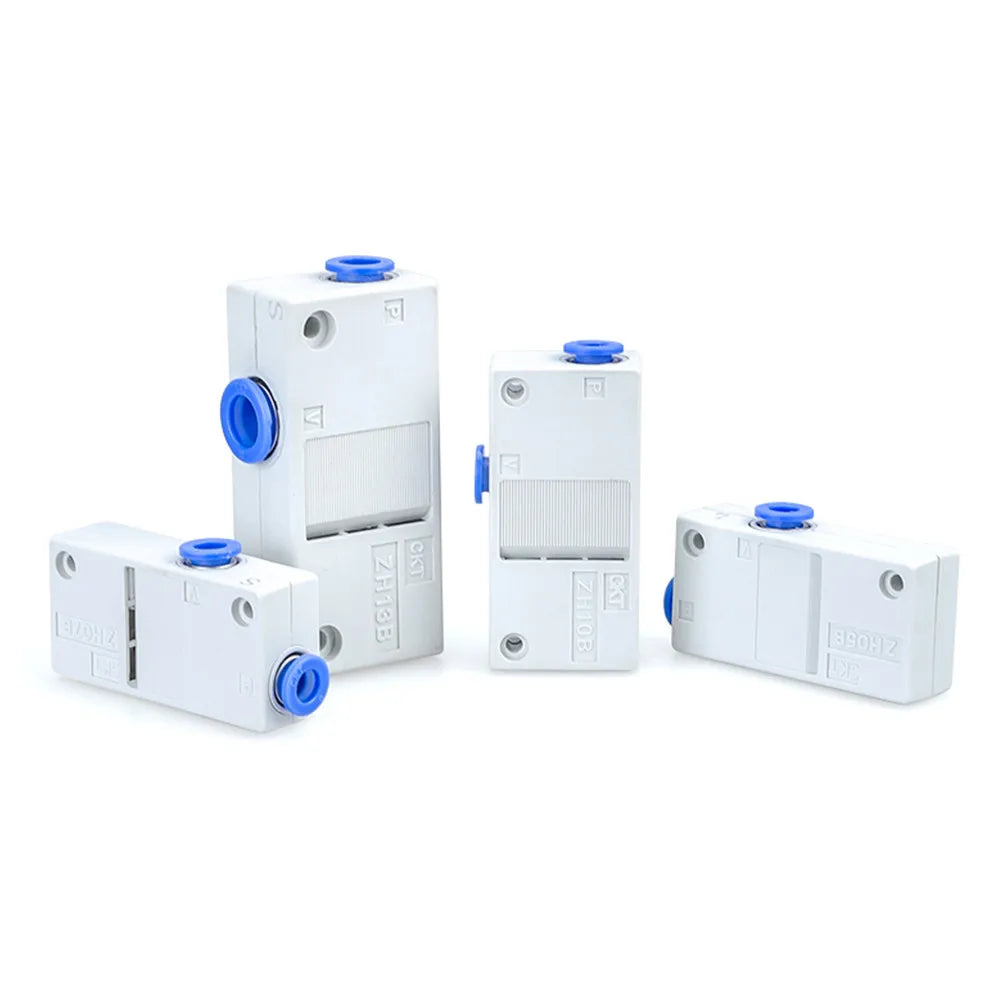

Compatible models include: ZH05BS, ZH07BS, ZH10BS, ZH13BS, ZH05BL, ZH07BL, ZH10BL, ZH13BL — offering a range of nozzle sizes to match your specific flow rate and vacuum level requirements.

Made in Mainland China.

Key Features

• Multi-Model Compatibility: Available in BS and BL configurations across four nozzle sizes (05, 07, 10, 13) to suit diverse pneumatic system demands.
• Box-Type Nozzle Design: Compact, space-saving form factor that integrates easily into existing pneumatic circuits and automation rigs.
• Efficient Vacuum Generation: Utilizes the Venturi principle — no moving parts, no electricity required — generating stable vacuum flow from standard compressed air supply.
• Durable Construction: Built for continuous industrial use with high-quality internal components designed to maintain consistent vacuum performance over time.
• Versatile Application: Ideal for suction cup systems, conveying, lifting, clamping, and other vacuum-dependent automation processes.
• Easy Integration: Standard port configurations (model-dependent) make installation and connection to existing pneumatic systems straightforward.

Specifications

Common Applications

• Industrial pick-and-place automation
• Robotic arm suction systems
• Packaging and labeling machines
• Sheet metal and glass handling equipment
• PCB assembly and electronics manufacturing

Related Products You May Like

• 1000D Tactical EDC Bag – Portable Tool Storage Handbag
• 10pcs Durable Gold Blade Nut – Metal Universal Trimmer Accessories
• 10PCS Stainless Steel Self-Tapping Screws – Phillips

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is a pneumatic vacuum generator and how does the ZH series work?

A: A pneumatic vacuum generator uses the Venturi principle — compressed air is forced through a nozzle, creating a low-pressure zone that generates vacuum suction without any electrical components or moving parts. The ZH series box-type ejectors are designed for reliable, maintenance-friendly operation in industrial automation environments.

Q: Which model should I choose — BS or BL, and what do the numbers (05, 07, 10, 13) mean?

A: The numbers (05, 07, 10, 13) refer to the nozzle diameter size — larger numbers generally produce higher vacuum flow rates. The BS and BL suffixes indicate different body or port configurations. Select the model that matches your required vacuum flow rate and port size for optimal system performance.

Q: What compressed air supply pressure is recommended for the ZH series vacuum ejector?

A: While specific operating pressure ranges vary by model, ZH series vacuum generators are typically designed to operate within standard industrial compressed air supply pressures (commonly 0.2–0.6 MPa). Refer to your specific model's datasheet or consult a pneumatics professional for precise requirements.

Q: Is this vacuum generator suitable for continuous industrial use?

A: Yes. The ZH series nozzle box-type vacuum ejectors are built for continuous operation in industrial settings, including pick-and-place systems, conveyor lines, robotic arms, and packaging machinery.
