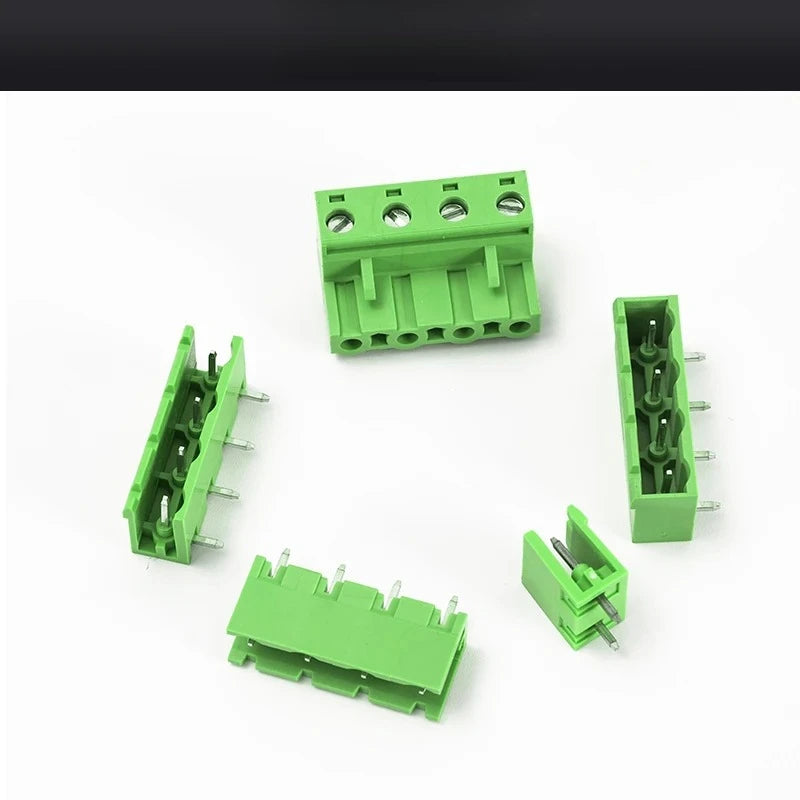

5.08mm 7.62mm PCB Terminal Block 2EDG Male Female Connector Set

2-Set 5.08mm / 7.62mm PCB Terminal Block Connectors — 2EDG Series

Upgrade your electronics projects with this versatile 2-set terminal block kit, covering both 5.08mm and 7.62mm pitch options and a full range of 2-pin to 12-pin configurations. Whether you're wiring PCBs for industrial controls, power distribution, or DIY electronics, these CE- and RoHS-certified connectors deliver rock-solid performance with minimal effort.

Key Features

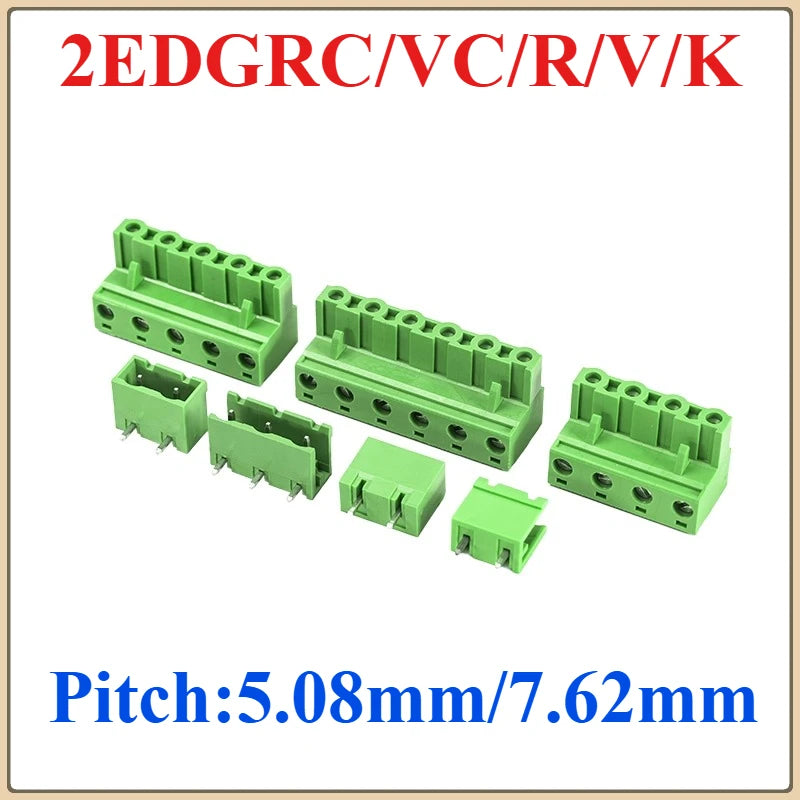

• Two Pitch Sizes Included: 5.08mm and 7.62mm pitch for flexible application across various PCB layouts.

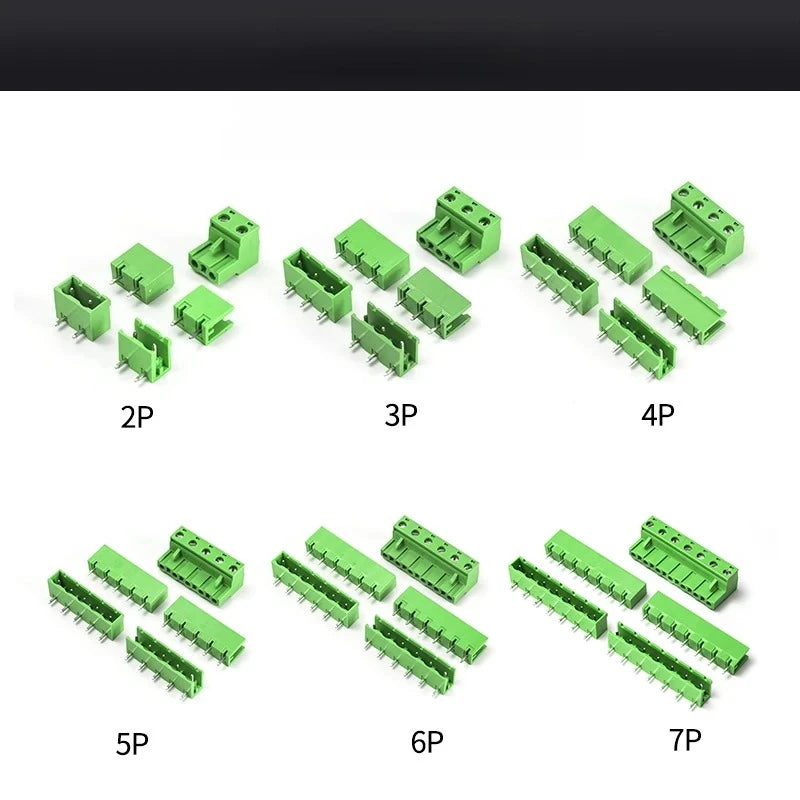

• Wide Pin Range: Available in 2P to 12P configurations — mix and match to suit your exact wiring needs.

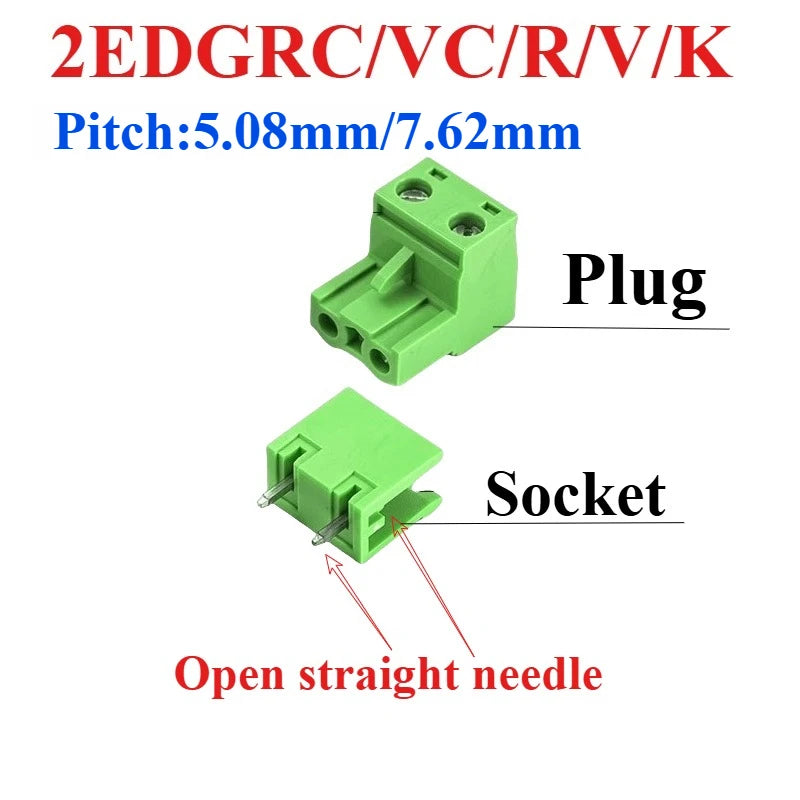

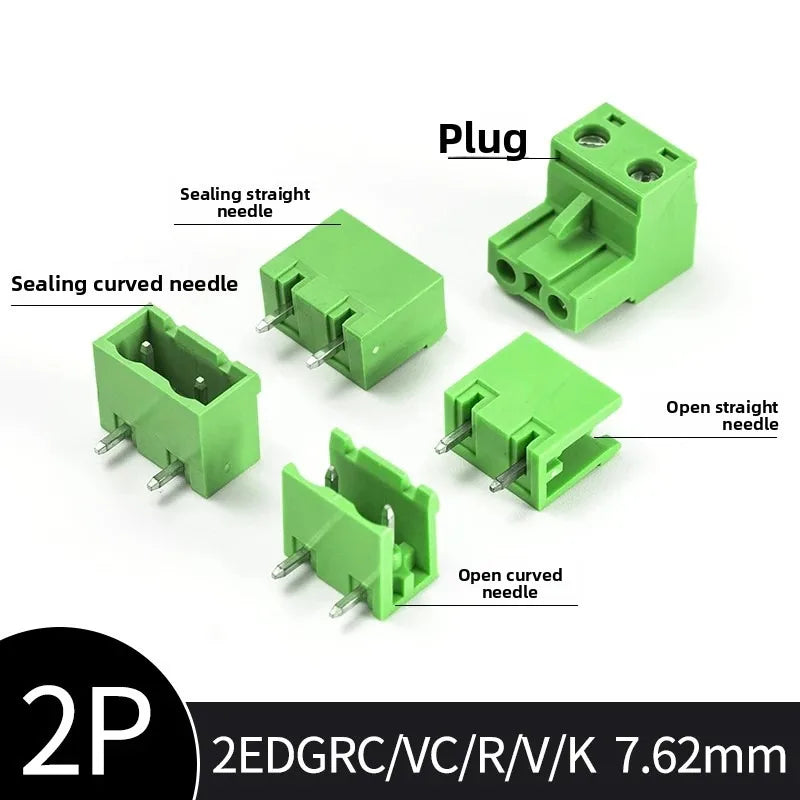

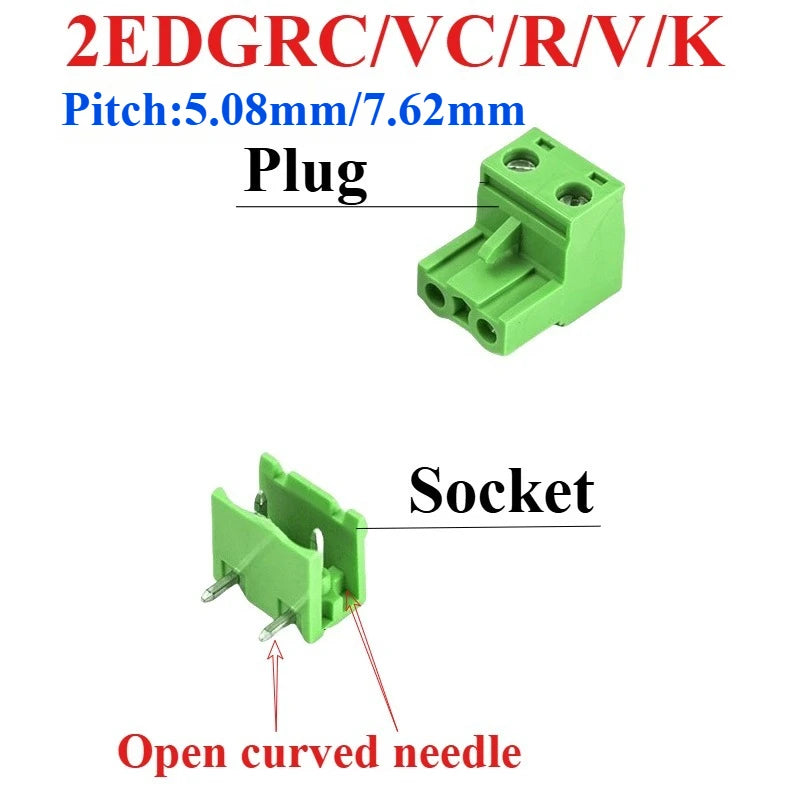

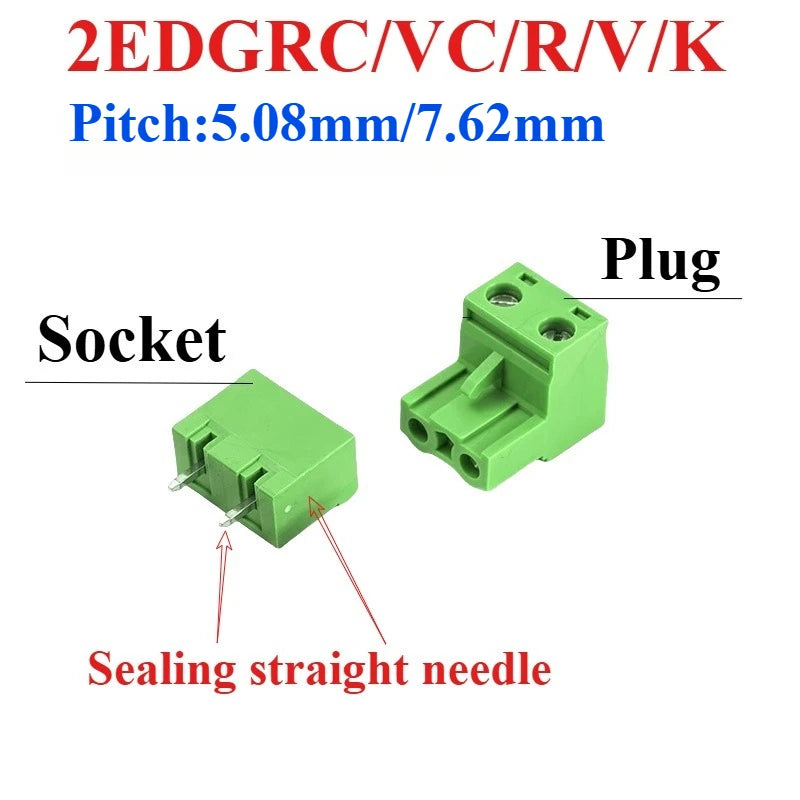

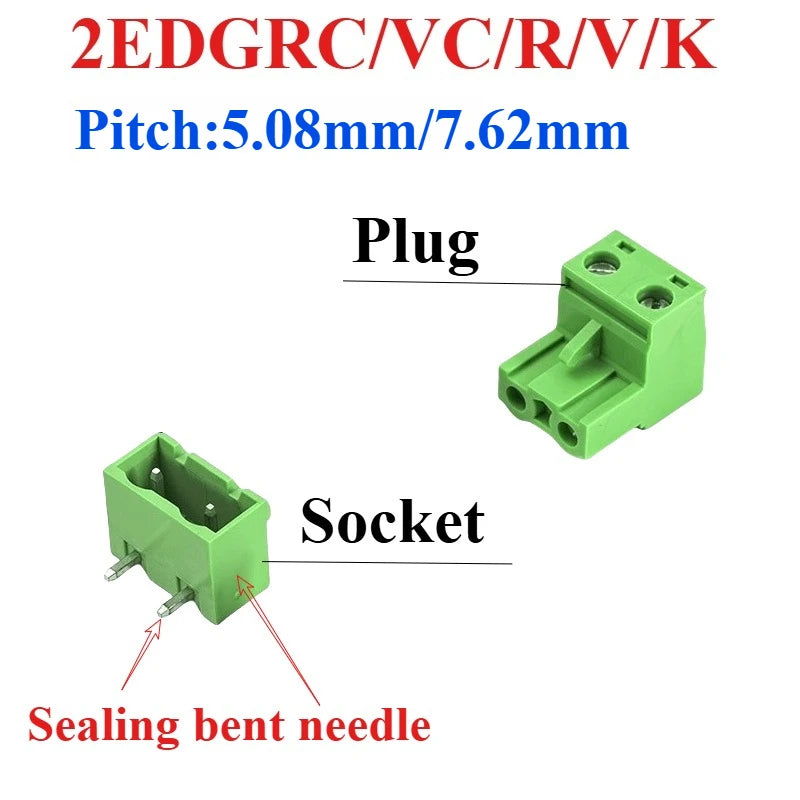

• Male & Female Pairs: Includes straight and curved (right-angle) needle socket options for both male and female connectors.
• High Voltage & Current Rating: Rated up to 1000V and 20A — engineered for demanding low-voltage applications (below 50Vac / 75Vdc EU LVD compliant).
• Supply Voltage: Compatible with supply voltages up to 300V.

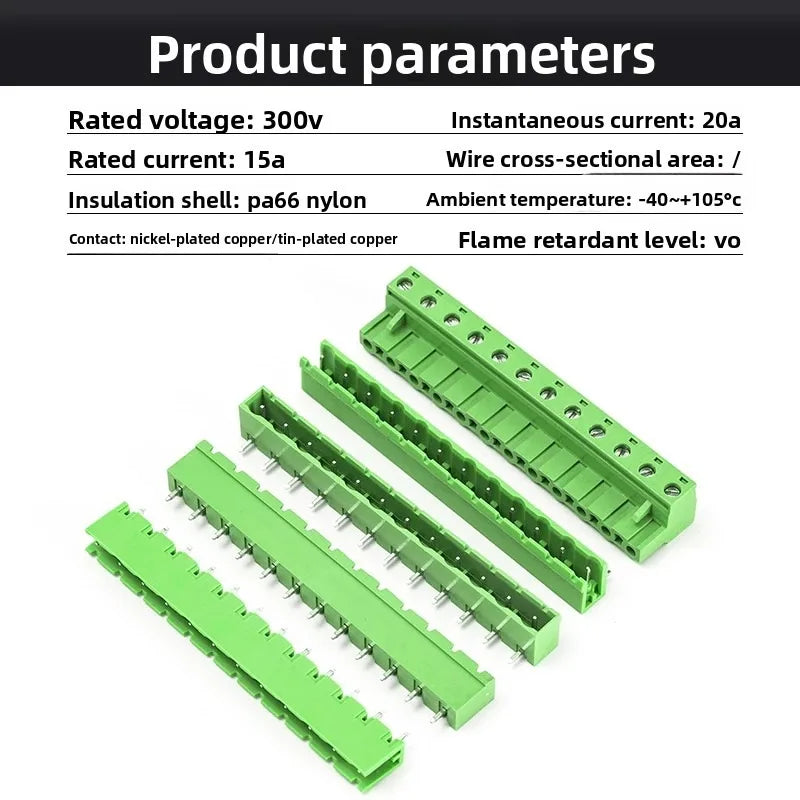

• PA66 Insulation: High-grade polyamide (PA66) insulation material ensures excellent heat resistance, dimensional stability, and long-term durability.
• Certified Quality: CE and RoHS certified — no high-concern chemicals, safe for professional and hobbyist use alike.
• Secure & Reliable Connection: Screw-clamp design locks wires firmly in place, minimizing accidental disconnection.
• No Battery or Wireless Module: Pure passive connector — plug-and-play simplicity for your circuits.

Specifications

What's in the Box

• 2 sets of PCB terminal block connectors (male + female pairs, straight & right-angle options)
• Available in 5.08mm and 7.62mm pitch

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the difference between the 5.08mm and 7.62mm terminal blocks?

A: The pitch measurement refers to the center-to-center spacing between each pin on the terminal block. The 5.08mm pitch is more compact and suited for boards with tighter component spacing, while the 7.62mm pitch is better for applications requiring heavier gauge wires or more current-handling capacity. Both are included in this 2-set kit.

Q: Are these terminal blocks compatible with standard PCB designs?

A: Yes. The 2EDG series 5.08mm and 7.62mm terminal blocks follow widely used standard footprints found in many commercial and hobbyist PCB designs. Both male plug and female socket (straight and right-angle) variants are included for maximum compatibility.

Q: What wire gauge is compatible with these connectors?

A: These terminal blocks are designed to accommodate a broad range of wire gauges suitable for their 20A / 1000V rating. Typically, AWG 12–28 wire sizes are compatible depending on the specific connector variant. Refer to your specific pin-count datasheet for precise wire gauge specifications.

Q: Are these connectors safe for industrial use?

A: Yes. These connectors are CE and RoHS certified with PA66 insulation, rated to 1000V and 20A, making them suitable for a wide range of industrial and professional electronics applications within the EU LVD low-voltage directive guidelines.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
