Black 304 SS Torx Pan Head Tamper-Proof Security Screws M3–M10

Black 304 Stainless Steel Six-Lobe Torx Pan Head Security Screws

Upgrade your fastening game with these premium black 304 stainless steel Torx (six-lobe) pan head security screws. Available with or without a centre pin for added tamper resistance, these bolts are ideal for furniture assembly, machinery, electronics enclosures, automotive trim, and any application where a secure, professional finish matters. The sleek black surface coating adds a stylish, modern look while providing extra corrosion resistance on top of the inherent durability of 304-grade stainless steel.

Made in Mainland China.

Key Features

• Material: 304 Stainless Steel — corrosion-resistant, strong, and long-lasting
• Drive Type: Six-Lobe Torx (Star) — with or without security pin
• Head Style: Pan / Round Button Head — low-profile, clean finish
• Surface Finish: Black — adds a modern look and extra corrosion protection
• Sizes Available: M3, M4, M5, M6, M8, M10
• Thread Pitches: 0.5 mm (M3) · 0.7 mm (M4) · 0.8 mm (M5) · 1.0 mm (M6) · 1.25 mm (M8) · 1.5 mm (M10)
• Tamper-Proof Design: Pin-in-Torx variant deters unauthorised removal
• Customisable: Available in a wide range of thread diameters and lengths (d × L, excluding head length)

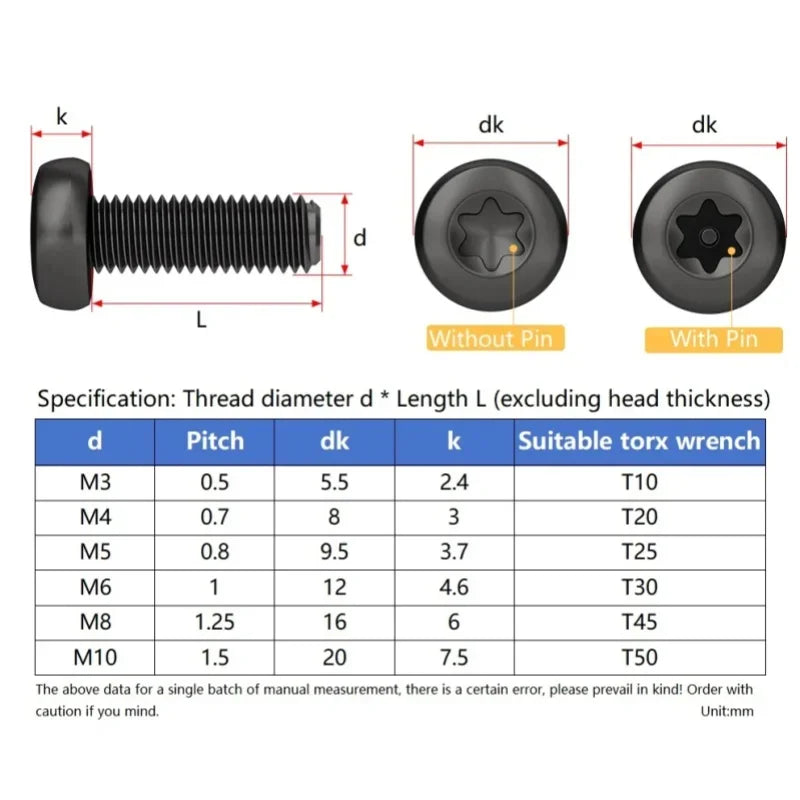

Specifications

What Is a Torx (Six-Lobe) Security Screw?

Torx screws feature a star-shaped six-point drive that distributes torque evenly, reducing cam-out and stripping compared to Phillips or slotted drives. The pin-in-Torx variant adds a centre post inside the recess, requiring a special bit to drive or remove the screw — making it an excellent choice wherever tamper resistance and security are priorities.

Common Applications

• Furniture and cabinetry assembly
• Electronic enclosures and panel mounting
• Automotive interior trim and accessories
• Machinery, industrial equipment, and tooling fixtures
• Access panels, kiosks, and public installations requiring tamper resistance

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between a standard Torx screw and a Torx screw with a pin?

A: A standard six-lobe Torx screw can be driven with any compatible T-star bit. The pin version has a small post in the centre of the recess, which means a standard Torx bit will not fit — you need a special hollow-tip security Torx bit. This makes the pin version far more tamper-resistant and ideal for public-facing or high-security installations.

Q: How do I choose the right size? What does "M4×20" mean?

A: The "M" denotes metric thread. The number after "M" is the thread diameter in millimetres (e.g. M4 = 4 mm diameter). The second number is the shank length in millimetres, not including the head. So M4×20 means a 4 mm diameter screw with a 20 mm threaded shank. Measure your hole depth and select accordingly.

Q: Are these screws suitable for outdoor use?

A: Yes. The 304 stainless steel construction provides excellent corrosion resistance for most outdoor environments. The black surface coating adds an additional layer of protection. For heavily marine or salt-spray environments, 316 stainless steel would be recommended instead.

Q: Can I get custom lengths?

A: Yes — these screws are available in customised length options. Please select the thread diameter (M3–M10) and desired length when placing your order, or contact the store for custom requirements.
