Brass 90-Degree Compression Tube Elbow Fitting – Male Thread Adapter
Upgrade your pneumatic, hydraulic, or lubrication pipelines with this precision-engineered 90-degree brass compression elbow fitting. Designed for fast, tool-free installation, this male-thread connector delivers a reliable right-angle connection for hard copper or nylon tubing — no adhesives, no fuss.
Key Features
- Solid Forged Brass Construction: Polished finish provides excellent rust resistance, making it suitable for air, oil, hydraulic fluid, and refrigerant transmission systems.

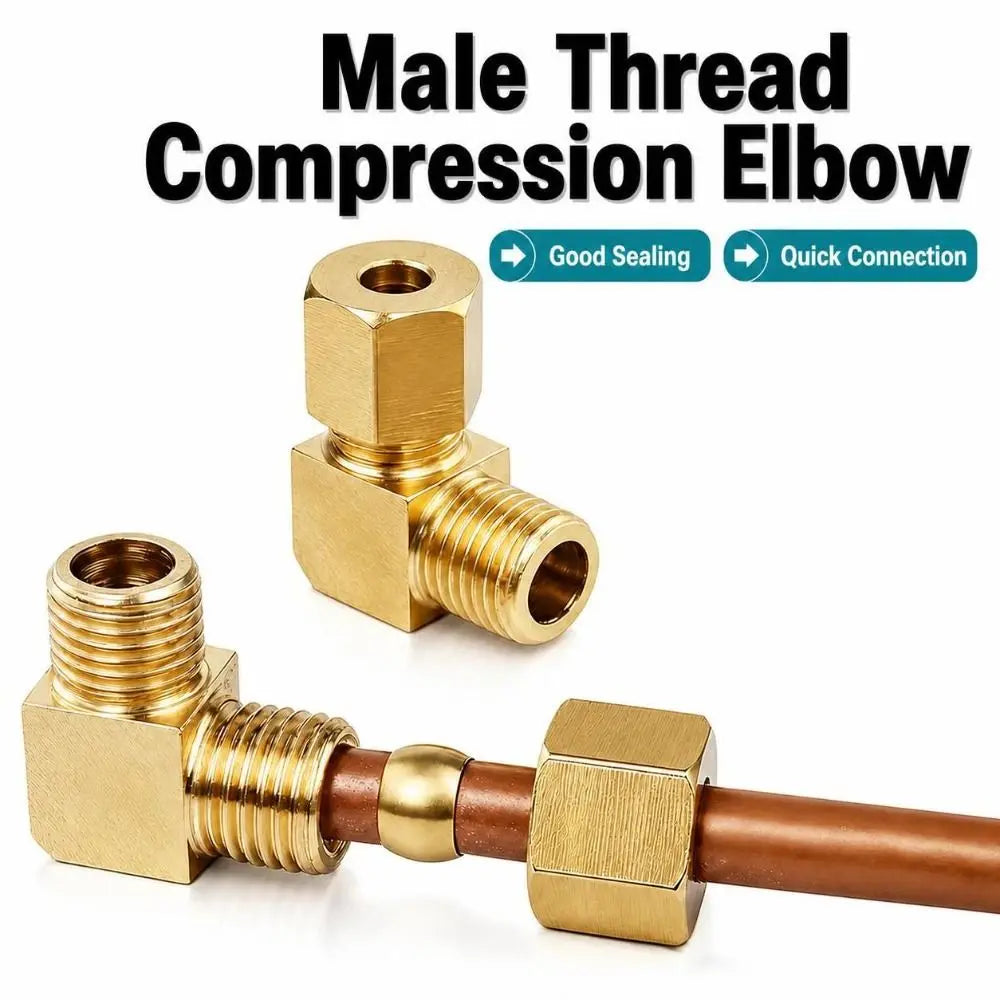

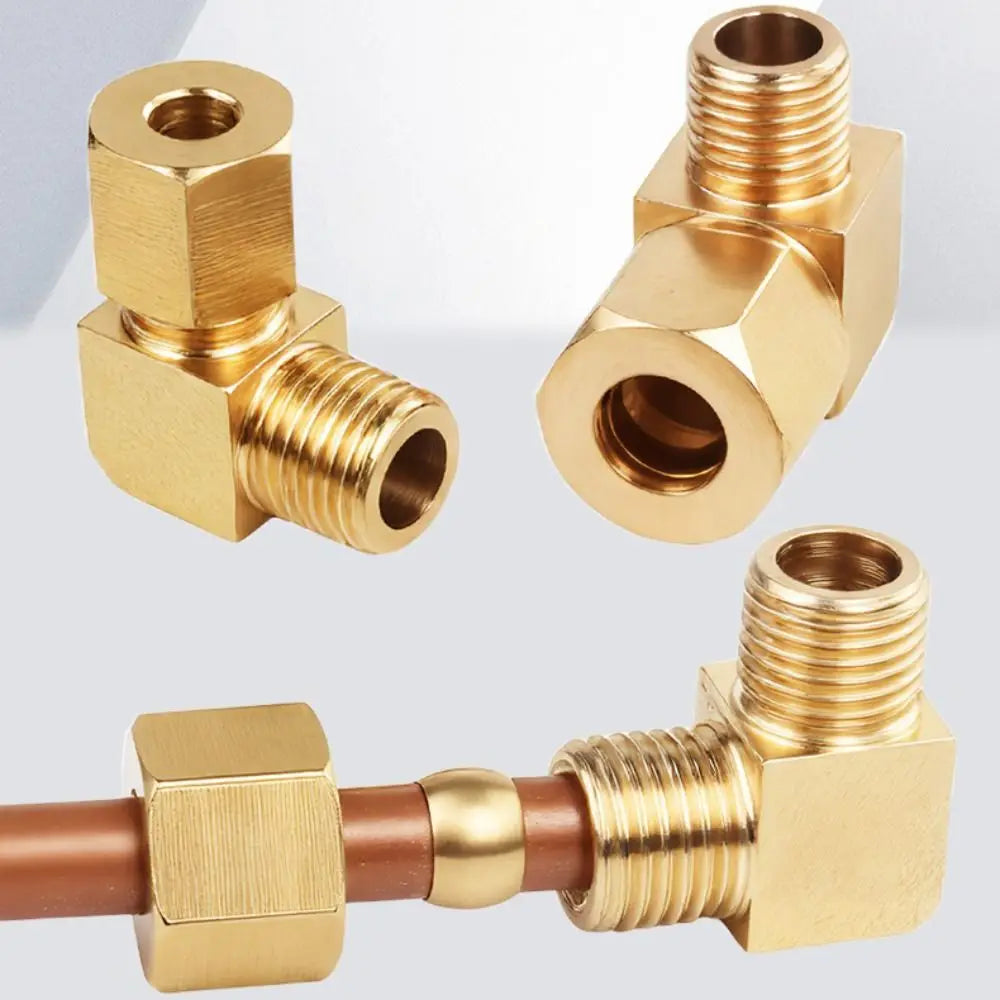

- 90-Degree Elbow Design: Male external thread on one end and a compression fitting on the other, enabling clean right-angle pipeline turns for hard tubes.
- Compression Ferrule Sealing: No adhesive required — the ferrule creates a tight, leak-free seal even under high pressure (<850 kPa) and vibration conditions.

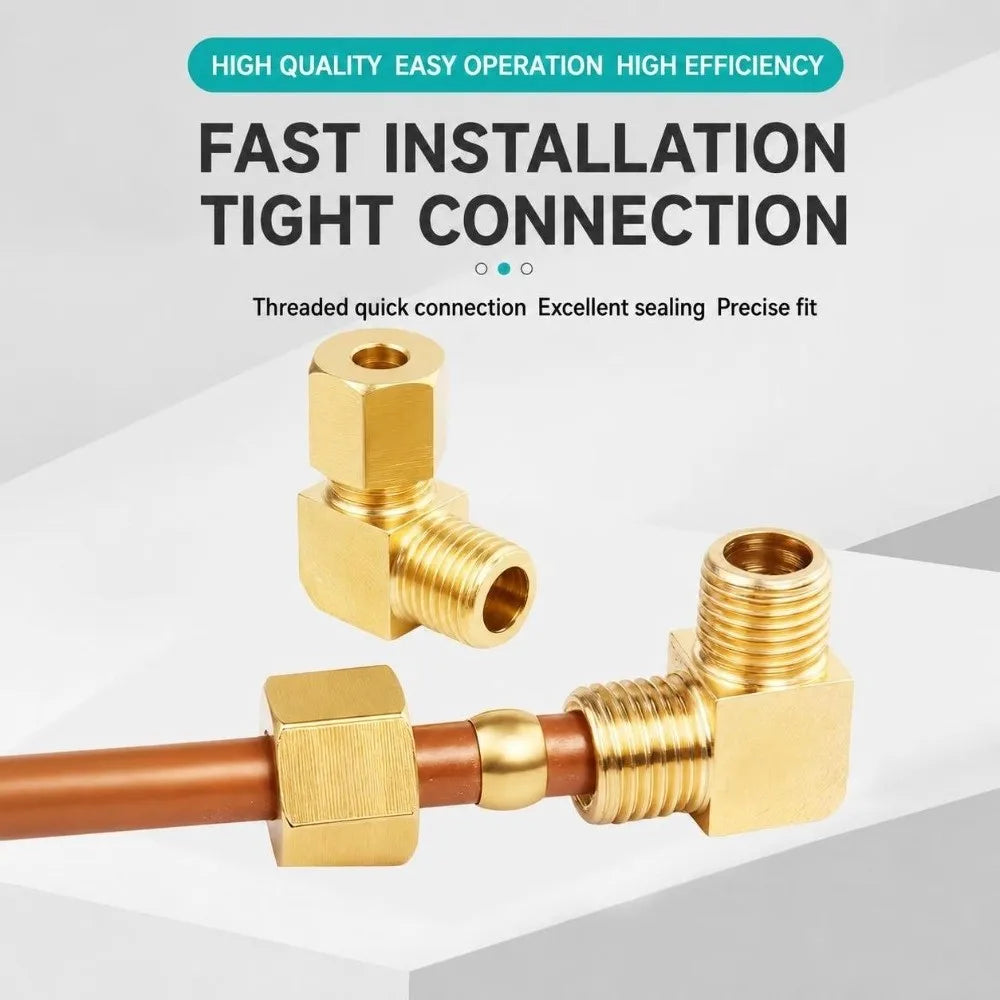

- Quick & Easy Installation: Simply insert your copper or nylon tube and tighten the nut — locks the pipe firmly for rapid assembly and disassembly without special tools.
- Versatile Application: Ideal for air compressors, machine lubrication lines, hydraulic equipment, refrigeration piping, and industrial pneumatic circuits.

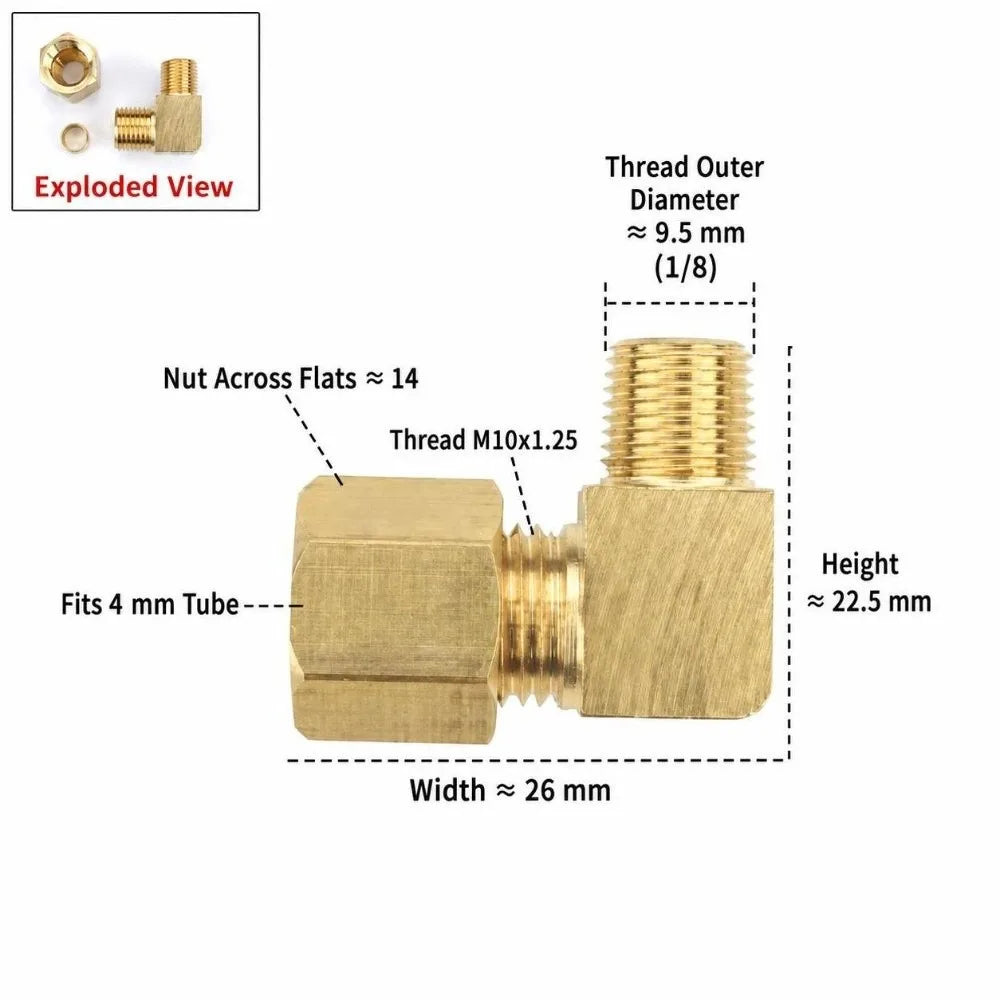

Specifications
| Material | Solid Forged Brass (Alloy) |
| Connection Type | Compression + Male External Thread |

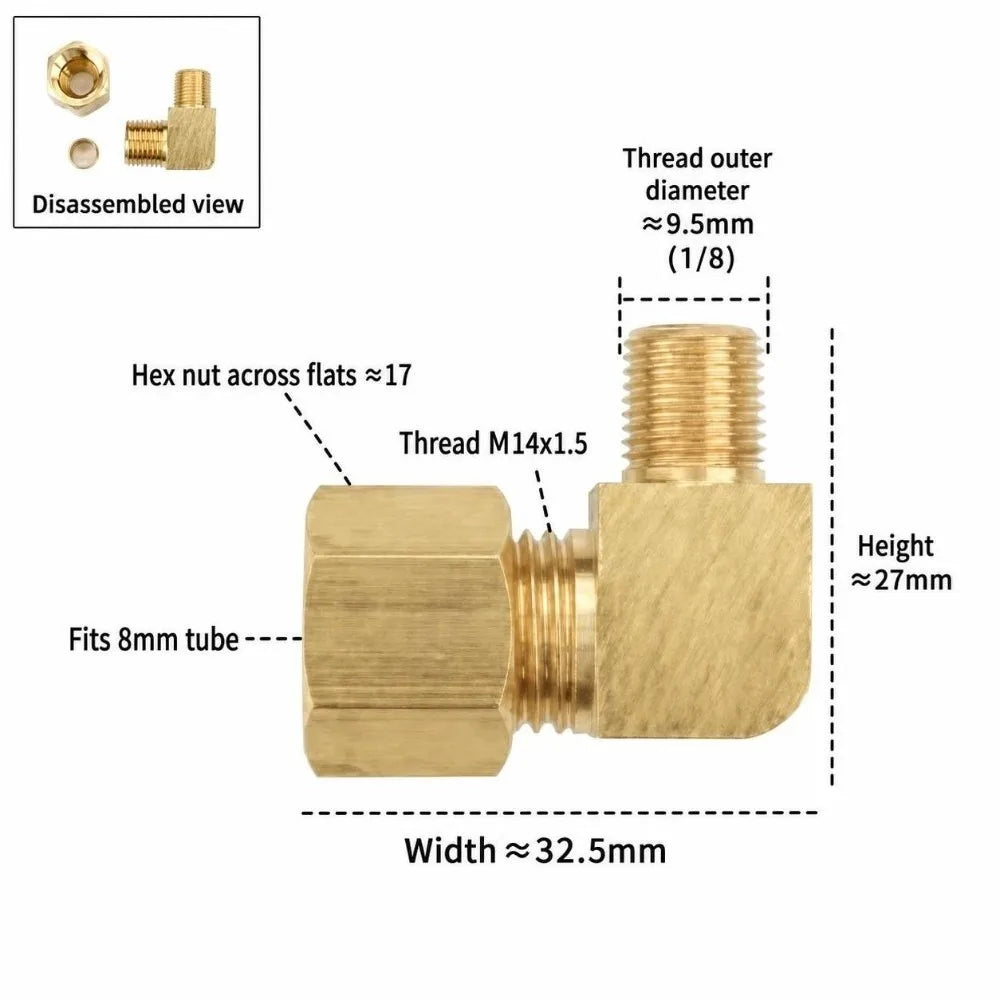

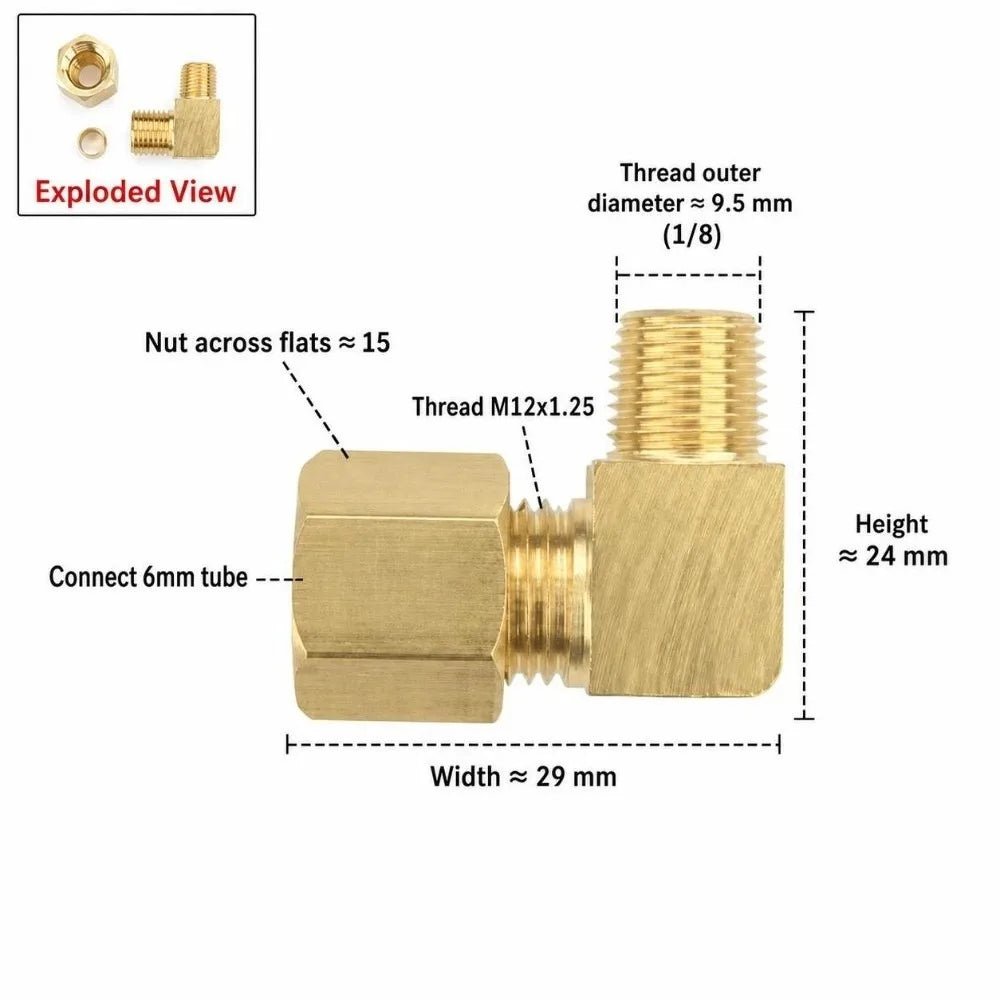

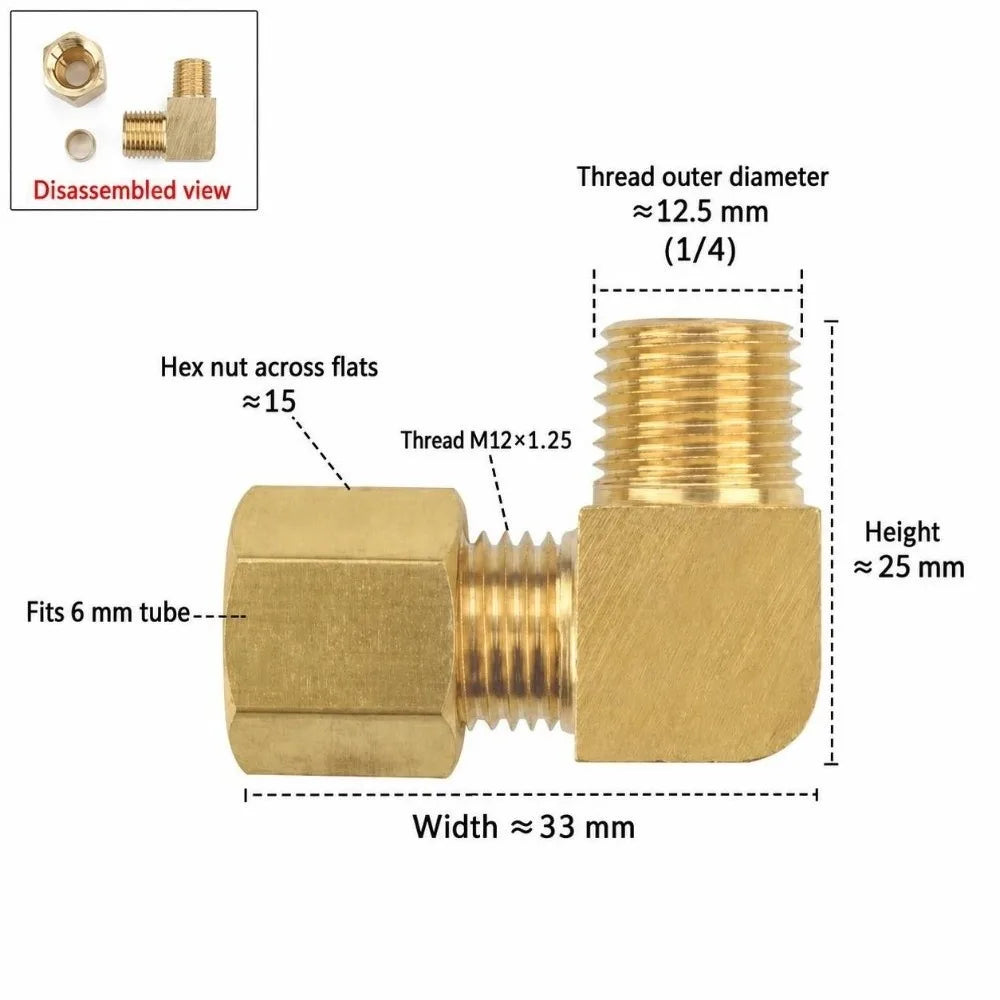

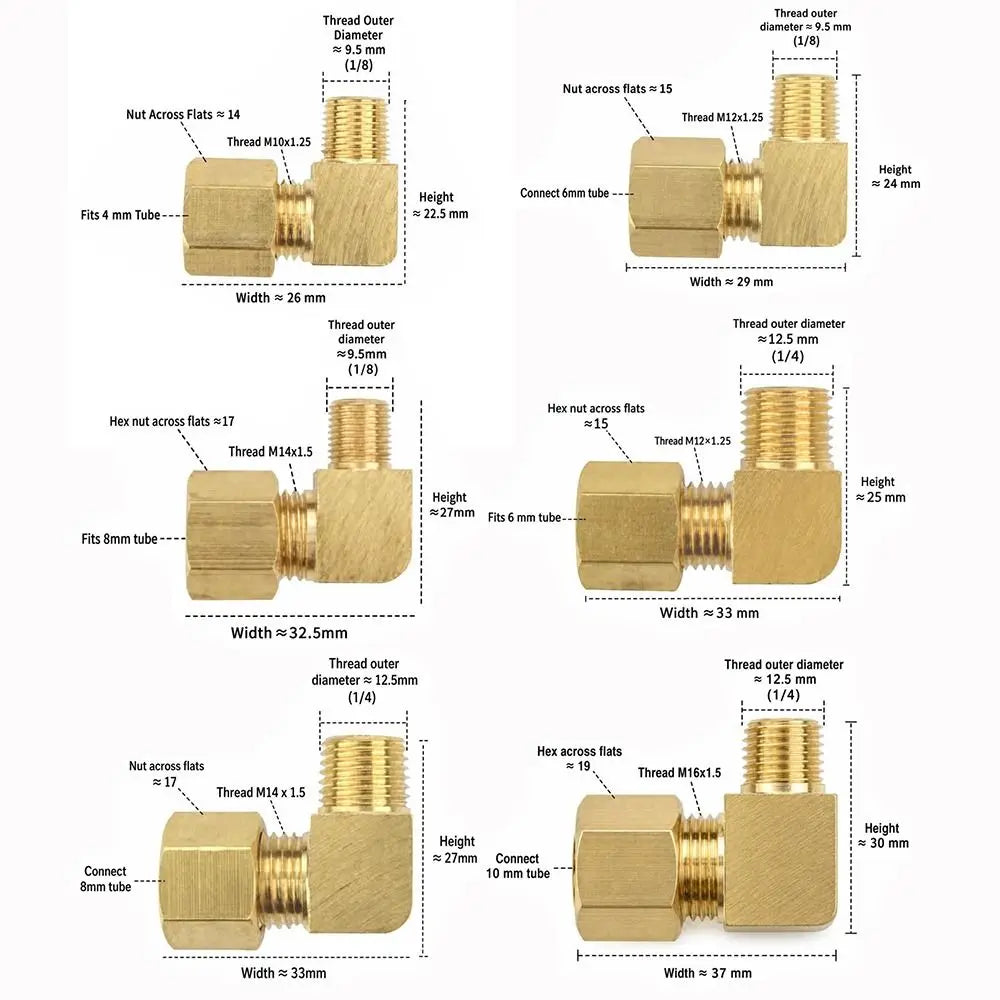

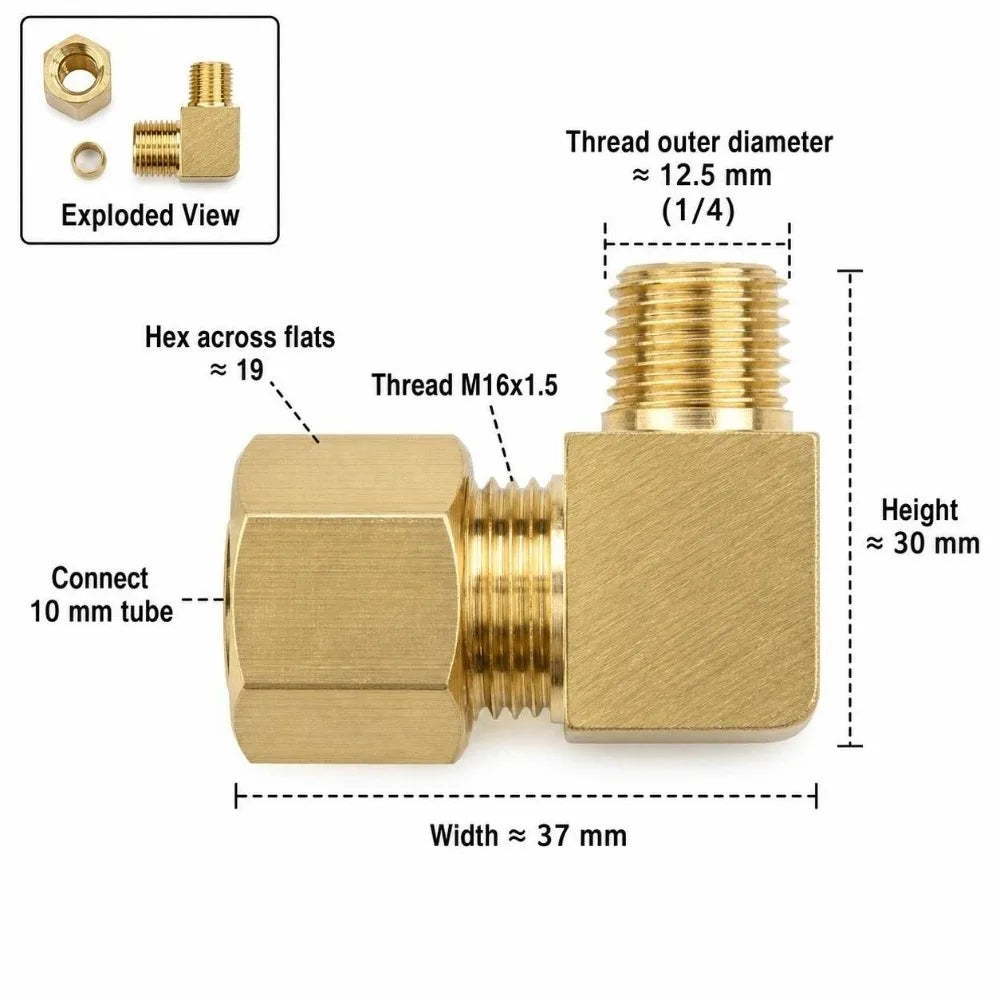

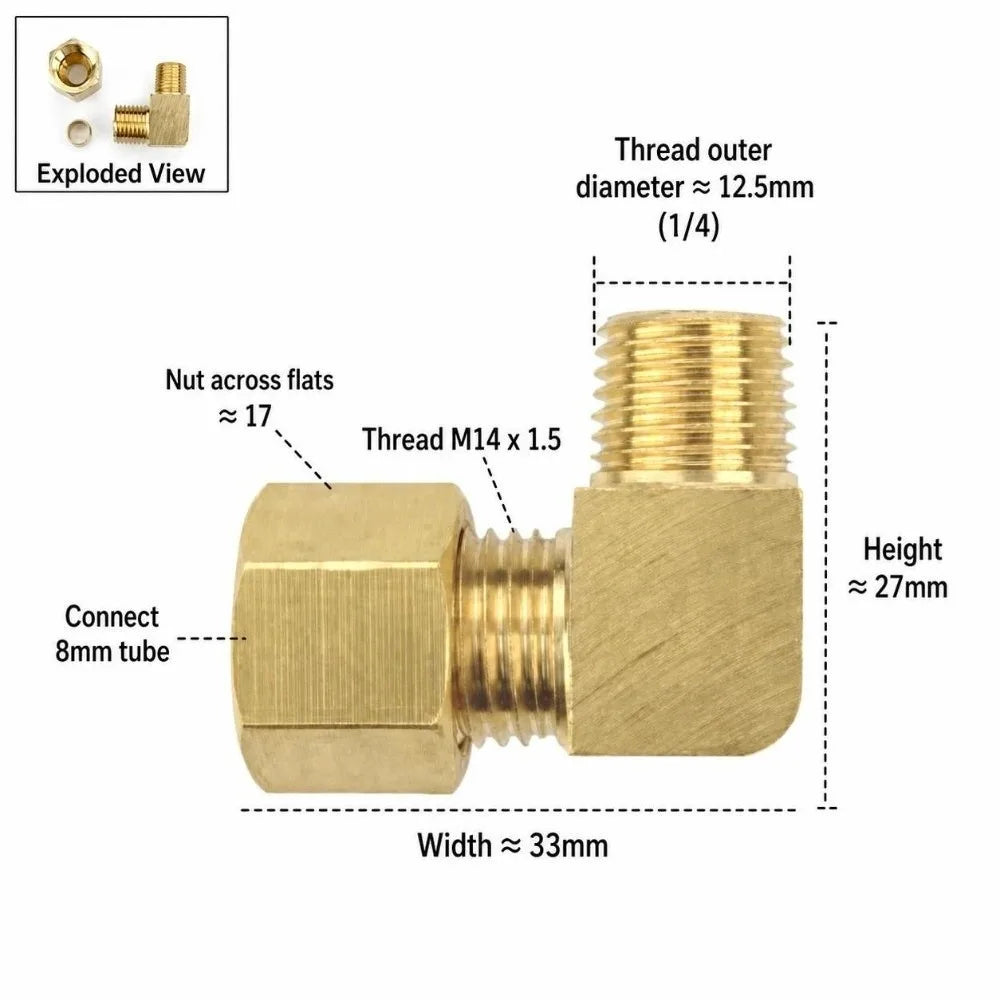

| Thread Sizes | 1/4" & 1/8" Male Thread |
| Angle | 90 Degrees |
| Max Pressure | <850 kPa |
| Compatible Tubing | Copper / Nylon Hard Tube |
| Finish | Polished |
| Country of Origin | Made in China |
What's in the Package
- 1 × Brass 90° Compression Tube Elbow Fitting
Related Products You May Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder Wheel
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What tube sizes is this brass compression elbow fitting compatible with?
A: This fitting is designed for hard copper or nylon tubing and is available in 1/4" and 1/8" male thread sizes, making it compatible with a wide range of standard pneumatic and hydraulic tube dimensions. Always verify your tube's outer diameter matches the selected fitting size before installation.
Q: Does this compression fitting require any sealant or adhesive?
A: No sealant or adhesive is needed. The built-in compression ferrule sealing structure creates a secure, leak-free connection simply by tightening the nut onto the tube. This makes installation and disassembly fast and clean, without messy compounds.
Q: What applications is this 90-degree brass elbow fitting suitable for?
A: This fitting is widely used in air compressors, machine lubrication lines, hydraulic equipment, refrigeration piping, and industrial pneumatic circuits. Its solid brass construction makes it durable and resistant to rust in demanding environments involving air, oil, or hydraulic fluid.
