Contour Gauge Duplicator with Lock – 6 & 10 Inch Profile Copy Tool

Binoax Wider Contour Gauge Duplicator with Lock – 6 & 10 Inch

Achieve flawless curved cuts and custom templates every time with the Binoax Wider Contour Gauge Duplicator. Whether you're fitting flooring, tiling around pipes, trimming laminate, or crafting custom woodwork, this professional-grade profile shape copy tool makes tracing irregular contours fast, accurate, and effortless. Available in both 6-inch and 10-inch sizes, the wider design captures more detail in a single pass — saving you time and reducing material waste.

Key Features

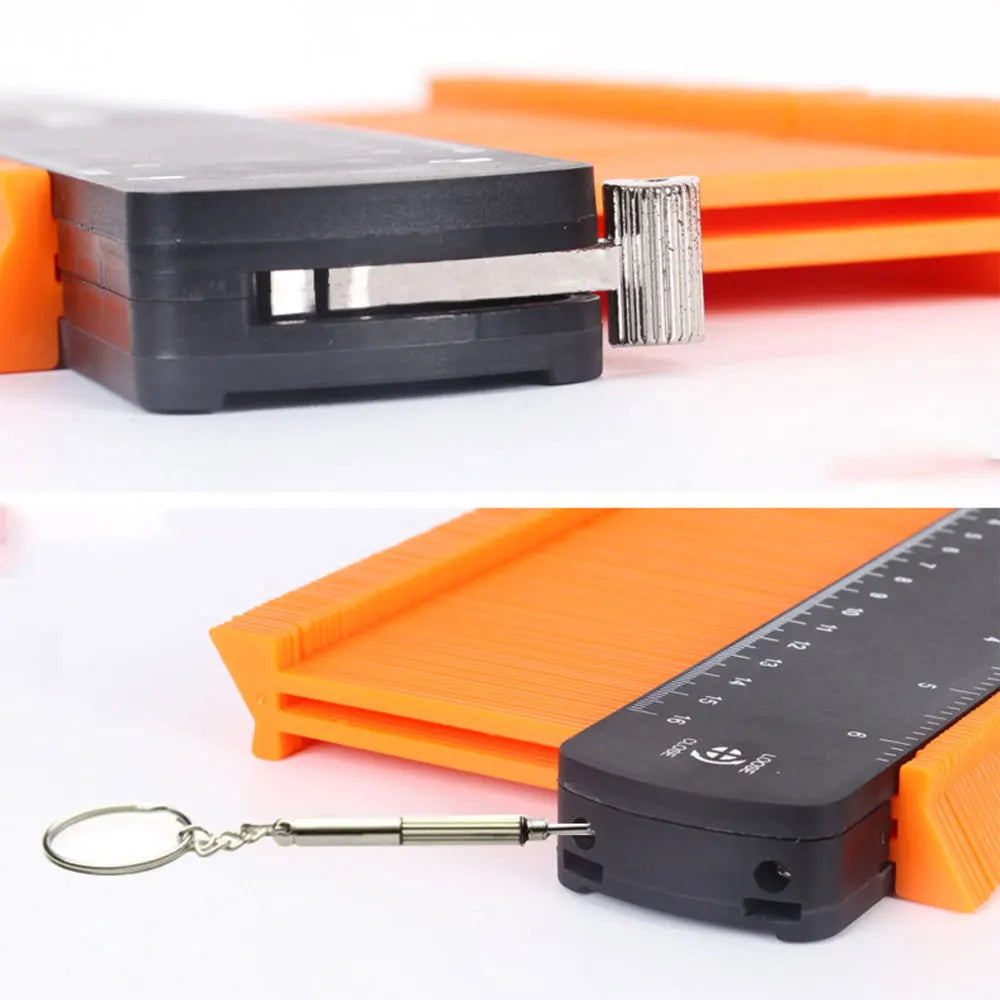

• Locking Mechanism: Securely locks the traced profile in place so you can transfer the exact shape to your workpiece without slippage.
• Wider Profile Design: Captures a broader contour compared to standard gauges, ideal for larger surfaces and complex curves.

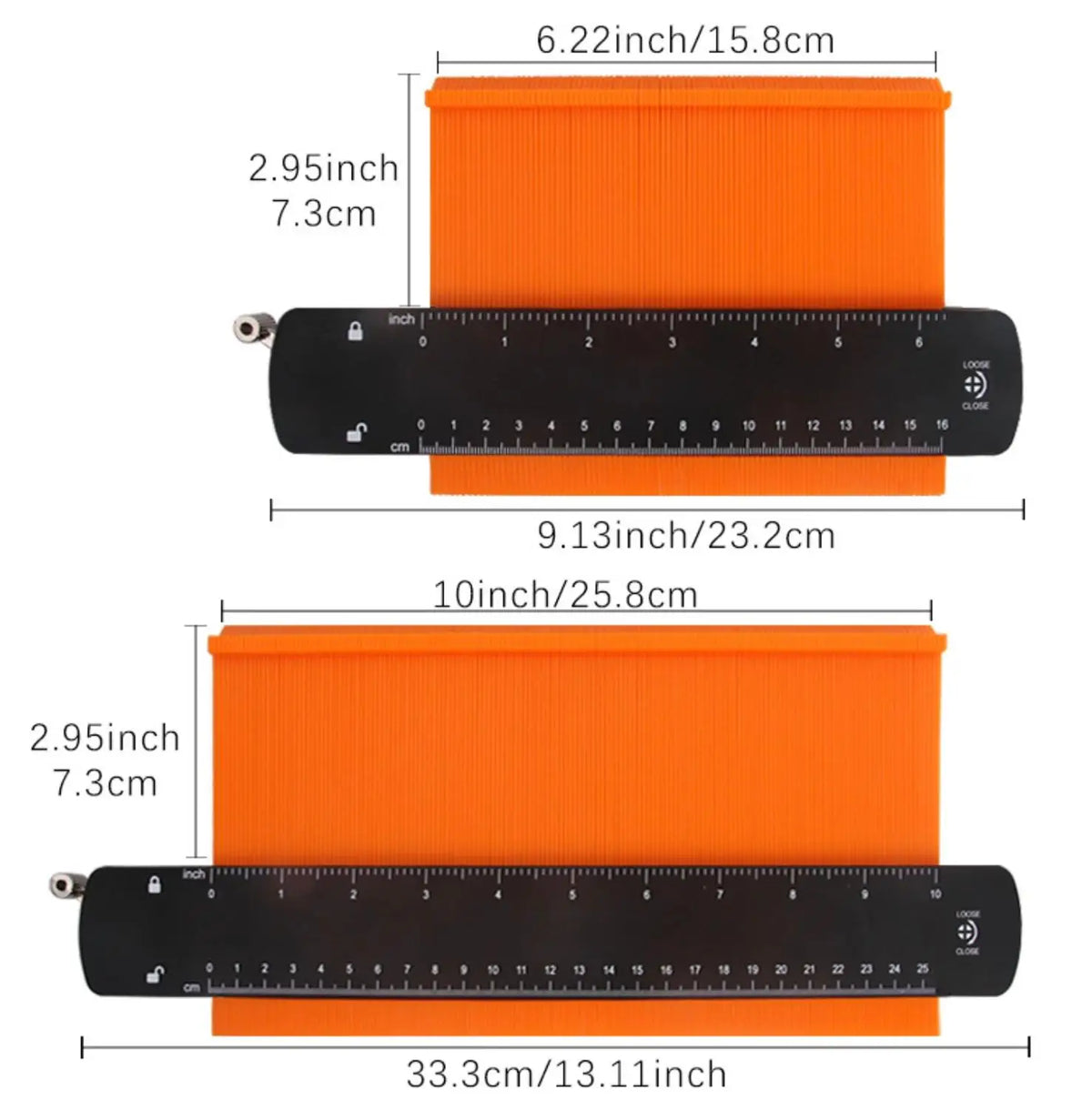

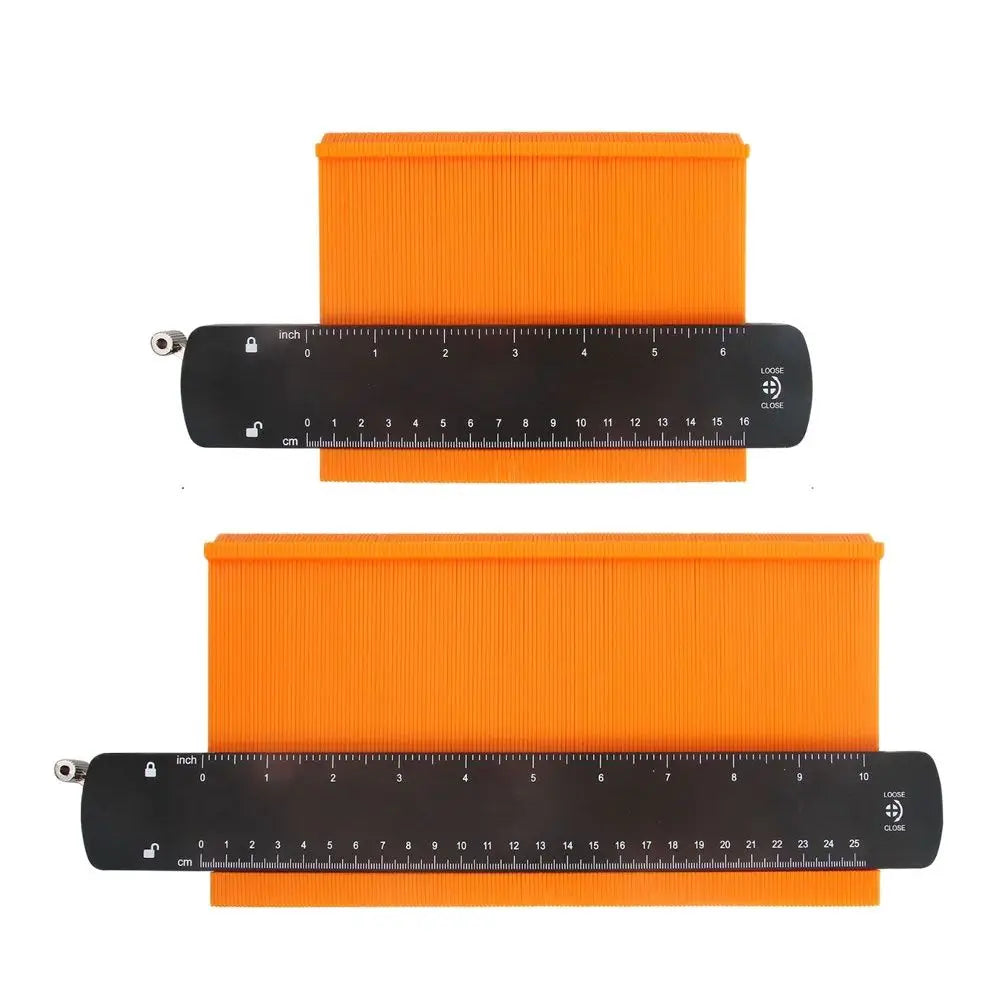

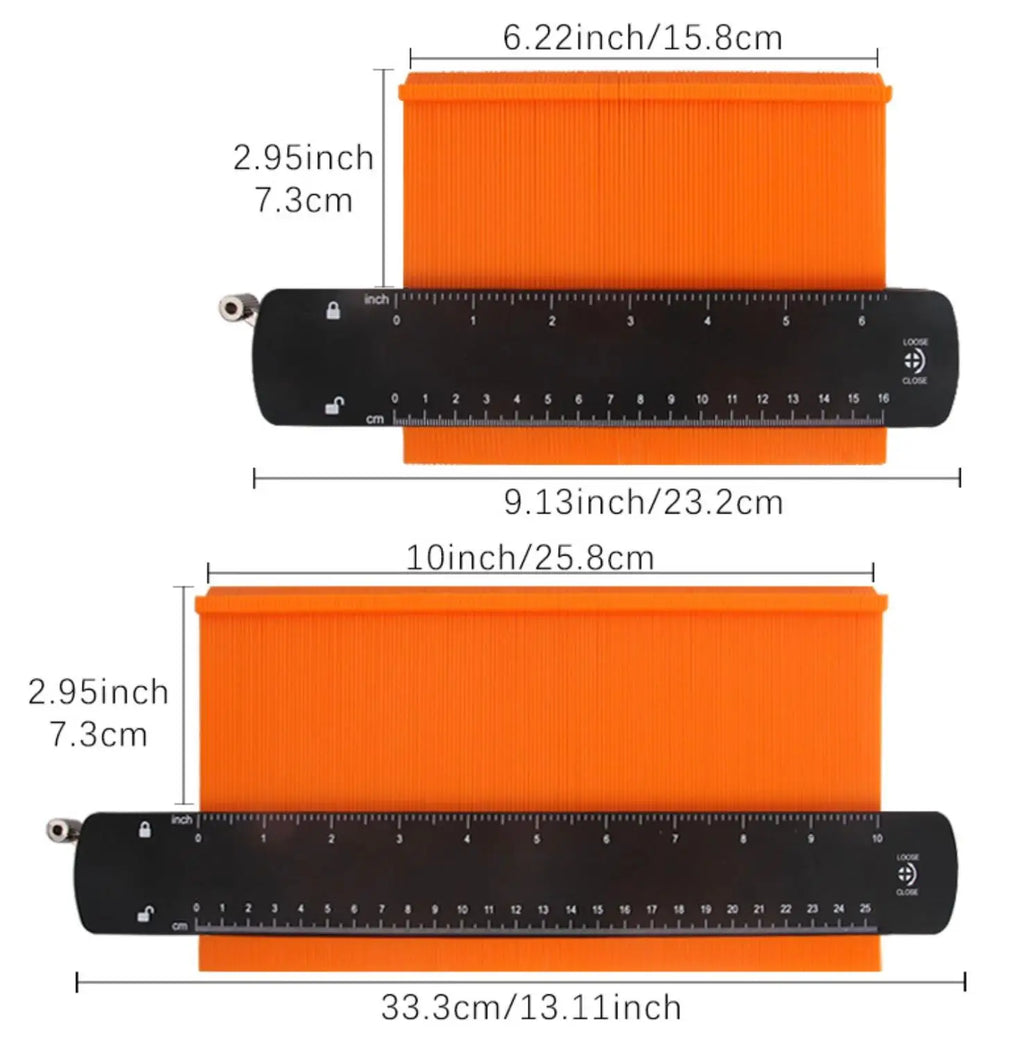

• Two Size Options: Choose the 6-inch for detail work or the 10-inch for wider profiles and longer spans.
• Durable Construction: Built with CE-certified materials — no high-concern chemicals — for long-lasting, reliable performance.
• Versatile Use: Perfect for woodworking, flooring installation, tile cutting, metalworking, and DIY home improvement projects.
• Easy to Use: Simply press the gauge against any irregular shape, lock the pins in position, and trace directly onto your material.

How It Works

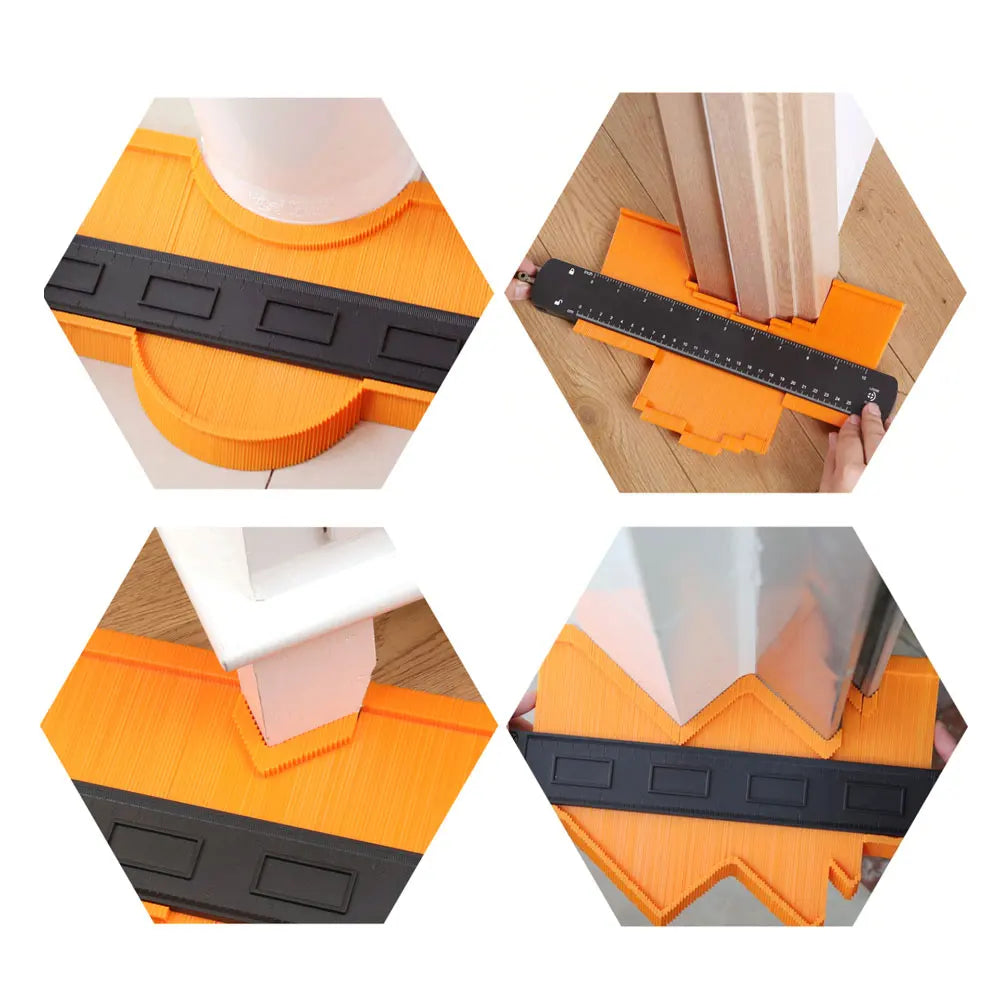

1. Press the contour gauge firmly against the surface or object you want to replicate.
2. Engage the lock to hold the pins firmly in their traced position.

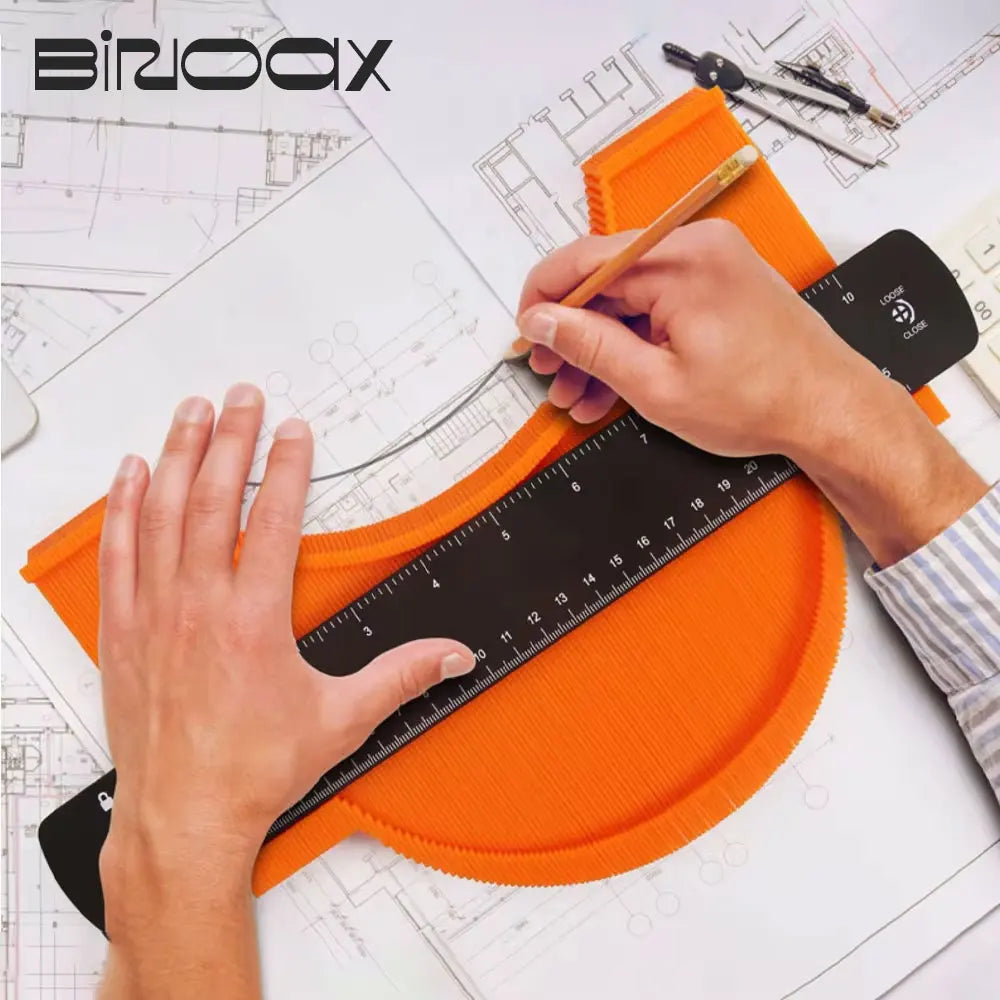

3. Place the gauge on your workpiece and trace the exact profile for a perfect-fit cut every time.

Specifications

Great For:

• Hardwood & laminate flooring installation
• Ceramic and porcelain tile fitting
• Carpentry and custom woodworking
• Pipe and cable routing templates
• Metalwork and fabrication
• Home renovation and DIY projects

Related Products You May Like

• 10/20mm Diamond Flat Grinding Wheel – Dry & Wet Use Heavy Duty Concrete Grinder Wheel
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is a contour gauge duplicator used for in woodworking and flooring?

A: A contour gauge duplicator is a profile shape copy tool that allows you to trace the exact outline of irregular surfaces — such as door frames, pipes, moldings, or tiles — and transfer that precise shape onto your material for a perfect-fit cut. It is widely used in woodworking, flooring installation, tiling, and general DIY projects.

Q: What is the difference between the 6-inch and 10-inch versions?

A: The 6-inch contour gauge is ideal for smaller, more detailed profiles and tight spaces, while the 10-inch version covers wider spans and larger surface contours in a single pass, making it better suited for broader floor planks, large tiles, or extended moldings.

Q: How does the locking mechanism work on this contour gauge?

A: Once you press the gauge pins against the surface to capture the desired profile, the built-in locking mechanism holds all the pins firmly in place. This prevents the shape from shifting while you transfer and trace the profile onto your workpiece, ensuring accuracy every time.

Q: Is the Binoax Contour Gauge Duplicator safe to use with all materials?

A: Yes. This tool is CE certified and contains no high-concern chemicals. It is safe for use across a wide variety of materials including wood, laminate, tile, metal, and more.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
