Double Diaphragm Disc Shaft Coupling – D56 L63 | 11–20mm Inner Diameter
The KANDE BEARINGS Double Diaphragm Disc Coupling (Model D56L63) is a precision-engineered flexible shaft coupling designed for stepper motors, ball screws, and high-accuracy power transmission applications. Machined from lightweight yet durable aluminium with stainless steel diaphragm elements, this coupling delivers exceptional torsional rigidity and transmission efficiency for CNC machines, robotics, and precision drives.
Made in Mainland China.
Key Features
- Concise, Rigid Structure: Simple design with tight connection points for easy assembly and disassembly in the field.
- High Torsional Rigidity: Enables precise rotational control of shafts, ideal for high-accuracy CNC and motion-control systems.
- Accurate Transmission: Delivers consistent, reliable speed transmission for precision machinery with minimal backlash.
- Stainless Steel Diaphragm: Tolerates eccentricity, angular deflection, and axial shaft deviation with excellent fatigue resistance over long service life.
- High Efficiency: Achieves up to 99.86% transmission efficiency, ideal for medium and high power drive applications.
- Wide Temperature Range: Operates reliably from –80°C to +300°C, performing safely in demanding industrial environments.
Specifications
| Specification | Detail |
|---|---|
| Brand | KANDE BEARINGS |
| Model Number | D56L63 |

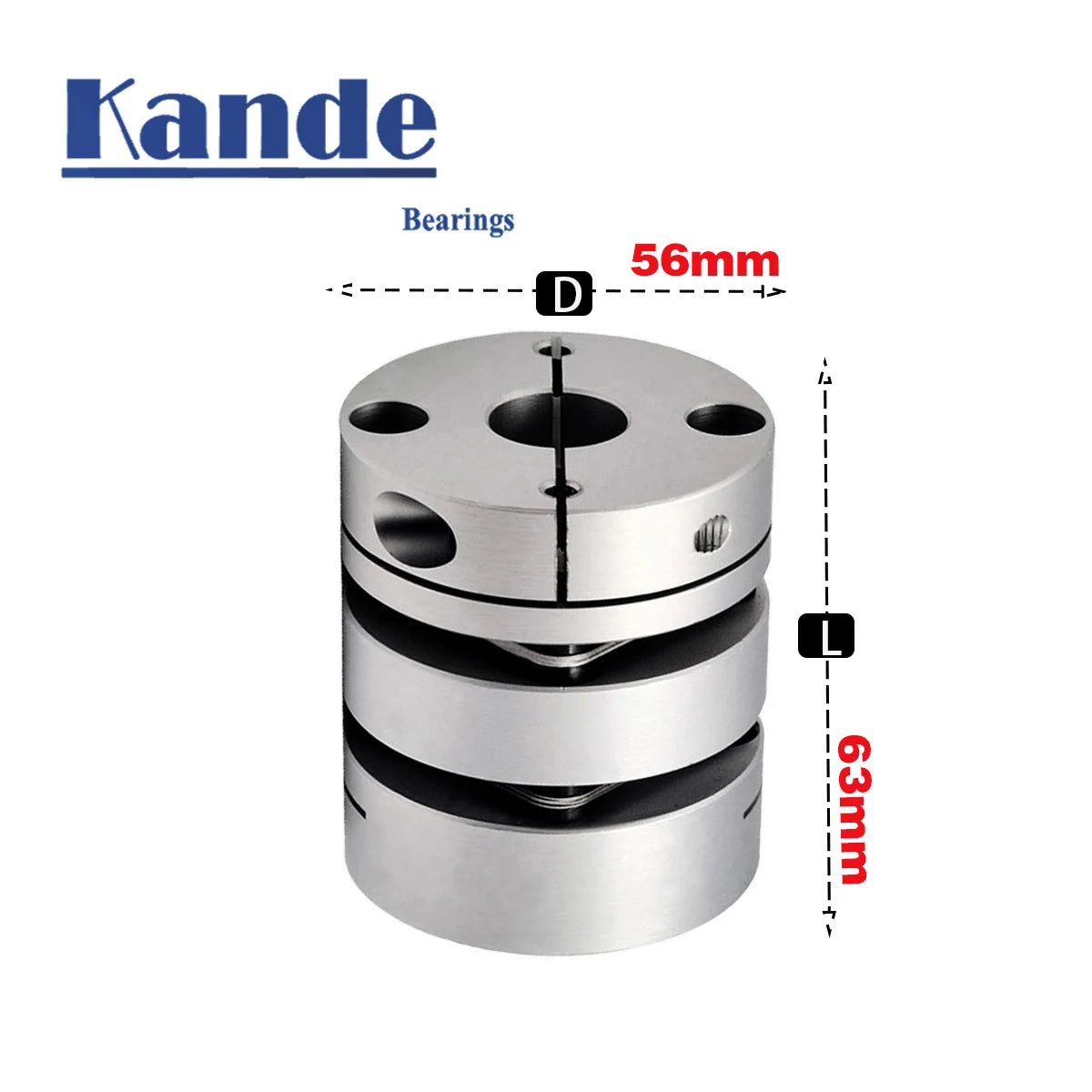

| Outer Diameter (D) | 56 mm |
| Length (L) | 63 mm |
| Inner Diameter (Bore) | 11–20 mm |
| Material | Aluminium body / Stainless Steel diaphragm |
| Type | Flexible – Double Diaphragm Disc |
| Transmission Efficiency | Up to 99.86% |
| Operating Temperature | –80°C to +300°C |
| Standard | Standard |
| Origin | Mainland China |
Applications
This coupling is well-suited for a wide range of precision mechanical and industrial uses, including:
- CNC machine tools and machining centers
- Stepper motor and servo motor drive systems
- Ball screw and lead screw assemblies
- Robotics and automation equipment
- Medium and high power drive shafts
Related Products
Also check out these useful tools and hardware items from our store:
- 10/20mm Diamond Flat Grinding Wheel – Dry and Wet Use Heavy Duty
- 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What bore sizes are compatible with the D56L63 double diaphragm disc coupling?
A: The D56L63 double diaphragm shaft coupling accommodates inner diameters (bore sizes) ranging from 11 mm to 20 mm, making it versatile for a variety of stepper motor shafts and ball screw spindles in that range.
Q: What makes a double diaphragm disc coupling different from a standard flexible coupling?
A: A double diaphragm disc coupling uses two stainless steel diaphragm elements to simultaneously handle eccentricity, angular misalignment, and axial deviation while maintaining very high torsional rigidity. This results in more precise motion transfer compared to jaw-type or bellows couplings, especially in high-accuracy CNC and motion-control systems.
Q: Can this coupling handle high-temperature industrial environments?
A: Yes. The D56L63 disc coupling is rated for an operating temperature range of –80°C to +300°C, allowing it to function reliably in demanding industrial and high-temperature drive applications without loss of performance.
Q: Is this coupling suitable for precision ball screw assemblies?
A: Absolutely. The high torsional rigidity and up to 99.86% transmission efficiency of this double diaphragm disc coupling make it an excellent choice for ball screw and lead screw assemblies where accurate, low-backlash torque transmission is essential.
