GEPRC TAKER F405 20A ELRS 2–4S AIO Flight Controller for Micro FPV Racing Drones

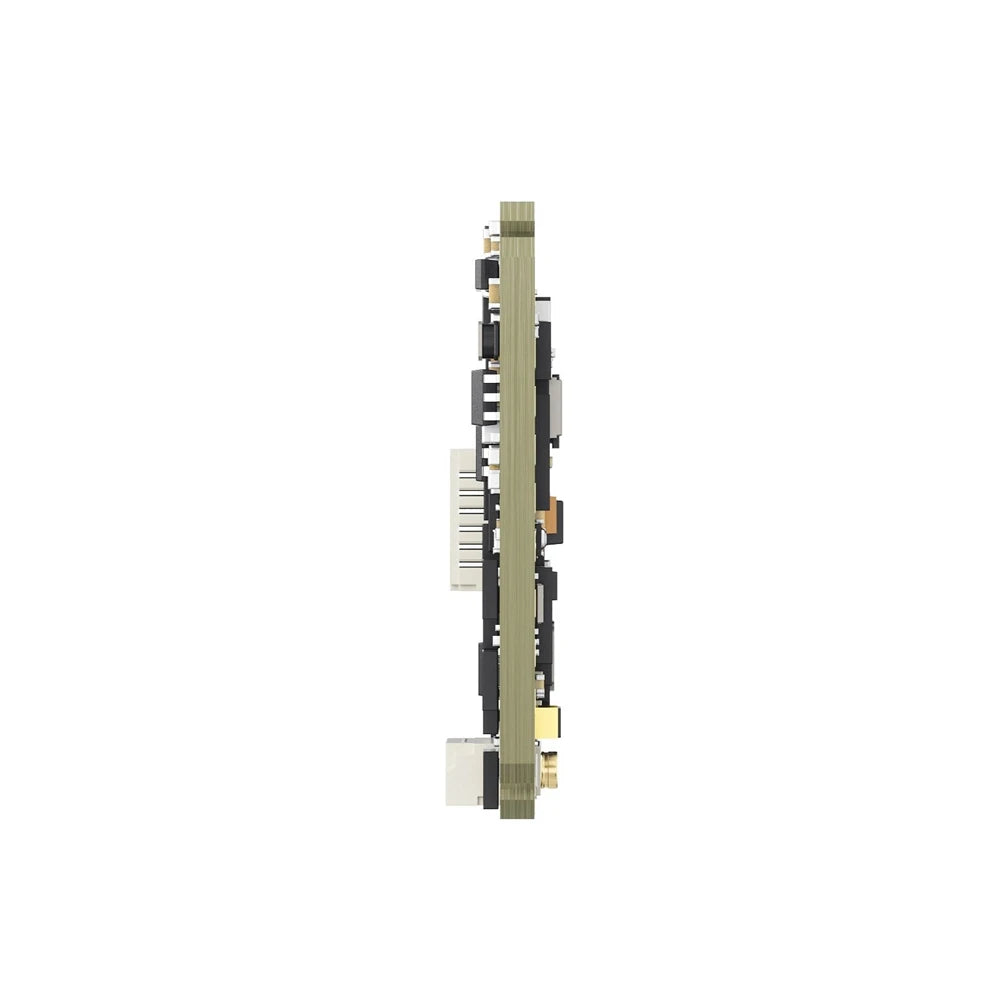

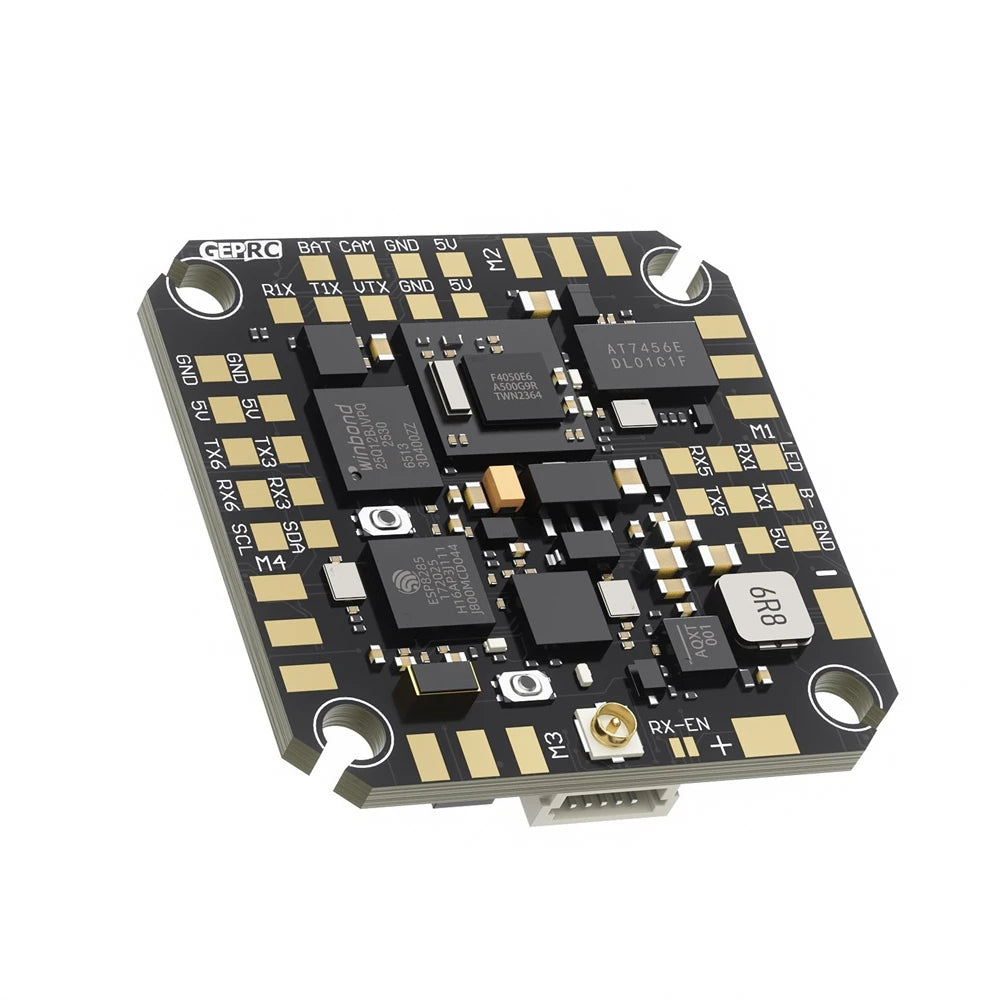

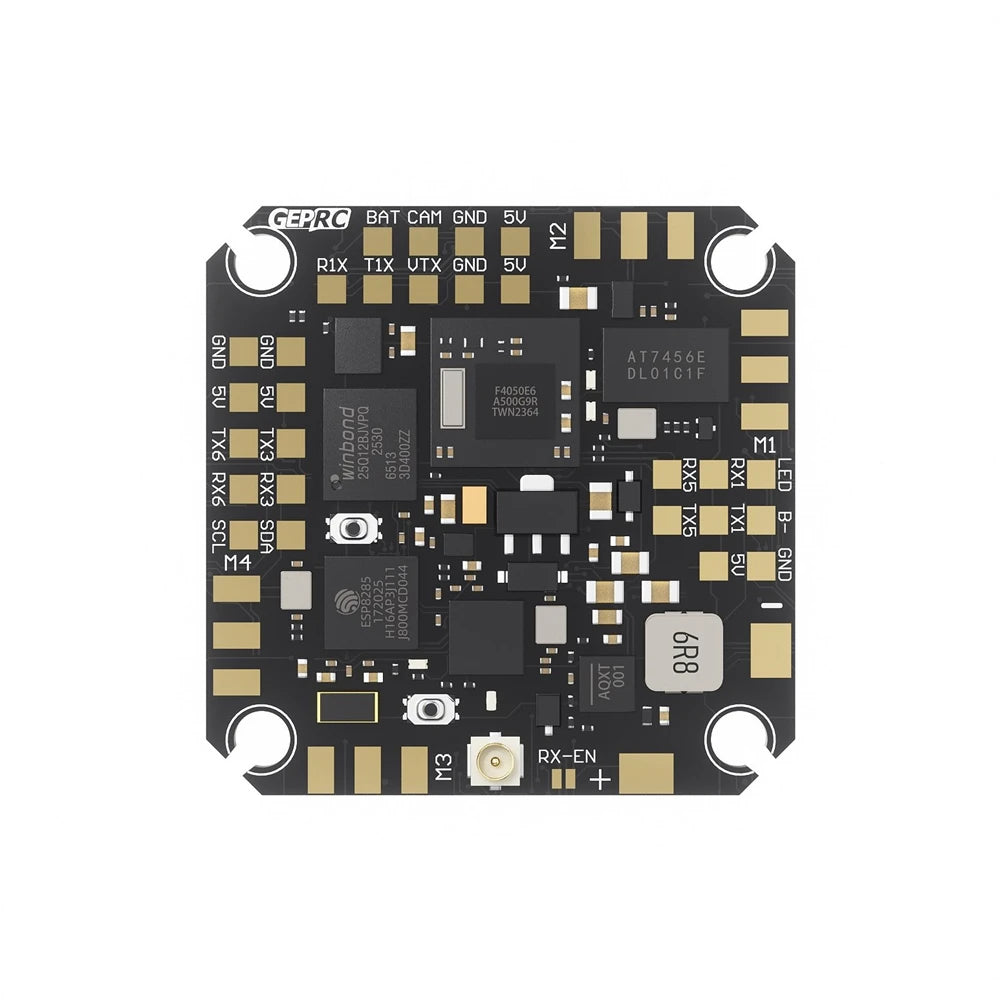

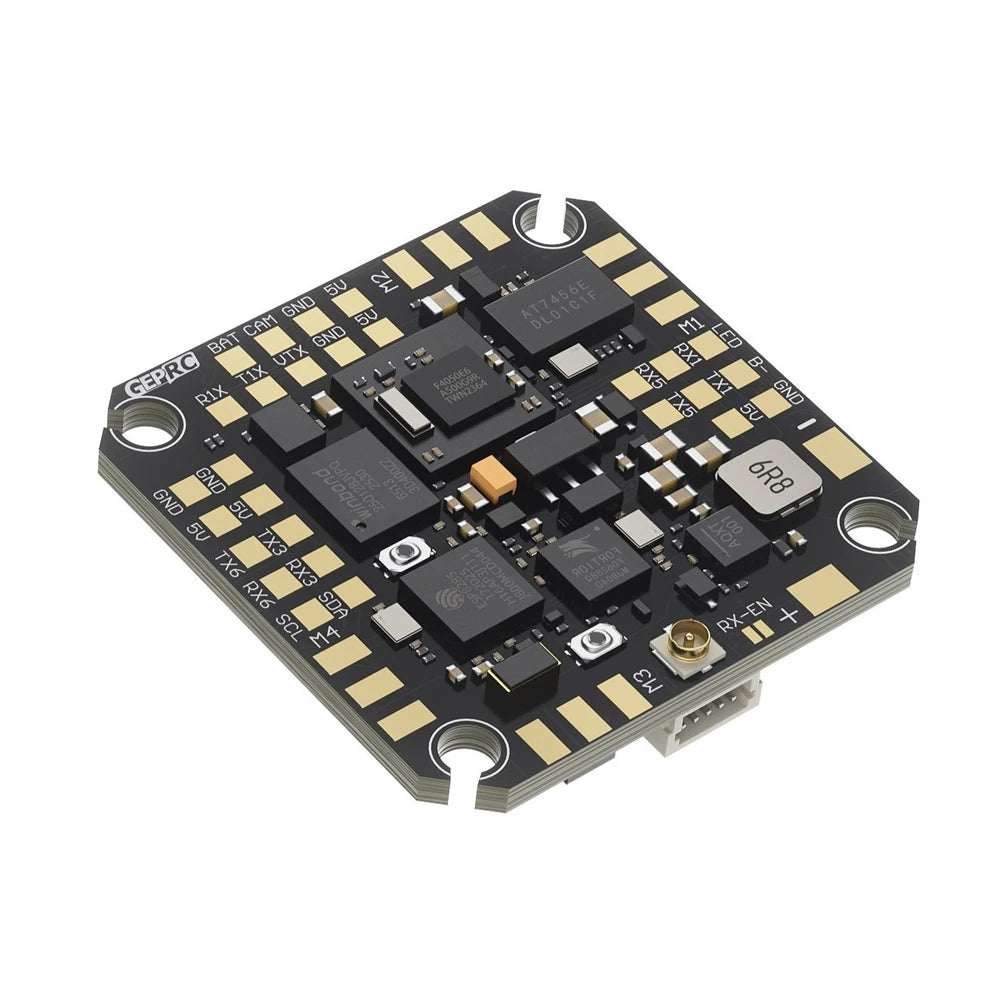

The GEPRC TAKER F405 20A ELRS 2–4S AIO is a powerhouse all-in-one flight controller and ESC stack engineered for 1.6-inch to 2.2-inch micro FPV racing drones. Combining the speed of the STM32F405 BGA MCU, the precision of the ICM42688-P gyroscope, and a built-in ELRS 2.4GHz receiver, this compact board delivers professional-grade performance in an ultra-lightweight 7g package.

Why Choose the GEPRC TAKER F405 20A AIO?

• All-in-One Design: FC and ESC integrated on a single 31.5×31.5mm board — cleaner builds, less wiring.
• Built-in ELRS 2.4GHz Receiver: No external receiver needed. Enjoy low-latency, long-range control straight out of the box.
• ICM42688-P Gyroscope (SPI): High-performance 6-axis IMU for accurate, responsive flight at high speeds.
• Bluejay ESC Firmware: Delivers smooth, refined throttle response and quiet motor operation — perfect for racing and freestyle flying.
• 5 Full UART Ports: Ample connectivity for GPS, VTX, telemetry, and more peripherals.

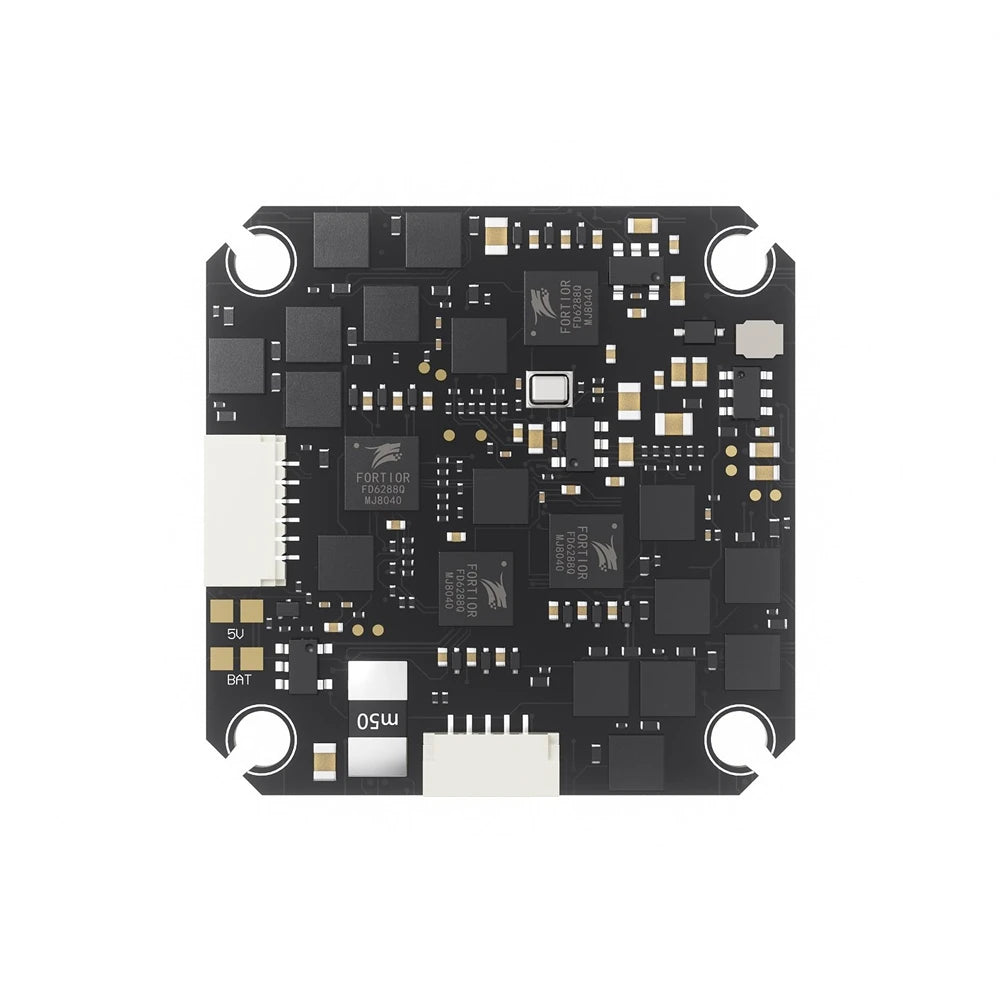

• HD VTX Plug-in Connector: A dedicated 6-pin connector on the bottom allows direct plug-in of popular HD digital VTX systems, drastically reducing soldering.
• Betaflight OSD: AT7456E chip-powered OSD for real-time in-flight data tuning directly in your goggles.
• Buzzer & LED Support: Find your quad and add visual flair with integrated buzzer and LED control.
• Ultra-Lightweight: Weighs only 7g — ideal for weight-sensitive micro builds.

Full Specifications

What's in the Box?

• 1× TAKER F405 20A ELRS2.4G 2–4S AIO Board
• 1× XT30 18AWG 7cm Power Cable
• 1× 35V 220µF Capacitor
• 1× 60mm SH1.0 6-Pin Dual-Ended Cable
• 1× SH1.0 6-Pin Cable

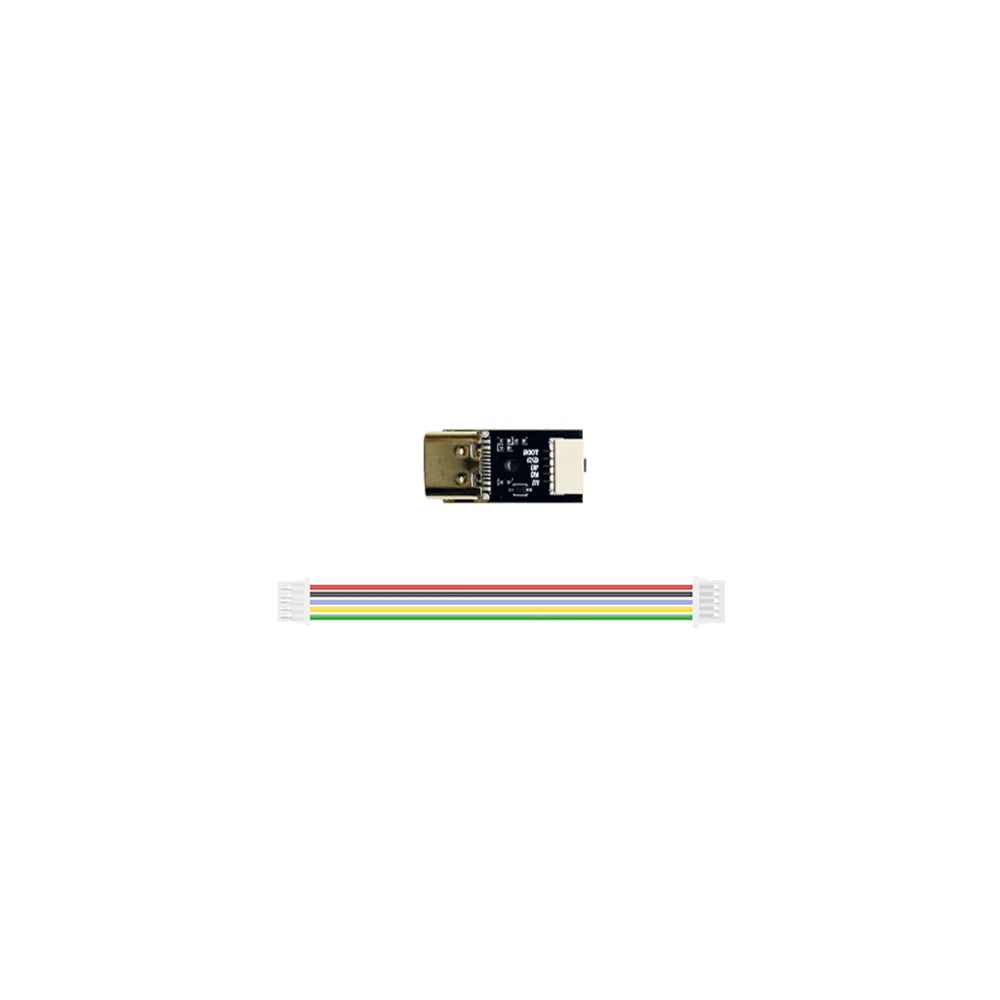

• 1× Type-C Configuration Board
• 1× 60mm SH1.0 5-Pin Dual-Ended Cable
• 8× M2×6.5mm FC Rubber Grommets (Black)

Note: Batteries are NOT included. Intended for ages 14 and above.

You May Also Like

• 1000D Tactical EDC Bag – Military Utility Tool Storage
• 10pcs Durable Gold Blade Nut – Universal Metal Replacement Parts
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What size FPV drones is the GEPRC TAKER F405 20A AIO compatible with?

A: The GEPRC TAKER F405 20A ELRS AIO is designed for 1.6-inch to 2.2-inch micro FPV racing drones. Its compact 25.5×25.5mm mounting pattern and ultra-light 7g weight make it ideal for small, high-performance micro builds.

Q: Does the TAKER F405 AIO include a receiver, or do I need to buy one separately?

A: The TAKER F405 AIO features a built-in ELRS 2.4GHz receiver, so no external receiver is required. This keeps your build clean, lightweight, and straightforward to set up.

Q: What ESC protocols does the Bluejay ESC firmware support?

A: The integrated Bluejay 20A ESC supports DShot600, OneShot, and MultiShot protocols, giving you flexibility and excellent throttle response for both racing and freestyle FPV flying.

Q: What battery configuration does this AIO board support?

A: The GEPRC TAKER F405 20A AIO supports 2S to 4S LiPo batteries, with a continuous current rating of 20A and a peak burst current of 25A for up to 10 seconds.

Q: Is soldering required to connect an HD digital VTX?

A: Minimal soldering is needed. The board features an independently designed 6-pin connector on the bottom that allows many popular HD digital VTX systems to be plugged in directly, greatly simplifying the build process.
