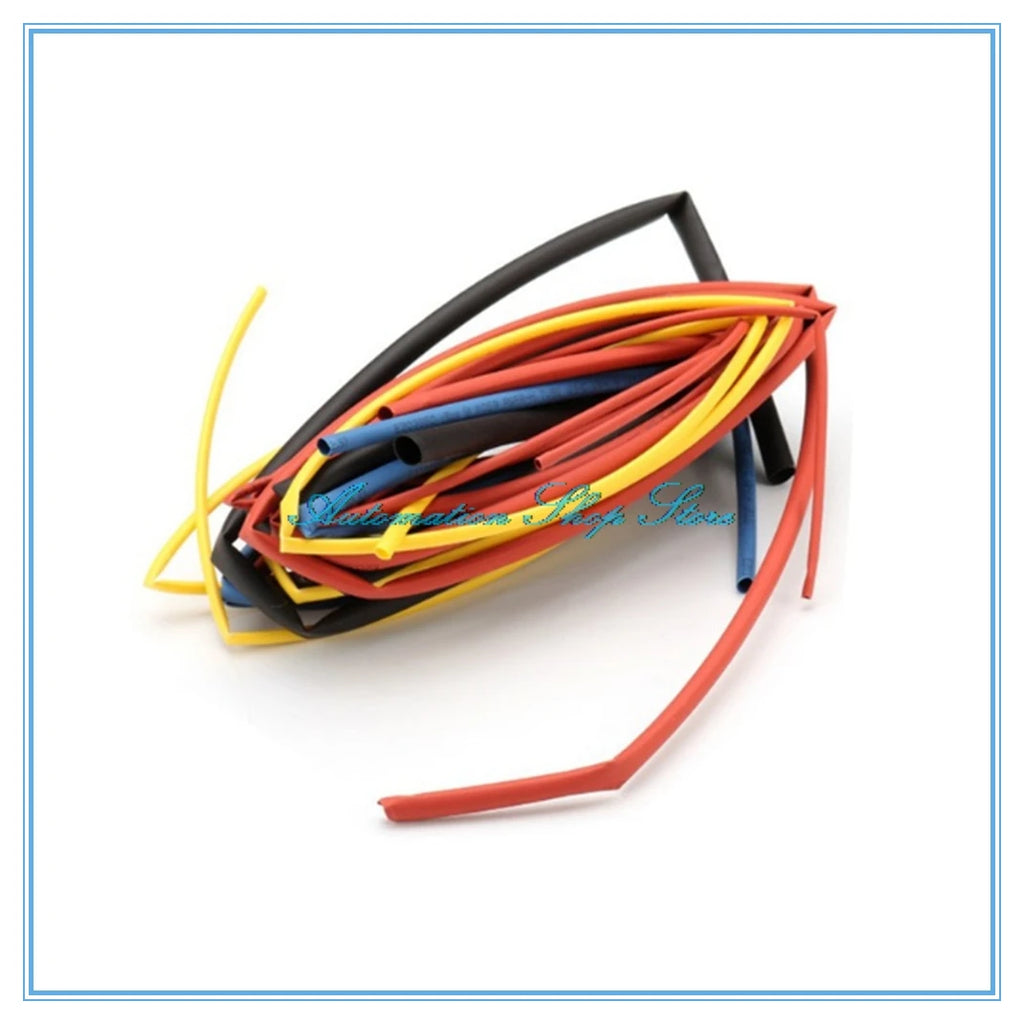

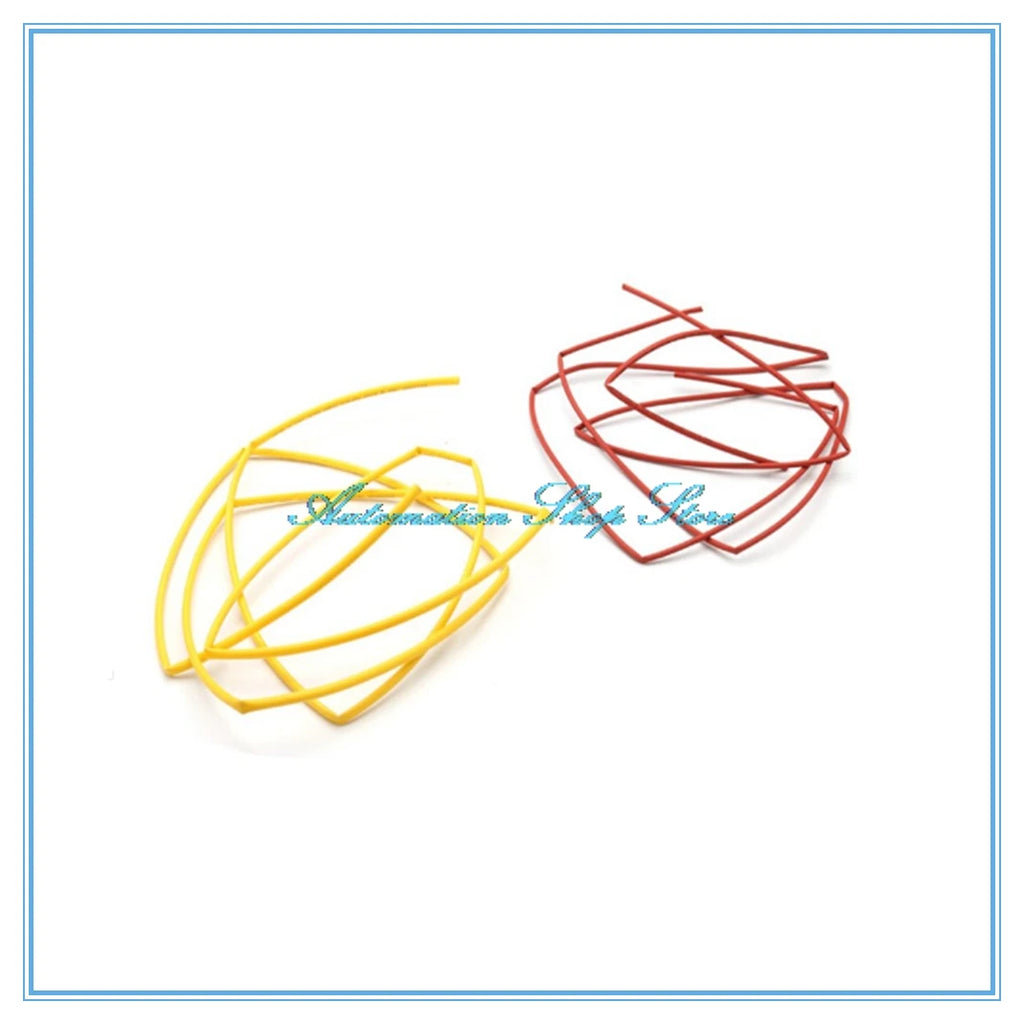

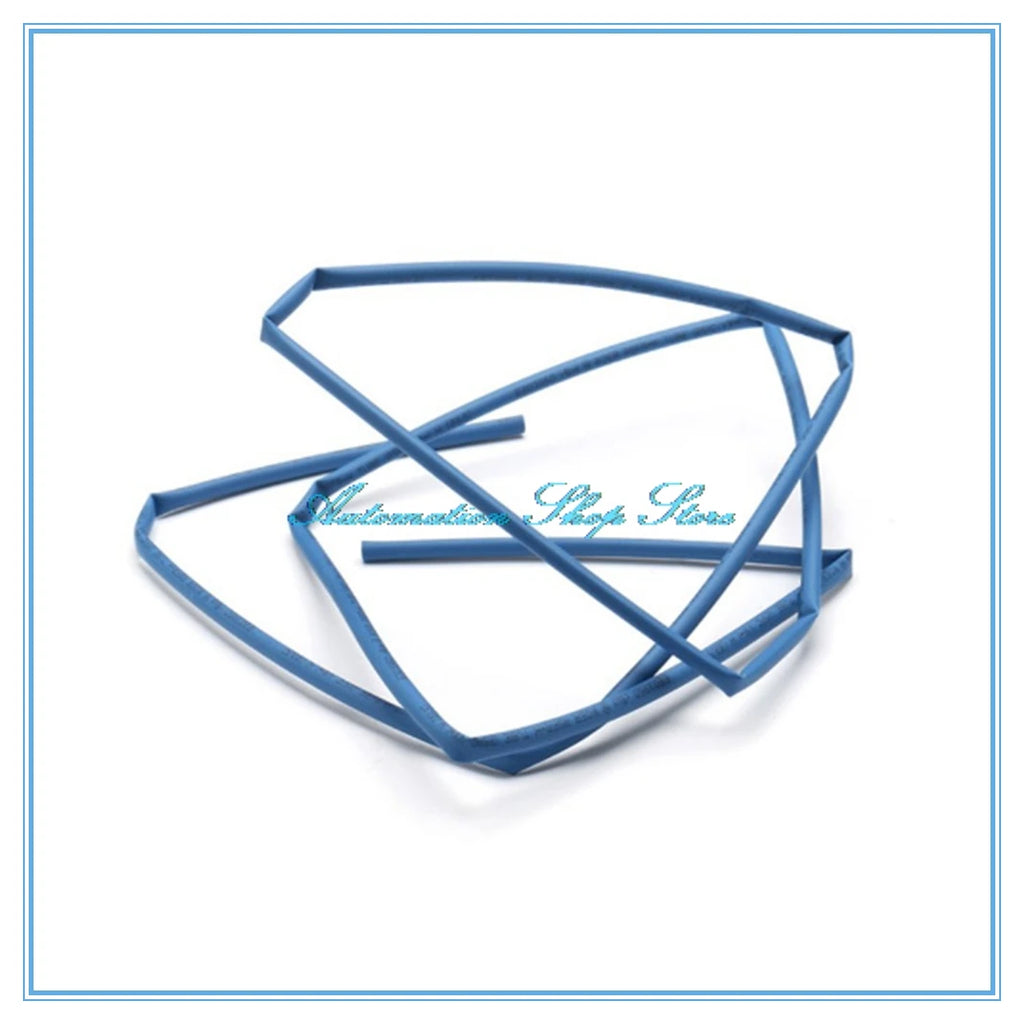

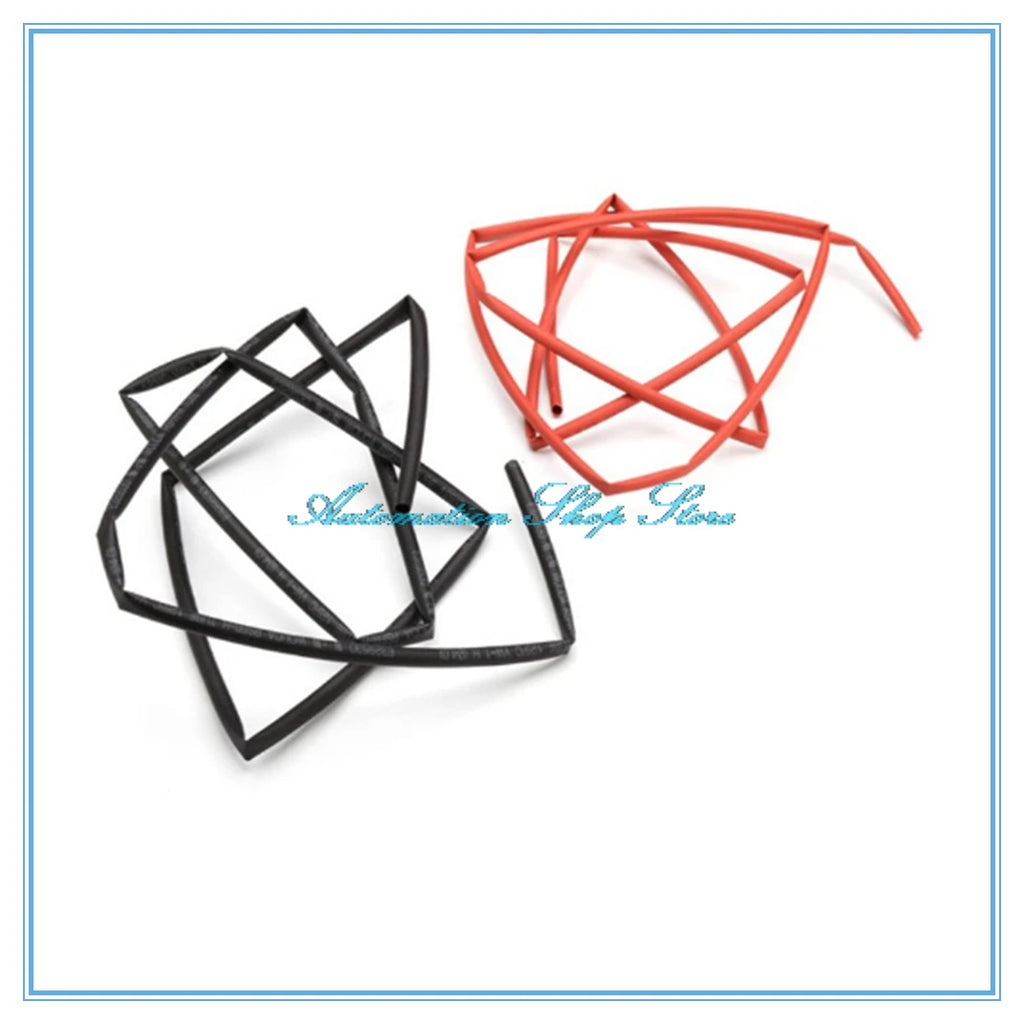

Heat Shrink Tubing Kit 5 Sizes 126cm – Wire Insulation Wrap

$5.19 $5.86

Shipping calculated at checkout.

Heat Shrink Tubing Kit – 5 Sizes, 126cm Each

Keep your wiring neat, protected, and professionally finished with this versatile heat shrink tubing kit. Featuring five essential sizes in a single package, this kit is ideal for hobbyists, electricians, RC enthusiasts, and anyone who regularly works with wires, connectors, and cables. Each size comes in a generous 126 cm length, giving you plenty of material for multiple projects.

Made in Mainland China.

Key Features

5 Sizes Included: 1mm, 1.5mm, 2.5mm, 3mm, and 4mm supplied internal diameter — a size for virtually every wire gauge
2:1 Shrinkage Ratio: Shrinks to half its original diameter for a snug, secure fit over terminals and wires
Polyolefin Material: Durable, flame-retardant polyolefin construction with UL Approval for safety and reliability
Wide Operating Range: Rated from -55°C to +125°C — suitable for demanding environments
High Dielectric Strength: 15 kV/mm for excellent electrical insulation performance
4 Colors Available: Black, Red, Blue, and Yellow — ideal for colour-coded wire management
Compatible With: T-plugs, banana plugs, power plugs, and more
Easy to Use: Cut with scissors or a sharp knife; shrink with a heat gun or similar heat source

Specifications

Supplied Internal Diameters	1mm, 1.5mm, 2.5mm, 3mm, 4mm
Fully Shrunk Internal Diameters	0.5mm, 0.75mm, 1.25mm, 1.5mm, 2mm
Length per Size	126 cm
Shrinkage Ratio	2:1
Material	Polyolefin
Min. Shrinkage Temp	+70°C
Full Shrinkage Temp	+110°C
Operating Temperature	-55°C to +125°C
Tensile Strength	10.4 MPa
Dielectric Strength	15 kV/mm
Flammability	Flame Retardant
Approvals	UL Approved, ISO 9001

What's in the Box

1× Heat Shrink Tube Set (5 sizes × 126cm each)

Frequently Asked Questions

Q: What sizes of heat shrink tubing are included in this kit?

A: This heat shrink tubing kit includes five sizes: 1mm, 1.5mm, 2.5mm, 3mm, and 4mm supplied internal diameter. Each size comes as a 126cm length, giving you a total of five separate pieces — one per size — in the set.

Q: What tool do I need to shrink this tubing?

A: A standard heat gun is the most reliable tool for shrinking this tubing evenly. Shrinkage begins at +70°C and reaches full shrinkage at around +110°C. You can also use a lighter or soldering iron in a pinch, though a heat gun provides the most consistent results.

Q: Is this heat shrink tubing safe for electrical wiring projects?

A: Yes. This tubing is made from flame-retardant polyolefin, is UL Approved, and has a dielectric strength of 15 kV/mm, making it well-suited for insulating and protecting wire connections, terminals, and plugs in both hobby and general electrical applications.

Q: Can I use this for RC (remote control) battery connectors like T-plugs and banana plugs?

A: Absolutely. The kit is specifically compatible with T-plugs, banana plugs, and power plugs, making it a popular choice for RC drone, car, and aircraft hobbyists who need to insulate solder joints on battery connectors.
