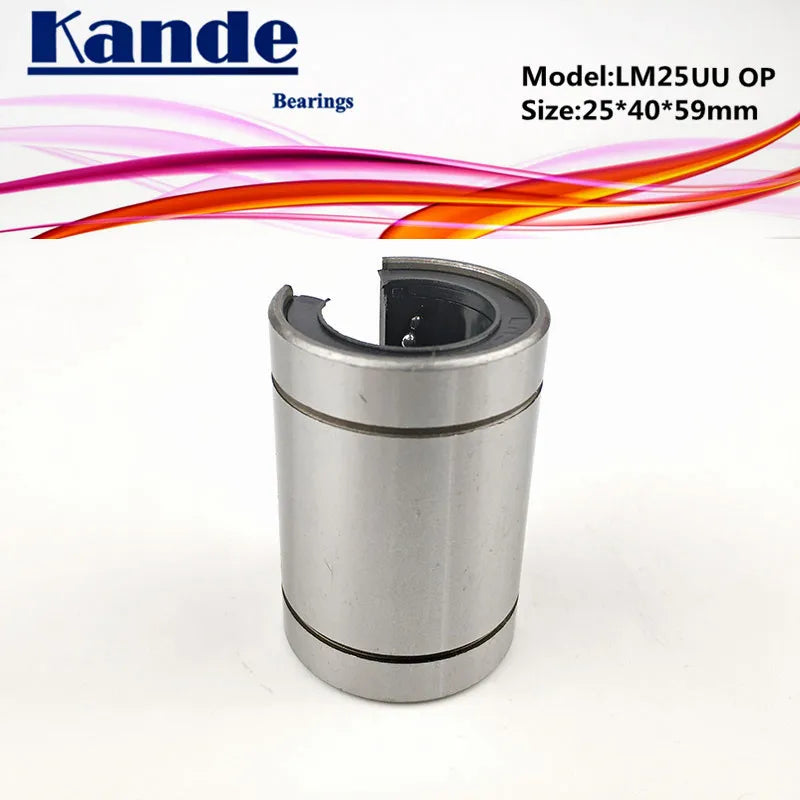

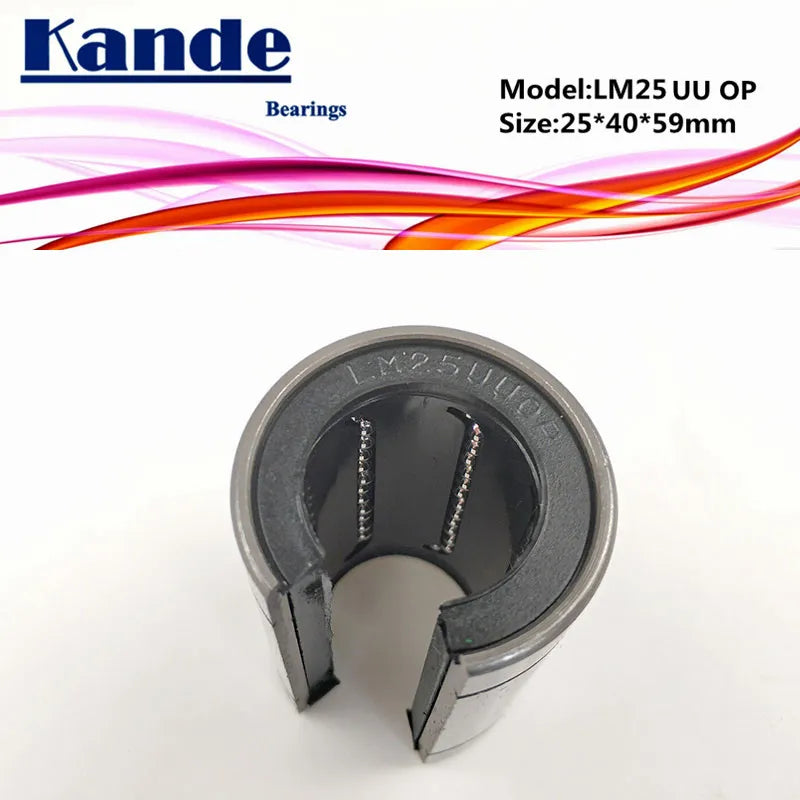

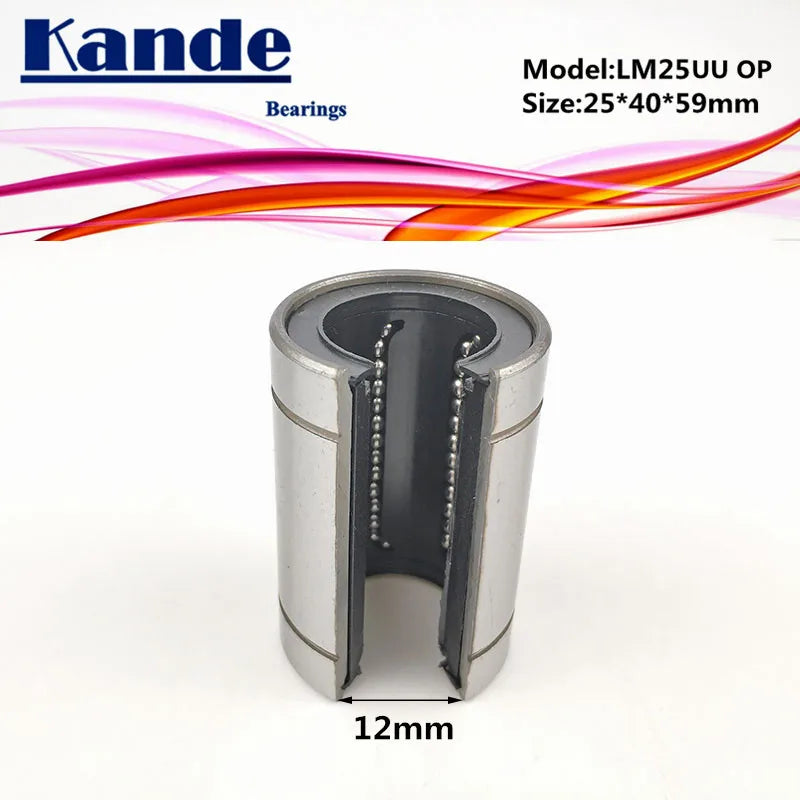

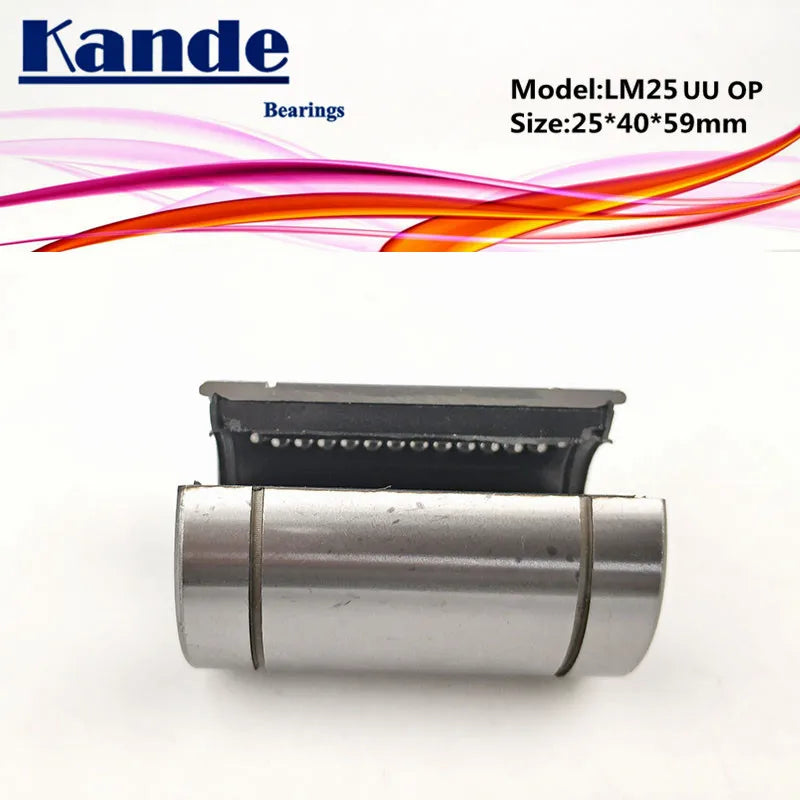

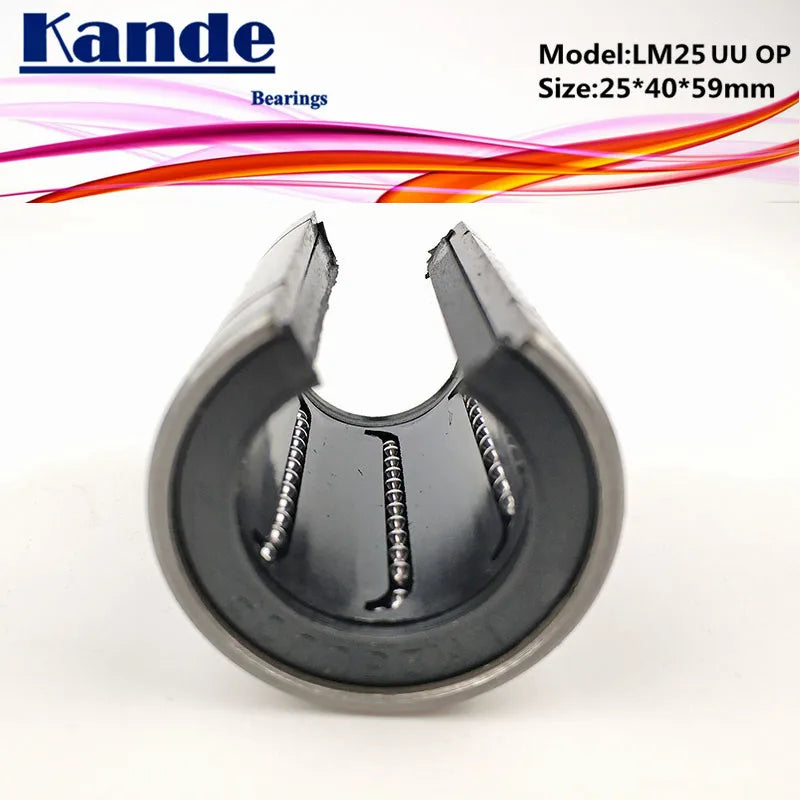

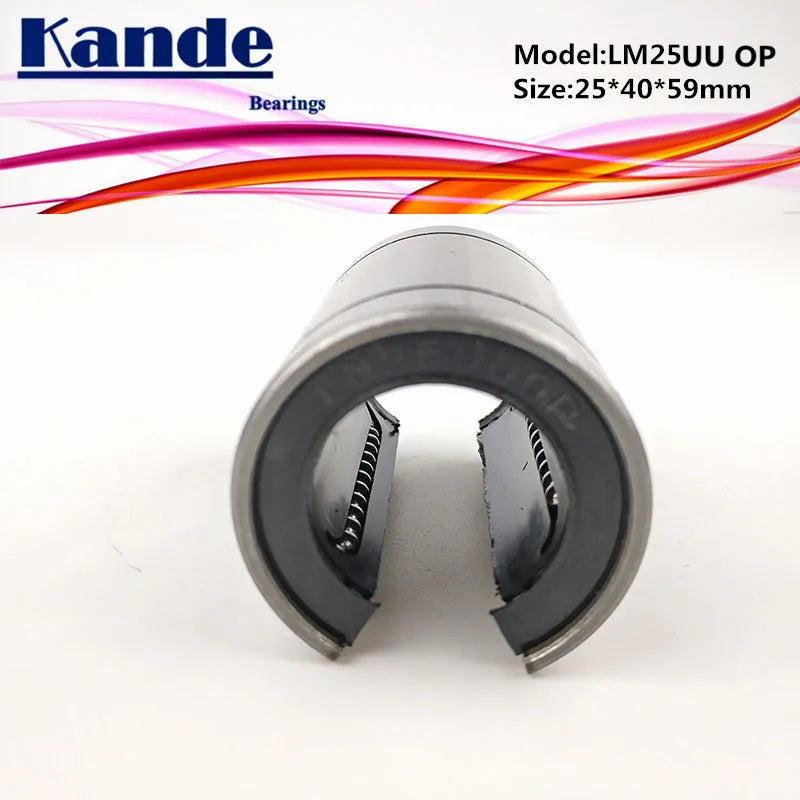

Kande Bearings LM25OP Open Type CNC Linear Bushing

Upgrade your CNC machine, 3D printer, or precision linear motion system with the Kande Bearings LM25OP Open Type Linear Bushing. Engineered from high-grade bearing steel, this open-type linear bearing delivers smooth, low-friction travel along 25mm shafts — making it an ideal replacement or upgrade component for demanding automation and fabrication setups.

Key Specifications

• Model: LM25OP (also referenced as LM25UUOP)
• Material: Bearing Steel
• Inner Diameter: 25mm
• Outer Diameter: 40mm
• Width / Length: 59mm
• Overall Dimensions: 25 × 40 × 59mm
• Type: Open Type (slot design for easy installation & maintenance)
• Brand: Kande Bearings
• Made in Mainland China

Why Choose the LM25OP Open Type Linear Bearing?

• Open Slot Design: The open-type configuration allows for quick shaft access, simplified lubrication, and easy debris removal — reducing downtime on busy production setups.
• Precision Bearing Steel Construction: Manufactured from hardened bearing steel for long service life, excellent load capacity, and consistent dimensional accuracy.
• Smooth Linear Motion: Ball retainer system ensures minimal friction and consistent, repeatable movement along the guide shaft.
• Wide Compatibility: Fits standard 25mm linear shafts used in CNC routers, laser cutters, 3D printers, pick-and-place machines, and automated linear stages.
• Drop-In Replacement: Matches industry-standard LM25UU envelope dimensions, making it a direct swap for worn or standard closed-type bushings.

Ideal Applications

• CNC milling and routing machines
• 3D printers and additive manufacturing equipment
• Laser engraving & cutting systems
• Automated linear motion stages
• Robotics and precision assembly fixtures

Package Contents

• 1 × Kande Bearings LM25OP Open Type Linear Bushing (25 × 40 × 59mm)

Note: Colors may appear slightly different due to varying lighting conditions. Any ruler or scale shown in product images is for reference only and is not included.

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between the LM25OP open type and a standard LM25UU closed linear bearing?

A: The LM25OP open type linear bearing features a longitudinal slot cut along its outer sleeve, whereas the standard LM25UU is a fully closed cylinder. The open slot design of the LM25OP allows easier access for lubrication, faster shaft installation, and the ability to use the bearing on shafts with minor surface imperfections. Both share the same 25 × 40 × 59mm envelope dimensions, making the LM25OP a compatible drop-in upgrade.

Q: What shaft size does the LM25OP CNC linear bushing fit?

A: The LM25OP is designed for a 25mm diameter linear guide shaft. Its outer diameter is 40mm and its length is 59mm, matching standard industry sizing for CNC, 3D printer, and automation linear motion systems.

Q: Is this linear bearing suitable for high-speed CNC applications?

A: Yes. The Kande Bearings LM25OP is constructed from hardened bearing steel with a precision ball retainer, making it well-suited for both moderate and higher-speed linear motion applications in CNC routers, laser cutters, and similar machinery. Regular lubrication is recommended to maintain optimal performance and extend service life.

Q: How many bearings are included in one order?

A: Each order includes 1 piece of the LM25OP open type linear bushing (25 × 40 × 59mm). If you require multiple units, please adjust the quantity before adding to cart.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
