LXW5 Micro Limit Switch 10A AC 380V DC 220V Push Plunger SPDT

LXW5 Micro Limit Switch – Momentary Push Plunger Actuated

The LXW5 Micro Limit Switch is a compact, reliable momentary switch designed for industrial and DIY electrical applications. With its push plunger actuator and SPDT contact configuration, it delivers precise, instant switching action for automation systems, machinery controls, and electronic projects. Rated at AC 380V / DC 220V and 10A, this versatile limit switch handles demanding operating environments with ease.

Certified to CCC, CE, CQC, and RoHS standards, you can trust this switch for quality and safety compliance. The durable plastic and metal housing ensures long-lasting performance, backed by a 2-year warranty.

Key Features

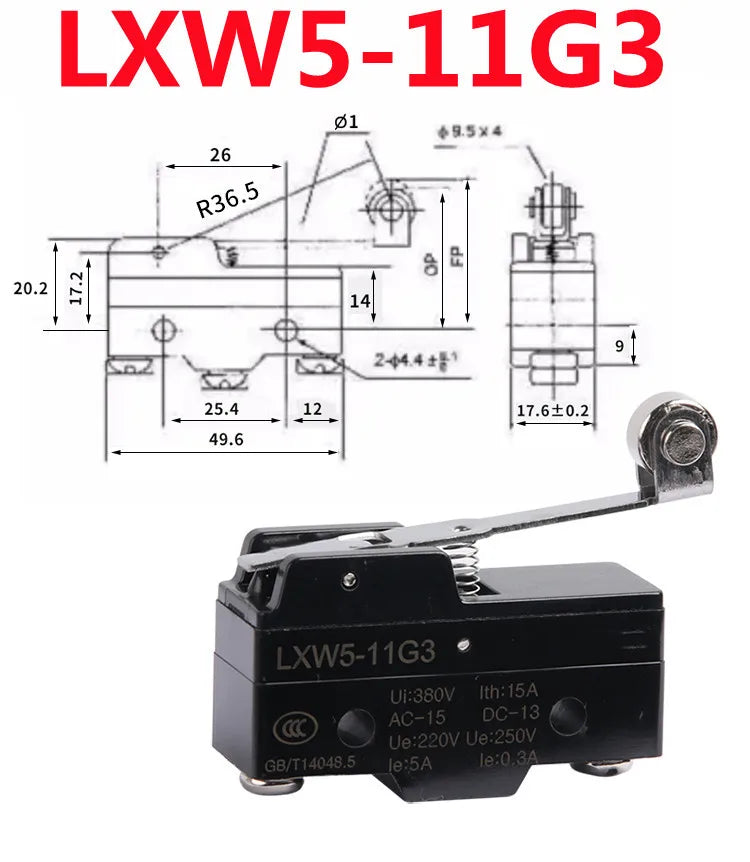

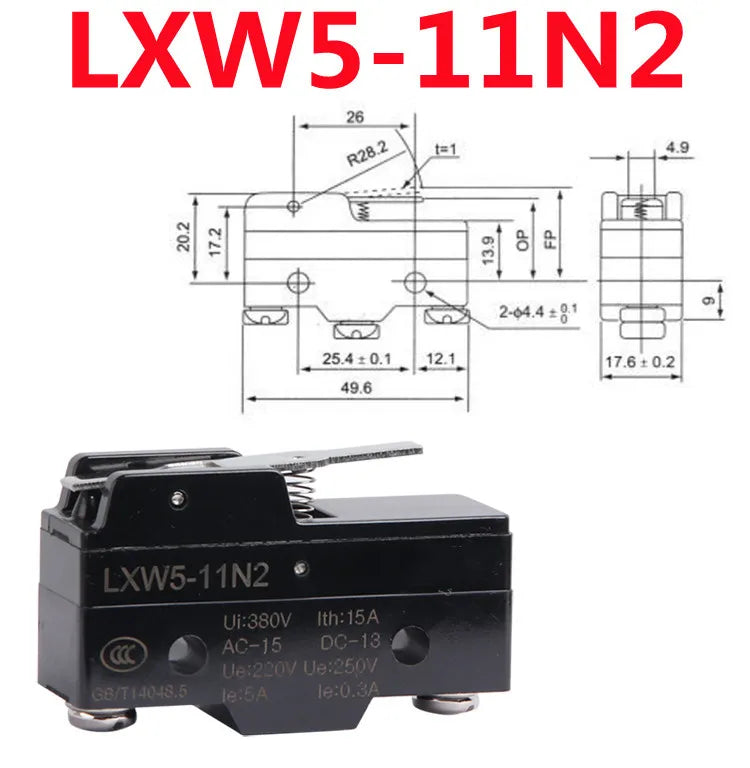

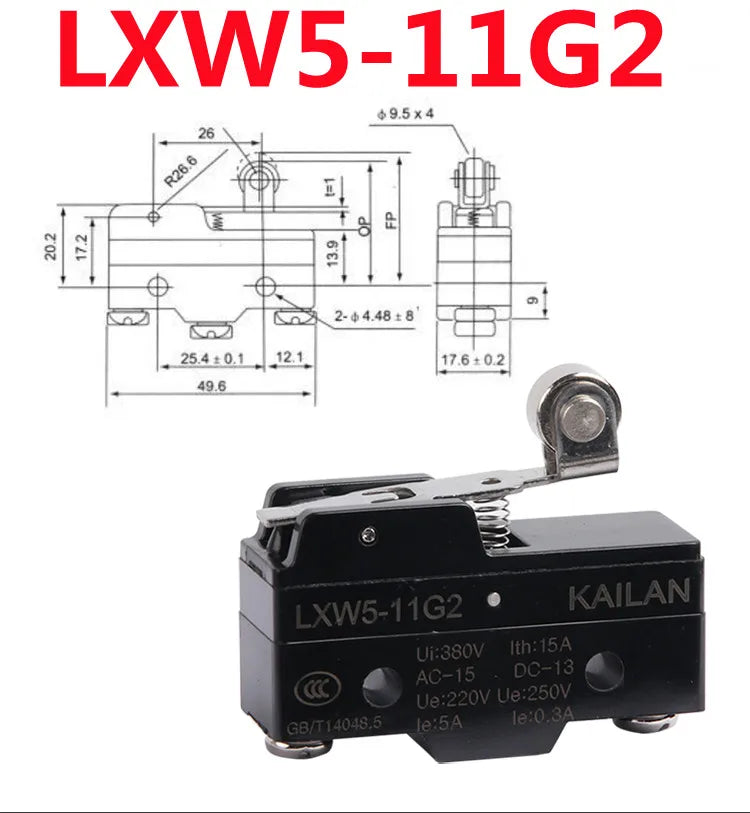

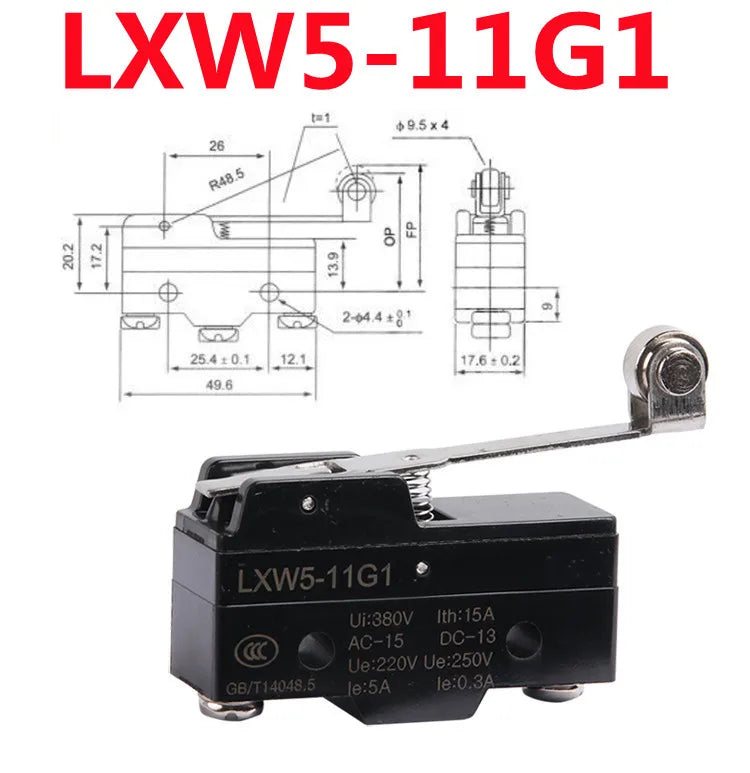

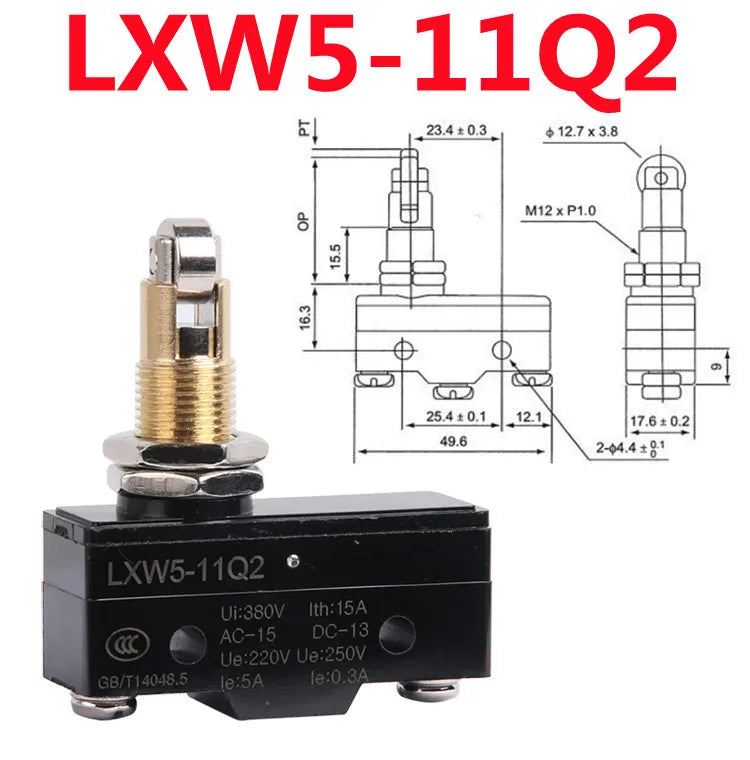

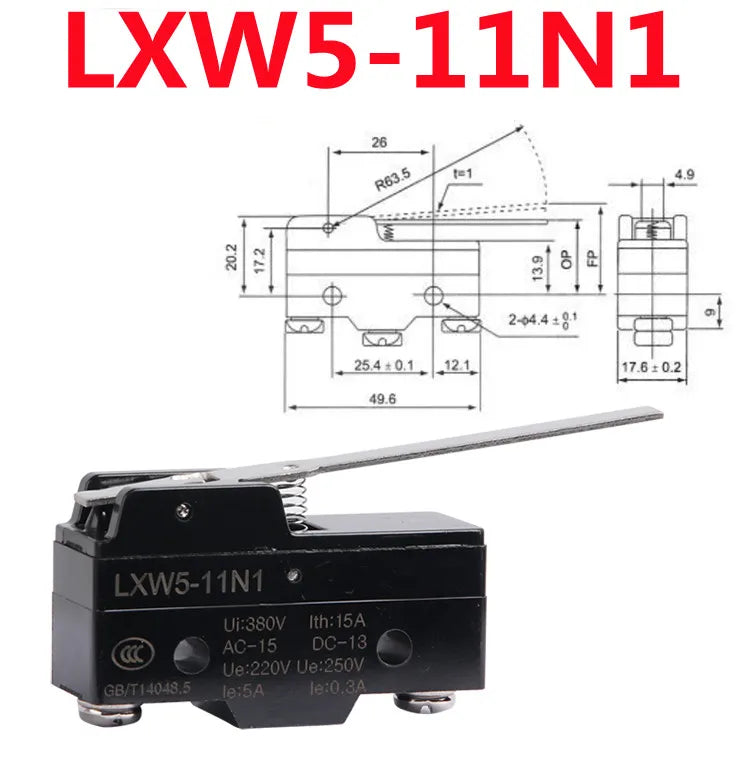

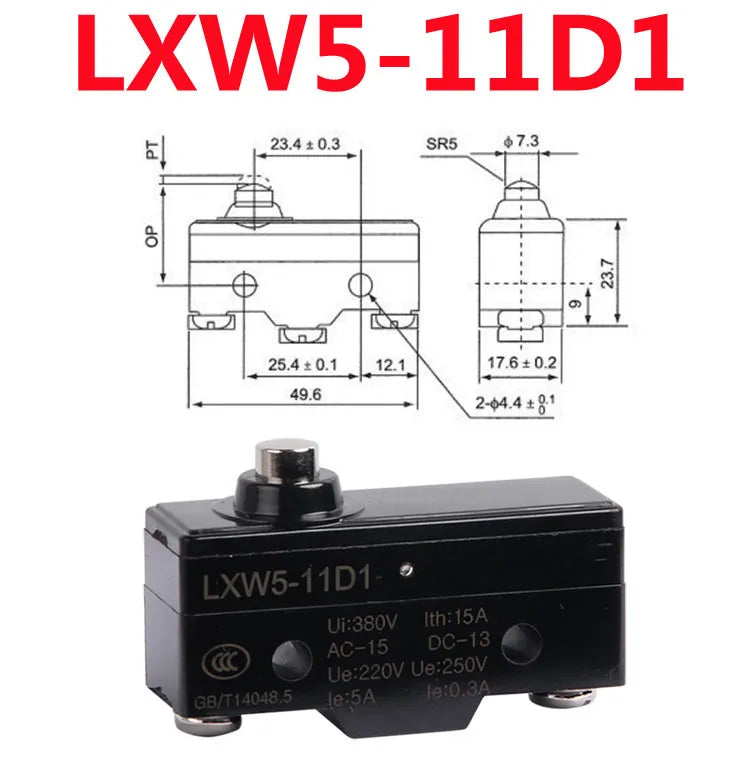

• Model: LXW5 (LXW5-11M, 11Q2, 11D, 11N1, N2, 11G)
• Action Type: Momentary
• Actuator Type: Push Plunger
• Contact Configuration: 1NO + 1NC (SPDT)
• Voltage Rating (Ue): AC 380V / DC 220V
• Current Rating (Ith): 10A
• Terminals: 3 Screw Terminals
• Mounting Type: Panel Mount
• Material: Plastic body with metal internals
• Color: Black, Silver Tone, Gold Tone accents
• Certifications: CCC, CE, CQC, RoHS
• Warranty: 2 Years
• Package Contents: 1 × LXW5 Limit Switch

Specifications at a Glance

Great for Use With

Whether you're building automation circuits, control panels, or DIY electronic projects, this limit switch pairs well with other electrical components. Check out these related products in our store:

• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

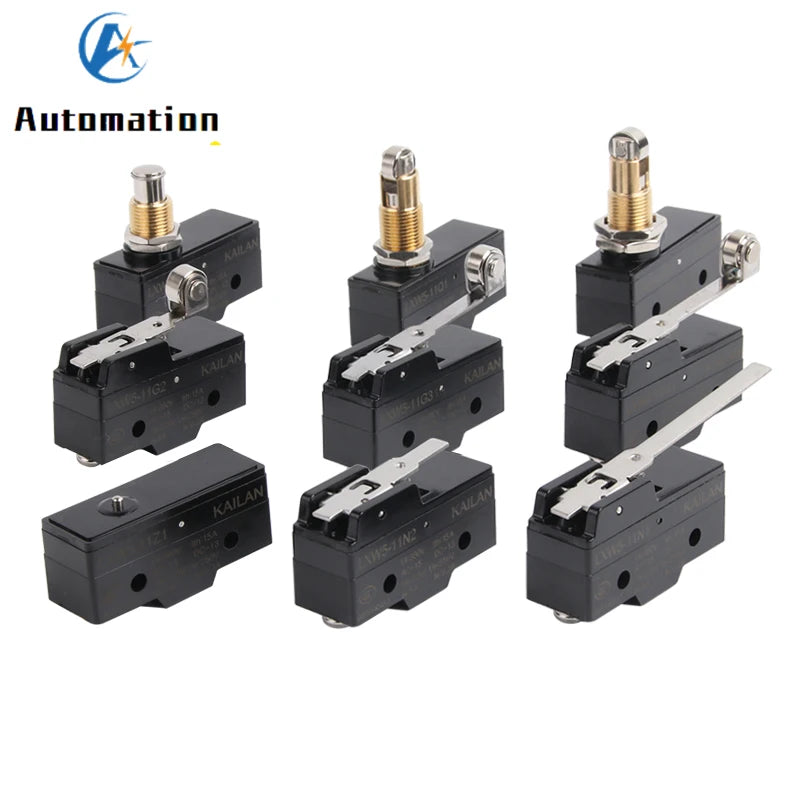

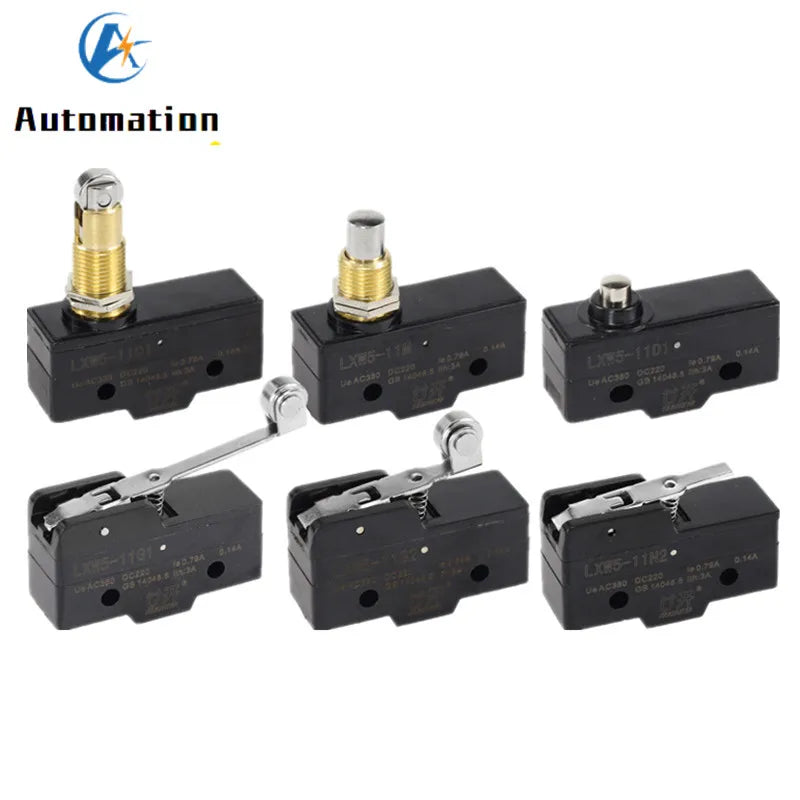

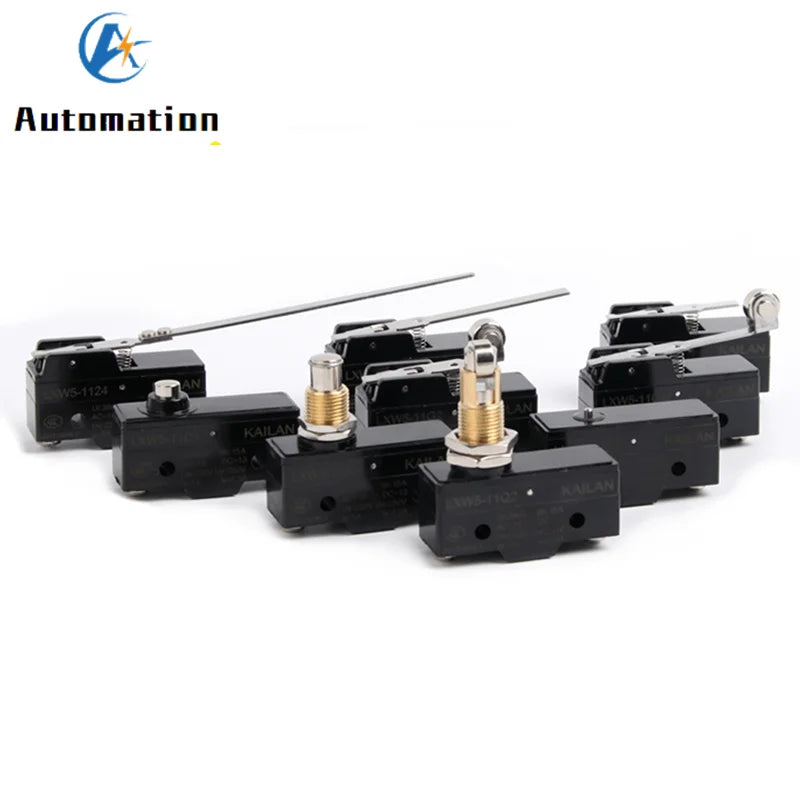

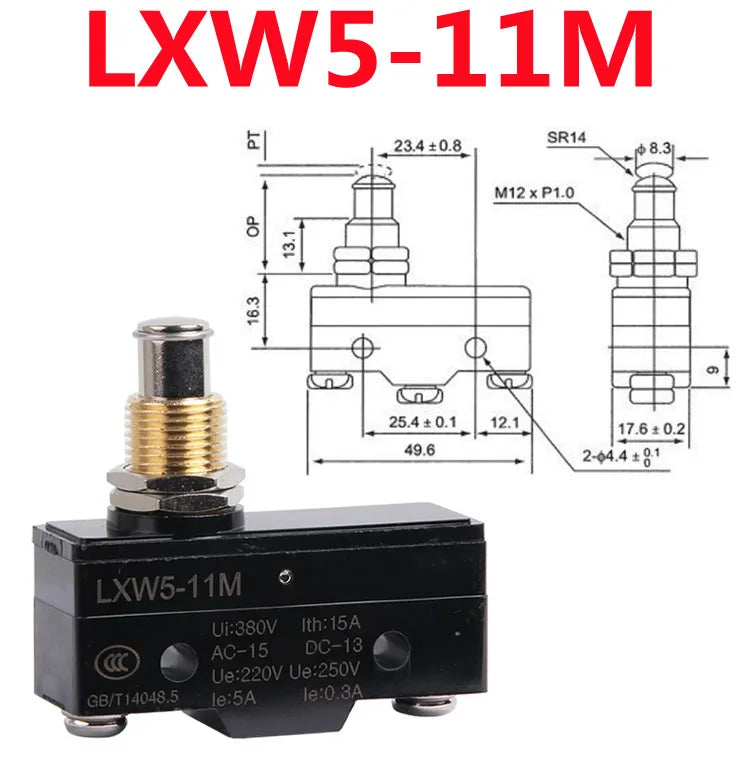

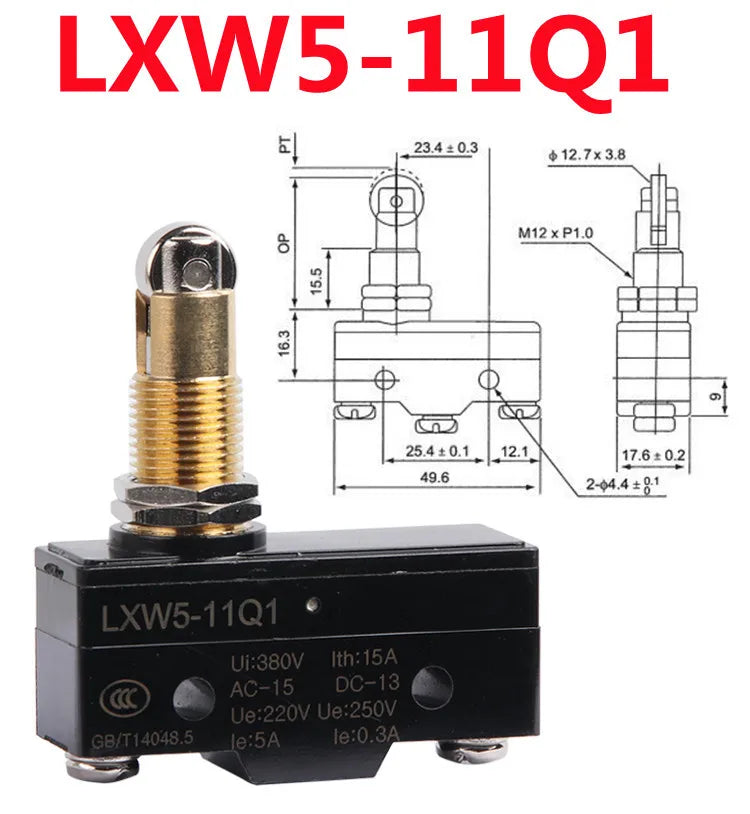

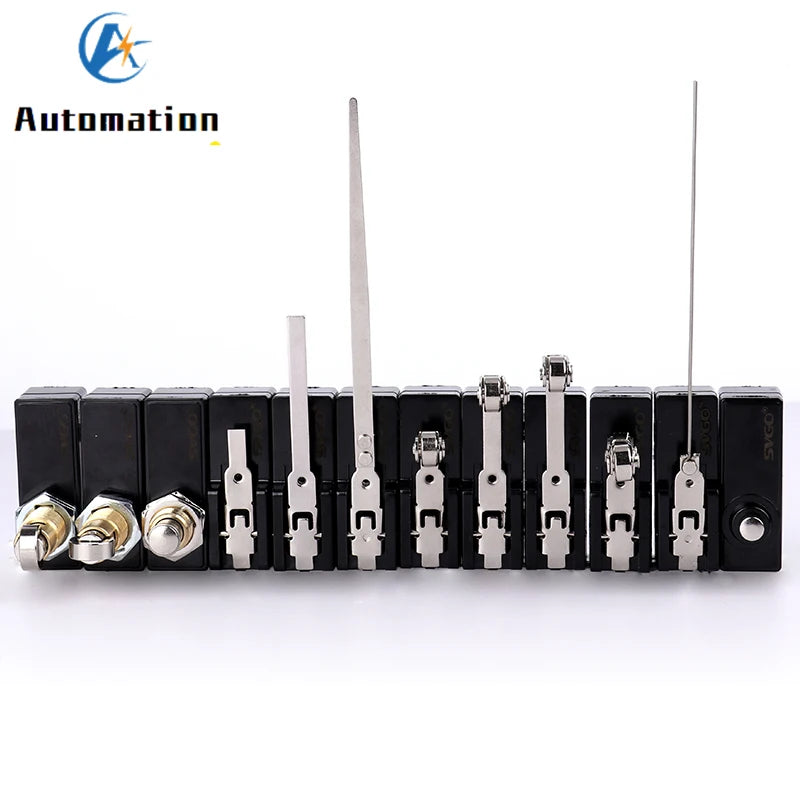

Q: What is the difference between the LXW5-11M, 11Q2, 11D, 11N1, N2, and 11G models?

A: These are different actuator style variants of the LXW5 series limit switch. They share the same core electrical ratings (AC 380V / DC 220V, 10A, SPDT) but differ in the shape or configuration of the plunger/actuator head, allowing them to suit different mechanical trigger setups in machinery and automation panels.

Q: Is this LXW5 micro limit switch suitable for both AC and DC circuits?

A: Yes. The LXW5 limit switch is rated for AC 380V and DC 220V at 10A, making it compatible with a wide range of both AC and DC industrial and DIY control circuit applications.

Q: How is the LXW5 limit switch mounted and wired?

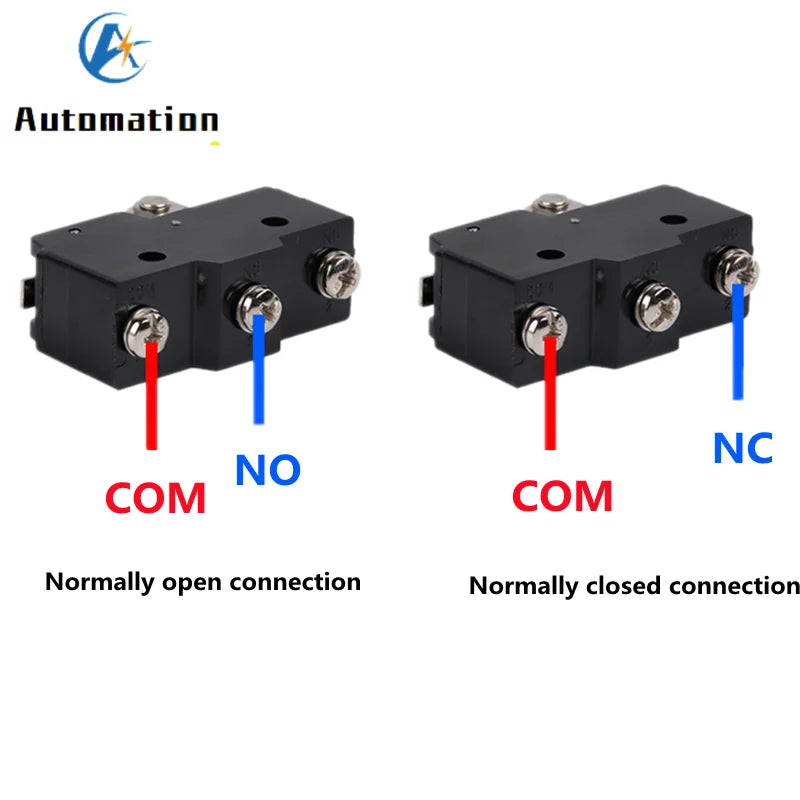

A: The LXW5 uses panel mount installation and features 3 screw terminals for straightforward wiring. The SPDT configuration provides one Common (COM), one Normally Open (NO), and one Normally Closed (NC) terminal for flexible circuit integration.

Q: Does this limit switch come with any certifications?

A: Yes. The LXW5 Micro Limit Switch holds CCC, CE, CQC, and RoHS certifications, ensuring compliance with international safety and environmental standards.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
