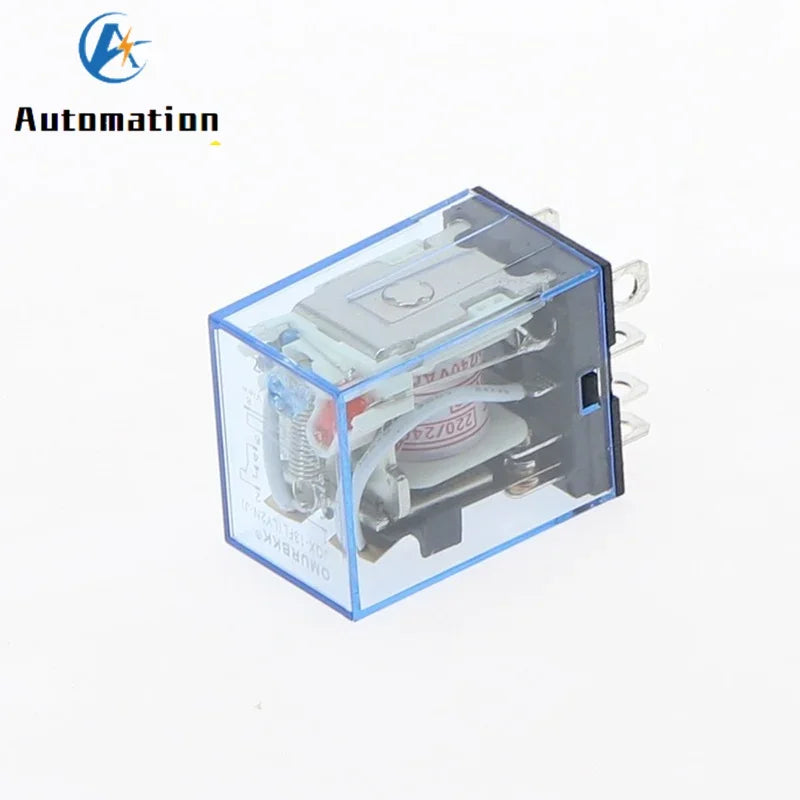

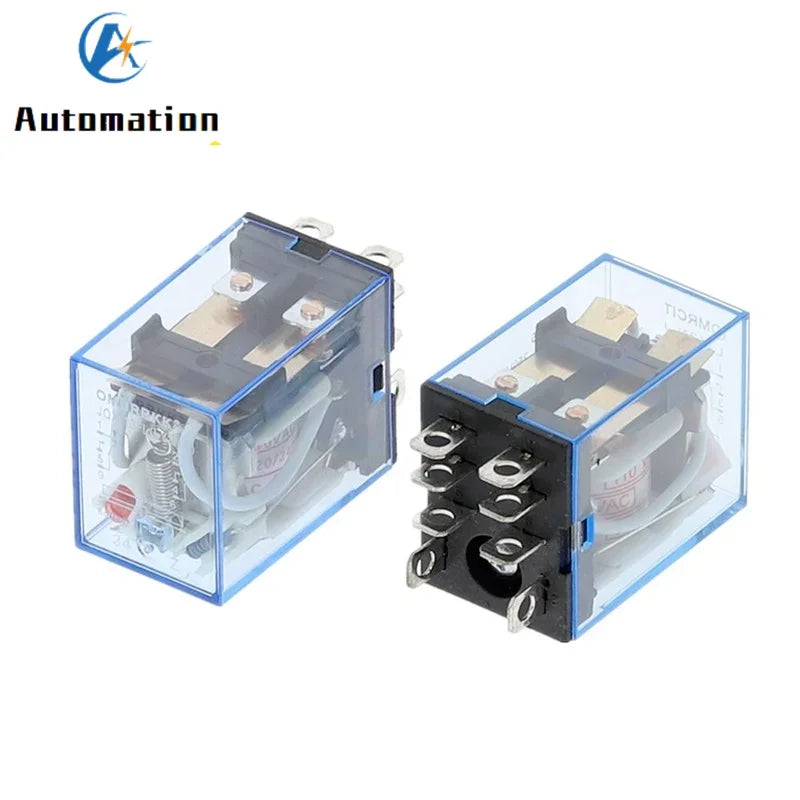

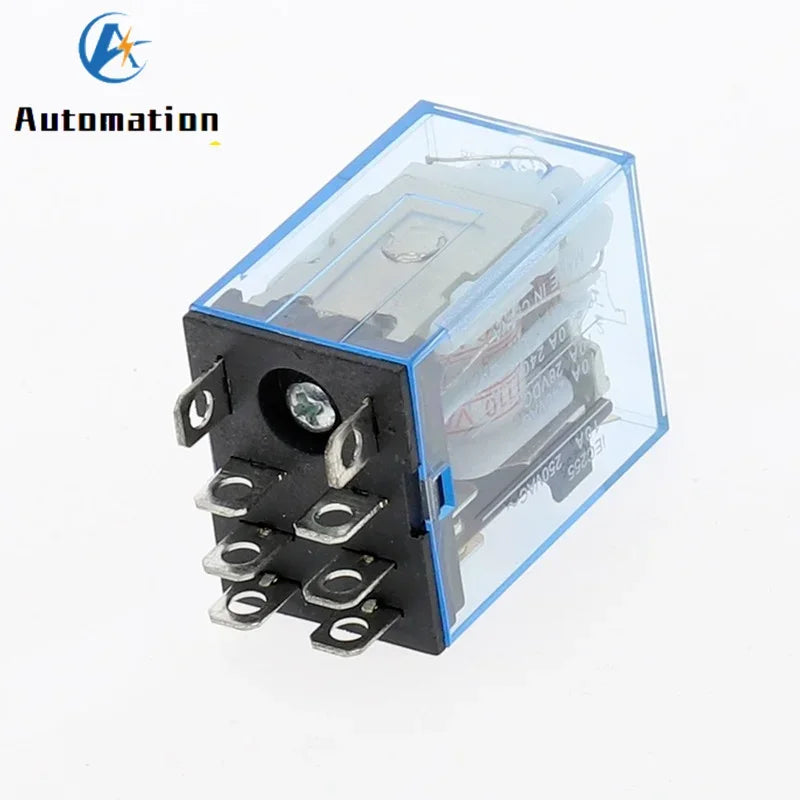

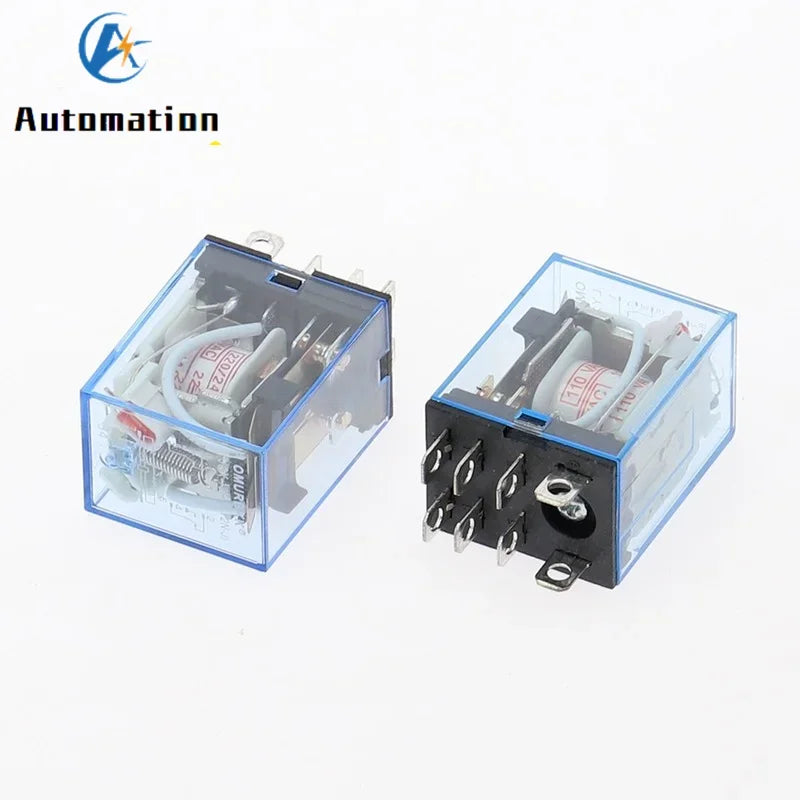

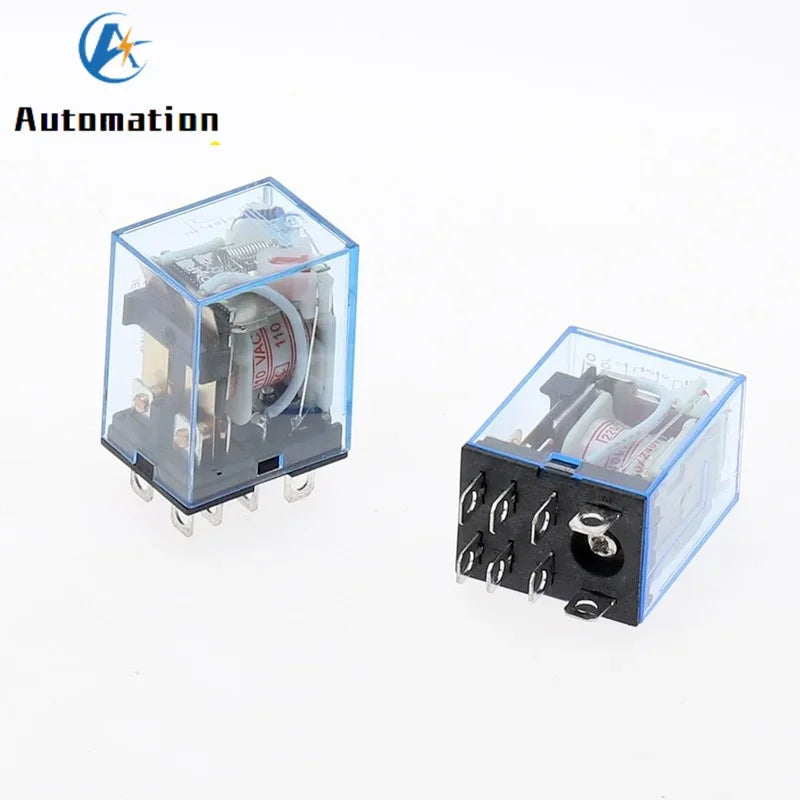

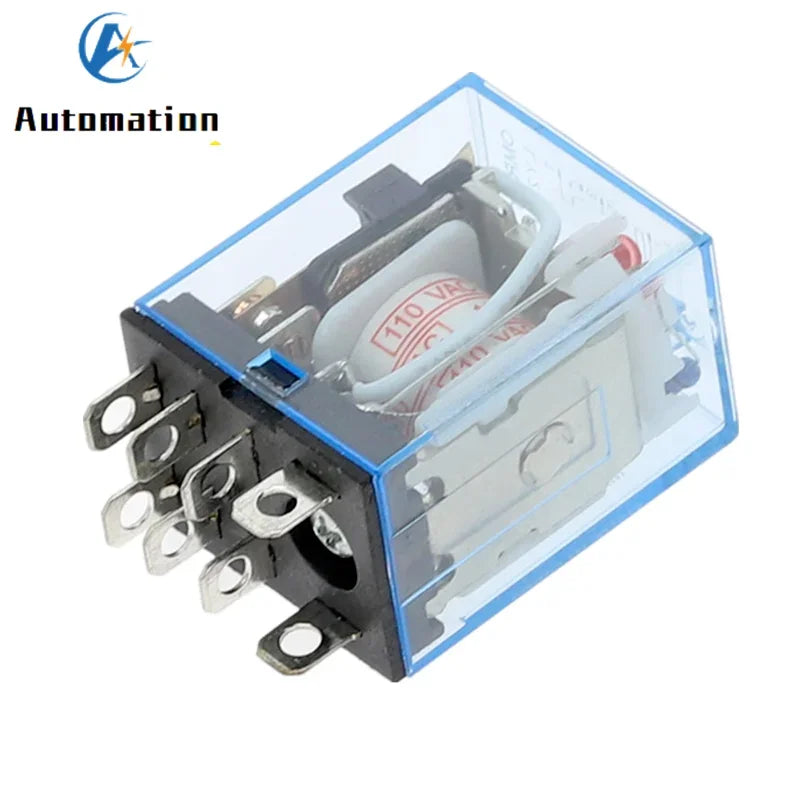

LY2NJ / HH62P General Purpose Electromagnetic Relay — 10A, 8-Pin DPDT with LED Indicator
This compact LY2NJ (HH62P) electromagnetic relay is a reliable general-purpose switching component ideal for control panels, automation circuits, industrial equipment, and DIY electronics projects. With a sealed housing, silver-plated gold contacts, and a built-in green LED status indicator, it delivers solid switching performance across a wide range of AC and DC coil voltages.
Key Features
- Model: LY2NJ / HH62P
- Type: Mini Electromagnetic Relay (DPDT — Double Pole Double Throw)
- Contact Configuration: 8-Pin, 2NO + 2NC
- Contact Load: 10A (High Power)
- Contact Material: Silver-plated gold for excellent conductivity and durability
- LED Indicator: Green LED for easy at-a-glance status monitoring
- Terminal Form: Socket type (compatible with standard 8-pin relay sockets)
- Coil Voltage Options: AC 12V / 24V / 36V / 110V / 220V | DC 12V / 24V / 36V / 110V
- Protection: Sealed enclosure for dust and moisture resistance
- Certification: CE
- Quantity: 1 piece per order
Specifications at a Glance
| Specification | Details |
|---|---|
| Model | LY2NJ / HH62P |
| Pin Count | 8 Pins |
| Contact Arrangement | DPDT (2NO + 2NC) |
| Rated Current | 10A |
| LED Color | Green |
| Coil Voltage (AC) | 12V, 24V, 36V, 110V, 220V |
| Coil Voltage (DC) | 12V, 24V, 36V, 110V |
| Housing | Sealed |
| Certification | CE |
| Origin | Made in China |
Ideal Applications
- Industrial and commercial control panels
- Home and building automation systems
- DIY electronics and prototyping boards
- Motor control and switching circuits
- PLC and relay logic circuits
Related Products You May Need
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What coil voltage options are available for the LY2NJ relay?
A: The LY2NJ electromagnetic relay is available in multiple coil voltage options including AC 12V, 24V, 36V, 110V, and 220V, as well as DC 12V, 24V, 36V, and 110V. Please select the coil voltage that matches your circuit requirements when ordering.
Q: Is the LY2NJ relay compatible with standard relay sockets?
A: Yes. The LY2NJ uses a standard 8-pin socket-type terminal configuration, making it compatible with widely available PYF08A and equivalent relay sockets commonly used in control panels and automation systems.
Q: What does DPDT mean and how does the 2NO + 2NC contact arrangement work?
A: DPDT stands for Double Pole Double Throw. The LY2NJ relay features two independent switching channels, each with a Normally Open (NO) and a Normally Closed (NC) contact. When the coil is energized, the NO contacts close and the NC contacts open, allowing versatile switching control in a single compact relay unit.
