M23 50A Battery Connector Plug for E-Bike & Motorcycle

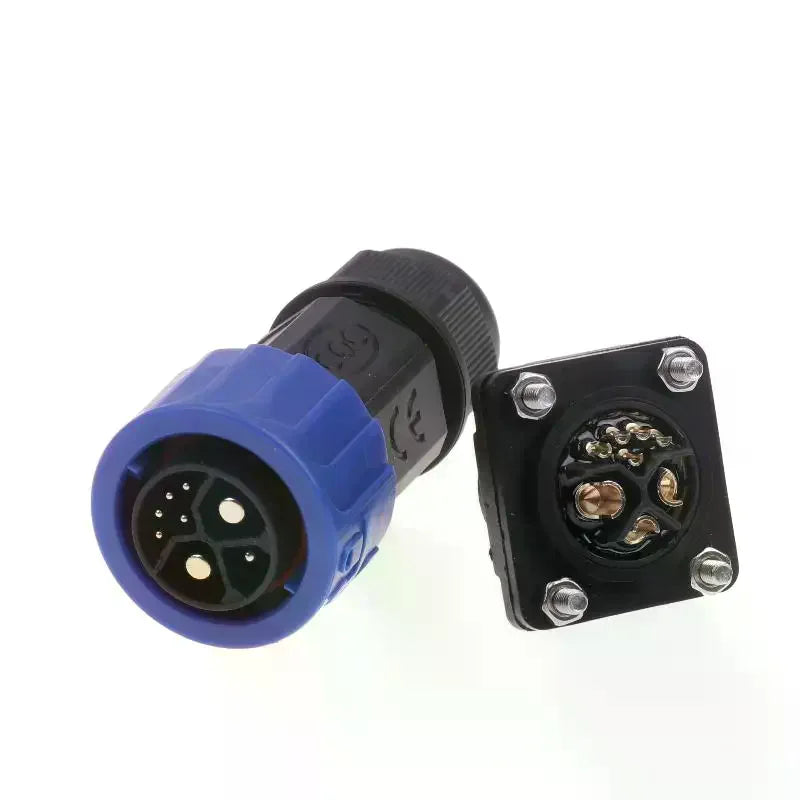

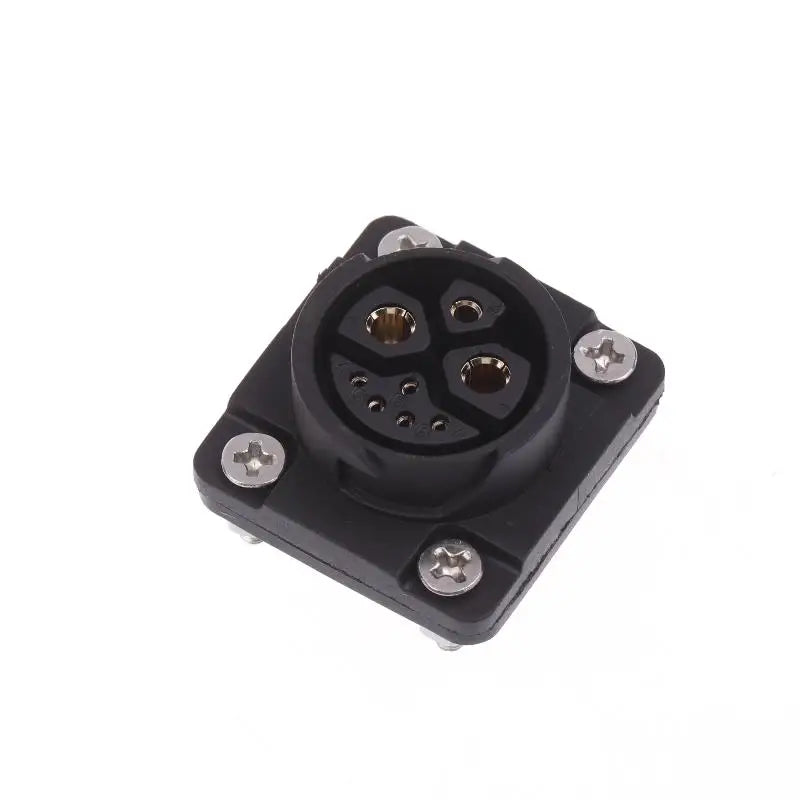

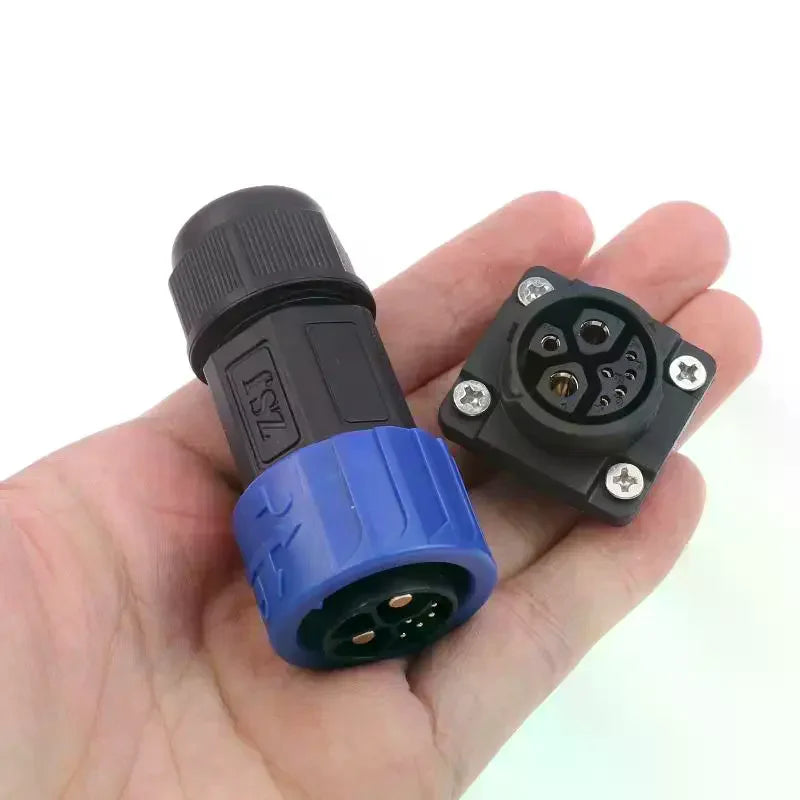

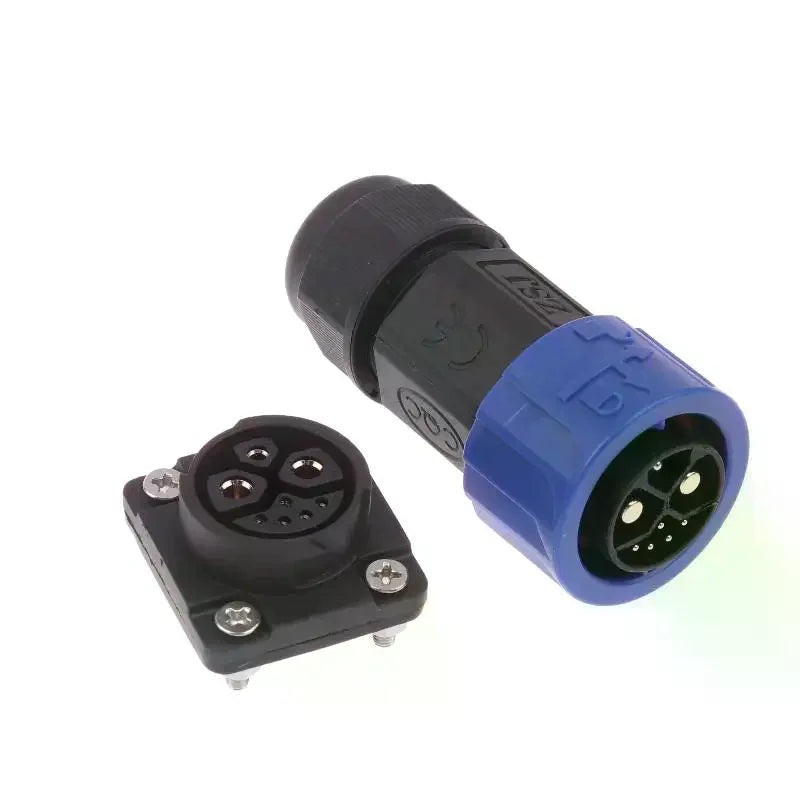

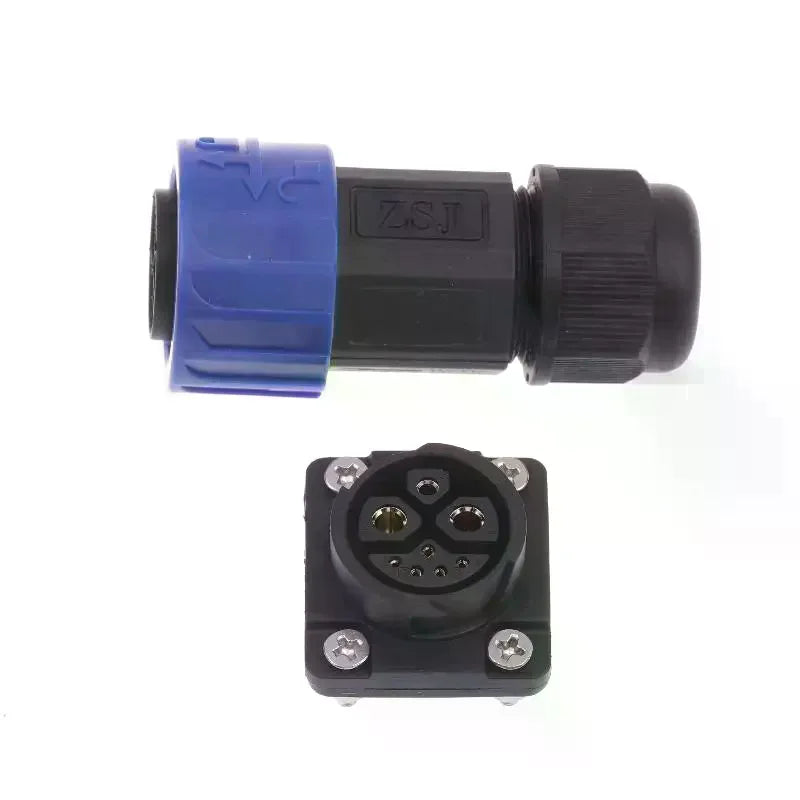

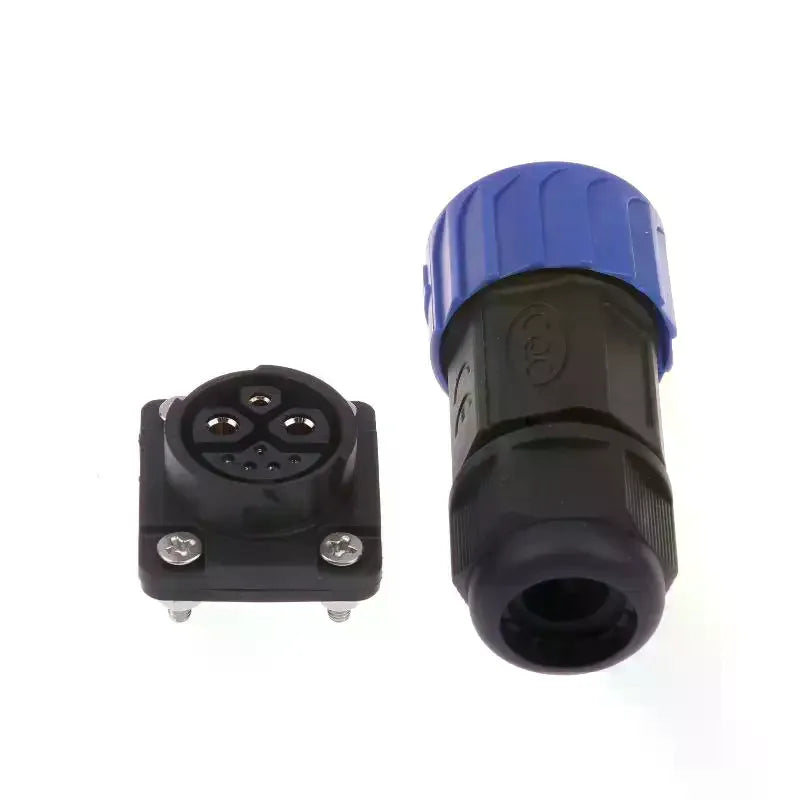

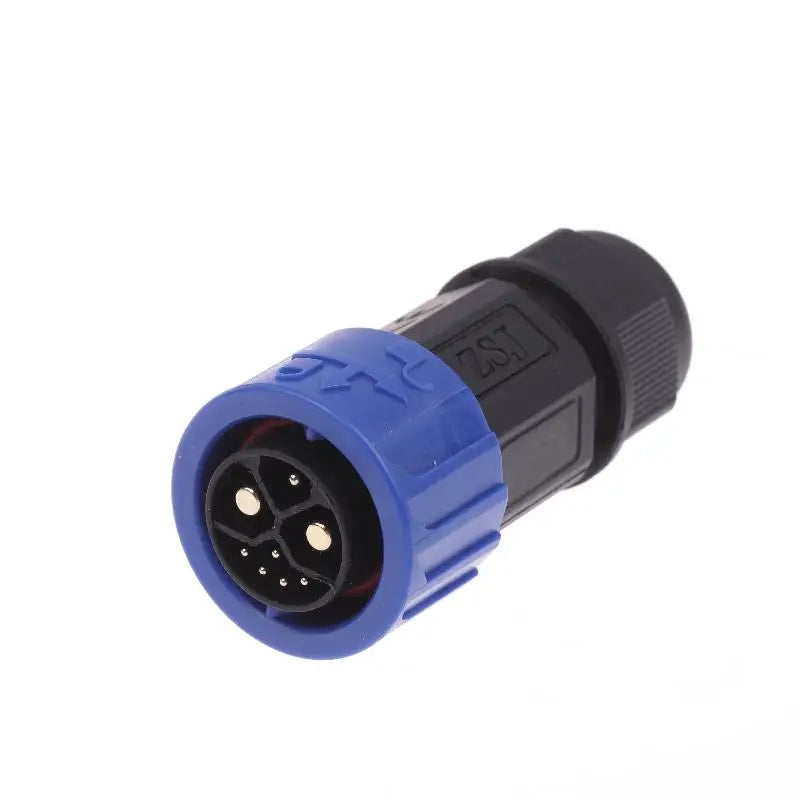

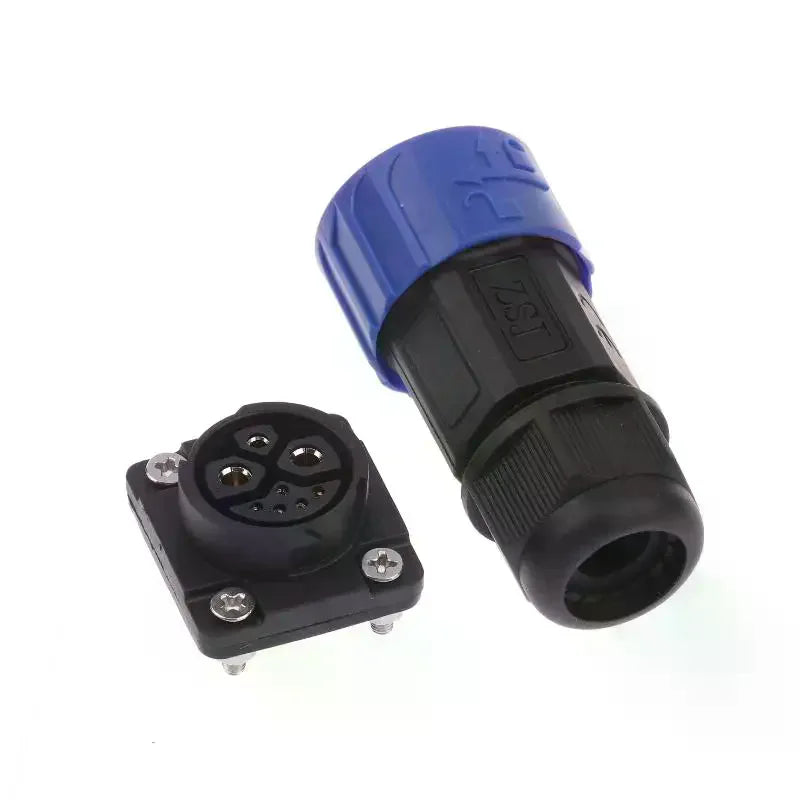

M23 50A Battery Connector – Male/Female Charging Port for E-Bikes & Motorcycles

Upgrade your electric bicycle or motorcycle charging setup with this heavy-duty M23 2+1+5 Battery Connector Plug Socket. Rated at 50A for power contacts and built from gold-plated brass, this connector delivers strong, stable conductivity for lithium battery systems operating at high voltages. Whether you're building, repairing, or upgrading a charging port, this plug-and-socket set is engineered to handle demanding electrical loads with ease.

Key Specifications

• Model: M23 2+1+5
• Rated Load: 500V – 2 × 50A / 500V – 1 × 15A / 60V – 5 × 5A
• Contact Resistance: ≤ 10 mΩ
• Insulation Resistance: AC/DC 300V ≥ 100 MΩ
• Metallic Material: Brass with gold plating
• Operating Temperature: -40°C to 105°C
• Voltage Rating: High voltage – above 50V AC or 75V DC (EU LVD compliant)
• Material: Metal (brass + gold plating)
• Package Contents: 1 × Connector (male or female, as selected)

Why Choose This Connector?

• ✅ Premium Materials: Thick brass contacts plated with gold for minimal resistance and long service life
• ✅ High Current Capacity: Handles up to 50A on power pins — ideal for lithium e-bike battery systems
• ✅ Wide Temperature Range: Operates reliably from -40°C to 105°C, suitable for outdoor and all-season use
• ✅ Smooth & Sturdy: Precision-molded housing is pressure-resistant and smooth to handle
• ✅ Excellent Conductivity: Low contact resistance ensures efficient power transfer with minimal energy loss
• ✅ Versatile Use: Compatible with electric bicycles, e-scooters, motorcycles, and other lithium battery-powered vehicles

Made in Mainland China.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What is the M23 2+1+5 connector configuration?

A: The M23 2+1+5 designation refers to the pin layout inside the connector: 2 high-current power pins (rated up to 50A each), 1 mid-current pin (up to 15A), and 5 signal/auxiliary pins (up to 5A each). This multi-pin design makes it ideal for lithium battery charging applications on electric bicycles and motorcycles where both power and signal connections are needed.

Q: Is this connector compatible with my e-bike or electric scooter?

A: This M23 battery connector is widely used in lithium battery charging systems for electric bicycles, e-scooters, and motorcycles. It supports voltages above 50V AC / 75V DC and currents up to 50A on its main power pins. Always verify your system's voltage and current requirements match the connector's rated specifications before installation.

Q: Does this listing include both male and female connectors?

A: Each listing includes 1 piece — either a male or female connector depending on the variant selected. Please check your selection at checkout to ensure you order the correct gender for your application.

Q: What materials are used in this connector?

A: The contacts are made from brass plated with gold, which provides excellent conductivity and corrosion resistance. The housing is made of durable metal construction, designed to withstand pressure and wide temperature fluctuations from -40°C to 105°C.
