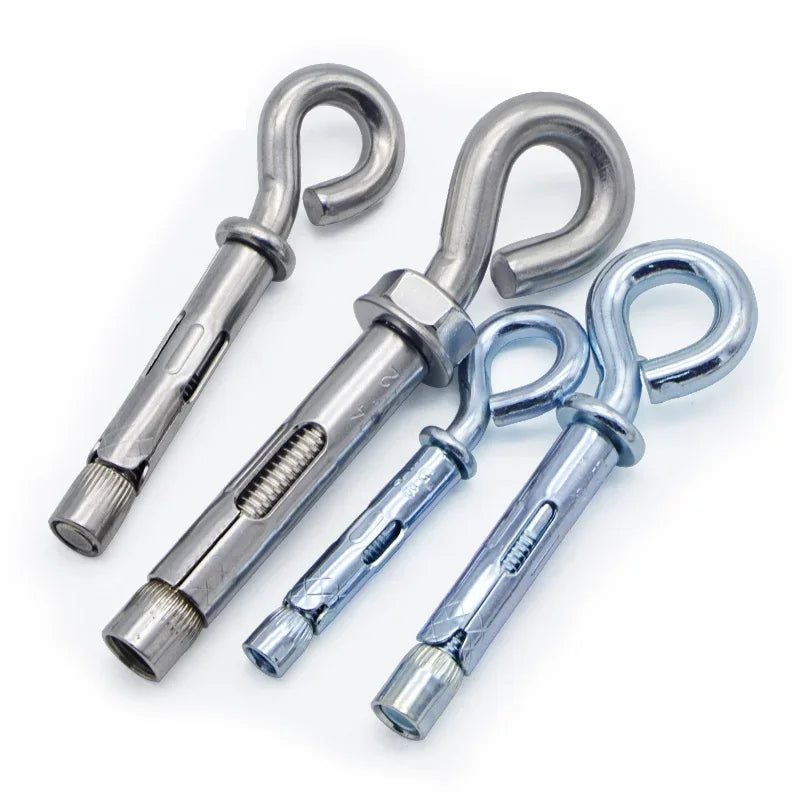

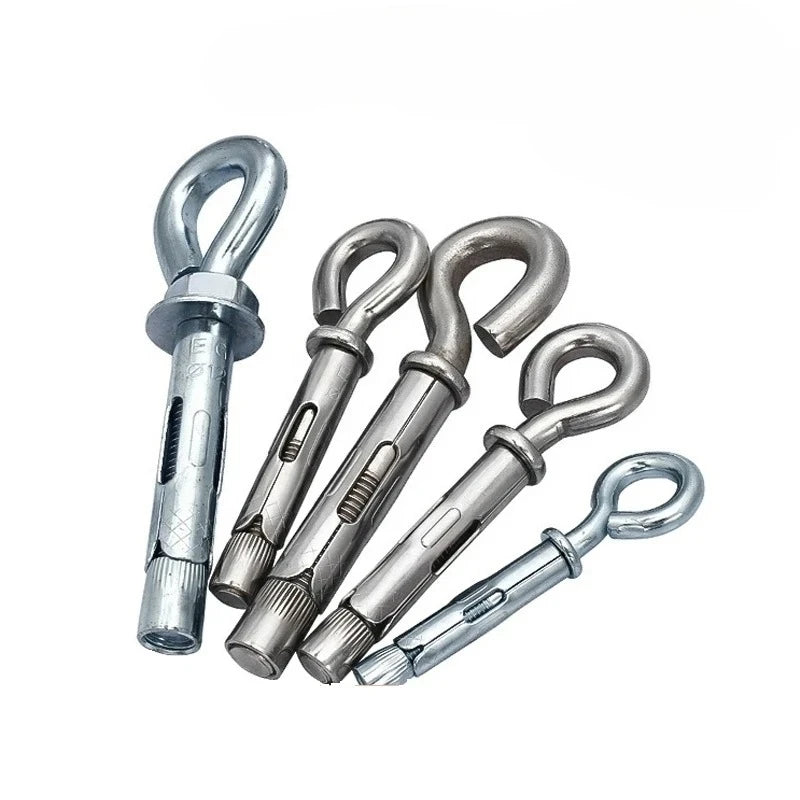

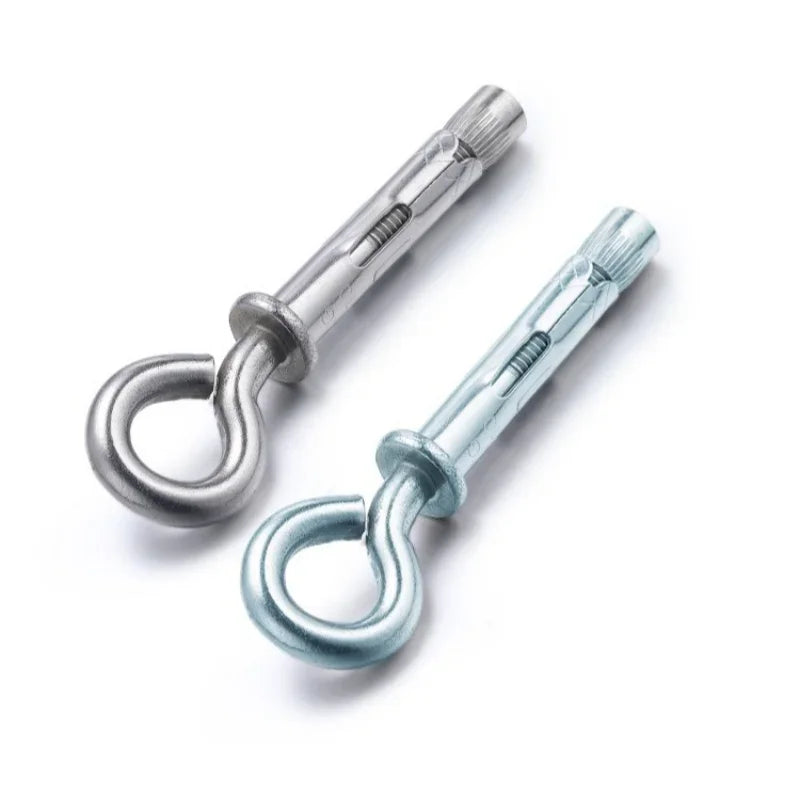

M6.5–M12 Eye Expansion Hook Ring Screws – Stainless Steel

Stainless Steel & Galvanized Eye Expansion Hook Ring Screws

Meet your go-to fastening solution for ceilings, walls, and heavy-duty hanging applications. These eye expansion hook ring screws are available in four standard metric sizes — M6.5, M8, M10, and M12 — and crafted from premium 304 stainless steel or galvanized carbon steel for lasting durability in both indoor and outdoor environments. Whether you're mounting a pendant lamp, hanging a swing, or securing overhead equipment, these expansion hooks deliver a firm, reliable hold.

Made in Mainland China.

Key Features

• Premium Materials: Choose between corrosion-resistant 304 stainless steel or cost-effective galvanized carbon steel to suit your project needs.

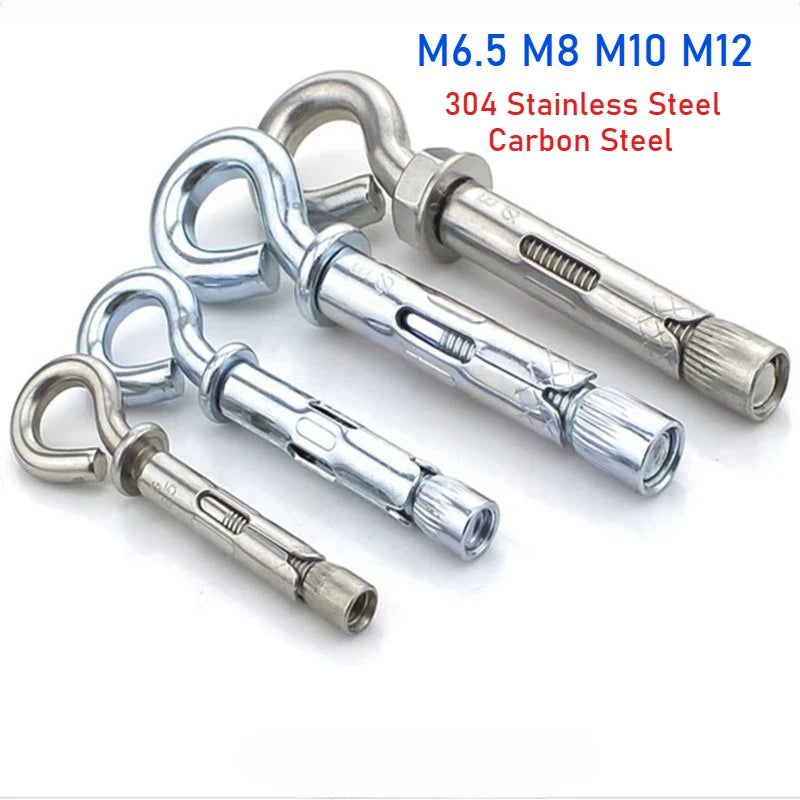

• Multiple Sizes: Available in M6.5, M8, M10, and M12 — the size refers to screw diameter × length (e.g., M8 = 8mm diameter).

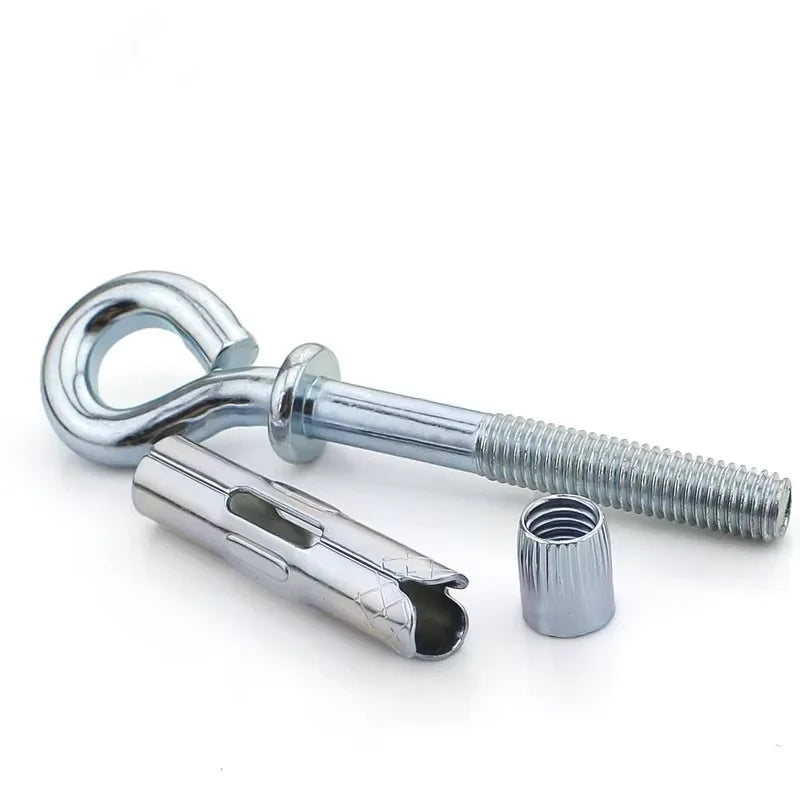

• Expansion Anchor Design: The built-in expansion sleeve grips firmly inside concrete, brick, or masonry walls and ceilings for a secure, vibration-resistant mount.
• Ring Eye Top: The open ring loop makes it easy to attach hooks, carabiners, wire rope, chains, or hanging hardware for a wide range of load-bearing applications.
• Versatile Use: Perfect for pendant light fixtures, ceiling fans, swings, hammocks, planters, pull-up bars, rope systems, and more.
• Customizable: Available in custom configurations — contact us for bulk or special-specification orders.

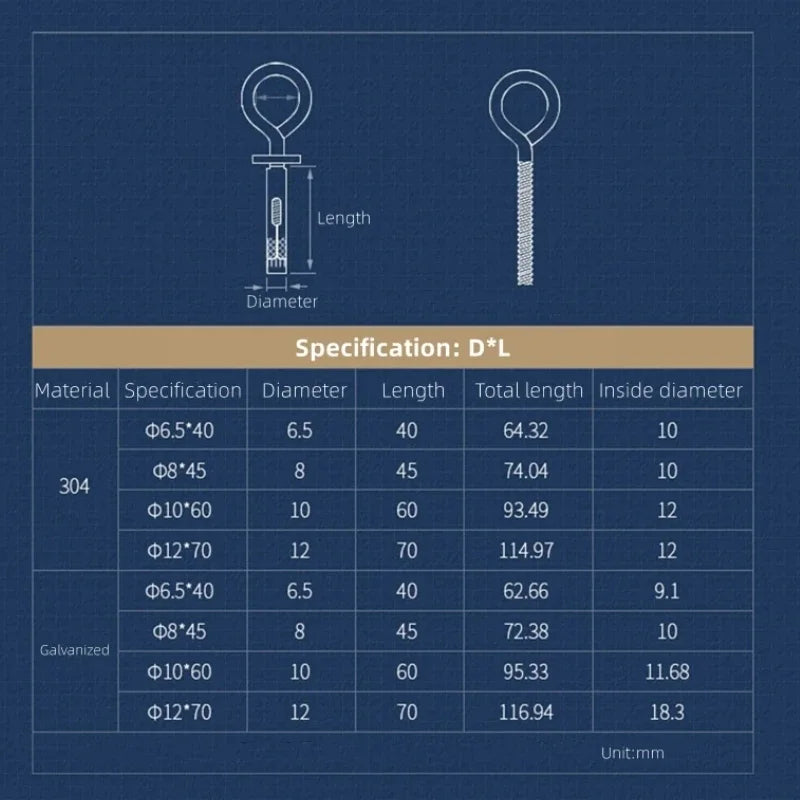

Specifications

Common Applications

• Pendant and chandelier lamp hanging
• Indoor/outdoor swing and hammock mounting
• Rope, chain, and cable anchor points
• Ceiling-mounted pull-up bars and fitness equipment
• Planter baskets and decorative hanging displays
• Concrete, brick, and masonry wall installations

Related Products You May Like

• 10Pcs No-Drill Non-Trace Screw Hooks – Adhesive Invisible Picture Hanging Kit
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between the 304 stainless steel and galvanized versions?

A: The 304 stainless steel version offers superior corrosion resistance, making it ideal for humid or outdoor environments. The galvanized carbon steel version is a more budget-friendly option with a zinc coating for basic rust protection, suitable for dry indoor use.

Q: How do expansion hook ring screws work?

A: These eye expansion hooks feature a sleeve that expands outward as the screw is tightened. When inserted into a pre-drilled hole in concrete, brick, or masonry, the sleeve grips the surrounding material firmly, creating a strong, load-bearing anchor point topped with an open ring loop for easy attachment.

Q: What size hole should I drill for each hook size?

A: The drill bit diameter should match the screw's nominal metric size — for example, use an 8mm masonry drill bit for an M8 hook. Always refer to the product packaging or listing images for the exact recommended hole diameter per size.

Q: Can these hooks be used outdoors?

A: Yes — the 304 stainless steel variant is well-suited for outdoor use due to its excellent resistance to moisture and the elements. For exposed or coastal environments, stainless steel is the recommended choice over galvanized versions.
