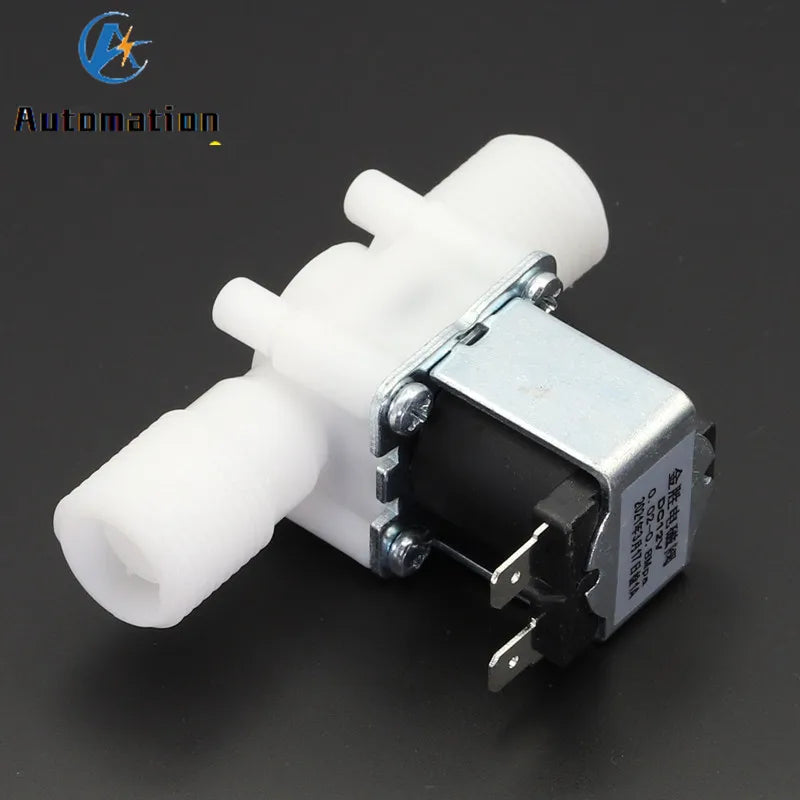

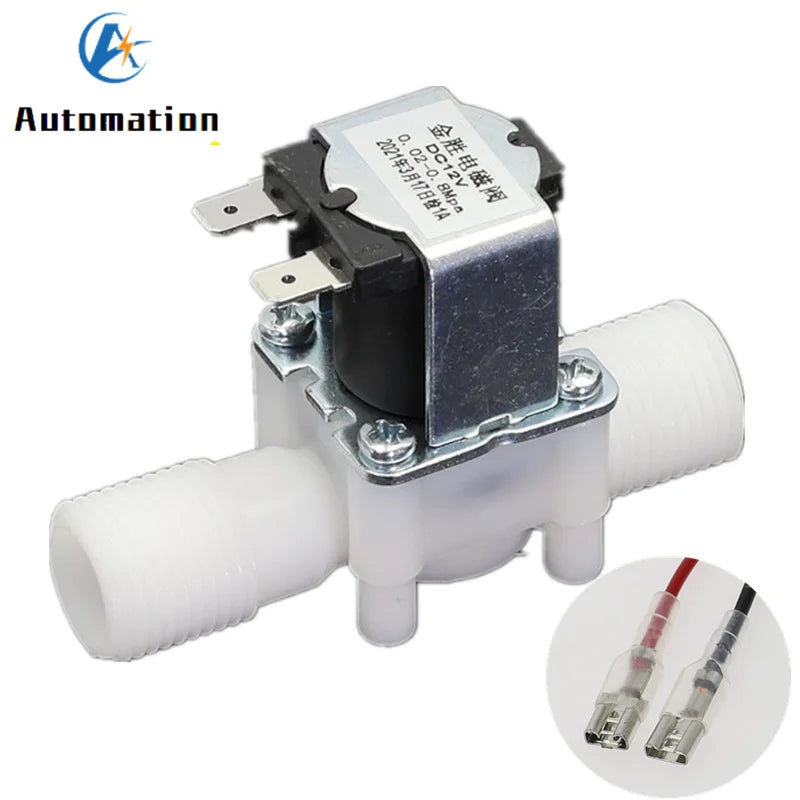

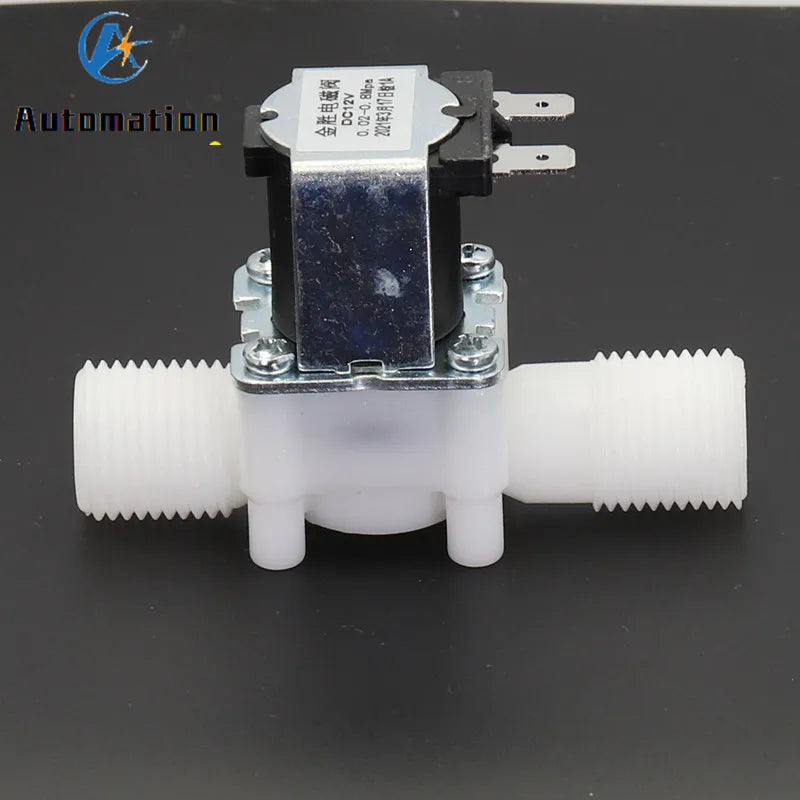

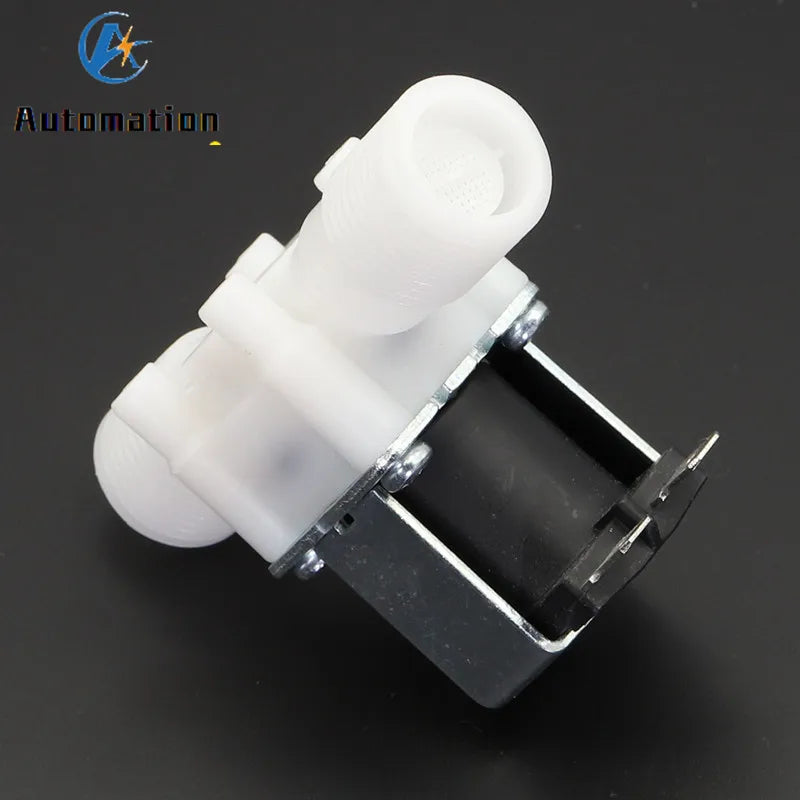

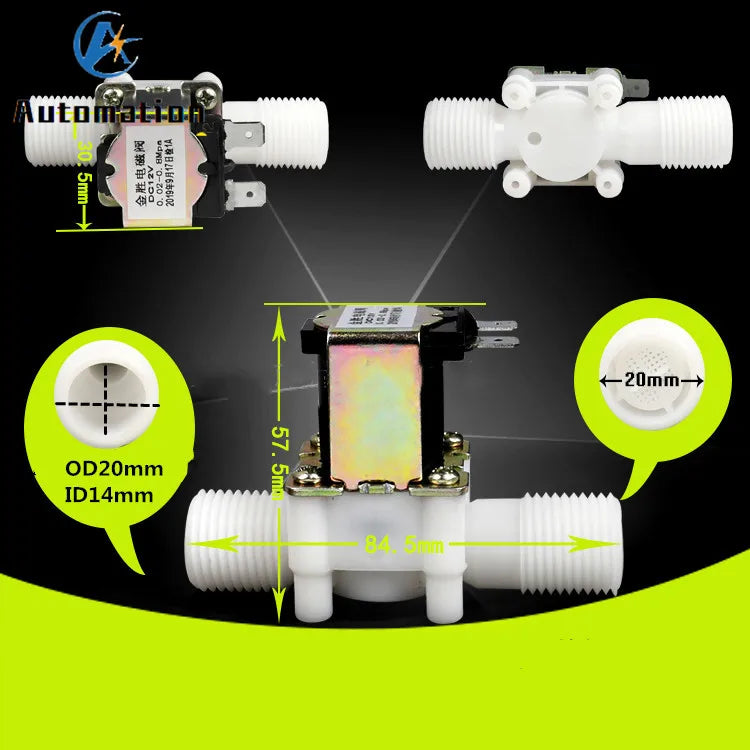

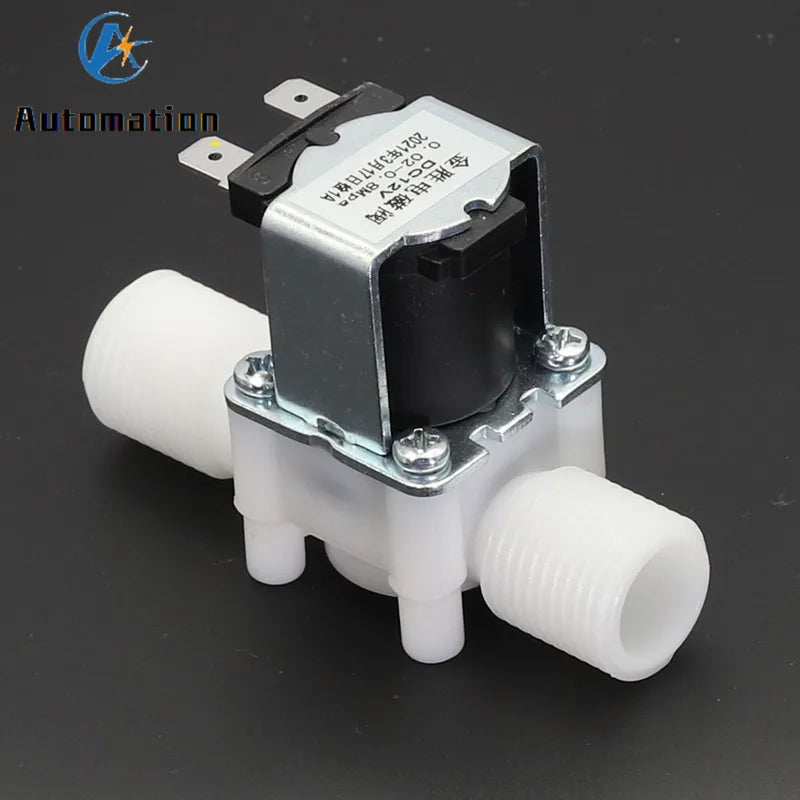

1/2" Plastic Solenoid Water Valve 12V 24V 220V NC/NO G1/2"

1/2" Plastic Solenoid Water Valve — 12V, 24V & 220V | Normally Open or Normally Closed

Take precise control of your water flow with this versatile G1/2" plastic solenoid valve. Available in multiple voltages (DC 12V, DC 24V, AC 220V) and both Normally Closed (NC) and Normally Open (NO) configurations, this valve is ideal for water dispensers, irrigation systems, washing machines, water purifiers, and more. The compact plastic body is lightweight yet durable, and the adjustable coil makes installation easy in tight spaces.

Made in Mainland China.

Two Valve Types — Choose What You Need

• Pressure Type (Inlet Water Valve): Suitable for water pressure 0.02–0.8 MPa. Includes a built-in filter. Ideal for pressurized water supply lines.
• Non-Pressure Type (Drain Water Valve): Suitable for water pressure 0–0.02 MPa. No filter included. Ideal for draining and gravity-fed systems.

Note: AC 220V non-pressure type may produce audible noise and slight vibration during operation. Please consider this before purchasing.

Custom voltages (AC 110V, AC 24V, AC 12V, DC 6V) are available on request — contact us before ordering.

Key Specifications

Flow Characteristics (Pressure Type)

• At 0.02 MPa → 2 L/min
• At 0.3 MPa → 8 L/min
• At 0.8 MPa → 20 L/min

What's in the Box

• 1× Solenoid Valve
• 2× 6.3mm Terminals (10cm length) — included free

Common Applications

• Water dispensers & purification systems
• Automated garden irrigation
• Washing machines & dishwashers
• Aquariums & hydroponics
• Industrial fluid control systems
• DIY electronics & automation projects

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the difference between a Normally Closed (NC) and Normally Open (NO) solenoid valve?

A: A Normally Closed (NC) solenoid valve keeps water flow off when no power is applied, and opens the flow when energized — the most common configuration for on-demand water control. A Normally Open (NO) valve does the opposite: water flows freely when de-energized and stops when power is applied. Choose NC for standard inlet applications and NO for systems that need a fail-safe open flow.

Q: Can I use this solenoid valve with a standard home water supply?

A: Yes — the pressure type (inlet water valve) is rated for 0.02–0.8 MPa, which covers typical residential water supply pressures. The G1/2" thread (20mm) is a standard pipe fitting size. It is compatible with purified and drinking water but is not suitable for acidic, alkaline, or highly viscous liquids.

Q: Is the coil direction adjustable after installation?

A: Yes. The coil can be rotated relative to the valve body at 90°, 180°, 360°, or 720° angles, giving you flexibility to orient the electrical connection in the most convenient direction for your installation without affecting the valve's performance.

Q: What voltages are available, and can I order a custom voltage?

A: Standard in-stock voltages are DC 12V, DC 24V, and AC 220V. Custom voltages including AC 110V, AC 24V, AC 12V, and DC 6V can be manufactured on request — please contact us before placing your order to arrange a custom configuration.
