Pneumatic Cylinder Magnetic Reed Switch CS1 D-Series Sensor

Pneumatic Cylinder Magnetic Reed Switch – CS1 & D-Series

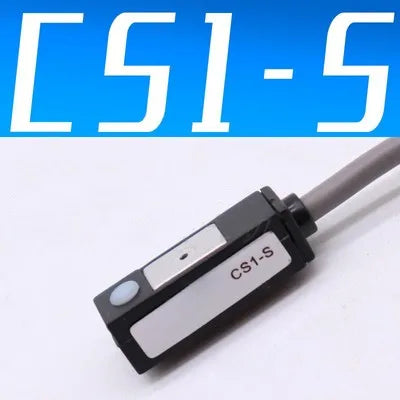

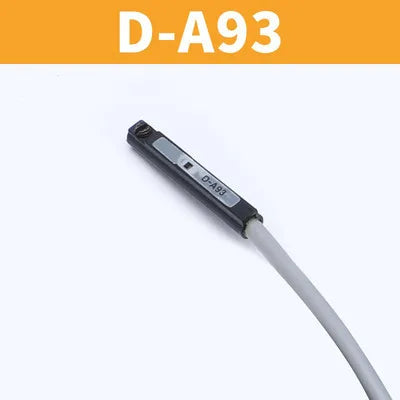

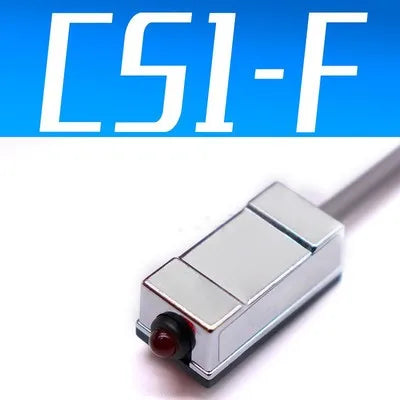

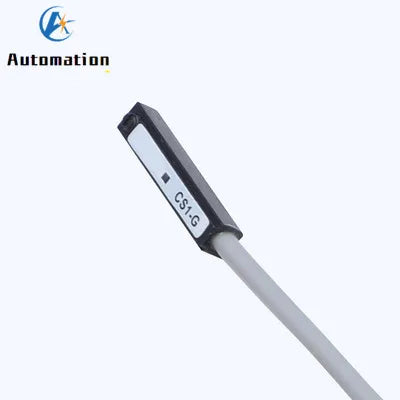

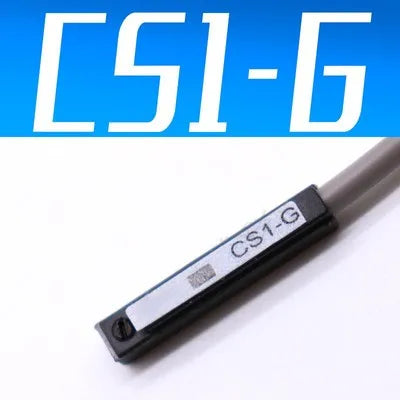

Detect piston position with precision using this wired Magnetic Reed Switch, engineered for pneumatic air cylinders. Compatible with a wide range of popular models — including D-A93, D-Z73, D-A73, D-A54, D-C73, CS1-J, CS1-U, CS1-F, CS1-SC1-G — this sensor switch delivers reliable, contact-based position sensing for automation systems, machinery, and industrial equipment.

Made in Mainland China.

Key Features

• Wide Voltage Compatibility: Operates on DC/AC 5–240V, suiting a broad range of control systems and PLCs.

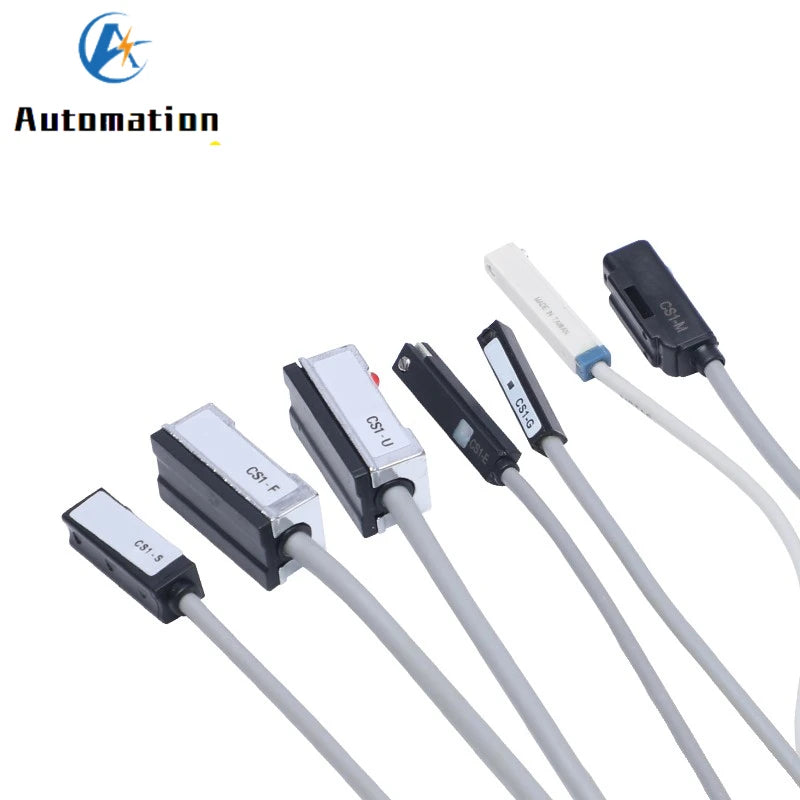

• Multi-Model Fit: Supports D-Series and CS1-Series pneumatic cylinders for versatile application across different equipment setups.
• Durable Construction: Built from robust plastic and aluminum for lasting performance in demanding workshop or factory environments.
• Magnetic Reed Sensing: Contactless internal reed mechanism responds to the cylinder's built-in magnet — no direct contact needed for accurate position detection.
• Simple Wired Installation: Pre-wired leads make connection to your control circuit straightforward and hassle-free.
• Long Service Life: Rated for up to 10,000 operations, ensuring dependable, long-term functionality.
• Compact Design: Low-profile housing mounts easily onto standard cylinder grooves without adding bulk.

Specifications

Related Products You May Find Useful

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Which pneumatic cylinder models is this magnetic reed switch compatible with?

A: This magnetic reed switch is compatible with a wide range of D-Series and CS1-Series pneumatic cylinders, including D-A93, D-Z73, D-A73, D-A54, D-C73, CS1-J, CS1-U, CS1-F, and CS1-SC1-G. Always verify your cylinder's groove type and model number before purchasing.

Q: What voltage range does this sensor switch support?

A: The switch supports both DC and AC power from 5V up to 240V, making it compatible with a broad spectrum of industrial control systems, PLCs, and automation circuits.

Q: How does the magnetic reed switch detect the cylinder's piston position?

A: The reed switch uses a sealed internal reed contact that responds to the magnetic field generated by the piston's built-in magnet. When the piston passes the sensor's mounted position, the magnetic field activates the reed contacts, sending a signal to the control system — no direct mechanical contact is required.

Q: Is installation straightforward for this wired sensor switch?

A: Yes. The switch comes pre-wired and is designed to slide into standard cylinder mounting grooves, making installation quick and simple. Connect the leads to your control circuit and secure the switch in the groove for immediate operation.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
